LÍMIT HOUSE

Atheleia Arquitectura

LEAD ARCHITECT
Salvador Tarradas

COLLABORATORS
J. Roldán

STRUCTURE
Blázquez-Guanter

DESIGN TEAM
Borja Fernández

QUANTITY SURVEYOR
J.M. Paniagua

MANUFACTURERS
Technal, Arkoslight, Cortinsa, SCHUTZ, Saitra, WATERCOTTE

AREA
208 m²

YEAR
2021

LOCATION
Sant Julià De Ramis, Spain

CATAGORY
Houses, Sustainability

English description provided by architect.

Límit House
© Andrés Arias - Documenta Studio
Límit House
© Andrés Arias - Documenta Studio

The house is located in the north of Catalonia, among the gentle valleys of the first elevations of the hills between the regions of Pla de l'Estany and Gironès.

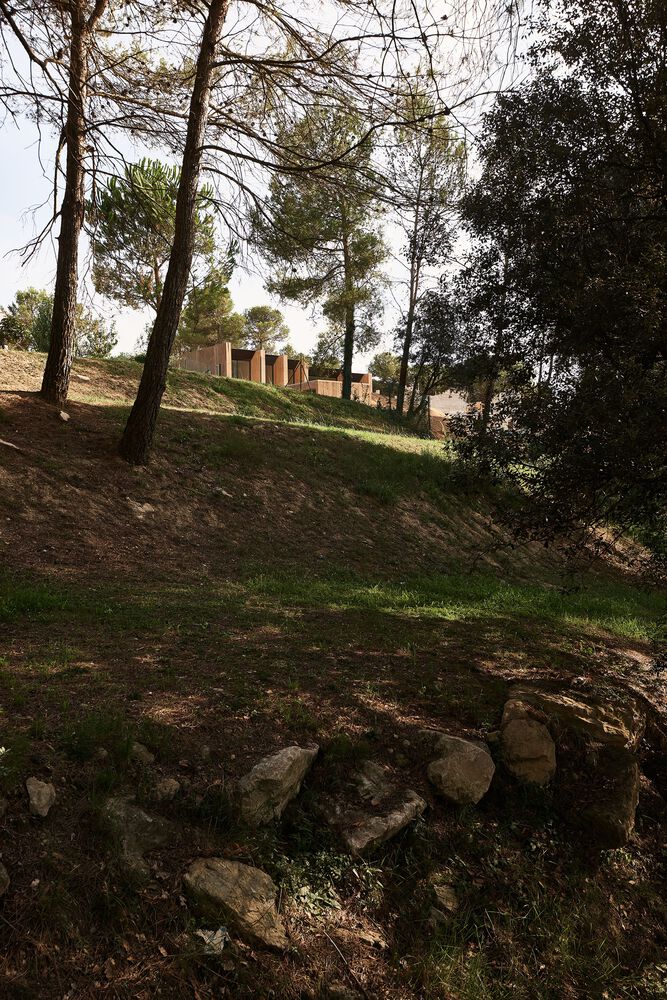

The house sits on the edge between the hill and the valley with views over a cool and deep ground, surrounded by pine trees and holm oaks.

Límit House
© Andrés Arias - Documenta Studio
Límit House
© Andrés Arias - Documenta Studio

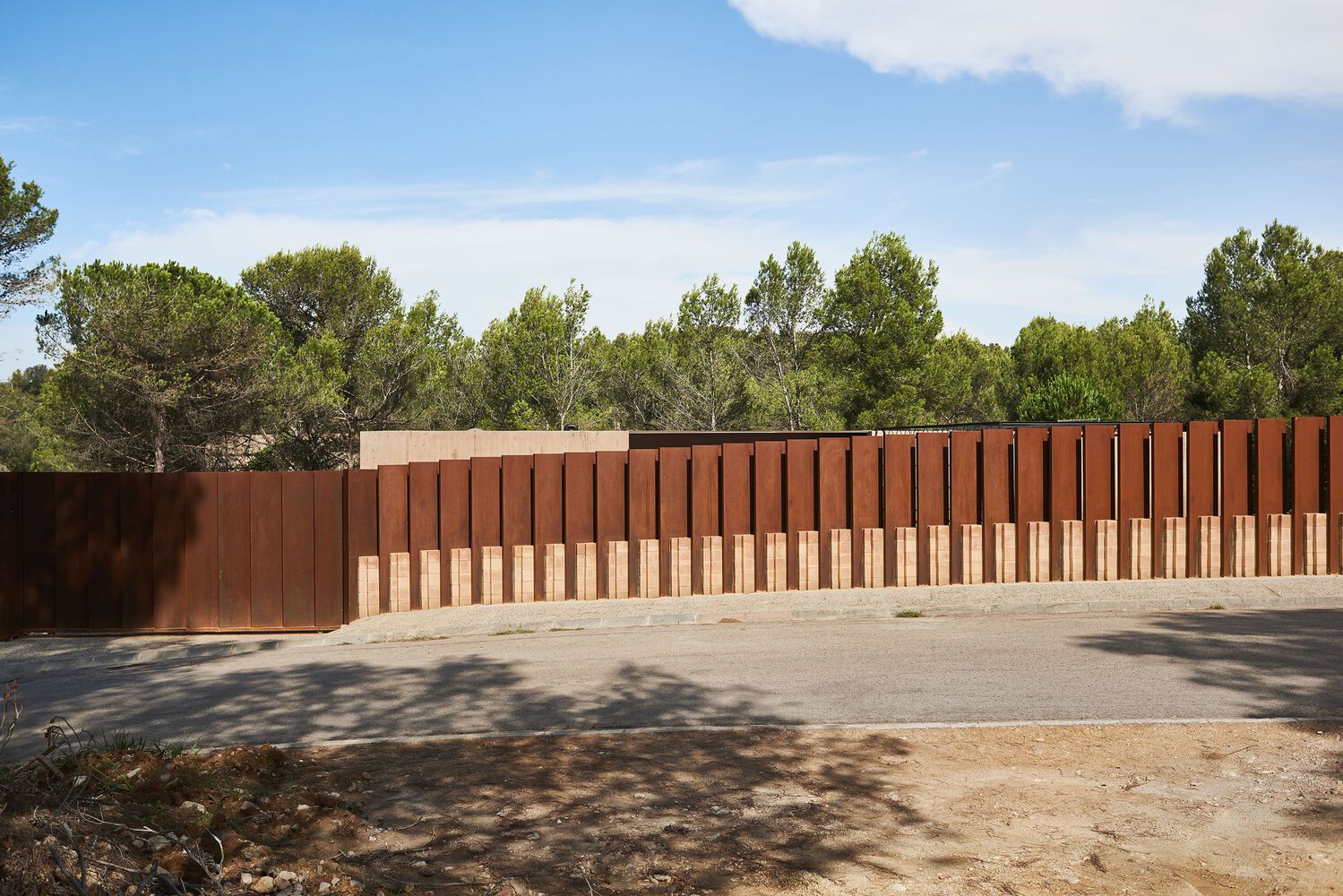

The property has a steep slope between the entrance, on the south side, and the bottom of the plot, on the north side.

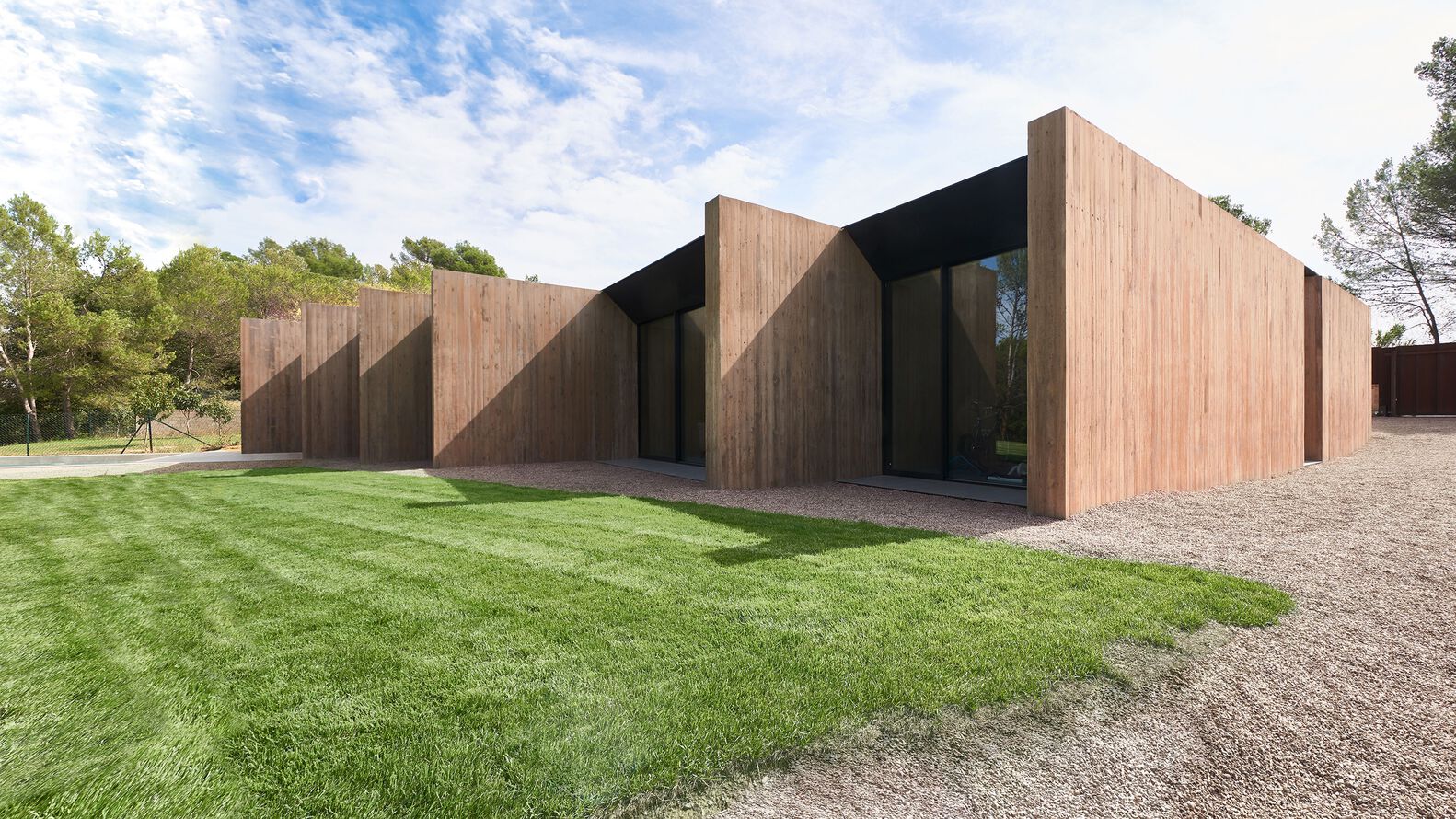

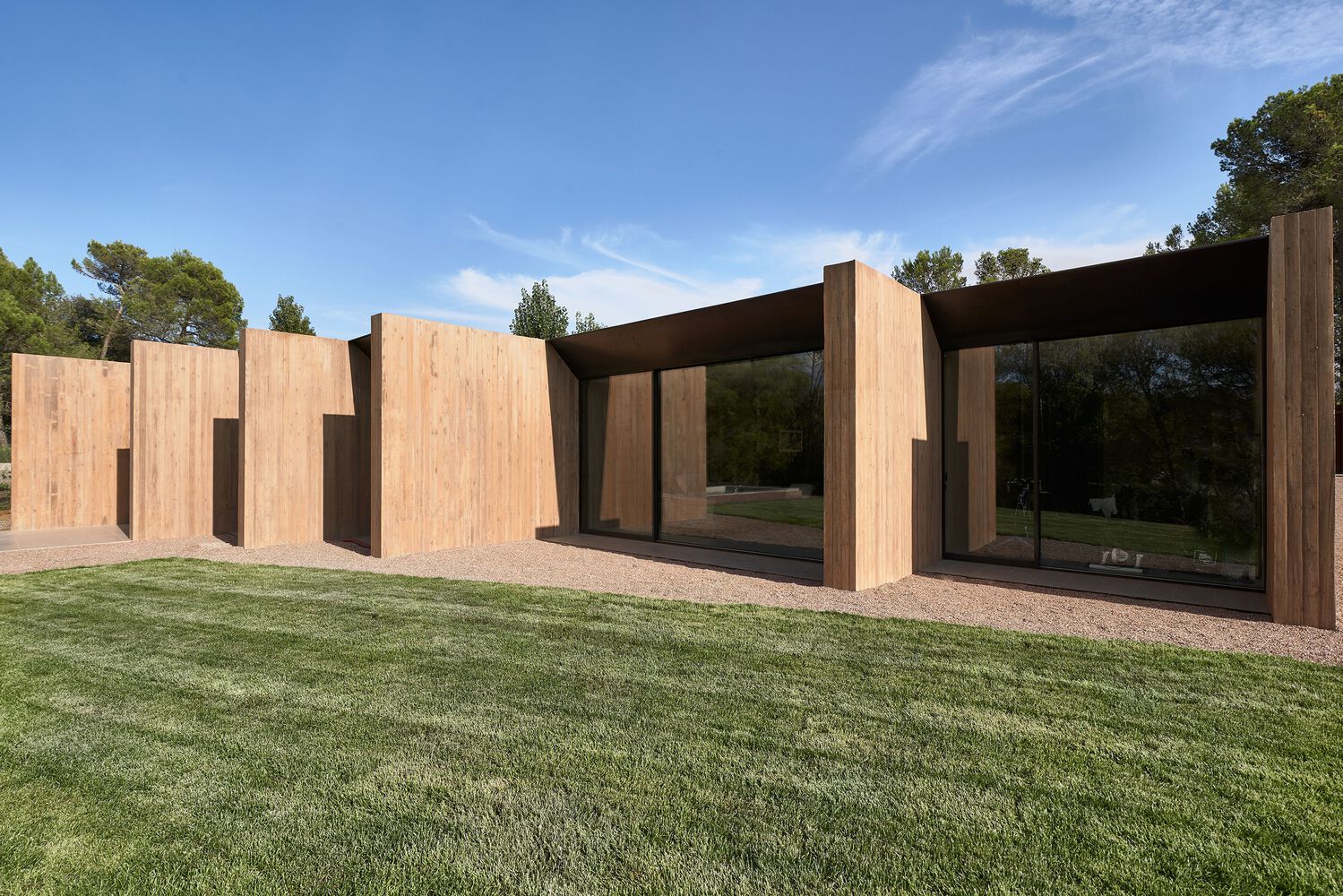

The composition of the house arises from a series of parallel walls that enhance the visual connections between the North and the South, bounded by the hill and the valley, between the two gardens of the residence.

Límit House
© Andrés Arias - Documenta Studio
Límit House
© Andrés Arias - Documenta Studio

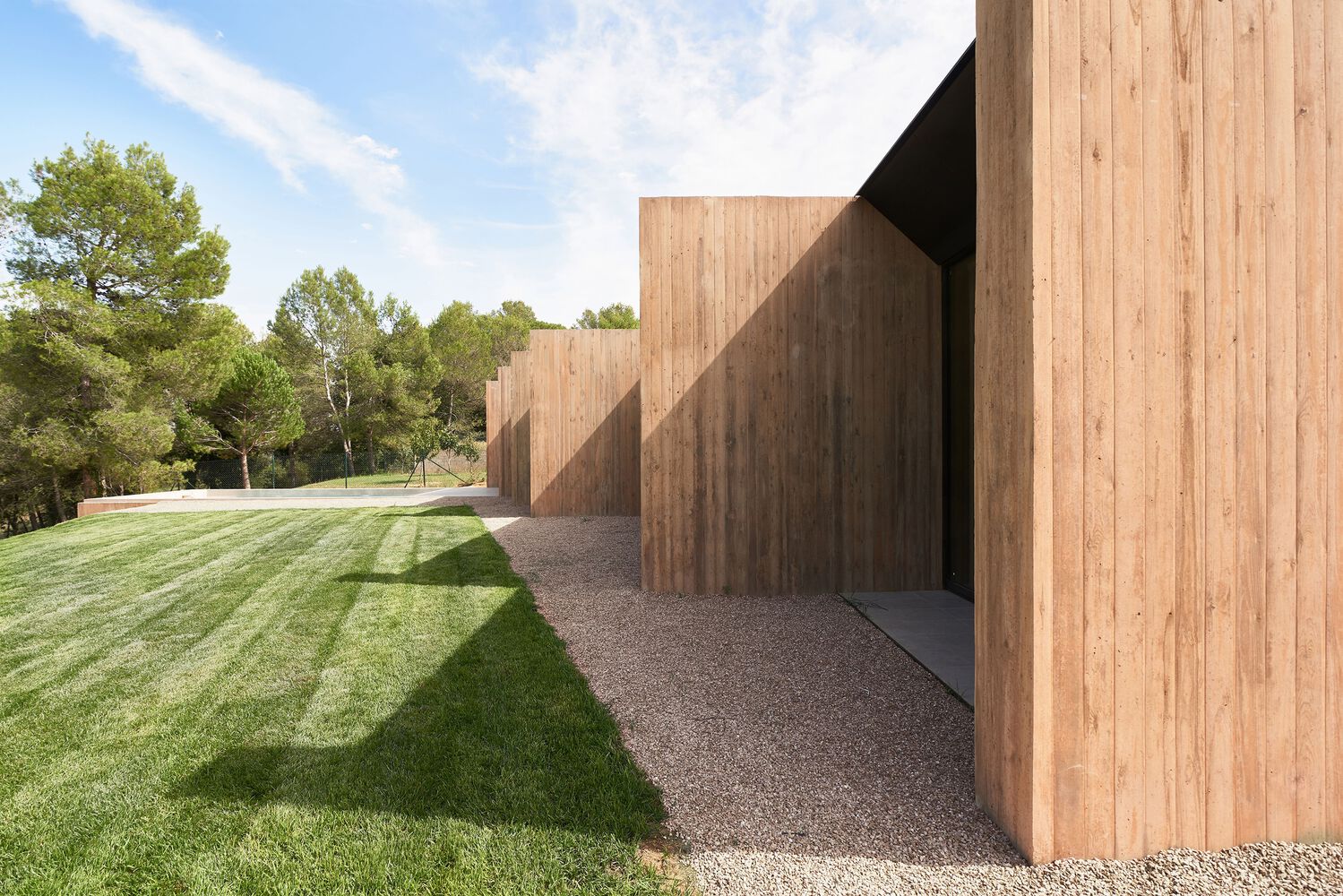

These parallel walls offer privacy with respect to neighboring houses and fold to form the service spaces to generate greater privacy from the street.

At the same time, these walls are conceived as an element integrated into the landscape located on a level below the tops of the pines.

Límit House
© Andrés Arias - Documenta Studio
Límit House
© Andrés Arias - Documenta Studio

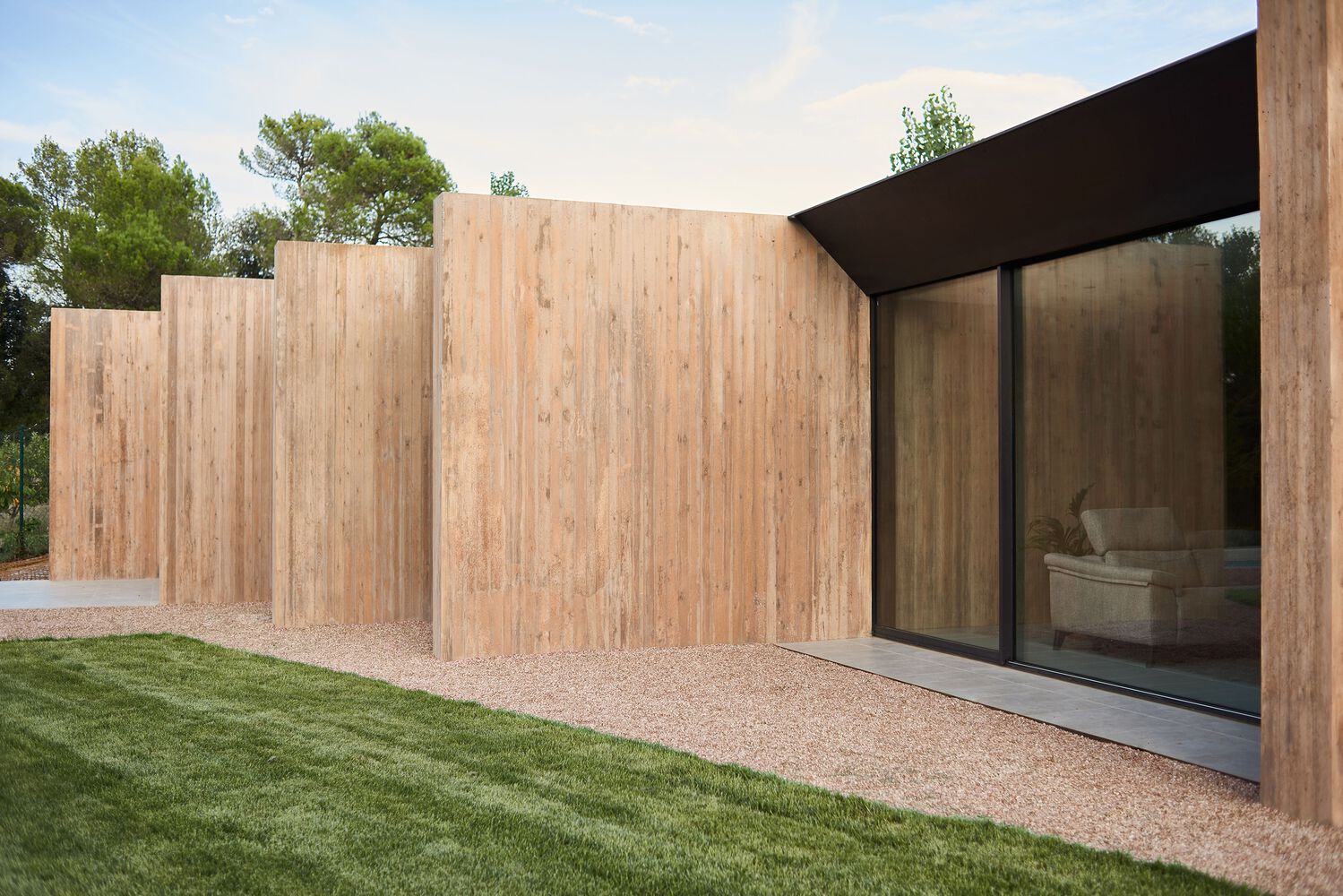

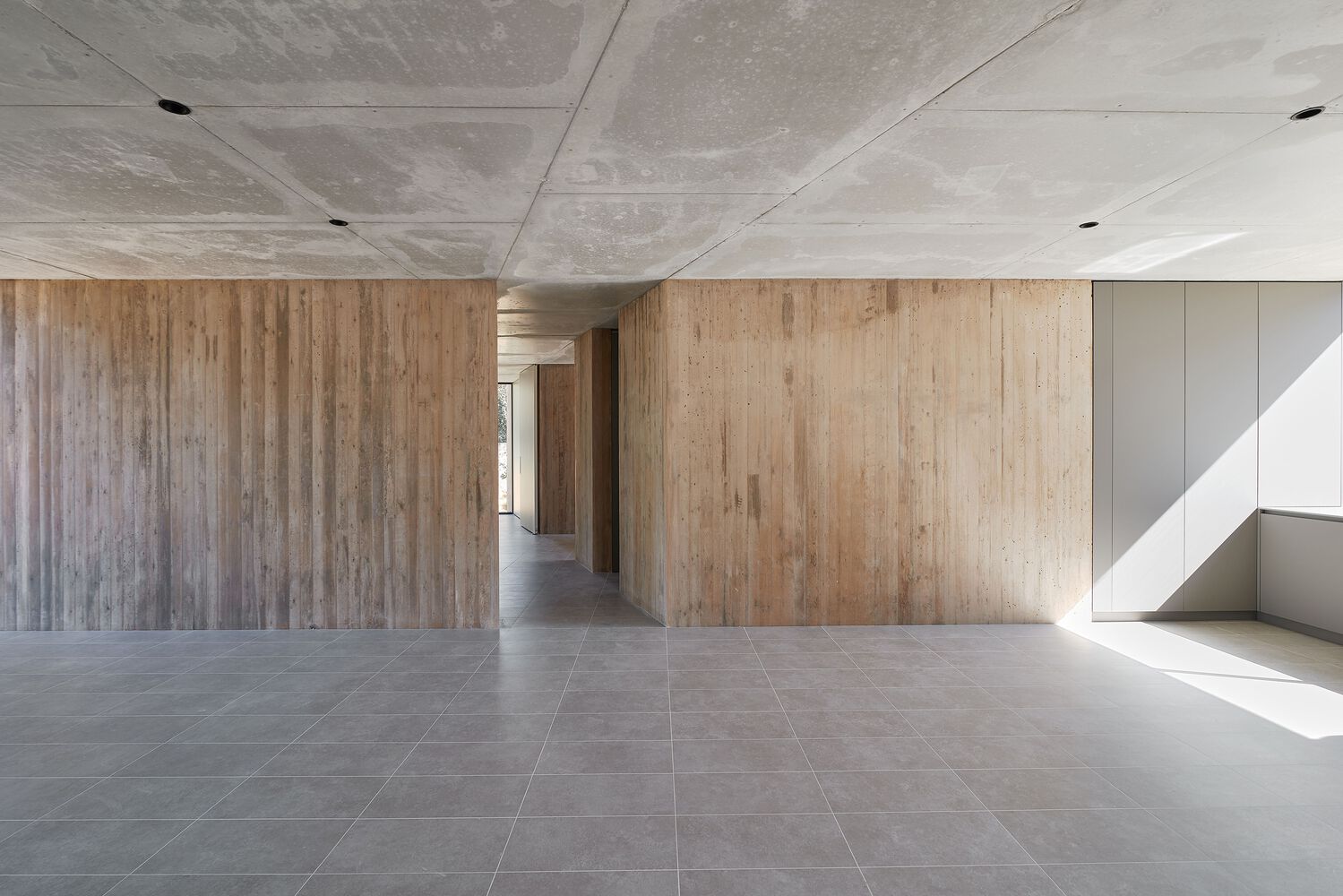

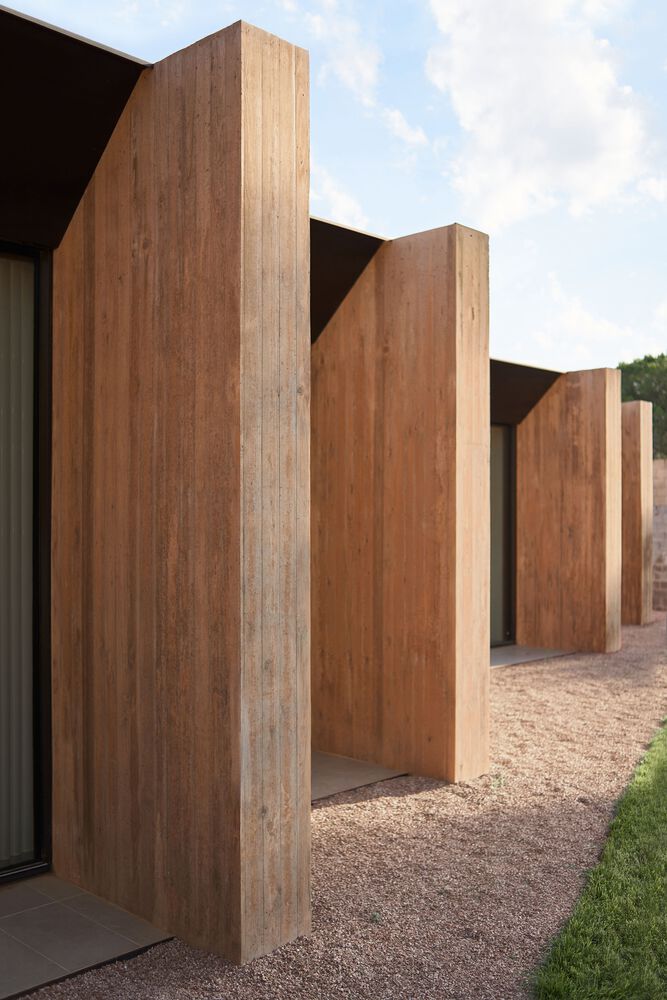

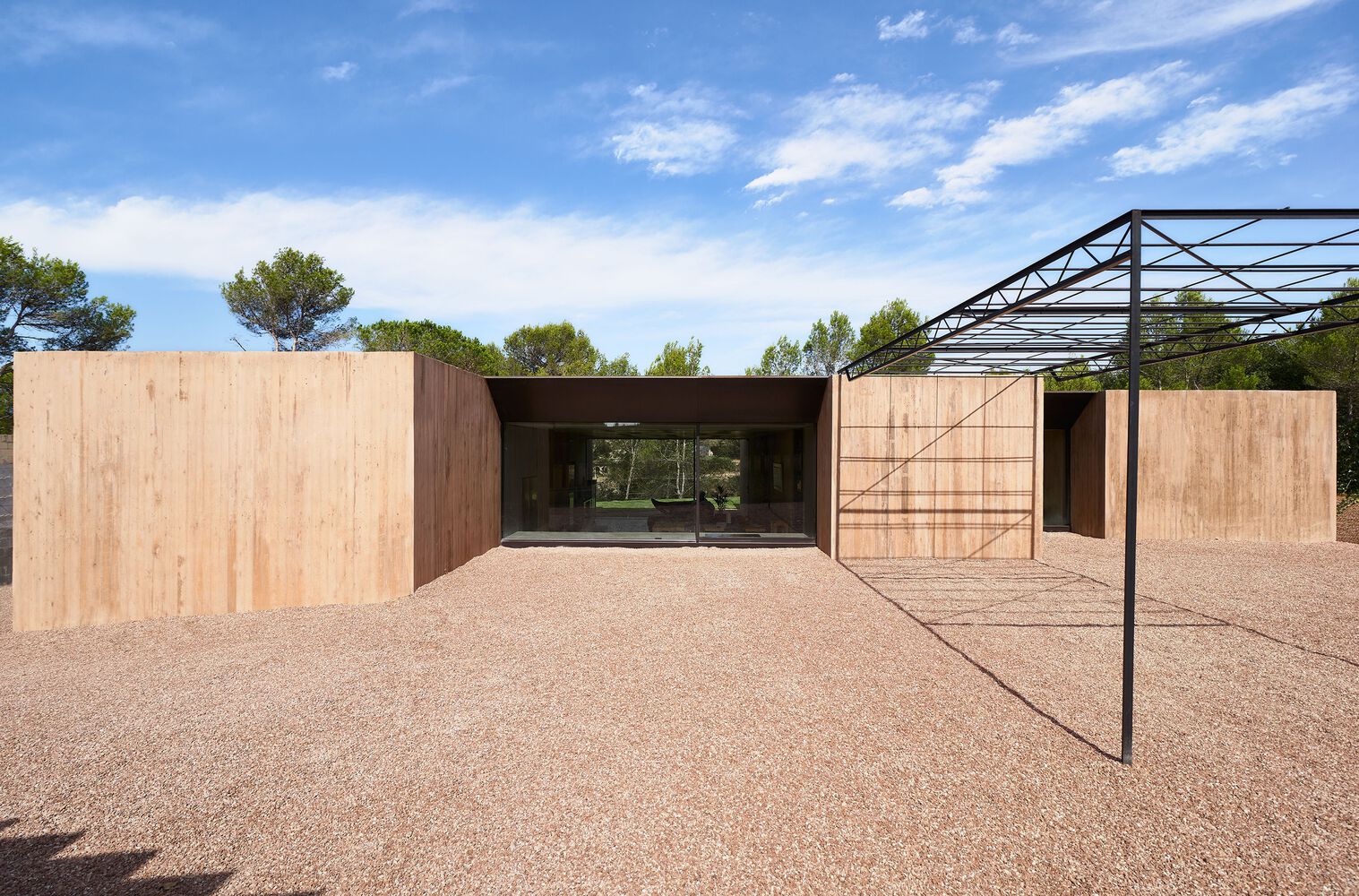

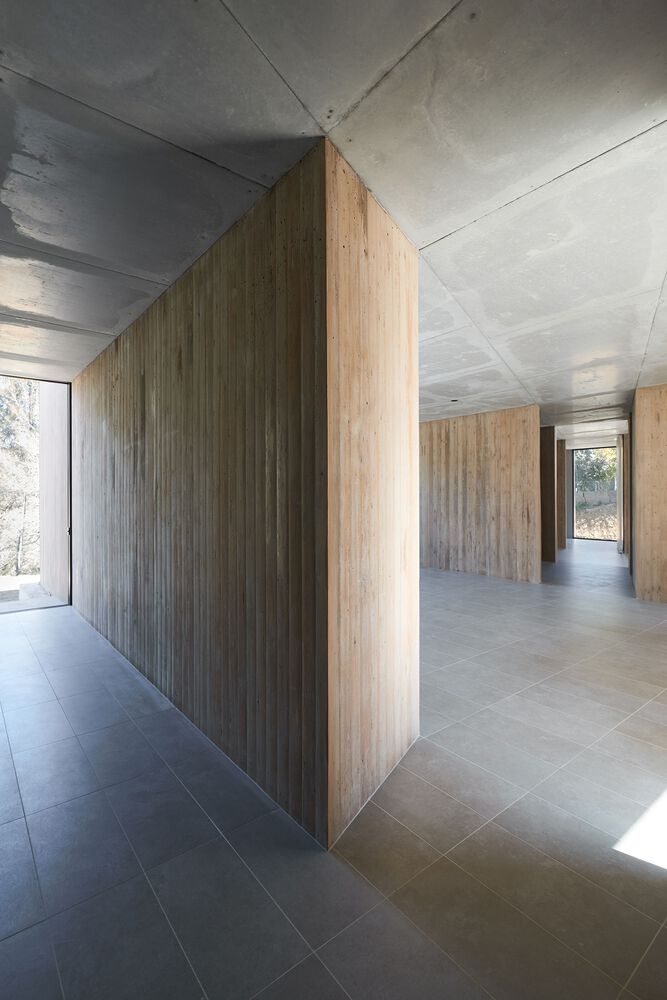

This structure materializes in the concrete of an earthy color with a vertically jointed formwork that dialogues with the surrounding trees.

The parallel organization of the walls intersects with a diagonal axis that arises from the orography of the location, creating the shape of the facades and the flow of the interior.

Límit House
© Andrés Arias - Documenta Studio
Límit House
© Andrés Arias - Documenta Studio

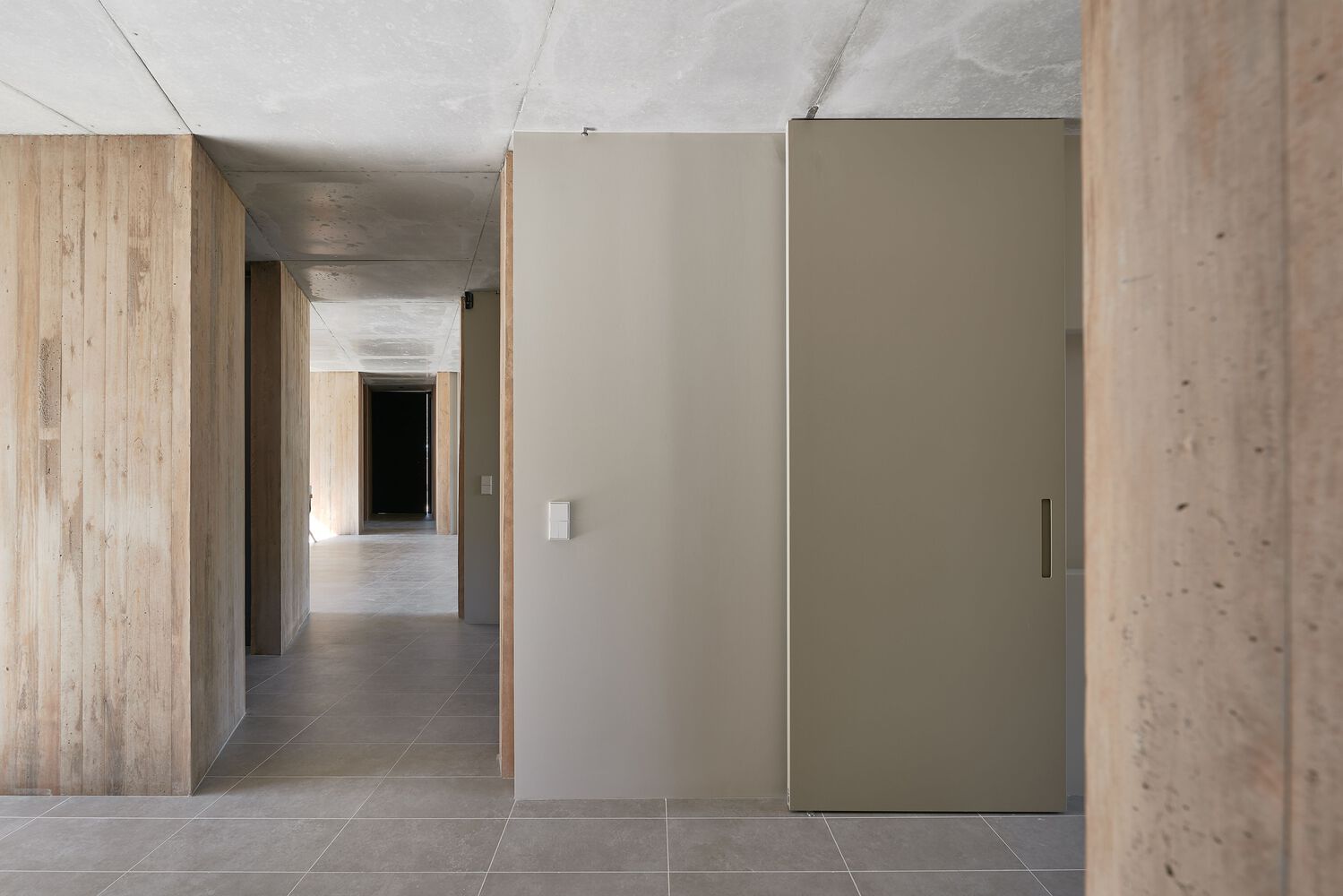

The floor is divided into five parallel parts that are related to each other following the geometry of the diagonal axis, generating different quality spaces both inside and outside.

The first module contains the gymnasium and amenities; the second contains the living room, kitchen, and dining room.

Límit House
© Andrés Arias - Documenta Studio
Límit House
© Andrés Arias - Documenta Studio

The third and fourth spaces include rooms for the little ones, two bedrooms, a games room, and a bathroom space.

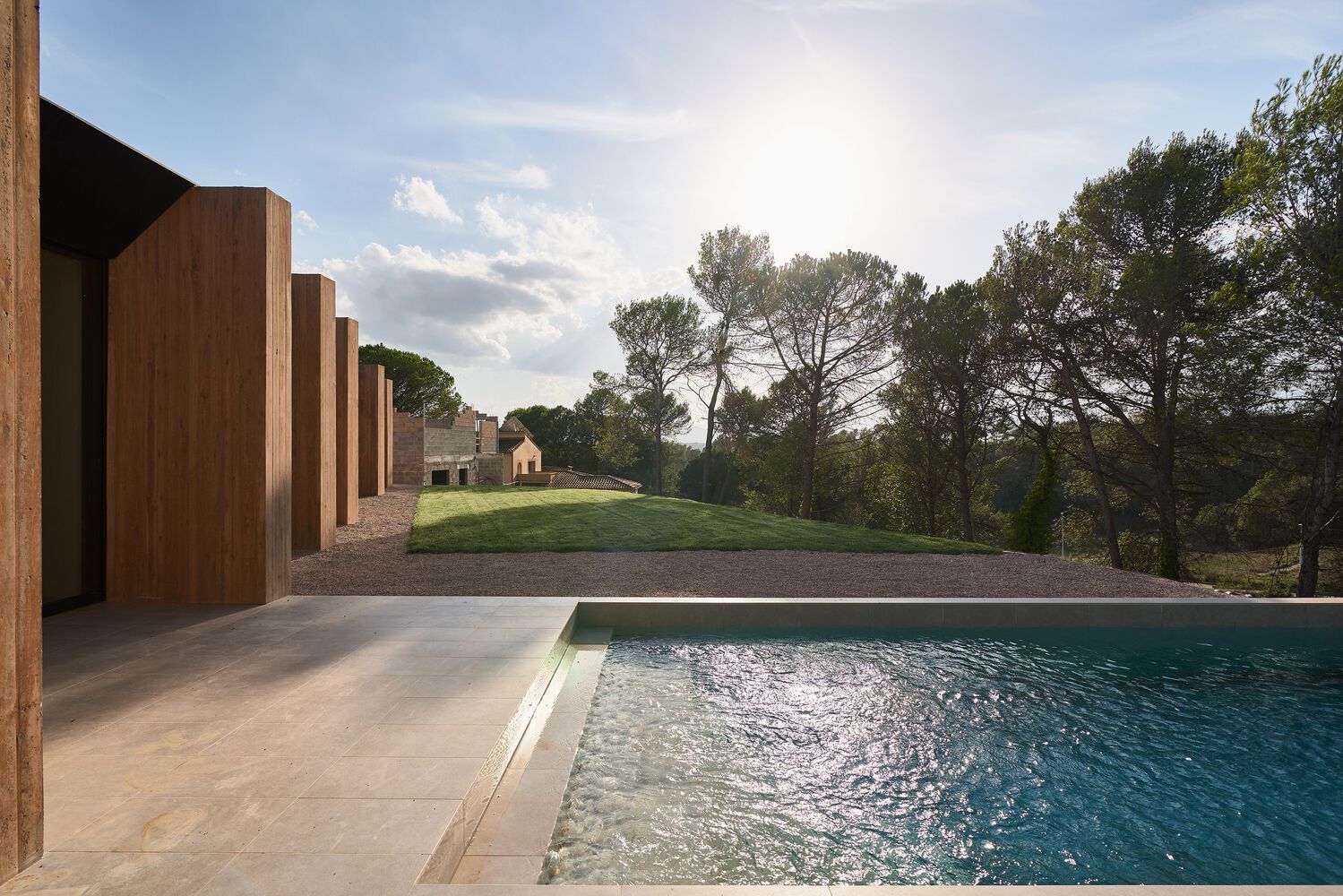

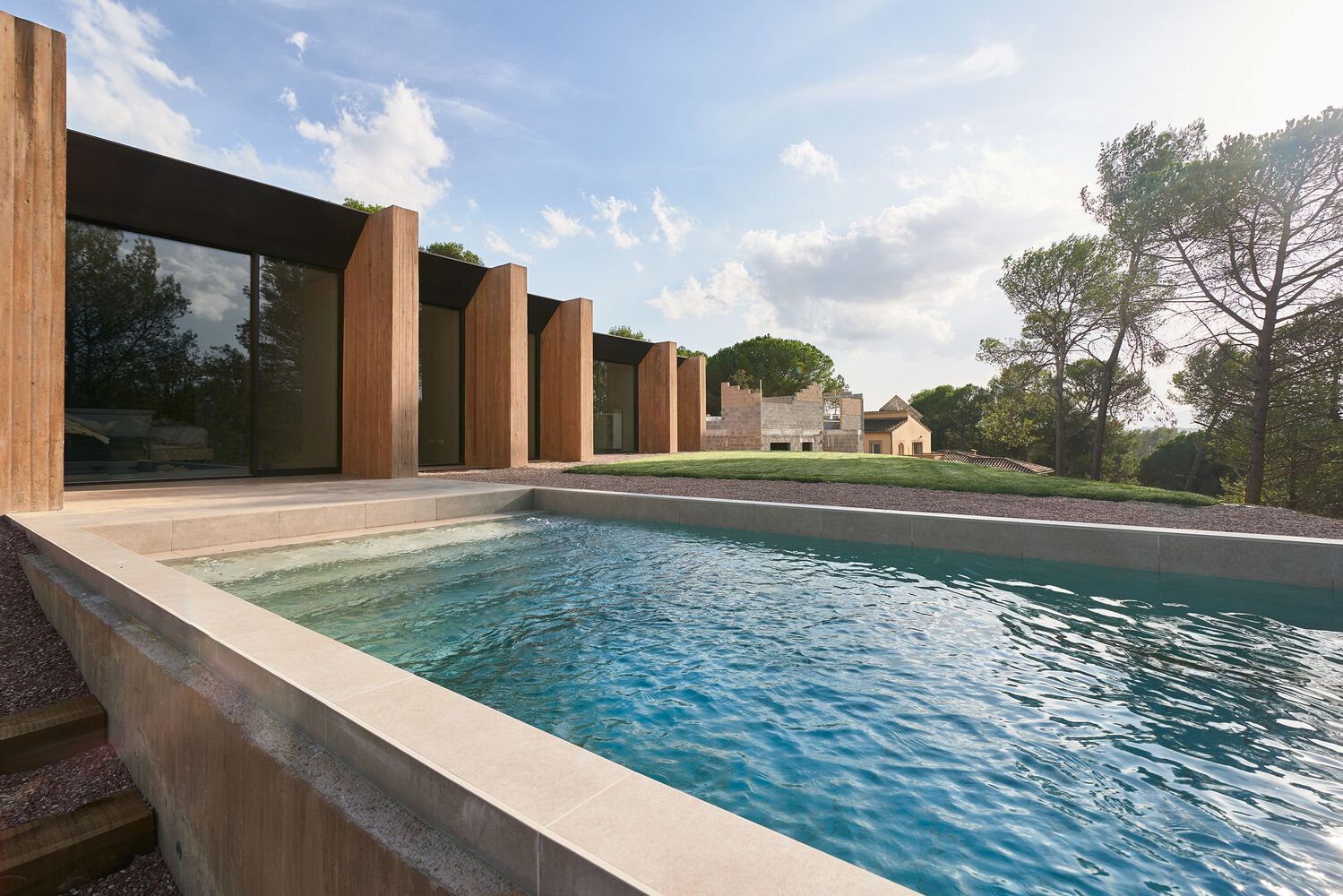

The last module contains the main bedroom, a bathroom, and a dressing room for the parents, with the exterior look facing the pool space.

Límit House
© Andrés Arias - Documenta Studio
Límit House
© Andrés Arias - Documenta Studio

The sustainability criteria have been taken into account during the process of conception and construction of the house.

It has been designed with low energy consumption and low emissions, with an aerothermal system as the source for air conditioning, integrating an air renewal system with a heat recovery unit.

Límit House
© Andrés Arias - Documenta Studio
Límit House
© Andrés Arias - Documenta Studio

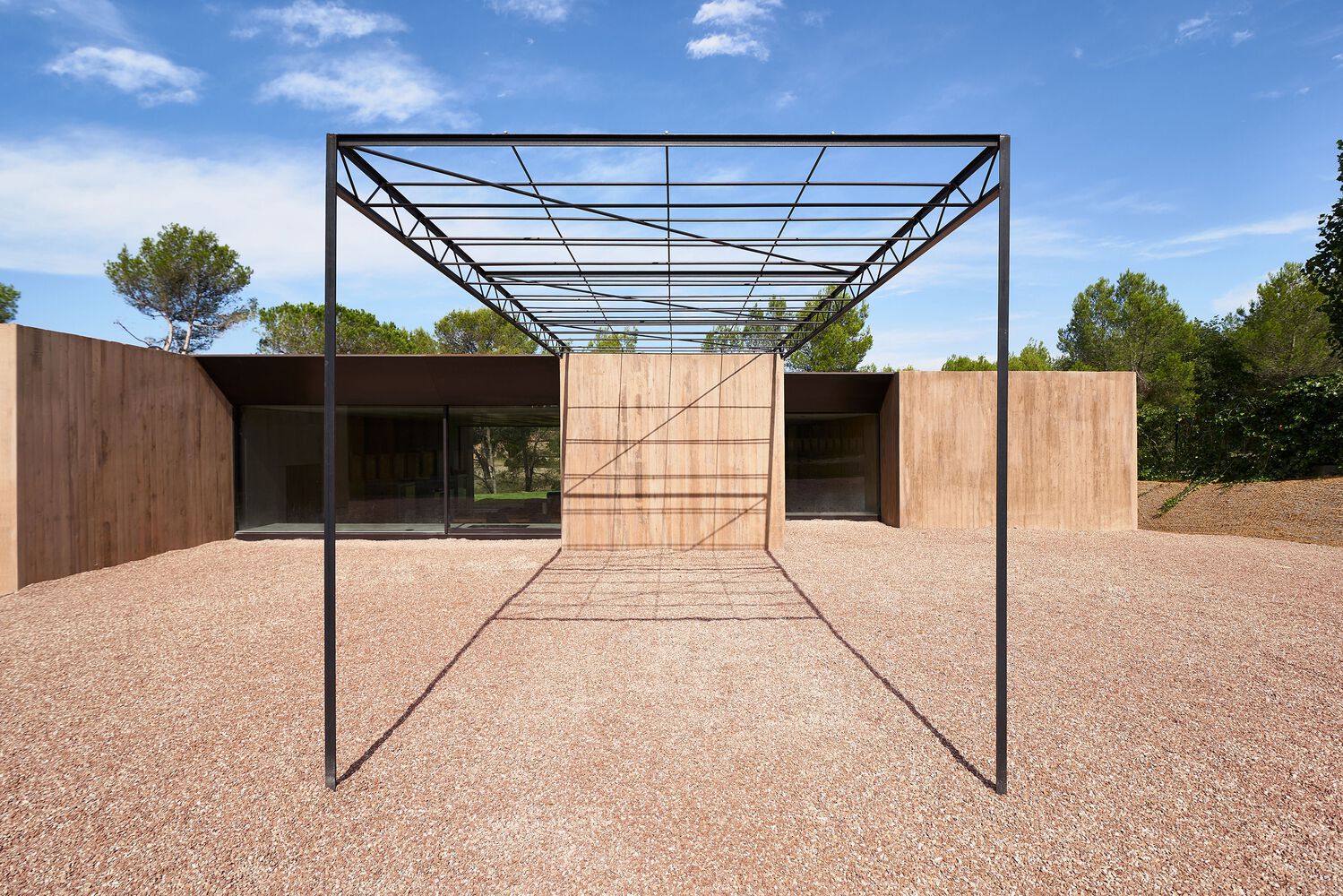

Other passive energy design criteria have included the use of porches to protect the openings from solar incidence and using cross vents.


Límit House
© Andrés Arias - Documenta Studio
Límit House
© Andrés Arias - Documenta Studio
Límit House
© Andrés Arias - Documenta Studio
Límit House
© Andrés Arias - Documenta Studio
Límit House
© Andrés Arias - Documenta Studio
Límit House
© Andrés Arias - Documenta Studio
Límit House
© Andrés Arias - Documenta Studio


Límit House

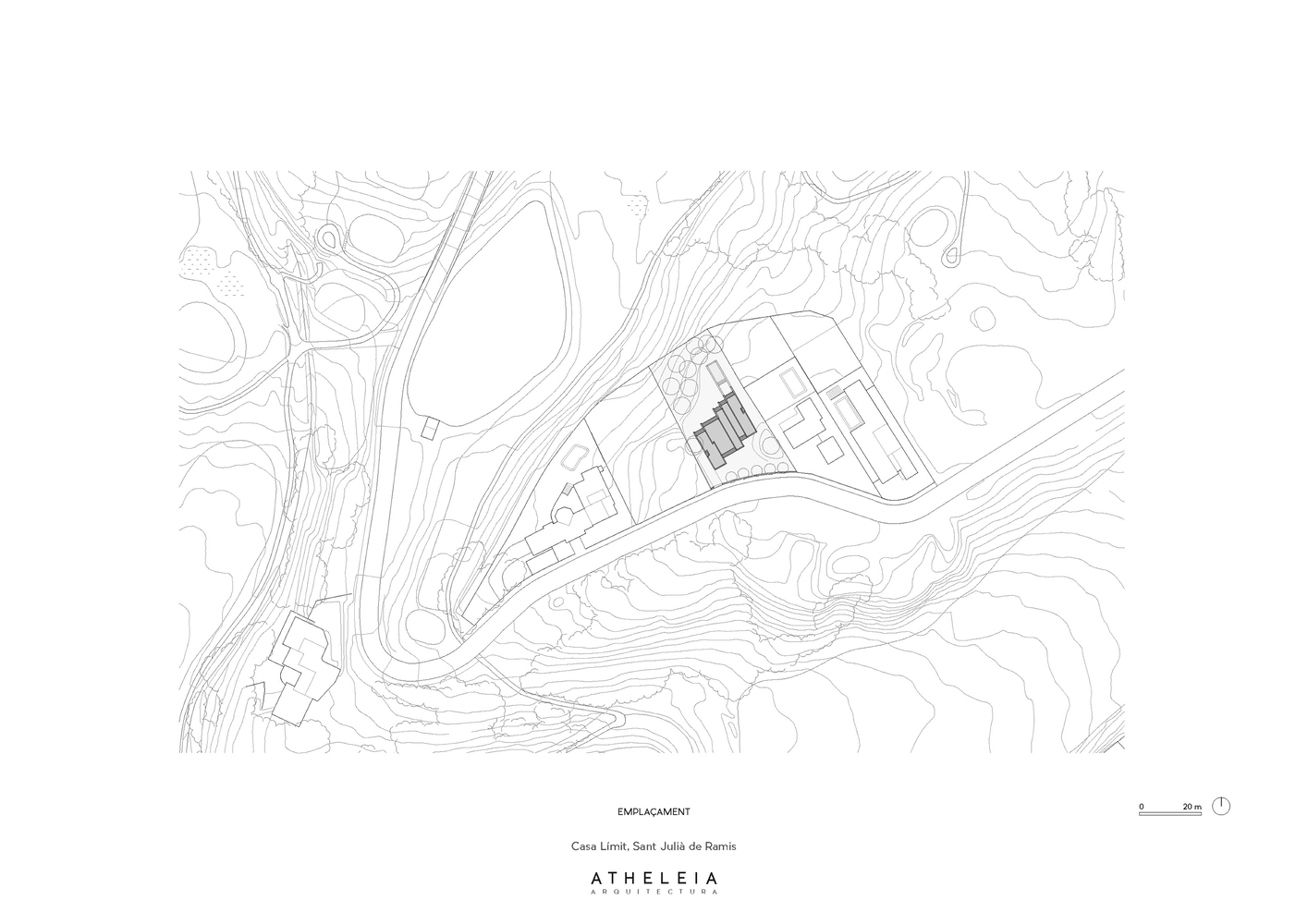

Emplacement
Límit House
Plan - Site
Límit House

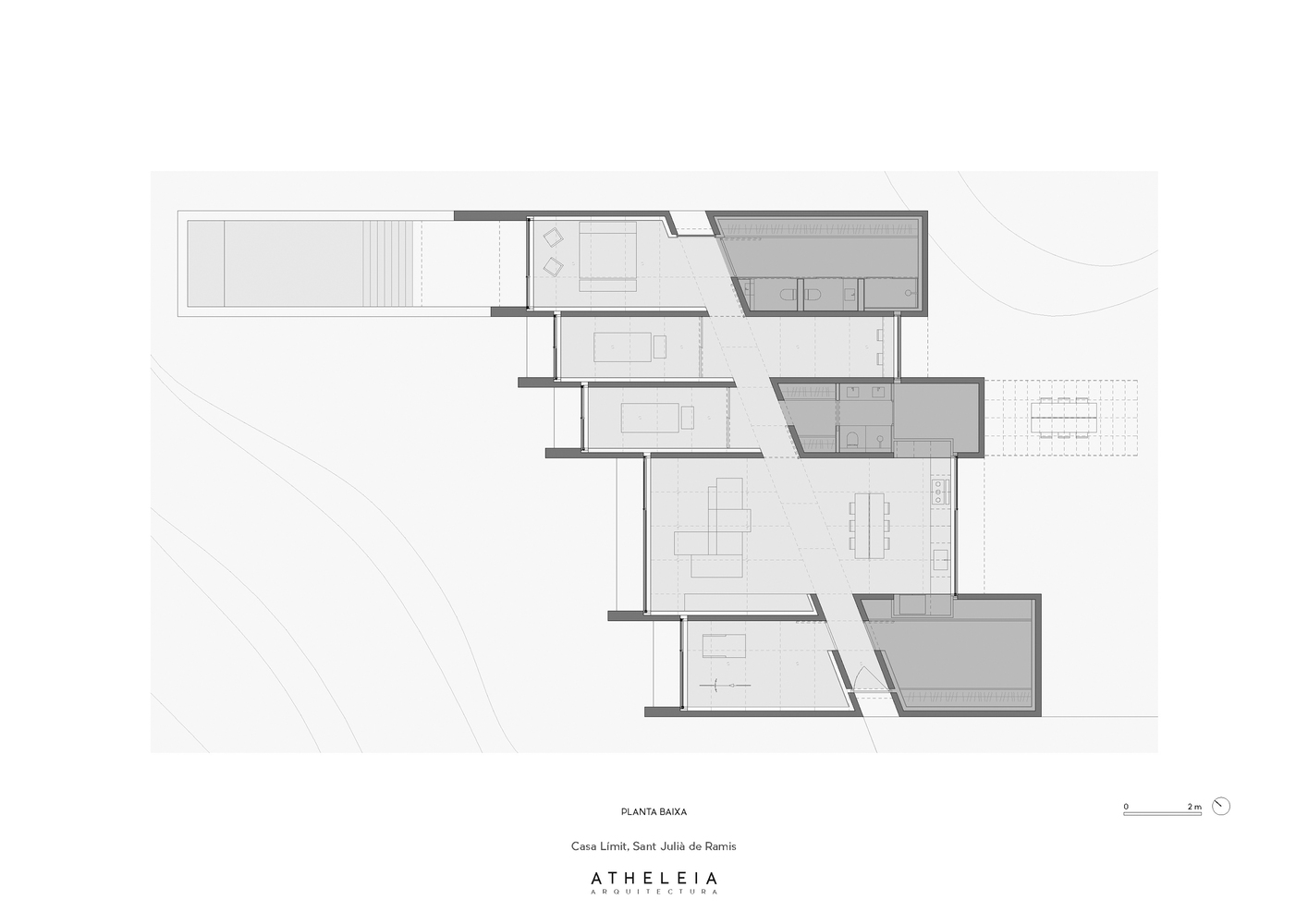

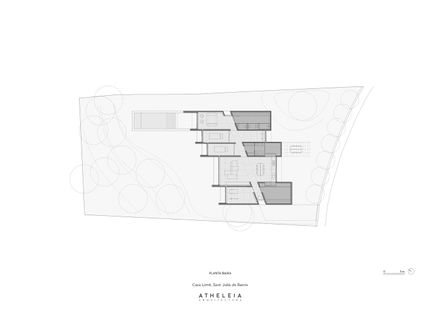

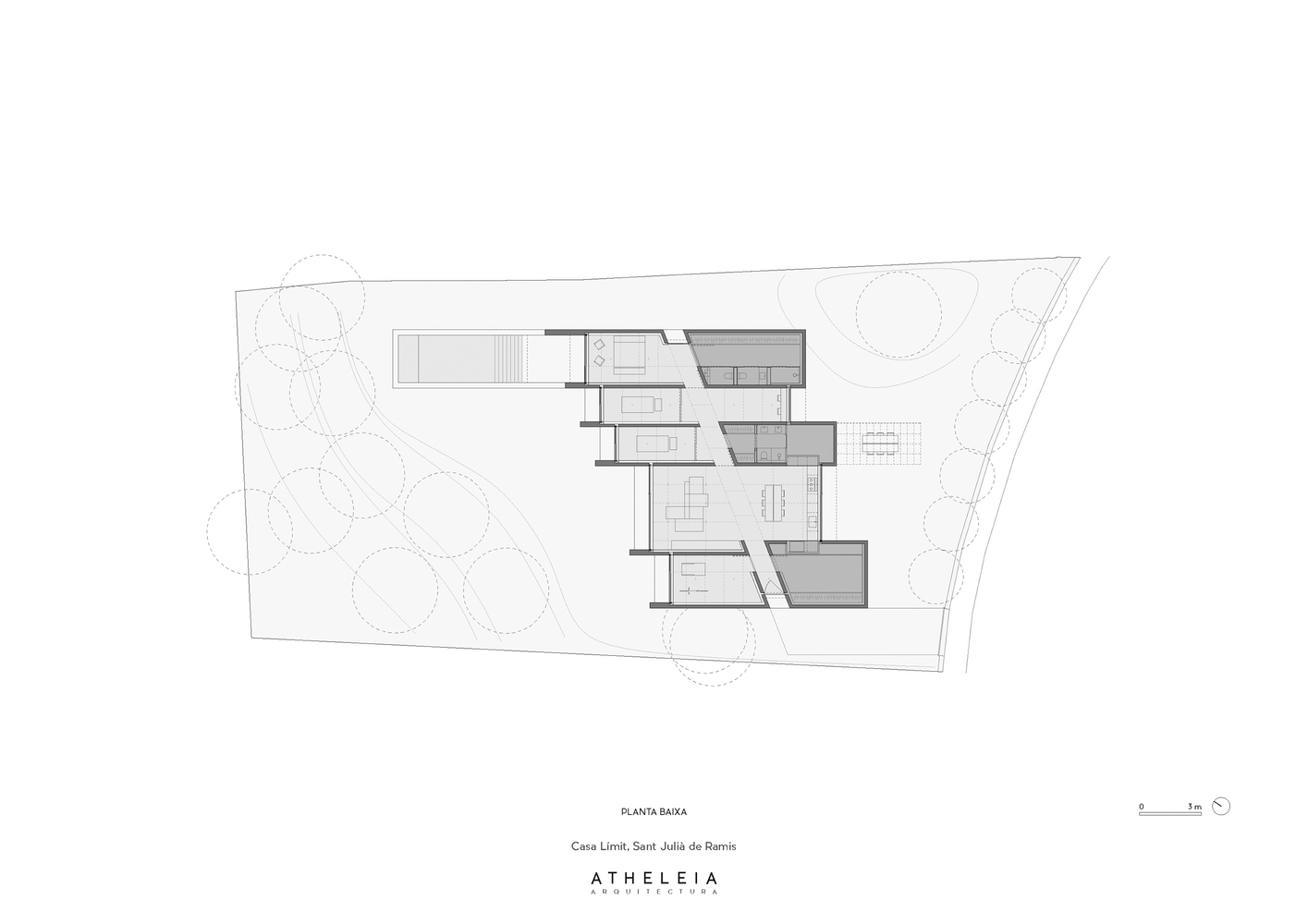

Plan - Ground floor
Límit House

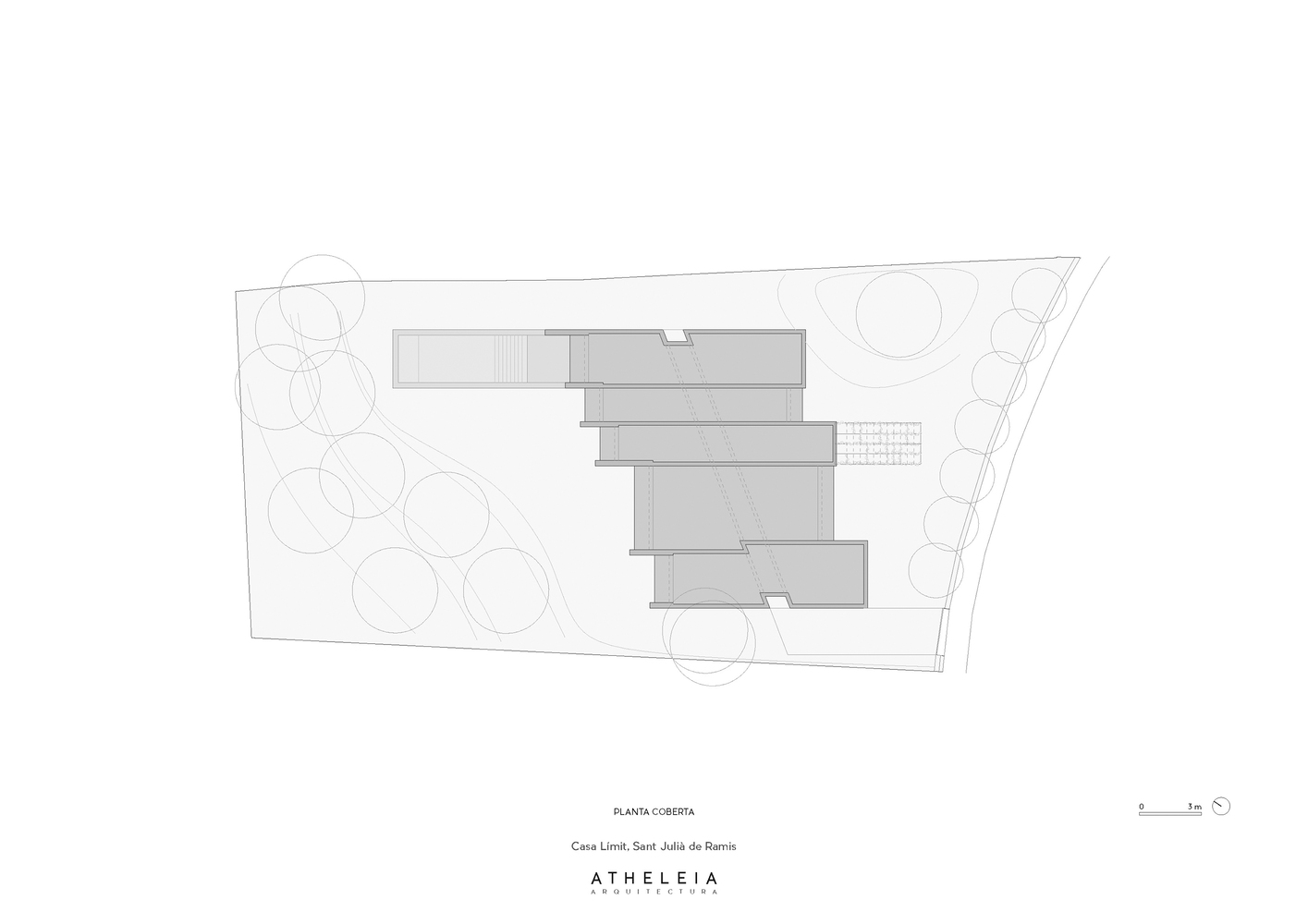

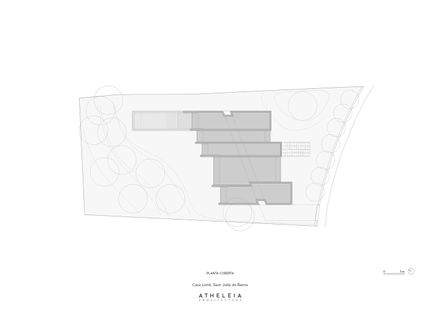

Plan - Roof


Límit House

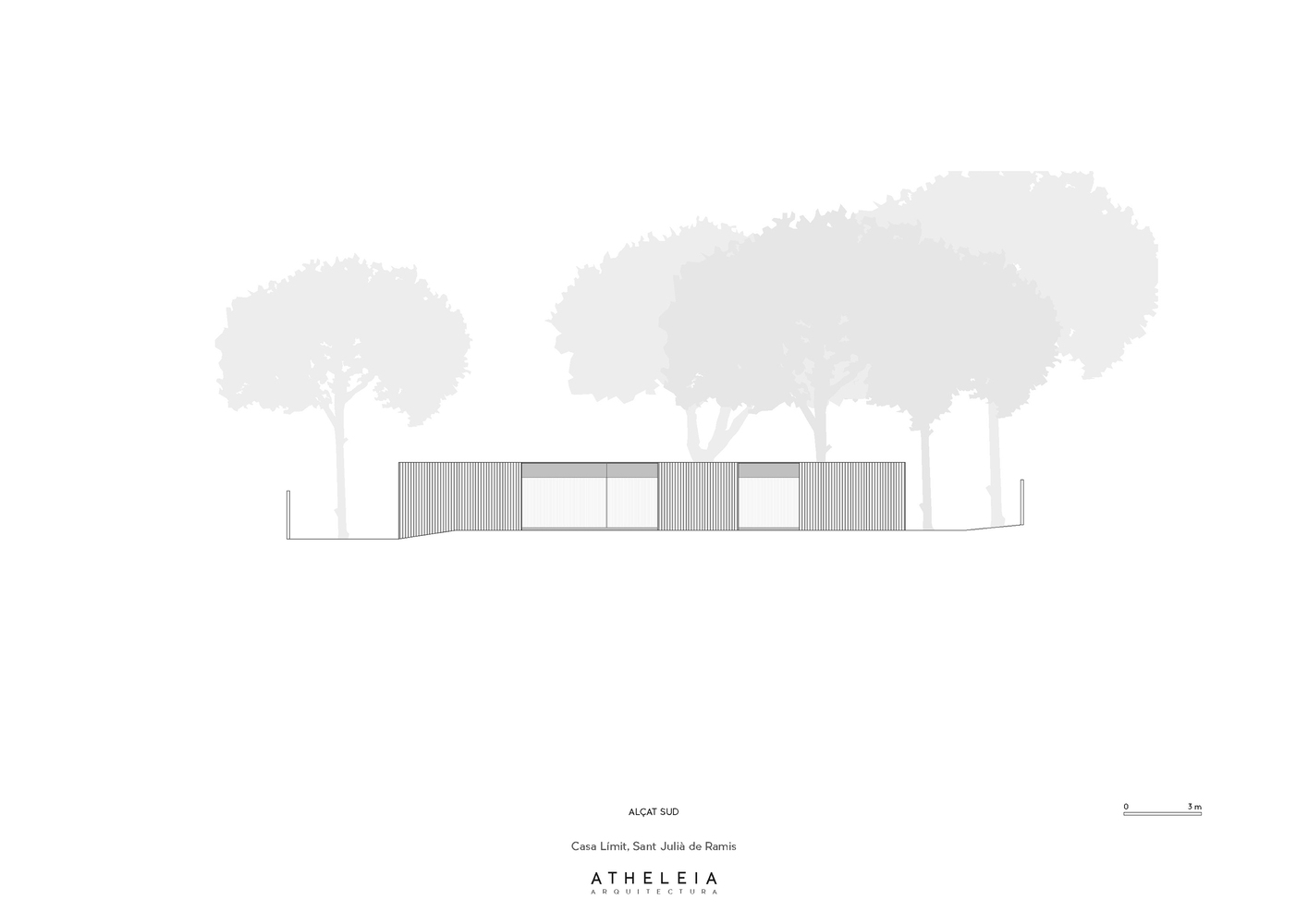

Elevación sur
Límit House

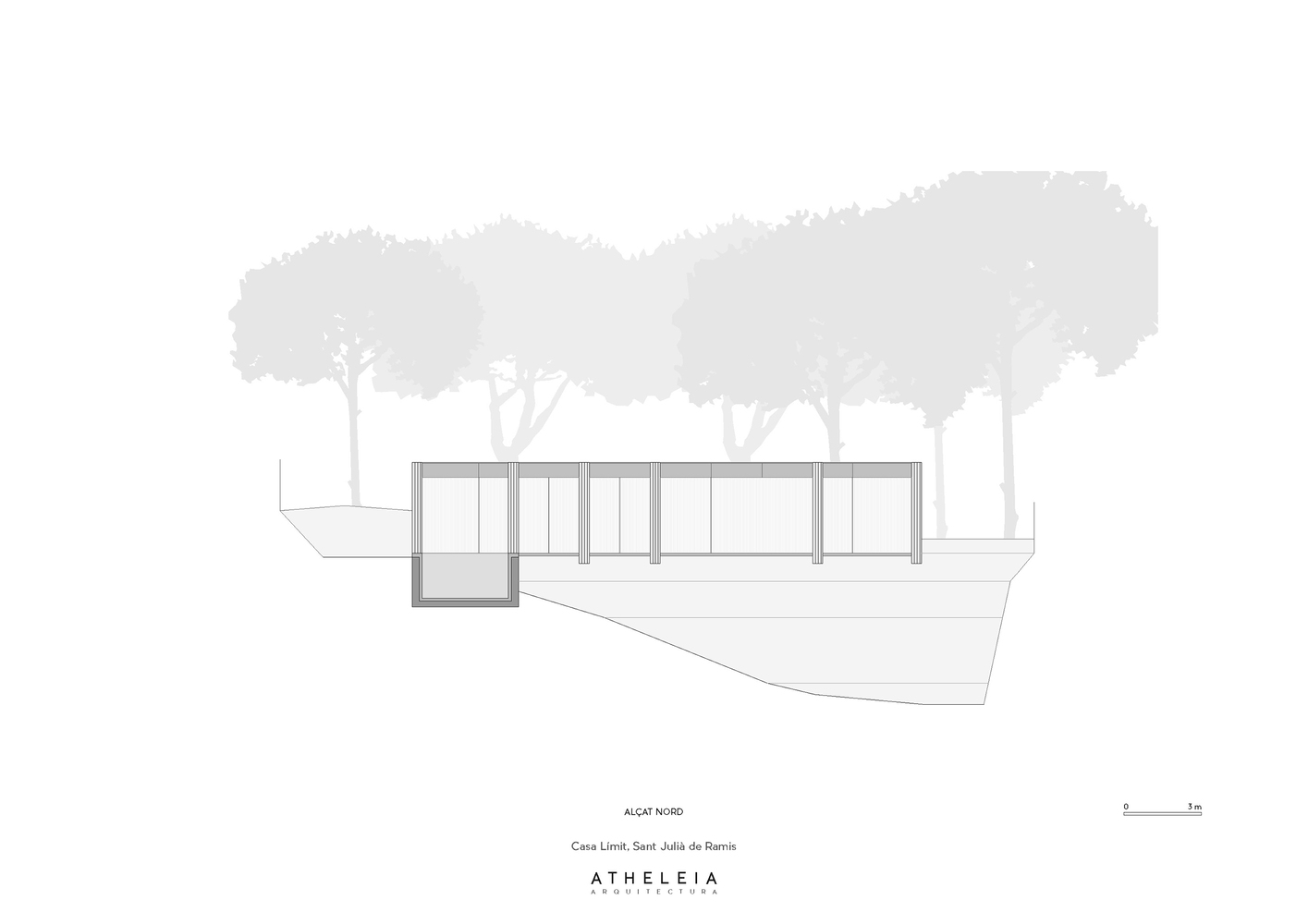

Elevación norte
Límit House

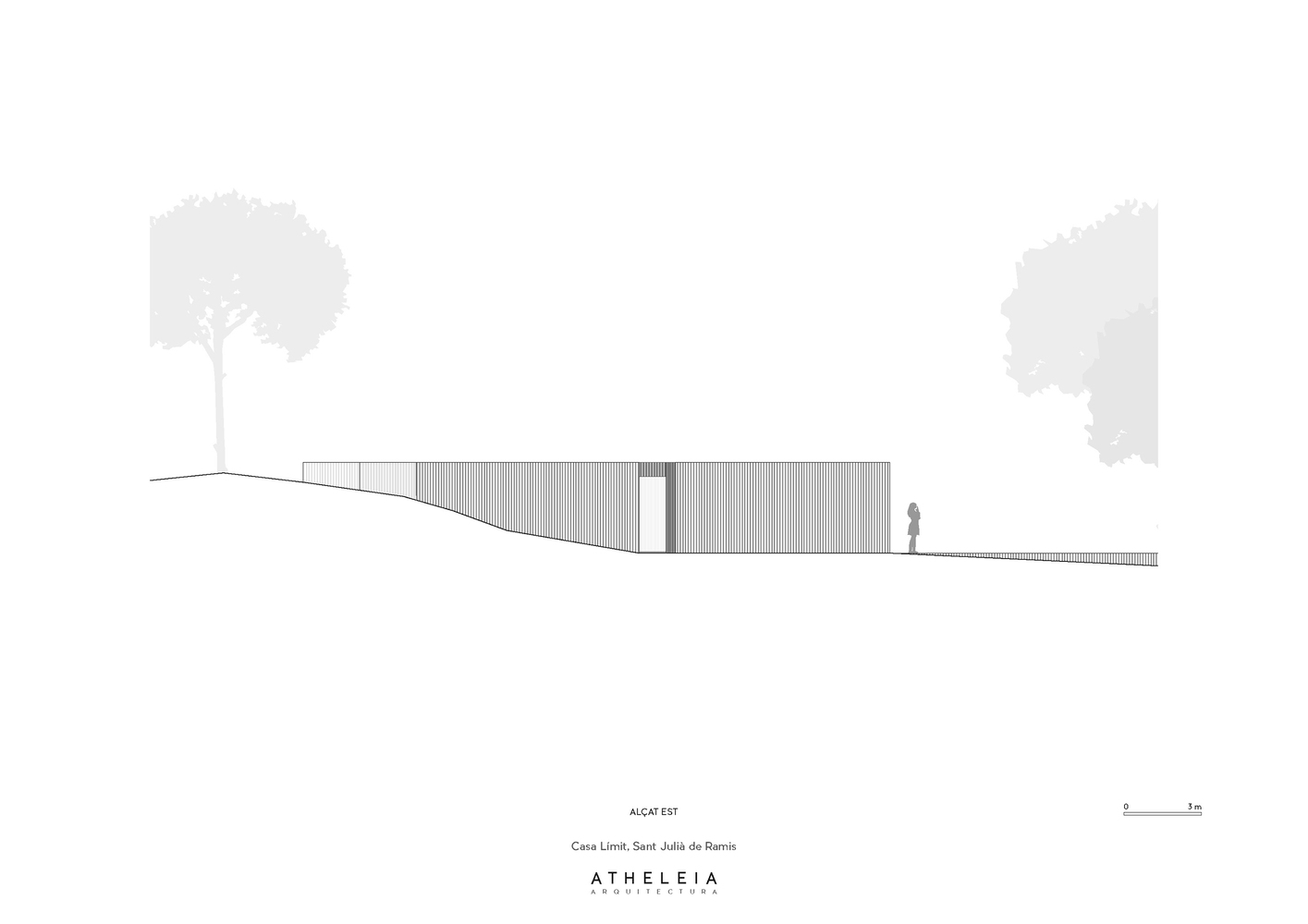

Elevación este
Límit House

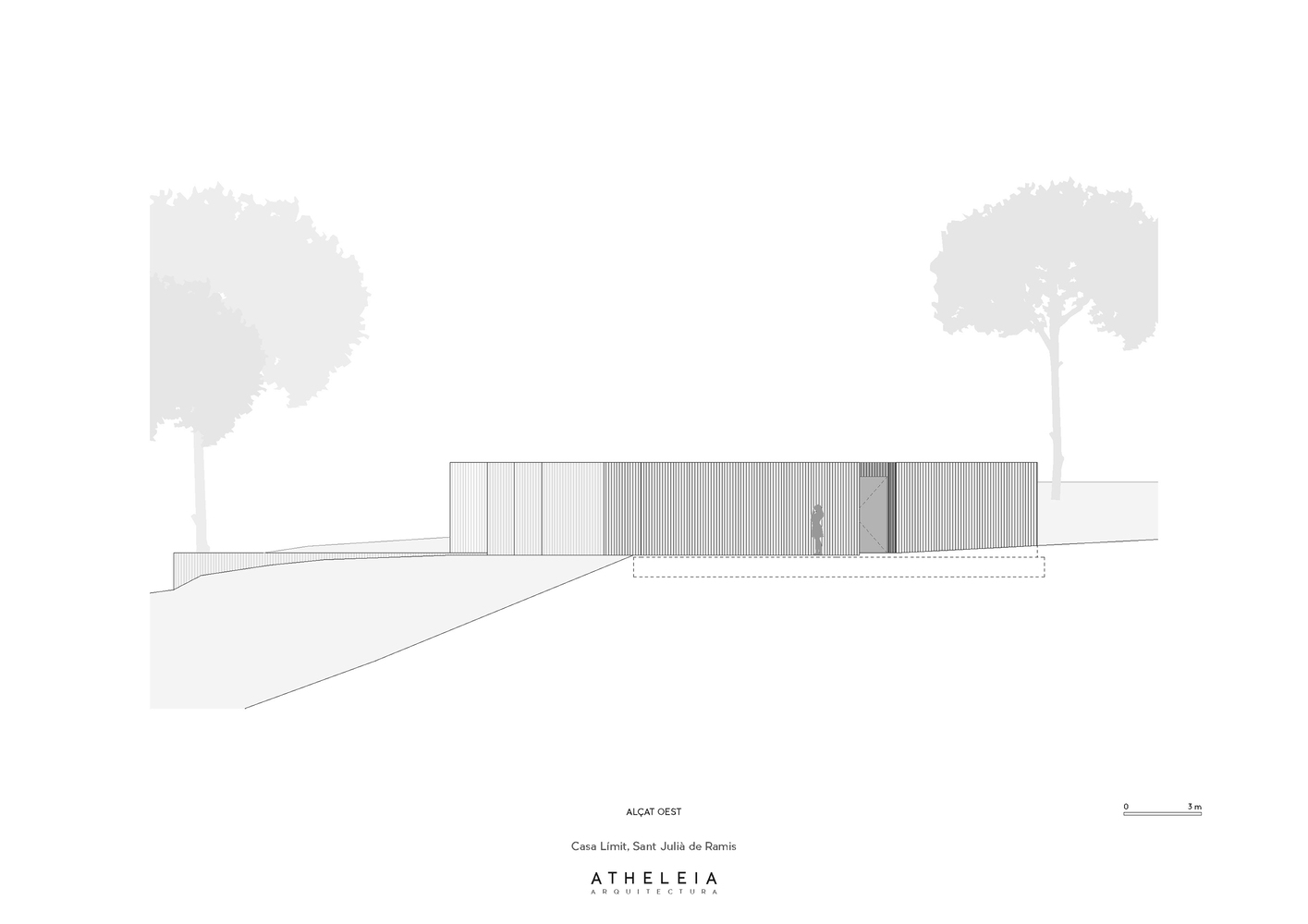

Elevación oeste


Límit House

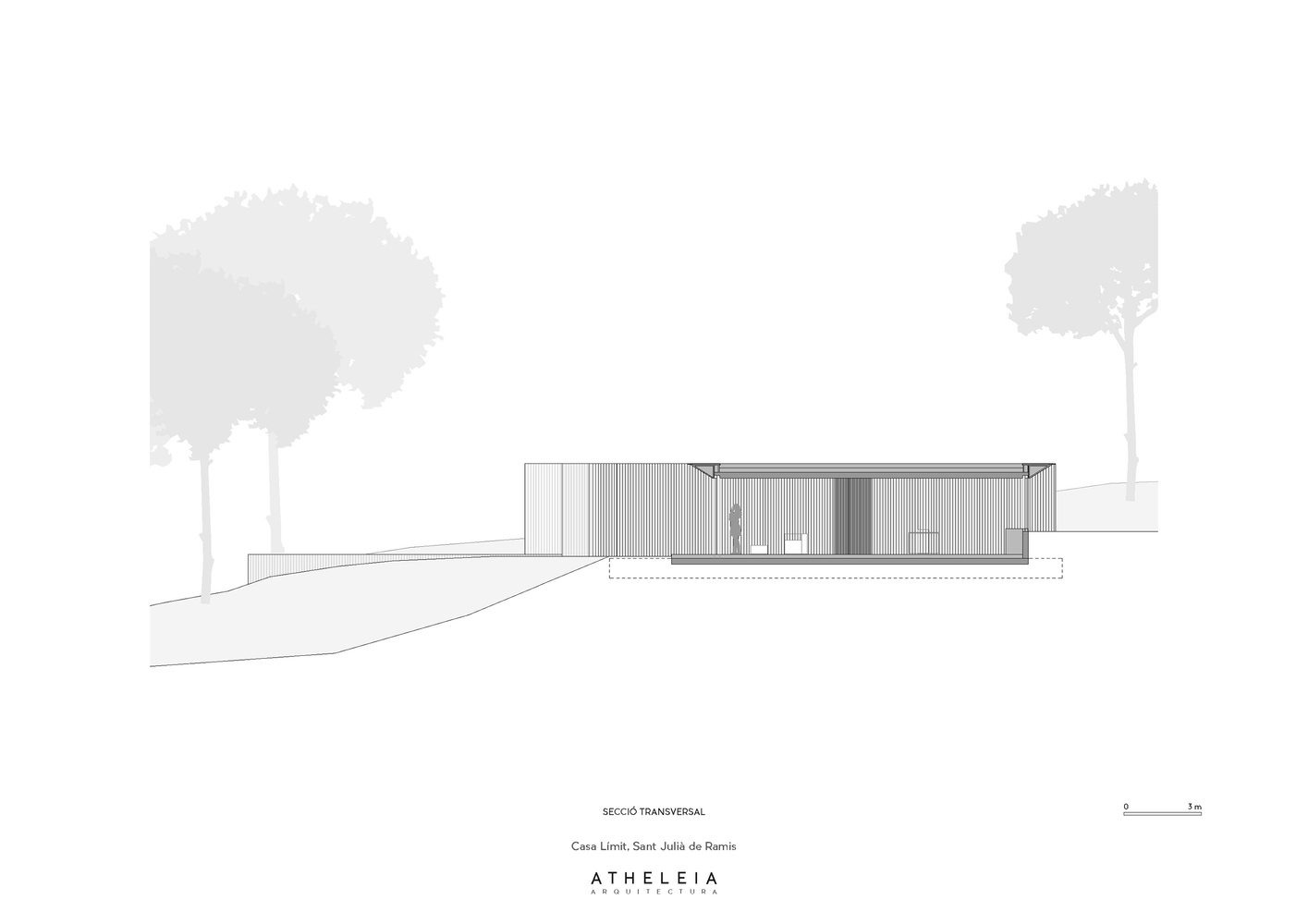

Cross section 01
Límit House

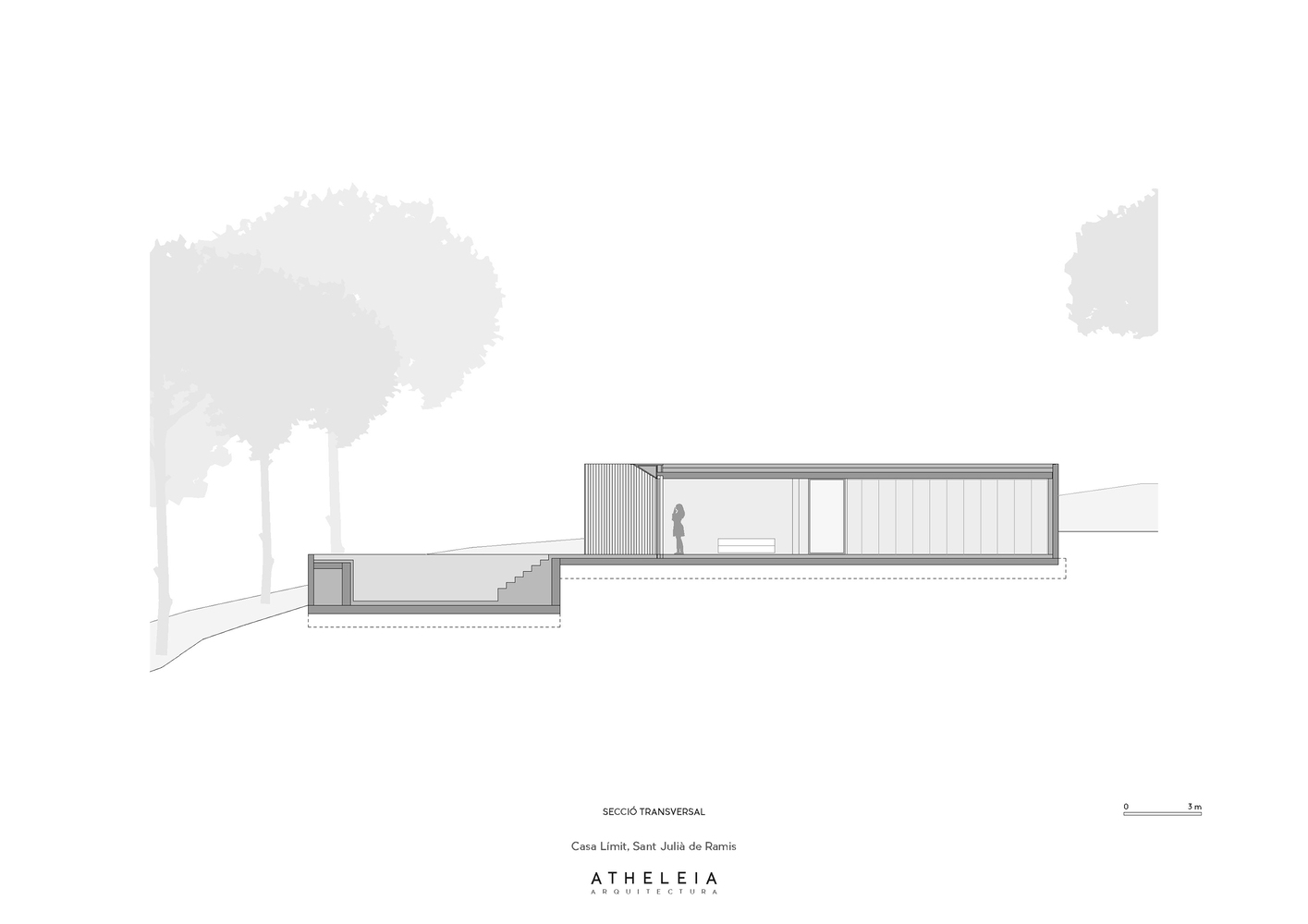

Cross section 02
Límit House

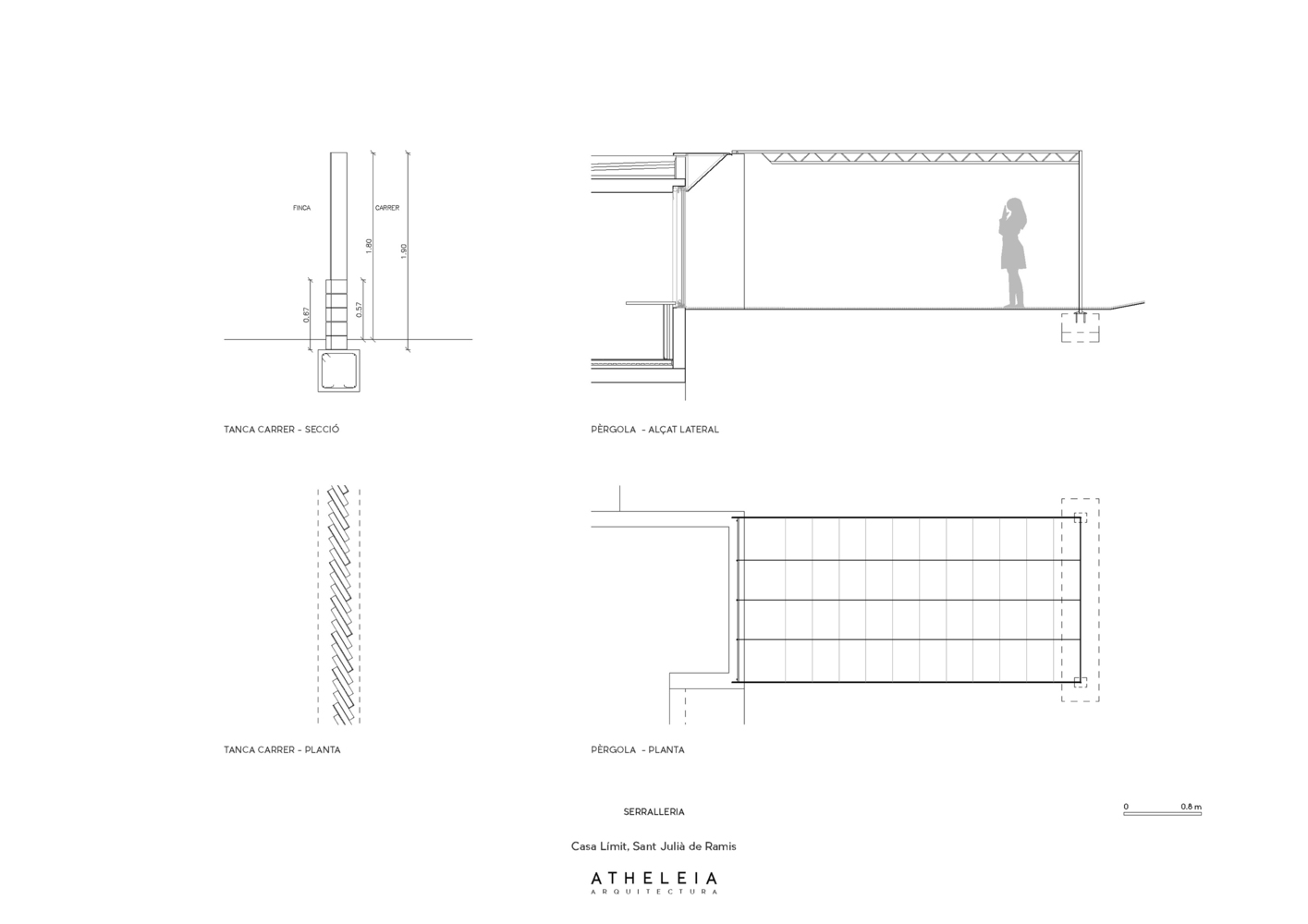

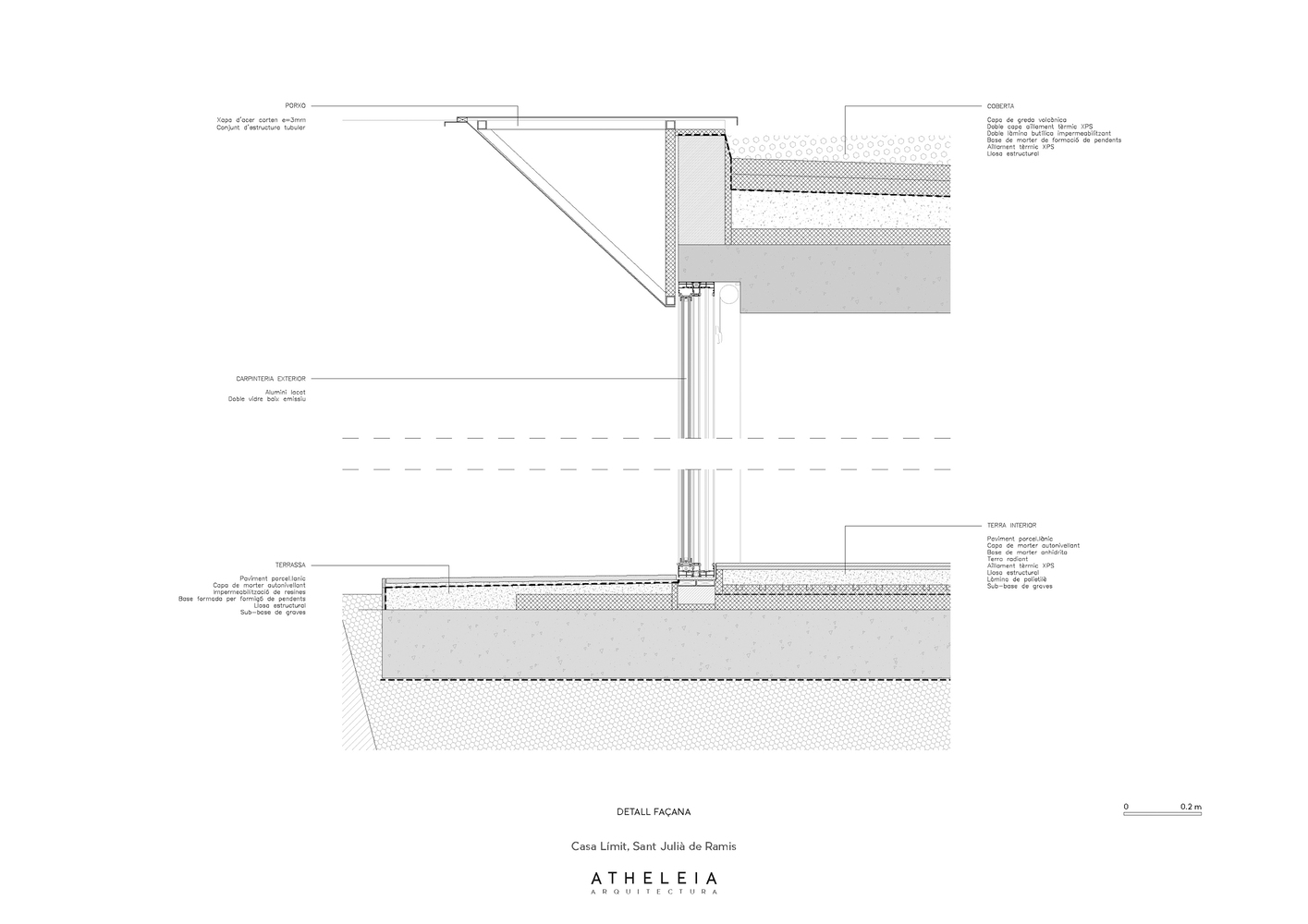

Detail 01
Límit House
Detail 02
