1.14 The Kite

1.14 The Kite
Courtesy of C+S Architects

1.14 The Kite

C+S Architects

ARCHITECTS
C+S Architects

LANDSCAPE
C+s Architects

GENERAL CONTRACTOR
Ager Co Srl

STRUCTURES
Toso Riccio Engineering

PHOTOGRAPHS
Courtesy Of C+s Architects

YEAR
2013

LOCATION
Fontaniva, Italy

CATEGORY
Educational Architecture

1.14 is a team, a group of educators, work to support families taking care of their children after the school hours and during holidays.

1.14 The Kite
Courtesy of C+S Architects
1.14 The Kite
Courtesy of C+S Architects

1.14 use a new pedagogical approach, which is different according to the age of the children:

from 1 to 6 year old everything is worked out as a game. They use an interdisciplinary approach:

photography to learn how to look at things, theatre to represent ourselves and the world, languages and music to learn how to listen.

1.14 The Kite
Courtesy of C+S Architects
1.14 The Kite
Courtesy of C+S Architects

The second group, 6.11 enables the kids to develop and empower the creative thinking:

imagination is left free of manipulate and re-combine objects, spaces and sight views.

1.14 The Kite
Courtesy of C+S Architects
1.14 The Kite
Courtesy of C+S Architects

11.14 started initially as a support to school homework, but was immediately turned into a program of talent enhancement, where teen-agers are allowed to experiment their dreams and attitudes.

This complex is the first of a series of interventions, which 1.14 has the intention to build in Italy to spread their vision.

1.14 The Kite
Courtesy of C+S Architects
1.14 The Kite
Courtesy of C+S Architects

1,14 the kite is a building formed around the pedagogical aims.

It is a big roof, a kite which has been captured during its flight to become the repair under where activities take place.

1.14 The Kite
Courtesy of C+S Architects
1.14 The Kite
Courtesy of C+S Architects

The building’s orientation towards south produces an opposite north opening which benefits of the shadow during summer time.

The kite is a thick concrete made structure, without any insulation working with its own thermal inertia to protect from the summer heat and creating a constant temperature inside the spaces.

1.14 The Kite
Courtesy of C+S Architects
1.14 The Kite
Courtesy of C+S Architects

The space inside is divided into two main parts: a bigger multifunctional space and a smaller space for the younger children. Each space has its own wcs and service spaces.

A series of labs, race tracks, sand arenas and swimming pools design the open-air space. The pitched roofs of the buildings serving the swimming pools are made of solar and photovoltaic panels, which allow the pre-heating of the pool’s water in the mid-seasons and the heating of the inside spaces during the winter.

1.14 The Kite
Courtesy of C+S Architects
1.14 The Kite
Courtesy of C+S Architects

In this way the buildings generate a zero-energy and zero-emission system in perfect equilibrium with the environment.

The concrete structure, coinciding with the form of the building, generated the ideal summer air-conditioning, without the necessity of any mechanical installation.

1.14 The Kite
Courtesy of C+S Architects
1.14 The Kite
Courtesy of C+S Architects

In the inside, the kite is enriched by color and matter. Its spaces are flexible and open.

An eye was cut in the roof allowing to play with the shadows it projects either on the walls or on the grass.

Iimagination is left free of manipulate and re-combine objects, spaces and sight views.

1.14 The Kite
Courtesy of C+S Architects
1.14 The Kite
Courtesy of C+S Architects
1.14 The Kite
Courtesy of C+S Architects

The inside spaces are visually connected to the outside through huge glazed sliding windows, to allow a continuity between what happens inside and outside.


The Kite


1.14 The Kite
Section
1.14 The Kite
Section


1.14 The Kite

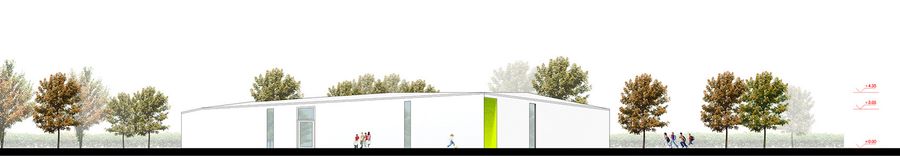

Elevation
1.14 The Kite
Elevation


1.14 The Kite
Sketch
1.14 The Kite
Model
1.14 The Kite

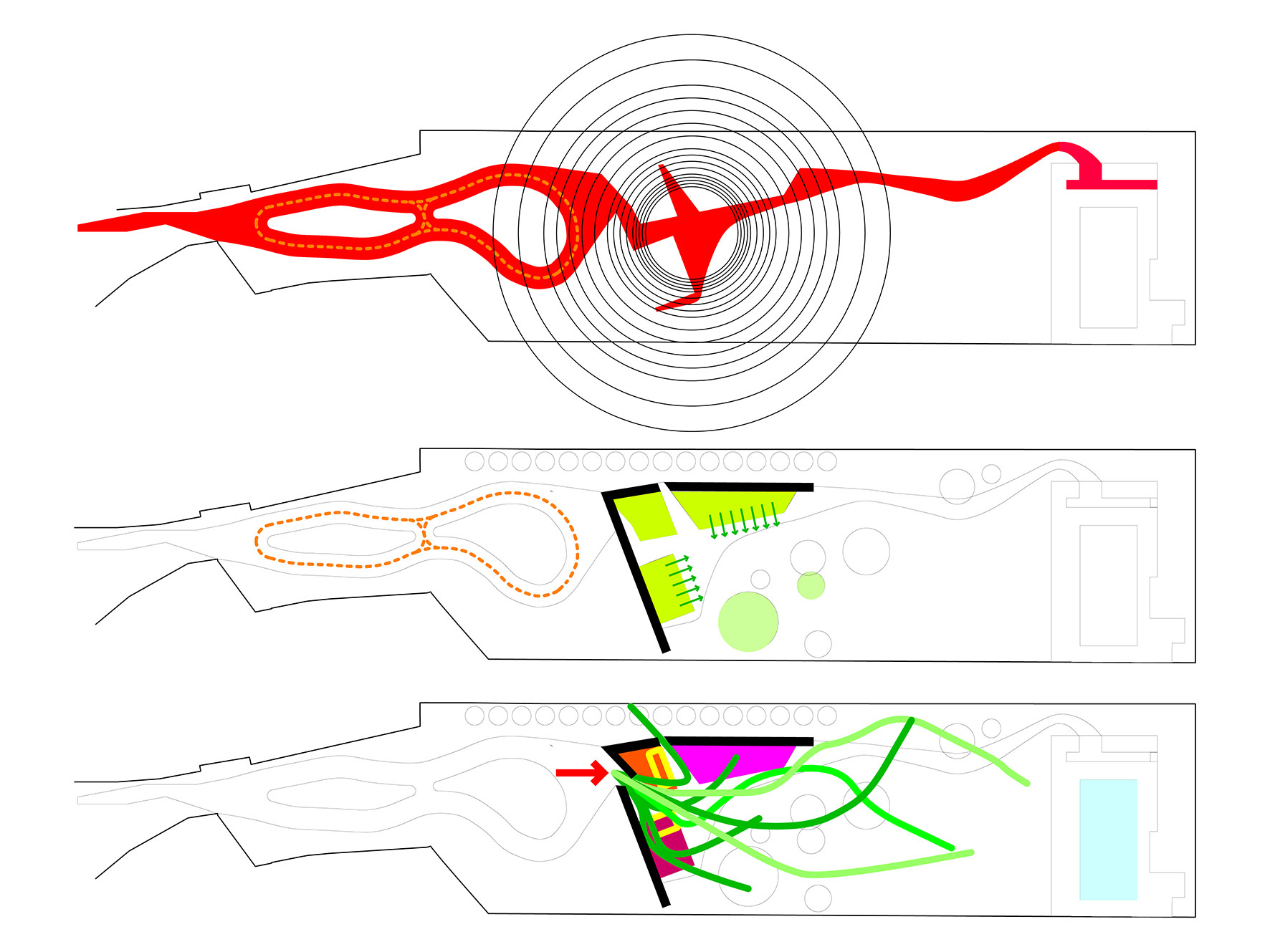

Diagram
1.14 The Kite
Sketch
