KOZAKAI KIFUKAN COMMUNITY CENTER

C+A Coelacanth And Associates + Yasuyuki Ito

PHOTOGRAPHS
ToLoLo studio

LOCATION
Toyokawa, Japan

MANUFACTURERS
Eternit, Air Water ECOROCA Inc., Nagoya Mosaic-Tile, TAIJI FUJIMORI ATELIER, TAKEMURA INDUSTRY

LANDSCAPE DESIGN
SfG landscape architects

STRUCTURAL ENGINEER
Fujio and Associates

COMPLETION
June, 2021

ARCHITECTURE
Yasuyuki ITO / C+A Coelacanth and Associates

CONTRUCTION PERIOD
September, 2019 - June, 2021

CONTRACTORS
Okada Corporation, Torii Corporation, Anden Corporation, Syoei Comprehensive equipment construction

DESIGN PERIOD
August, 2017 - February, 2019

TOTAL FLOOR AREA
3102 m2 (3102 m2 / 1F, 1687.5 m2 / 2F, 1382.9m2 / 3F, 31.6 m2)

SITE AREA
7859.45 m2

BUILDING AREA
2202.36 m2

NUMBER OF STORIES
2 stories + penthouse

PRINCIPAL USE
Community center, Library, Children’s center, City hall branch office

AREA
3102 m²

YEAR
2021

FURNITURE DESIGN
Taiji Fujimori Atelier

CATAGORY
Mixed Use Architecture, Library, Community Center

Kozakai Kifukan Community Center
© ToLoLo studio
Kozakai Kifukan Community Center
© ToLoLo studio

This core community building in the Kozakai district of Toyokawa contains a community center, library, children’s center, and city hall branch office. The design was selected in a 2017 competition.

Kozakai Kifukan Community Center
© ToLoLo studio
Kozakai Kifukan Community Center
© ToLoLo studio
Kozakai Kifukan Community Center
© ToLoLo studio

The spatial appeal of a mixed-use buildings such as this comes largely from its handling of common areas.

While individual spaces such as the meeting rooms, music studio, event hall, and kitchen are of course also important, it is the natural overflow of sounds, sights, and other hints of activity into the common areas that gives the facility as a whole its vibrancy.

Kozakai Kifukan Community Center
© ToLoLo studio
Kozakai Kifukan Community Center
© ToLoLo studio
Kozakai Kifukan Community Center
© ToLoLo studio

The building is two stories high in most areas, except the central common area, which has a three-story-high (12 m) ceiling and a long, narrow footprint measuring 40 m long by 10 m wide.

On the first floor, this central area is flanked on both sides by the city office, children’s center, kitchen, event hall, and several other rooms, making it the heart of the building.

Kozakai Kifukan Community Center
© ToLoLo studio
Kozakai Kifukan Community Center
© ToLoLo studio

On the second floor, a void occupies the central space, surrounded by a ring-shaped common area that connects to an outer ring of community center rooms and the library.

On both the first and second floors, this long, narrow, tall core space includes zones with varying ceiling height, small courtyards, and connections to large volumes such as the library and children’s center, yielding spaces of different scales for people to spend time in.

Kozakai Kifukan Community Center
© ToLoLo studio
Kozakai Kifukan Community Center
© ToLoLo studio
Kozakai Kifukan Community Center
© ToLoLo studio

The Oval is a single unit of furniture with a 60-meter circumference that incorporates magazine racks, display stands, tables, sofas, and benches, allowing users to spend time as they choose, either alone or in groups.

Kozakai Kifukan Community Center
© ToLoLo studio
Kozakai Kifukan Community Center
© ToLoLo studio

Clerestory windows above the void bring in natural light and ventilation when desired, lowering the energy requirements for lighting and air conditioning.On the second floor, the void is surrounded by a built-in feature called the Oval.

Kozakai Kifukan Community Center
© ToLoLo studio
Kozakai Kifukan Community Center
© ToLoLo studio
Kozakai Kifukan Community Center
© ToLoLo studio
Kozakai Kifukan Community Center
© ToLoLo studio

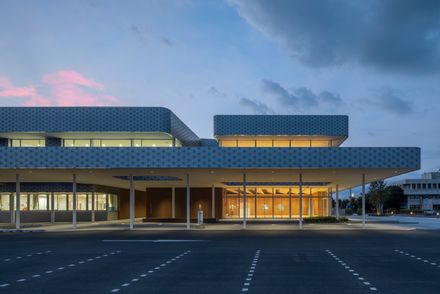

The exterior design contains symbolic elements appropriate for a core neighborhood facility and is intended to be a beloved part of the community for years to come.

The façade consists of metal panels perforated with a stylized motif based on pinwheels used at traditional shrine festivals in the neighborhood, giving local residents a sense of ownership and belonging.

The panels are extremely weather resistant, reducing maintenance costs over the long term.

Kozakai Kifukan Community Center
© ToLoLo studio
Kozakai Kifukan Community Center
© ToLoLo studio

In addition, to allow the facility to be used for neighborhood festivals, the exterior is linked to the event hall and the roof has deep eaves that open up many possible uses.

Kozakai Kifukan Community Center
© ToLoLo studio
Kozakai Kifukan Community Center
© ToLoLo studio


Kozakai Kifukan Community Center
Plan - 1st Floor
Kozakai Kifukan Community Center
Plan - 2nd Floor
Kozakai Kifukan Community Center
Site Plan
Kozakai Kifukan Community Center
Section
