SPORTS HALL IN BORKY
OV-architekti
MANUFACTURERS
AVETON, Boen, RUBNER, Weber, Alu
LEAD ARCHITECTS
Štěpán Valouch, Jiří Opočenský
YEAR
2021
LOCATION
Kolín, Czech Republic
CATEGORY
Recreation & Training, Detail
Text description provided by architect.
The client's brief was to build a sports hall with facilities and a seating tribune next to the Elbe river. The proposal won 1st place in an architectural competition. The concept is based on a low single-storey building, roofed with an overlapping cantilever and the wooden mass of the elevated hall.
The plot is located at the northeast edge of Kolín town, close to the tennis courts and an athletic stadium. This sports facilities ensemble is enclosed by deciduous forest and is accessed by a cycle path by the Elbe river.
The proposal is influenced by the surrounding flatness of the terrain, where it’s easy to bicycle. By the friendly atmosphere of the nearby town. By the slow flow of the Elbe River and by the plot location in the woods.
The cantilever delimitates the low part of the building what brings a small-scale friendly atmosphere. The high wooden lantern is peaking over the lower part. The big windows illuminating the interior refer to the Czech tradition of Sokol sports halls with the optimistic spirit in the state-founding interwar period.
The layout plan is based on a simple decision to place the whole program on one floor. Everything is easily accessible while enabling a sufficient control and overview for the receptionist desk. The entrance hall flows into a buffet.

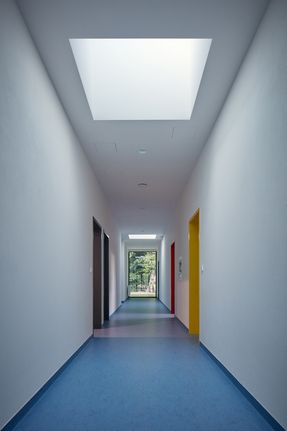

It’s possible to connect or divide the two spaces if necessary. Dressing rooms, toilets, and technical rooms follow in this lower part of the building. Entrances to the playing field are separated for visitors and players.
The building structure is founded on a monolithic reinforced concrete slab and the vertical support structure is made of precast reinforced concrete columns.
The roof trusses are glued laminated timber with 32 m spans. The wall structure infill between the columns is of precast concrete panels. The whole structure is thermally insulated with ETICS. In the interior, acoustic sealing and cladding are introduced.
The object is heated and partly cooled with a heat pump. A small is photovoltaic power plant is installed on the lower roof.
The interior can be ventilated naturally, in the winter and summer season the ventilation is managed by the instrumentation control system. The building is energetically passive.
