NATIONAL WAR MEMORIAL, NEW DELHI INDIA

Webe Design Lab

ARCHITECTS
Webe Design Lab

ARTIST
Lt.col Arul Raj

LIGHITNG
Awa Lighting Designers

CLIENTS
Executive Agency Of National War Memorial, Museum Ministry Of Defence, Government Of India

STRUCTURAL CONSULTANT
Roark Consulting Engineers

ARCHITECT IN CHARGE
Yogesh Chandrahasan

MANUFACTURERS
Autodesk, Lumion, Jaquar, Linea Light Group, Oikos Group, Penetron, Iguzzini, Adobe, Heinrich, Havells, Jk Cement, Jakson, Ligman, Neptune, Rhino, Trimble

DESIGN TEAM
Yogesh Chandrahasan, Satish Vasanth Kumar, Udhayarajan, Malli Saravanan, Visuwanathan,, Ranganathan Ravi, Anjana Sudhakar, Kamal Rajkumar, Vijay Prakash, Balachandar Baskaran, Abhishek Tiwari

PROJECT MANAGEMENT
Turner Project Management India, Private, Limited

BRONZE MURALS
Ram Vanji Suta

PLANTING DESIGN
Savita Punde, Design Cell, Gurgaon

CONSTRUCTION
Ncc Limited

SIGNAGES
Ishan Khosla Design

FOUNTAIN
Ripples, Mr. Premkumar

MEP CONSULTANTS
Edifice – Delhi, Ate

PHOTOGRAPHS
Maniyarasan, Madhumitha

AREA
109265 m²

YEAR
2019

LOCATION
New Delhi, India

CATEGORY
Public Space, Memorial Center, Monuments

Text description provided by architect.

The concept of rebirth is inspired from the quote of Captain Vikram Batra.

National War Memorial, New Delhi India
Courtesy of Government of India
National War Memorial, New Delhi India
Courtesy of Government of India

Either I will come back after hoisting the Tricolor, or I will come back wrapped in it, but I will be back for sure. REBIRTH – पुनर्जन्म (in Hindi) ‘Reborn to be an immortal’.

Great sense of pride and victory at the cost of their life! The memorial is a gestation on the idea of rebirth of those unsung heroes through their stories, journey and struggles translated as spatial expressions.

National War Memorial, New Delhi India
Courtesy of Government of India
National War Memorial, New Delhi India
© Maniyarasan

A culmination to the historical Rajpath extending through the India Gate, the National War Memorial is an open landscaped public space spread over 42 acres in the C -hexagon. Mostly invisible but strongly present, it is a semi-subterranean design remaining a peoples’ place but with a different dimension of emotional weight.

Progressive act of protection, sacrifice, bravery and becoming the immortal translate as a concentric arrangement of which the ‘Thyag Chakra’ holds the name of each fallen soldier who become another brick in the nation’s defensive wall.

National War Memorial, New Delhi India
© Maniyarasan
National War Memorial, New Delhi India
© Maniyarasan

THE VOID . . . Six decades to come into existence: The request for the National War Memorial (NWM), India was placed by the armed forces in 1960.

However, the consideration acquired momentum in 2015 and the construction was approved within the National capital's heritage zone of the British Imperial Times.

Later, an International two stage competition was held for the design and implementation of the NWM by the Ministry of Defense, Government of India. WEBE Design Lab won both the first and the third place. The winning entry headed by Ar Yogesh Chandrahasan was commissioned for construction. India’s NWM was finally inaugurated on 25th Feb 2019 by Honorable Prime Minister Narendra Modi.

National War Memorial, New Delhi India
© Maniyarasan
National War Memorial, New Delhi India
© Madhumitha

CONTEXT AND DESIGN APPROACH

The Iconic India Gate, brims with an average footfall of 50,000 ppl/day. Inset within the bustling C Hexagon the lawns were retained to be active public spaces to play, meet, relax and more. This Capitol complex has a central axis, the Rajpath- The ceremonial path from the President’s home, that runs across and ends at the India Gate.

The newly built NWM retains the axis and bestows the essence of hierarchical importance upon the overall footprint. A cross-connection at the core of the New Memorial: The Yudhpath– is a metaphorical placement of the Rajpath (Path of life) with the Yudhpath (Path of war).

National War Memorial, New Delhi India
© Maniyarasan
National War Memorial, New Delhi India
© Maniyarasan

CIRCLE OF SACRIFICE (TYAG CHAKRA)

Inspired by the historic “Chakravyuha” Ancient war formation, the Tyag Chakra is arranged in concentric circles in accordance with the wars, gloriously housing the names of 25,700 war heroes, who sacrificed their life post-independence for the Nation.

It is a concrete structure, with self-interlocking granite blocks placed over it. Each block represents a Martyr, and is engraved with his name, rank and number.

National War Memorial, New Delhi India
© Maniyarasan
National War Memorial, New Delhi India
© Maniyarasan

ESTABLISHING SYMBOL AND MEMORY

Circle of Protection The tree arrangement personifies the territorial line of control- The soldiers who are still there trying to safe guard us in places unseen.

The circle containing 690 trees also helps in screening the busy roads of the C Hexagon thereby creating a calmer and protected space inside the memorial.

National War Memorial, New Delhi India
© Maniyarasan
National War Memorial, New Delhi India
© Maniyarasan

CIRCLE OF BRAVERY (VEER CHAKRA)

A semi open corridor and gallery holding the brave stories of significant historic battles in Indian history of the Army, Navy and Air force.

CIRCLE OF IMMORTALITY (AMAR CHAKRA)

The obelisk carrying the eternal flame symbolizes the immortality of the Jawans that they will never be dead and they will always live in our memory. It is set in a larger circular court which also is the ceremonial space.

National War Memorial, New Delhi India
Courtesy of Government of India
National War Memorial, New Delhi India
© Maniyarasan

LIGHTING

The lighting in the central court around the eternal flame spearheads sideways and up building a sense of eternity as it fades out.

The Thyag chakra seems floating with a series of small lights which resembles the oil lamps that are light in memory of the beloved ones in any Indian home.

National War Memorial, New Delhi India
Sections
National War Memorial, New Delhi India
Detail seciton

The streaks of light on the steps create a sense of transition through the concentric setup. The project does not have any ambient light. As much as the light brought in emphasis and character, the darkness made the required experience deeper and absorbing.



National War Memorial, New Delhi India
Space vs Activity vs Time diagram
National War Memorial, New Delhi India

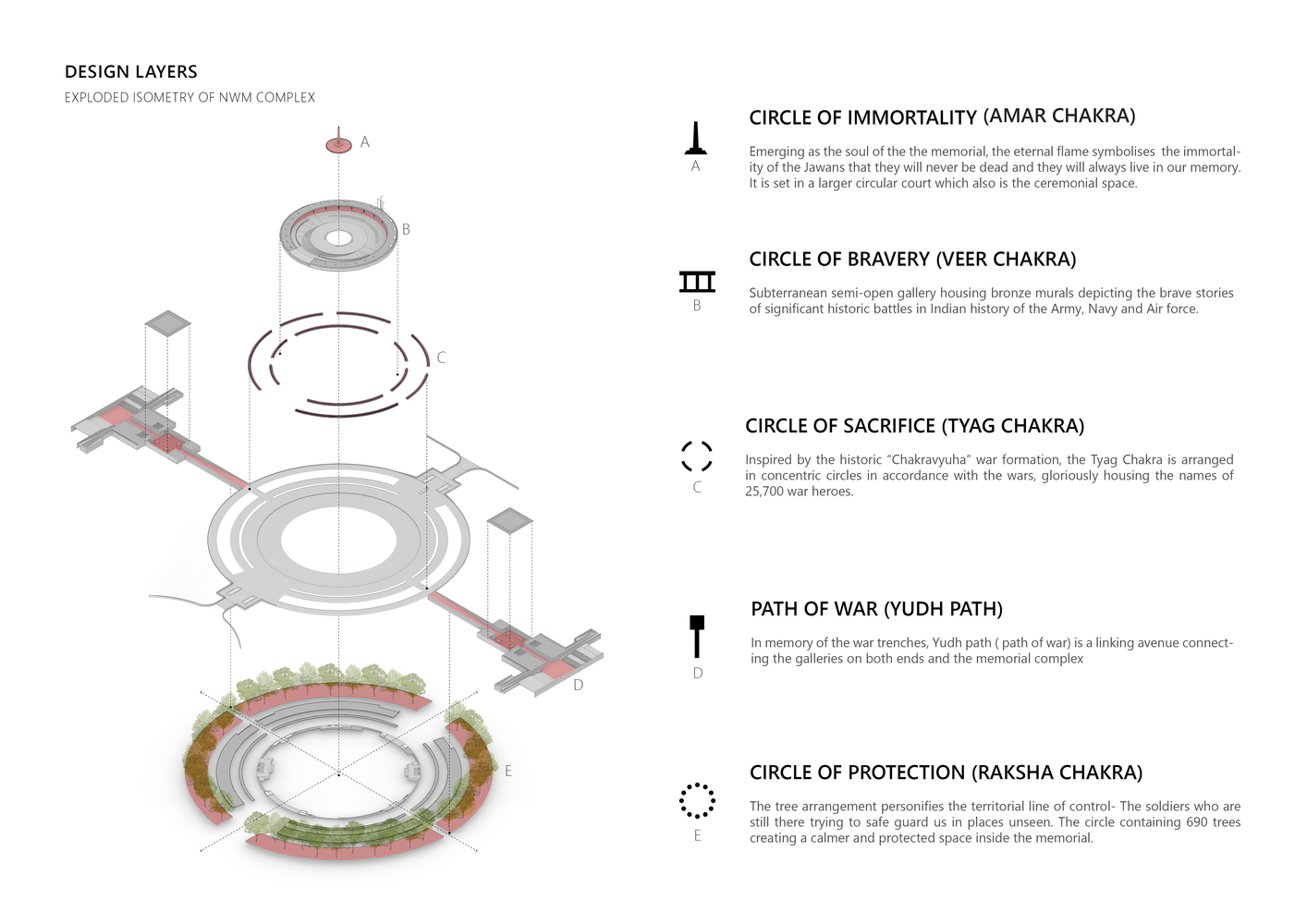

Design Layers diagram
National War Memorial, New Delhi India
Master plan
National War Memorial, New Delhi India
Isometric view


National War Memorial, New Delhi India
National War Memorial, New Delhi India
Wall detail
