Edificio de Aparcamientos

Edificio de Aparcamientos
© Iñigo Bujedo Aguirre

Edificio de Aparcamiento

JAAM sociedad de arquitectura

COLLABORATORS
June Gómez Alonso

ARCHITECT IN CHARGE
Ander Marquet Rya

TECHNICAL ARCHITECT
Juncal Aldamizechevarría

STRUCTURAL
Minteguia Y Bilbao

CONSTRUCTOR
Dragados

AREA
26800 M²

YEAR
2013

LOCATION
Leioa, Spain

CATEGORY
Parking

Edificio de Aparcamientos
© Iñigo Bujedo Aguirre

Text description provided by architect.

The building is approached from rationality, which is present in the in urban planning, constructive conception from a prefabricated concrete structure or standardized materials that close the building: aluminum and polycarbonate.

Edificio de Aparcamientos
© Iñigo Bujedo Aguirre
Edificio de Aparcamientos
© Iñigo Bujedo Aguirre

We proposed to the Property and to the town council the modification of the current urban development plan to eliminate the basement and lift one floor above the ground.

Thus, the building could ventilate naturally avoiding CO2 extraction.

Edificio de Aparcamientos
© Iñigo Bujedo Aguirre
Edificio de Aparcamientos
© Iñigo Bujedo Aguirre

This decision brought the obligation to open facades.

The volume is in a rectangular parcel with two overlapping orders, the first is an opaque plinth with human scale, a big bench in the buses dock, with occasional openings for access of vehicles and people.

The upper order, with an aluminum façace, is a large prism which cantilevers above the bus dock creating a waiting shelter with a translucent blue skylight.

The access to the parking is located on the main road of the University Campus, while the exit is in the opposite façade, leading to the road that runs to the North of the plot.

Edificio de Aparcamientos
© Iñigo Bujedo Aguirre
Edificio de Aparcamientos
© Iñigo Bujedo Aguirre

The 1.5m height difference between these two roads is solved with inclined slabs, being the resultant gradient slightly lower than 1.5%, which helps evacuating rainwater.

Internally the building is organised based on a structural grid with a standard section of 6.9 x 15.8m.

Edificio de Aparcamientos
© Iñigo Bujedo Aguirre
Edificio de Aparcamientos
© Iñigo Bujedo Aguirre

In each of the 15.8m sections there is a central road and parking spaces to both sides of this, without pillars between vehicles.

There are four stairwells, one in each of the façades of the building, that solve the vertical communications.

In the roof there is a shelter, with a blue and translucent cover, which follows the incline of the ramps that it protects.

Edificio de Aparcamientos
© Iñigo Bujedo Aguirre


Edificio de Aparcamientos
Site Plan
Edificio de Aparcamientos

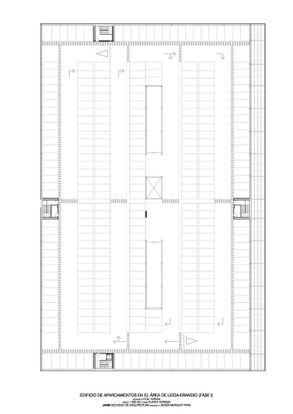

Basament Floor Plan
Edificio de Aparcamientos
Ground Floor Plan
Edificio de Aparcamientos
First Floor Plan
Edificio de Aparcamientos

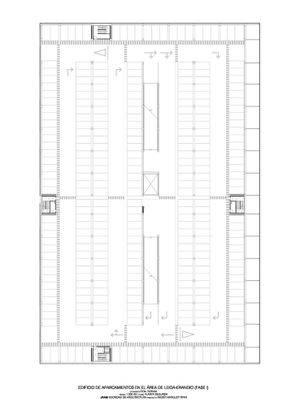

Second Floor Plan


Edificio de Aparcamientos
Sketch
Edificio de Aparcamientos
Sketch
Edificio de Aparcamientos
Sketch
Edificio de Aparcamientos
Sketch
Edificio de Aparcamientos
Sketch

Edificio de Aparcamientos
Sketch


Edificio de Aparcamientos
Section
Edificio de Aparcamientos
Section
Edificio de Aparcamientos
Section
