G House

G House
Courtesy of Esau Acosta

G House

Esaú Acosta

ARCHITECTS
Esaú Acosta

ARCHITECTS COLLABORATORS
Nieves Valle, Alba Balmaseda

QUANTITY SURVEYOR
Carlos Alonso

STRUCTURE
Fhecor

AREA
240 M²

VALUE
195.000€

YEAR
2014

LOCATION
El Sauzal, Spain

CATEGORY
Houses

Text description provided by architect.

The house is located in an uncontrolled expansion area, comprised of houses of different sizes and ages.

G House
Courtesy of Esau Acosta
G House
Courtesy of Esau Acosta

The house is built on a challenging site, between party walls, on a 6.5m width plot. The project aims to generate rich spaces, with an element of surprise, combining simple spaces that increase the catalogue of domestic experiences.

The 6.5m by 20 m plot is stretched vertically in order to add an extra level on the lower ground floor, elevating the ground floor by 1.80 m. This provides privacy from pedestrians at street level.

G House
Courtesy of Esau Acosta
G House
Courtesy of Esau Acosta

The house is articulated around two programmatic, seasonal courtyards, the interior one provides for winter activities (cooking and dining), and the exterior courtyard is related to outdoor summer use as a veranda or porch.

This covered space at the entrance avoids having openings in the facade looking directly on to the street, creating a transition space between exterior and interior space.

G House
Courtesy of Esau Acosta
G House
Courtesy of Esau Acosta
G House
Courtesy of Esau Acosta

The continuous presence of the courtyards is also expressed in their materiality:

one is made out of wood, the other one of glass and vegetation.

The hedonistic illusion of making spaces look bigger is achieved by shifting the stacked volumes, of the same width but different lengths.

G House
Courtesy of Esau Acosta
G House
Courtesy of Esau Acosta

This displacement resolves issues like the step between the street and the ground floor, direct light to the “heart” of the house and makes a more valuable use of the terraces.

The construction utilises only local materials; the concrete´s thermal inertia is combined with the timber´s warmth in the winter courtyard and the glass´ lightness in the summer courtyard.

G House
Courtesy of Esau Acosta


G House
Courtesy of Esau Acosta
G House
Courtesy of Esau Acosta
G House
Courtesy of Esau Acosta
G House
Courtesy of Esau Acosta
G House
Courtesy of Esau Acosta
G House
Courtesy of Esau Acosta
G House
Courtesy of Esau Acosta
G House
Courtesy of Esau Acosta
G House
Courtesy of Esau Acosta


G House
Courtesy of Esau Acosta
G House
Courtesy of Esau Acosta
G House
Courtesy of Esau Acosta
G House
Courtesy of Esau Acosta


G House
First Floor Plan
G House
Second Floor Plan
G House
Solarium Floor Plan
G House
Semi-basement Floor Plan


G House
Drawing 1
G House
Drawing 2
G House
Structure


G House
Section 1
G House
Section 2
G House
Section 3
G House
Longitudinal Section
G House
Diagram


G House

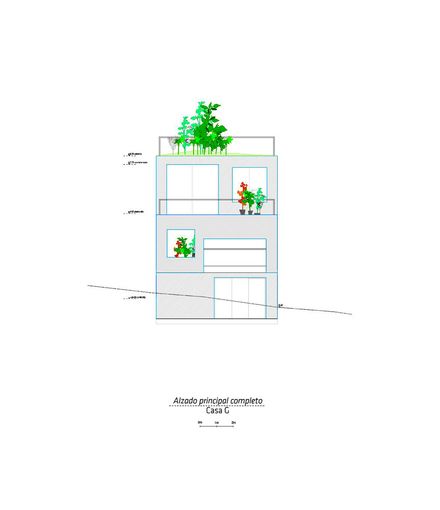

Main Elevation
G House
Elevation 1
G House
Elevation 2
