F176

F176

VOX arquitectura

F176
© WELTVOX

INSTALLATIONS DESIGN
COR Ingeniería

OWNER
WELTVOX, S.A. de C.V.

CONSTRUCTION
CG Diseño y Construcción, S.A. de C.V.

MANUFACTURERS
Saint-Gobain, Construlita, INTEC, Vidafloor

ARCHITECT IN CHARGE
Mauricio García Cué, Pablo Fernández Sánchez, Christian Luce Dickinson, Carlos Albarrán Ríos, Yovanny Morales Santos

STRUCTURAL DESIGN
Carunti Ingeniería

PHOTOGRAPHS
WELTVOX

AREA
2142 m²

YEAR
2016

LOCATION
Mexico City, Mexico

CATEGORY
Housing

F176
© WELTVOX
F176
© WELTVOX

Text description provided by architect.

Conceived as a 60sqm housing proposal for young families, the project is developed within a little front but great depth site, at Santa María de la Ribera neighborhood.

Form and function are defined considering the site’s context, and reinterpreting the traditional elements and spaces of buildings within the neighborhood, such as verticality and the window gaps repetitions, the absence of elements standing out from facades and the interior patios with natural lighting and ventilation.

21 apartments are modulated in a great introverted block, unfolding around several central patios, and fragmenting the volume in small groups of two or three households, creating close cohabitation among neighbors.

F176
© WELTVOX
F176
© WELTVOX
F176
© WELTVOX

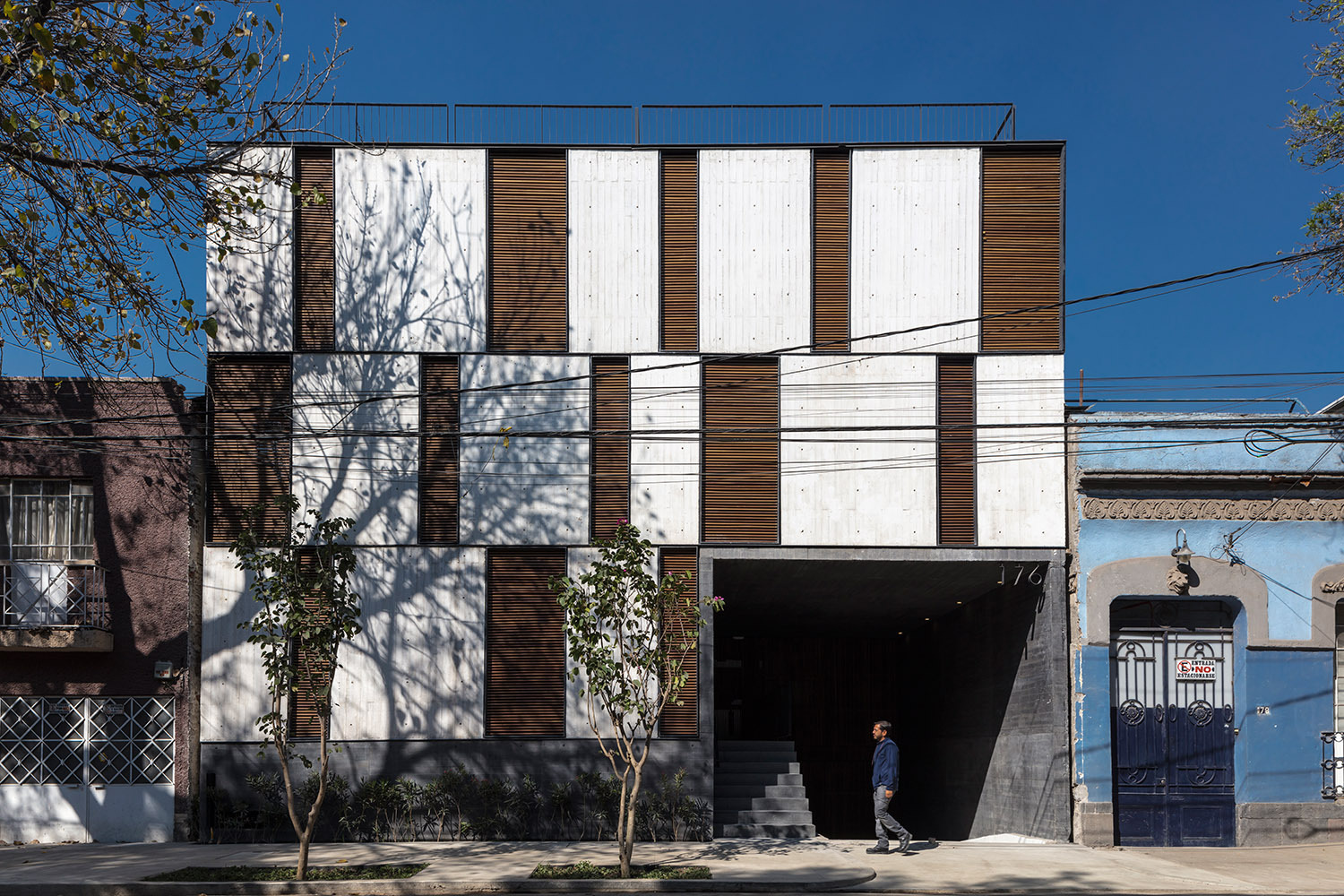

The large access frame is directly related to the street, breaking the mass hermeticity, knitting and reinforcing the connection to the neighborhood.

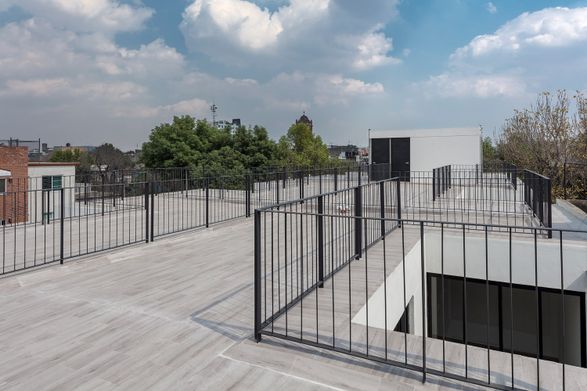

A security gate provides controlled access to the building. Afterwards, a landscaped corridor that plays the role of meeting point, leads to the stair blocks from which give access to each apartment and roof tops located in the fourth floor.

F176
© WELTVOX
F176
© WELTVOX

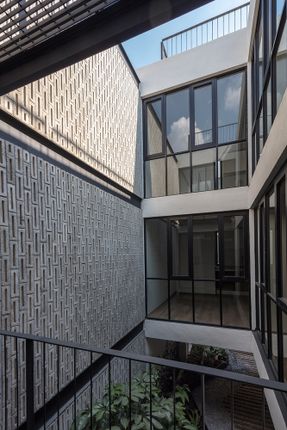

The use of concrete blocks lattice in the dividing walls allows to take advantage, both for the building and the neighbors, of the crossed ventilation and natural lighting generated by the gaps on both sides of the wall.


F176
© WELTVOX
F176
© WELTVOX
F176
© WELTVOX
F176
© WELTVOX
F176
© WELTVOX


F176
Site Plan
F176

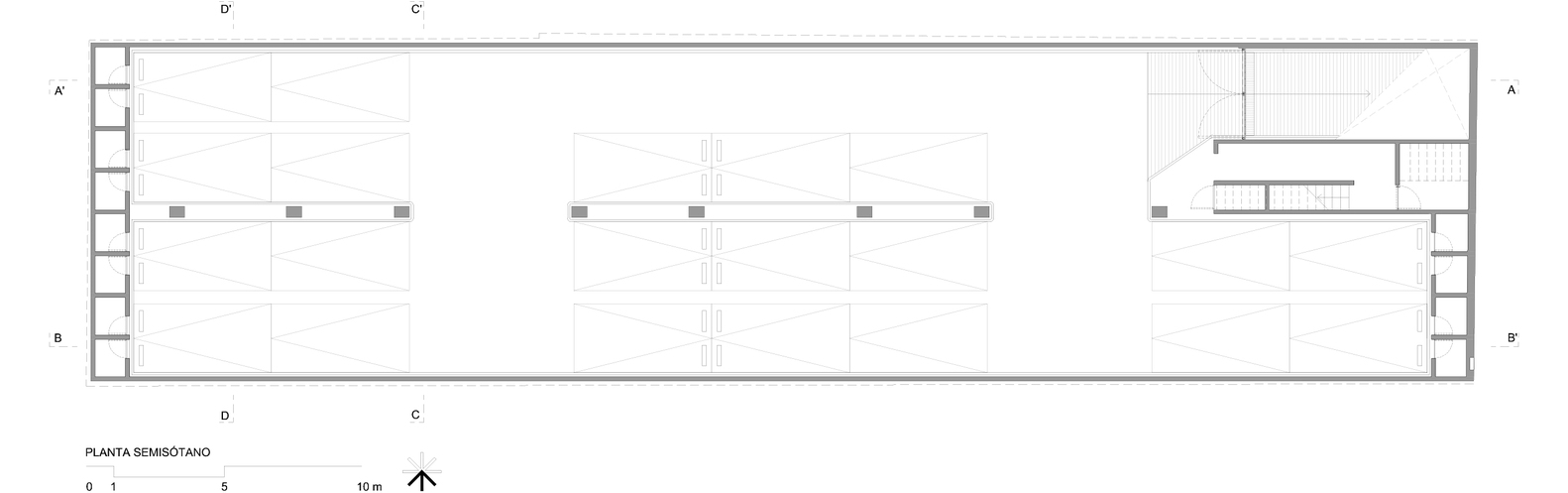

Basement Plan
F176
1st Level
F176
2nd Level
F176
3rd Level
F176
Roof Garden


F176
Section
F176
Section
F176
Section
F176
Section


F176
Elevation
