8 Houses Complex
8 Houses Complex
Estudio Mola
DESIGN TEAM
Francisco Ricart, Julian Marchetti, Gimena Caffo, Alejo Del Grosso, Marcos Bartellone
MANUFACTURERS
Armaferro, Fv, Redimat, Tendenza
PHOTOGRAPHS
Javier Agustín Rojas
AREA
1400 M²
YEAR
2021
LOCATION
Castelar, Argentina
CATEGORY
Apartments
Text description provided by architect.
The 8 houses complex is located in Castelar town, in the western suburbs of Buenos Aires, where single-family homes coexist with clubs and public squares and make this neighborhood a very busy area.
The building land measures 17.36 meters wide and 45.78 meters deep with southwest orientation.
The design decision was to create several residential units resting on the existing upper right party wall and open towards the left party wall, looking for the northwestern sun.
The ground floor serves as the main pedestrian and vehicular entrance to all the units.
The pedestrian circulation is next to a long concrete wall that guides us to each of the brick boxes, which are the independent access of each living unit. Next to each box, we can find their corresponding parking lot.

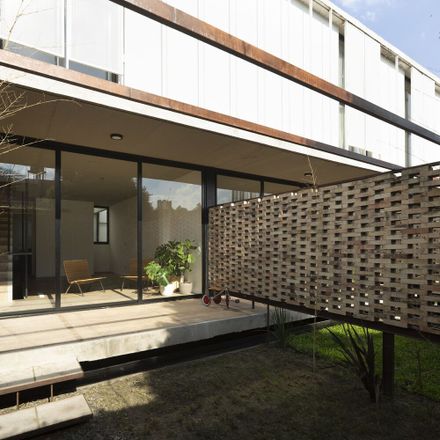

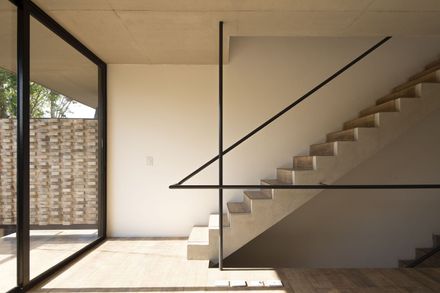

As we go up, we will find the living-dining room/kitchen which expands into a raised and private garden 2.20 meters above the ground floor and connects both spaces. On the second floor, we will have bedrooms and bathrooms.
The idea of expanding up and out is something very characteristic of this complex.
It allows us to connect each home to the outside, receive better sunlight due to the elevation of each garden and keep the vehicle area isolated.
The complex is made up of 8 housing units and ends towards the front in a two-story studio with the style of the same house, but with the difference that the expansion is on the second floor and towards the front.
The land dimension, its neighbors and land orientation conditioned our design decisions; the stacking design, the mix of different textures and transparencies coexisting with nature enhances the architectural design.
