Forment House

Forment House
© Diego Opazo

FORMENT HOUSE

Mano De Santo

ARCHITECTS
Mano De Santo

STEEL LOCKSMITH
Ocire

BUILDER
Ensecon Obras Y Servicios

MANUFACTURERS
Lafarge Holcim, Pladur, Saint-gobain, Gecol

EXECUTIVE DIRECTION
Eduardo Ferrer Doménech

AUTHORS ARCHITECTS
Francesc De Paula Garcia Martinez, Ana Gil Collado, Francisco Miravete Martín

TECHNICAL LIGHTING
Mgf Diseño Interior

PHOTOGRAPHS
Diego Opazo

AREA
402 M²

YEAR
2015

LOCATION
Valencia, Spain

CATEGORY
Houses

Text description provided by architect.

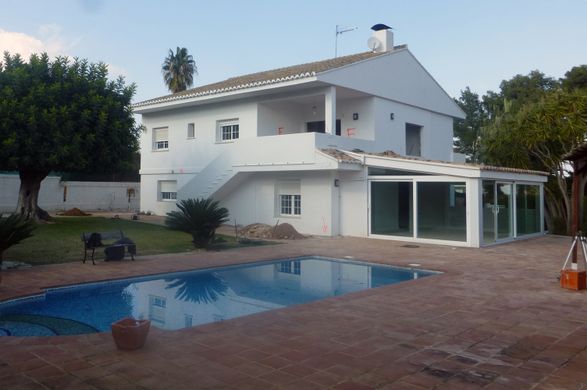

The projected building is the result of a double intervention in the existing building, expanding the room with the addition of a large porch to south and an inner, facades and roofrenovation.

Forment House
© Diego Opazo
Forment House
© Diego Opazo

The solution adopted takes into account on the one hand customer requirements, both functional and aesthetic needs, as the construction features of the existing building and its location.

The volume, buildable area, urban parameters defined by the particular planning regulations for this area, with the premise of the architects to achieve a right integration and use up to the conditions of the plot and its orientation, resulting in a simple building, of pure volumes with a very careful treatment of the facades design according to their orientation and views, with a renewed composition carpentry, shutters design treatment and the choice of materials.

Forment House
© Diego Opazo
Forment House
© Diego Opazo

The solution of the dwelling is basically in two floors, ground floor and first floor.

On the ground floor, where the main entry is located, the living-dining room piece is laid up (facing the yard),kitchen is practically the existing one but with a different relation with the other pieces, a laundry room, a bathroom, a small cellar, a small second living room and a bedroom attached; there is also a connecting space which starts the section that leads to the upper floor.

Forment House
© Diego Opazo
Forment House
© Diego Opazo

The first floor is solved with a small connecting space that gives access to three double bedrooms, a shared bathroom and a main bedroom with bathroom and dressing area. Thereis no basementfloor.

Roofs are designed as inverted gravel roof, removing the existing pitched tile roof.

The volumetry of the building is clear and simple, they emphazise the vertical latticework that decompose the volume and breath life into the image.

Forment House
© Diego Opazo
Forment House
© Diego Opazo

These latticeworks solve the greatest dimension glass walls solar shading.

This new built volume is designed in smooth finished gray exposed concrete, and the rest of the existing facades are cladded with a double isolated wall of continuous finished Aquapannel boards.

Forment House
© Diego Opazo


Forment House
© Diego Opazo
Forment House
© Diego Opazo
Forment House
© Diego Opazo
Forment House
© Diego Opazo


Forment House
First Floor Plan
Forment House
Second Floor Plan


Forment House
Sections
Forment House
Drawing
