COLERAINE DUPLEX

Naturehumaine

Coleraine Duplex
© Adrien Williams
Coleraine Duplex
© Adrien Williams

ARCHITECTS
Naturehumaine

PHOTOGRAPHS
Adrien Williams

AREA
3135 Ft²

YEAR
2013

LOCATION
Montreal, Canada

CATEGORY
Houses

Coleraine Duplex
© Adrien Williams

Text description provided by architect.

This project was completed for a developer/home builder at the intersection between Coleraine Street and a laneway in Montreal’s Point St-Charles neighborhood.

The basic program for this project required 2 row-homes on an 8.7m wide lot.

Coleraine Duplex
© Adrien Williams
Coleraine Duplex
© Adrien Williams
Coleraine Duplex
© Adrien Williams

After accounting for setbacks and other constraints, traditional planning approaches would have resulted in 2 long narrow houses, which severely lacked natural light.

Our solution was to intertwine both units in a zigzag fashion, maximizing on natural light, and creating dynamic angular spaces.

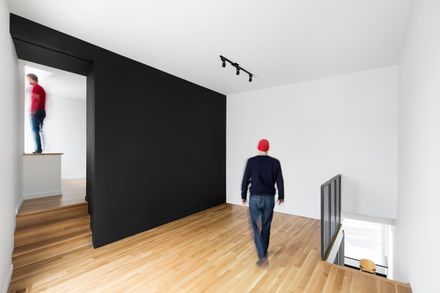

The two units intersect at the top floor to create an intimate space for a master bedroom, an office, and a terrace in each unit.

Coleraine Duplex
© Adrien Williams
Coleraine Duplex
© Adrien Williams
Coleraine Duplex
© Adrien Williams

This design was reinforced by the site’s footprint, which has a 75-degree angle at the intersection between the street and the laneway and further inspired the creation of angular forms and oblique perspective lines within the interior.

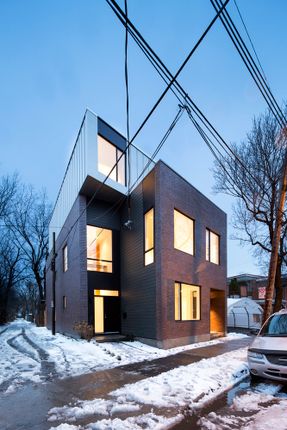

The building is composed of a brick base, which relates to the neighborhoods vernacular, and is topped with a contemporary angular volume clad in steel that cantilevers over the base.

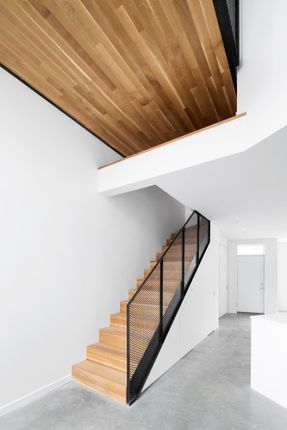

The minimalist interiors each have a double height space with a suspended wood platform.

Coleraine Duplex
© Adrien Williams
Coleraine Duplex
© Adrien Williams
Coleraine Duplex
© Adrien Williams

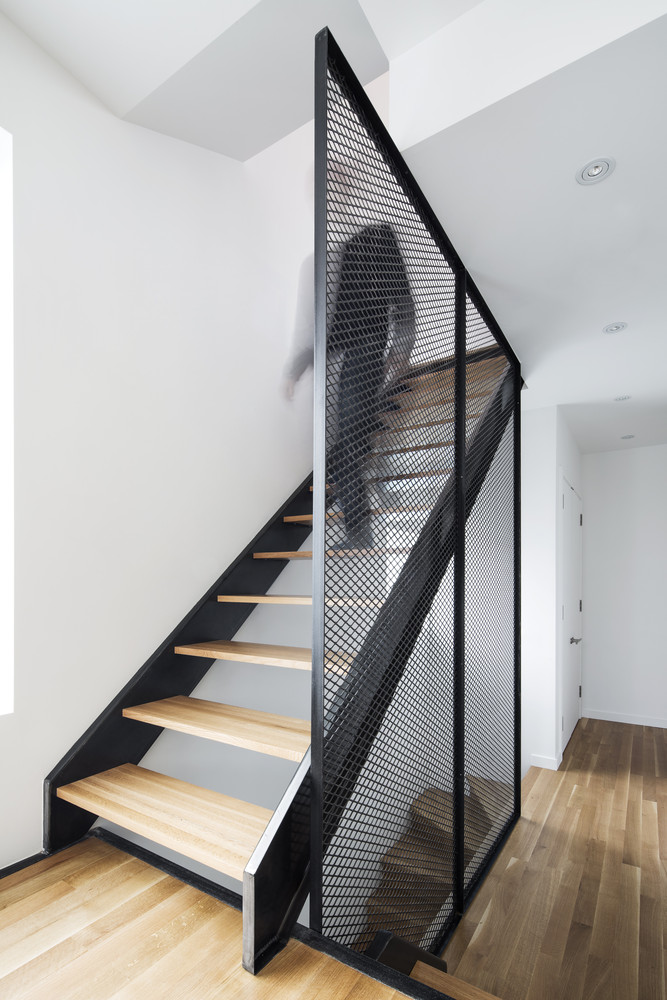

The stair, wrapped in a black expanded-steel handrail, ascends to the master bedroom where a reading nook bathes in natural sunlight.


Coleraine Duplex
© Adrien Williams
Coleraine Duplex
© Adrien Williams
Coleraine Duplex
© Adrien Williams


Coleraine Duplex
Diagram
Coleraine Duplex
Diagram


Coleraine Duplex
Ground Floor Plan
Coleraine Duplex
Second Floor Plan
Coleraine Duplex
Third Floor Plan
Coleraine Duplex
Section
