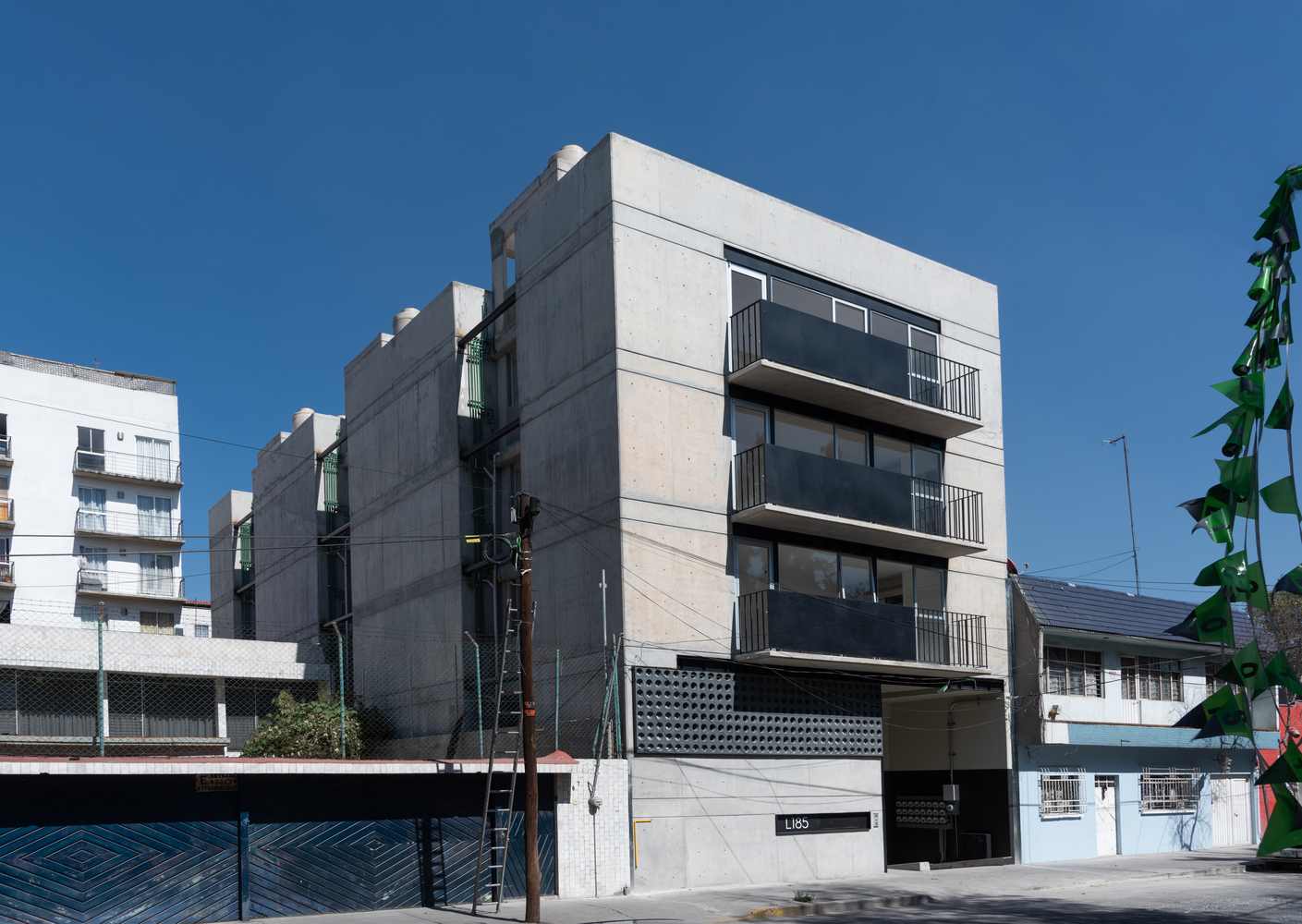

LT185 Building

LT185 Building
© Jaime Navarro

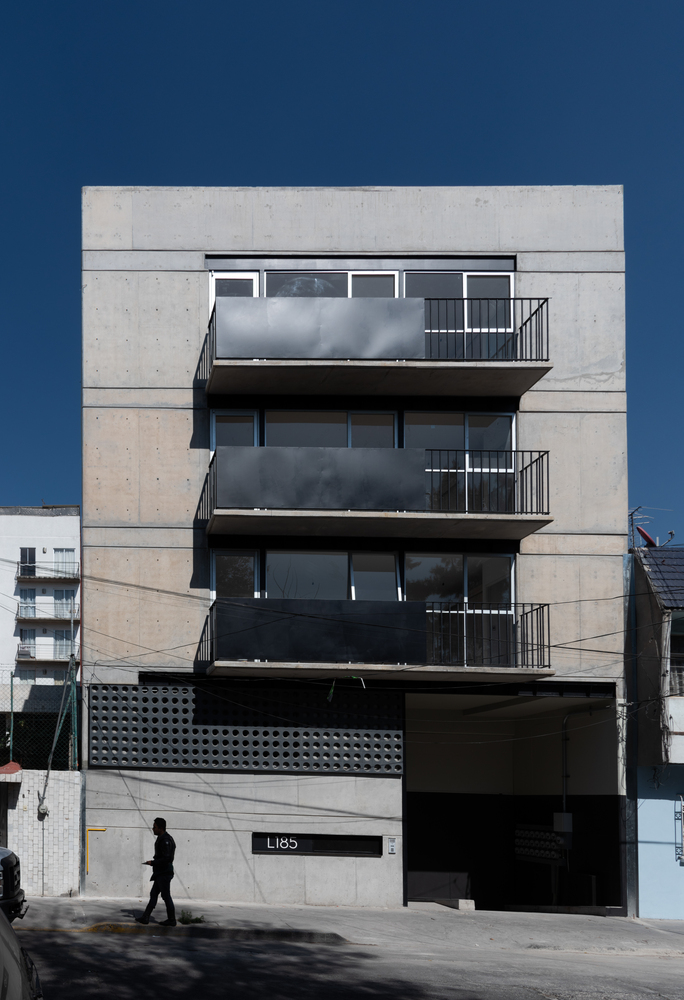

LT185 Building
© Jaime Navarro

LT185 Building

ZD+A

ARCHITECTS
Zd+a

LEAD ARCHITECTS
Yuri Zagorin Alazraki

STRUCTURAL ENGINEER
Oscar Hernandez

MANUFACTURERS
Autodesk, Bosc Küche Pacific, Cherigo Proyectos Instalaciones Y Servicios, Calorex, Fibrha Digital Studio, Ingenieria Y Proyectos Kraken, S.a. De C.v., Intec, Interceramic, Lm13 Desarrolladora, Lacosa, Llano De La Torre, Muro Blanco, Puertas Deleth, Unidekor

DESIGN TEAM
Guillermo Arenas Bermúdez, Alejandra Rodríguez, Ricardo Pérez Ávila, Carolina Rocha Mazurkevic

ENGINEERING
Héctor Avalos Rodríguez

PHOTOGRAPHS
Jaime Navarro

AREA
1344 M²

YEAR
2019

LOCATION
Ciudad De México, Mexico

CATEGORY
Apartments

Text description provided by architect.

The interest of LT185 is to give solution to an affordable flat, that can be the first apartment to start a patrimony, always having the design as the path to obtain this goal and obtain a good solution.

LT185 Building
© Jaime Navarro
LT185 Building
© Jaime Navarro

Program 24 small lofts, distributed in 4 sections divided by patios. 6 lofts each level and with private roof gardens and one common roof garden.

Basement for parking and several places for bikes and motorcycles. Each block has independent stairs to connect 2 apartments per level.

LT185 Building
© Jaime Navarro
LT185 Building
© Jaime Navarro

Scheme The project is developed in 4 rectangular volumes parallel to the street allowing that each block uses the whole section of the plot, this action lets that each loft takes advantage of natural light and ventilation.

Structure The whole structure is made of concrete, in the basement is constructed on columns and beams, and the upper levels by bearing walls.

LT185 Building
© Jaime Navarro
LT185 Building
© Jaime Navarro

The slabs are made of concrete joist with polystyrene vaults.


LT185 Building
© Jaime Navarro
LT185 Building
© Jaime Navarro
LT185 Building
© Jaime Navarro


LT185 Building
Basement plan
LT185 Building
First floor plan
LT185 Building
Fourth floor plan
LT185 Building
Roof plan
LT185 Building
Type plan
LT185 Building

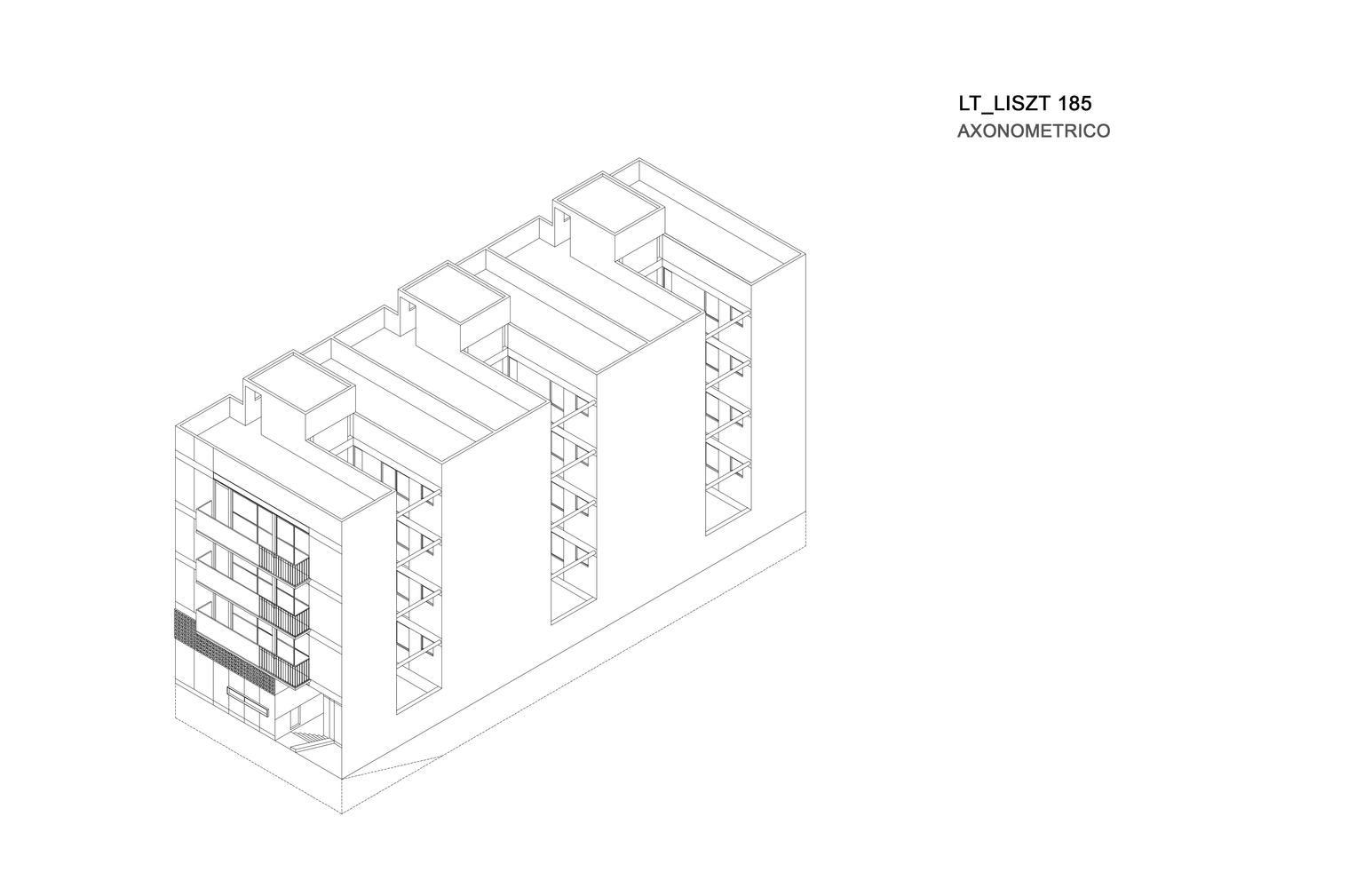

Axo


LT185 Building
Section A
LT185 Building
Section B
LT185 Building
Elevation
