Miró Rivera Architects

Chinmaya Mission Austin

Chinmaya Mission Austin
© Paul Finkel | Piston Design

CHINMAYA MISSION AUSTIN

Miró Rivera Architects

SPECIALTY METAL WORK
Metalink Corporation

MEP ENGINEER
Bay & Associates

GENERAL CONTRACTOR
Spawglass

LANDSCAPE
Studio Dwg

ACCESSIBILITY
The Access Partnership

ARCHITECT IN CHARGE
Juan Miró, Miguel Rivera

PROJECT MANAGER
Ken Jones

STRUCTURAL ENGINEER
Architectural Engineers Collaborative

CIVIL ENGINEER
Aupperle Company

MANUFACTURERS
Ceco Door, Contrast Lighting, Lighting Services, Mermet, Moderco, Tivoli

TEAM MEMBERS
Spencer Cook,
Bud Franck, Matthew Helveston, Michael Hsu,
Shane Pavonetti, Edward Richardson

LIGHTING
Arclight Design

AREA
4185ft²

YEAR
2014

LOCATION
Austin, United States

CATEGORY
Worship

Text description provided by architect.

Established as a home for the Central Texas division of Chinmaya Mission, an international non-profit Hindu spiritual organization, this new 8-acre campus is characterized by an architectural language that reinterprets traditional Indian typologies in order to reflect the organization’s modern context.

Chinmaya Mission Austin
© Paul Finkel | Piston Design
Chinmaya Mission Austin
© Paul Finkel | Piston Design

Presented with the unique opportunity of designing a Hindu mission in Central Texas, the architects applied their knowledge of local building materials to create a visual language that is rich in texture, sculptural in quality, and innovative in design.

The main challenge of the project was two-fold: to create spaces that accommodated both the spiritual and practical needs of the rapidly-growing mission, and to apply established Hindu practices in ways that felt new and unexpected.

Chinmaya Mission Austin
© Paul Finkel | Piston Design
Chinmaya Mission Austin
© Paul Finkel | Piston Design

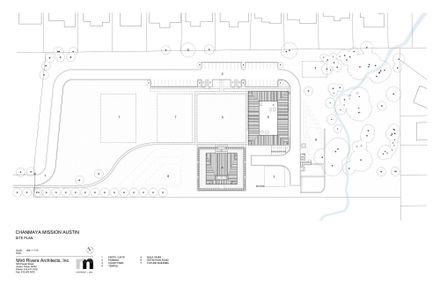

The campus master plan combines the traditional vastu shastra principles of Hindu design—emphasizing geometric patterns, symmetry, and directional alignments—with a contemporary sensibility. The completed first phase consists of a temple and Bala Vihar (educational building) arranged around a central lawn, with space reserved for future buildings.

Working within the restrictive budget of a non-profit organization, design was not sacrificed; rather, it inspired the design team to find a vocabulary that was simple yet refined. In elevation, white stucco walls and pitched roofs recall traditional

Chinmaya Mission Austin
© Paul Finkel | Piston Design
Chinmaya Mission Austin
© Paul Finkel | Piston Design

Indian typologies; large windows provide abundant natural light in every occupied space; and deep overhangs offer refuge from the hot Texas sun. By simply alternating the tones of the standing seam metal roof panels, a striking design motif was conjured up from a commonplace material.

The most spectacular example of this creative adaptability is the airy steeple atop the temple’s peak. To reduce costly field-welding, the delicate structure was shop-fabricated using galvanized fencing material and then lifted into place.

Serving as the educational hub of the mission center, the Bala Vihar consists of 12 classrooms plus a central gallery and large covered patio for congregation and social events.

Flexibility was a major priority, as the facility must comfortably accommodate small weekly classes as well as special events. In response, three of the classrooms utilize operable partitions to create larger spaces as needed.

Chinmaya Mission Austin
© Paul Finkel | Piston Design
Chinmaya Mission Austin
© Paul Finkel | Piston Design

A central gallery plays multiple roles as circulation, display space, and assembly hall. At the temple, the prevalence of symmetry and geometry are reminders of traditional Hindu religious architecture.

Beginning in the central meditation hall and moving out toward the perimeter of locally-source limestone blocks, a series of concentric circles, squares, and rectangles—including an illuminated pattern in the meditation hall’s dramatically-sloped ceiling—references traditional mandala- inspired architecture.

Chinmaya Mission Austin
© Paul Finkel | Piston Design

Above the shrine, the most sacred space in the temple, light from concealed skylights is reflected by a golden wall, creating an aura around three deities arrayed with bright robes and flowers.

In its development and execution, the design of Chinmaya Mission Austin strikes a delicate balance between the need to respect both the traditional building methods of an ancient religion and the limited resources of a non-profit organization; and the desire to employ a contemporary aesthetic that reflects the forward-thinking approach of an international faith.


Chinmaya Mission Austin
Section


Chinmaya Mission Austin
Elevation
Chinmaya Mission Austin
Elevation
Chinmaya Mission Austin
Elevation
Chinmaya Mission Austin
Elevation


Chinmaya Mission Austin
Floor Plan
Chinmaya Mission Austin
Floor Plan
Chinmaya Mission Austin
Floor Plan
Chinmaya Mission Austin
Floor Plan
