Mirag Architecture and Management, SLP

House in LLavaneres

House in LLavaneres
© Jordi Surroca

House in LLavaneres

MIRAG ArquitecturaiGestió

ENGINEERING
Oriol Ruiz

COLLABORATORS
Marta Grau, Beth Bacardit

CONSTRUCTION MANAGER
MIRAG ArquitecturaiGestió

ARCHITECTS IN CHARGE
Xavier Ramoneda, Pau Millet

PHOTOGRAPHS
Jordi Surroca

AREA
300 m²

YEAR
2013

LOCATION
Sant Andreu De Llavaneres, Spain

CATEGORY
Houses

Text description provided by architect.

We firmly believe in a sustainable architecture that considers every client in every circumstance. This house shows the requirements of the location and its environment: the architecture results in the topographical and formal adjustments that are typical of the Mediterranean area.

House in LLavaneres
© Jordi Surroca
House in LLavaneres
© Jordi Surroca

When we received the assignment to design a single-family house in Sant Andreu de Llavaneres on a parcel of land with a 30% slope, we opted to integrate both levels of the house in the bank. We devised a NE-SW-oriented arrangement, which followed the slope and made the most of the beautiful views offered by the location.

The ground floor -where the main activities take place- is located at street level, while the basement floor connects the house with the garden. There, two secondary spaces allow enjoying the exterior part of the dwelling.

House in LLavaneres
© Jordi Surroca
House in LLavaneres
© Jordi Surroca

The house is made up of three polyhedral volumes. The contact points between the volumes are opened to the views, providing each inner space and all the areas of circulation with light and excellent visual quality.

The simplicity of the materials used is a key element in this project: concrete floors, exposed concrete floor structure, and hand-made glazed tiles.

House in LLavaneres
© Jordi Surroca
House in LLavaneres
© Jordi Surroca


House in LLavaneres
© Jordi Surroca
House in LLavaneres
© Jordi Surroca
House in LLavaneres
© Jordi Surroca


House in LLavaneres
Longitudinal Section 1
House in LLavaneres
Longitudinal Section 2
House in LLavaneres

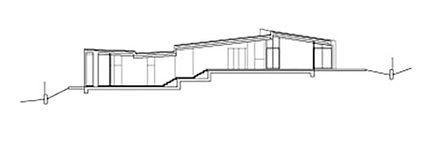

Longitudinal Section 3
House in LLavaneres
Longitudinal Section 4


House in LLavaneres
Cross Section 1
House in LLavaneres
Cross Section 2
House in LLavaneres
Cross Section 3
House in LLavaneres

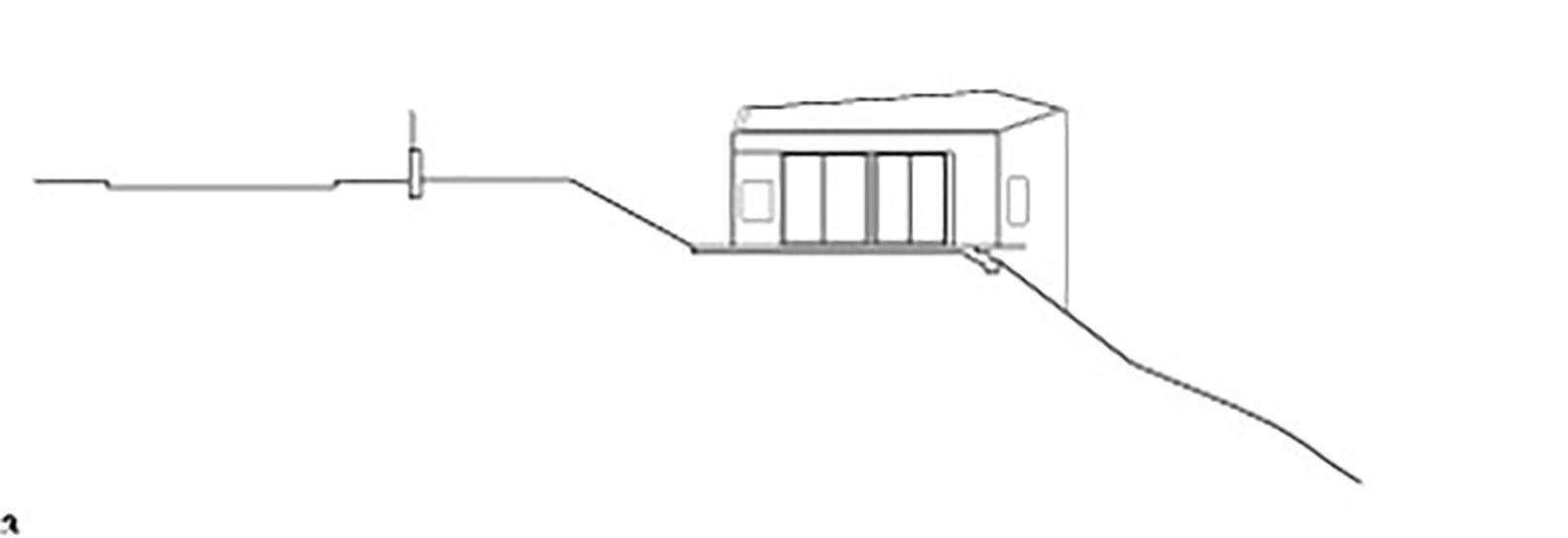

Cross Section 4


House in LLavaneres

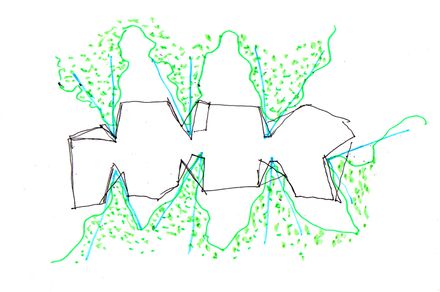

Diagram 1
House in LLavaneres

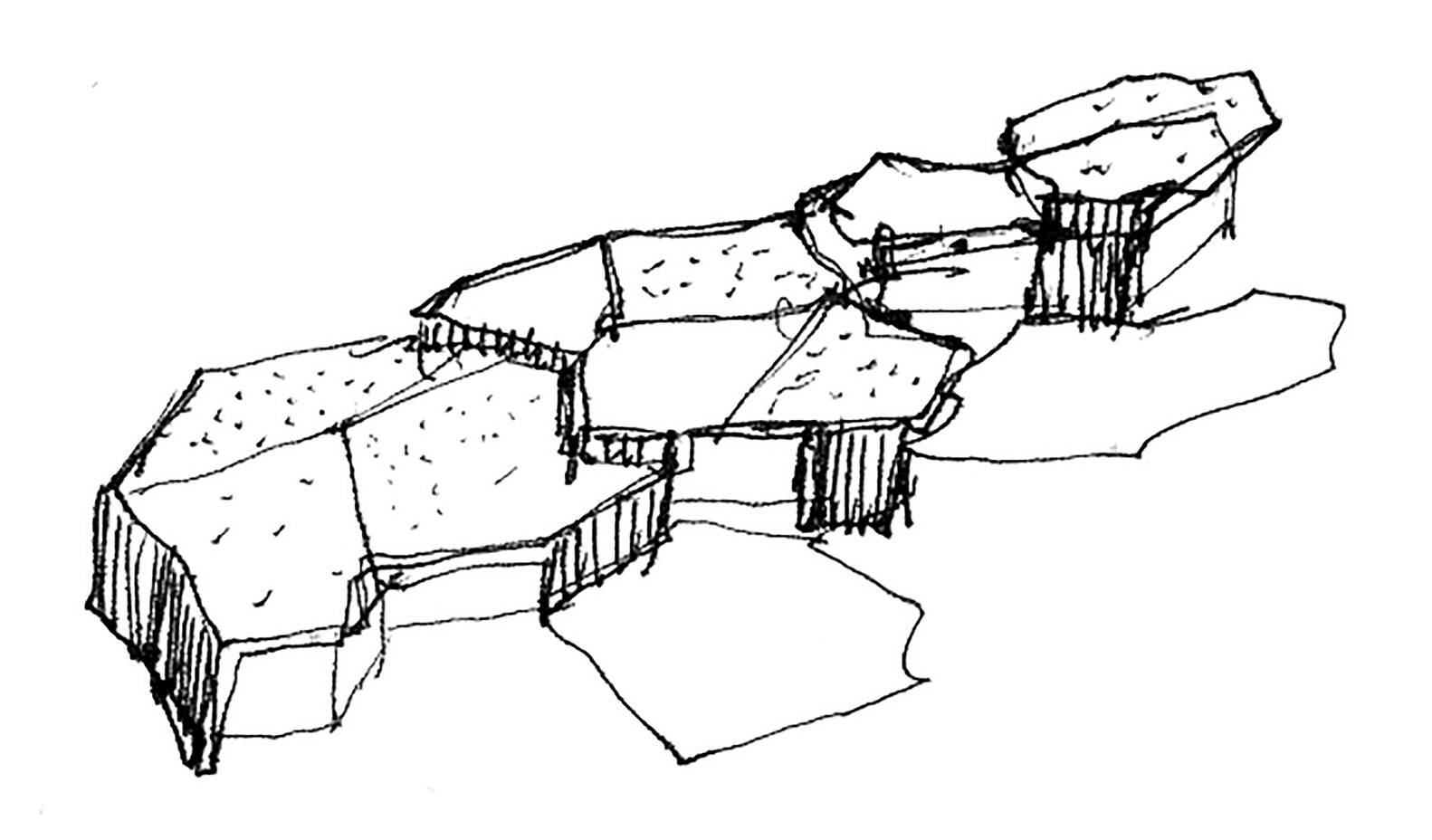

Diagram 2
House in LLavaneres
Diagram 3
House in LLavaneres
Diagram 4
House in LLavaneres
Diagram 5
House in LLavaneres
Diagram 6


House in LLavaneres
Ground Floor Plan
House in LLavaneres
First Floor Plan
House in LLavaneres
Site Plan
