Bernardes Arquitetura

Capela Joá

Capela Joá
© Tuca Reinés

Capela Joá

Bernardes Arquitetura

INTERIORS
Bernardes Arquitetura

CONSTRUCTION
Construviva

STRUCTURES
Ita Construtora - Estrutura Em Madeira; Engenheiro João Gabriel Silva Freire - Estrutura Metálica

MANUFACTURERS
Alwitra, Ita Construtora, Marcenaria Baraúna, Sjl

TEAM
Thiago Bernardes, Camila Tariki, Francisco Abreu, Ilana Daylac, Daniel Vannucchi, Thiago Moretti, Antonia Bernardes, Fernanda Lopes, Maria Vittoria Oliveira, Ana Paula Endo, Renata Evaristo,caroline Premoli

LIGHTING
Wall Lamp

HVAC
Air Point

PHOTOGRAPHS
Tuca Reinés

YEAR
2014

LOCATION
Rio De Janeiro , Brazil

CATEGORY
Chapel

Text description provided by architect.

The siting of the Chapel was defined by the irregular topography of the land and the search for a quiet place without a flow of people.

Capela Joá
© Tuca Reinés
Capela Joá
© Tuca Reinés

It was important to place it where the natural surroundings - forest, sky, sea - were present in the experience of the space.

The conceptual search for simplicity has guided the design of the project and has allowed a systematic construction.

Capela Joá
© Tuca Reinés
Capela Joá
© Tuca Reinés

The two steel beams that support the upper roof are supported by only two points - the existing road and the column that rises at the bottom of the site.

The main structure supports plywood frames, which at the same time structure the envelope of the internal space. Glass walls line and protect the wooden structure, while they blend in with the forest through the reflection of the trees.

Capela Joá
© Tuca Reinés
Capela Joá
© Tuca Reinés

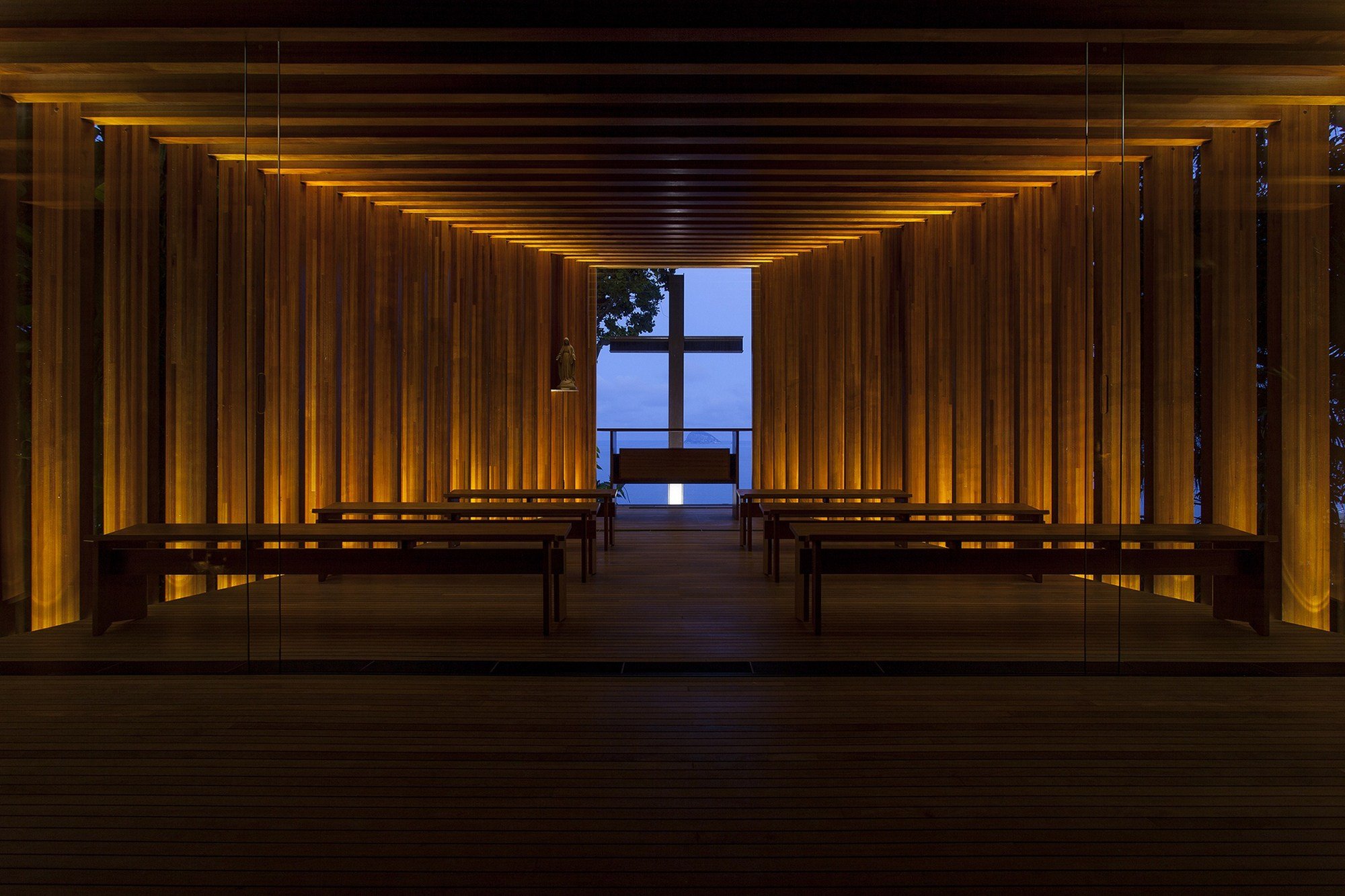

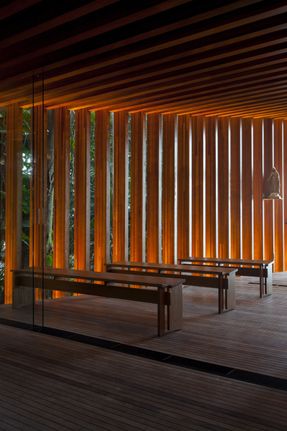

Inside the chapel, the perception of the forest is possible through the rhythmic sequence of frames.

These gradually increase in height and lead the views to the ocean. The large metal pillar supports a roof of vertices that rises and becomes the cross framed by the landscape.

The chapel is present between the treetops, at a height that allows the view of infinity. It is a space with a conceptual simplicity that is steeped in its materiality and its constructive solutions, which improves the sensory experience of those seeking silence and reflection.

Capela Joá
© Tuca Reinés
Capela Joá
© Tuca Reinés


Capela Joá
Site Plan
Capela Joá
Plan


Capela Joá
Longitudinal Section
Capela Joá
Transversal Section


Capela Joá
Esquema Explodido
Capela Joá
Esquema Montagem


Capela Joá
Detail 1
Capela Joá
Detail 2


Capela Joá
Sketch 1
Capela Joá
Sketch 2
