CCTN Design 筑境设计

Linping Sports Park Supporting Project

Linping Sports Park Supporting Project
Courtesy of CCTN

LINPING SPORTS PARK SUPPORTING PROJECT

Cctn

ARCHITECTS
Cctn Design

CLIENT
Hangzhou Yuhang City Construction Group Co.ltd

CONSTRUCTOR
Zhejiang Yili Construction Co.ltd

ARCHITECT IN CHARGE
Jiandong Yin, Zhenyi Zhu

DRAINAGE DESIGN
Yingchun Yang

MANUFACTURERS
Anometal

AREA
7900 m²

STRUCTURAL DESIGN TEAM
Jun Lu, Weiming Jin, Huilang Sun

ELECTRICAL DESIGN TEAM
Pengzhan Li, Lin Tang

CURTAIN WALL DESIGN TEAM
Gang Wang, Junhui Zeng, Delin Yang

HVAC DESIGN
Chengkai Du

ARCHITECTURAL DESIGN TEAM
Yonglei Peng, Fangwen Ni, Limiao Dai, Yi Ge, Xuan Zhang, Chao Feng

CATEGORY
Recreation & Training

LOCATION
Hangzhou, China

YEAR
2019

BACKGROUND

This Project is in Linping Sports Park, Hangzhou City, Zhejiang Province. It aims to provide supporting facilities for the newly built park, and consists of a fitness center, a comprehensive indoor arena, and rest stations.

Linping Sports Park Supporting Project

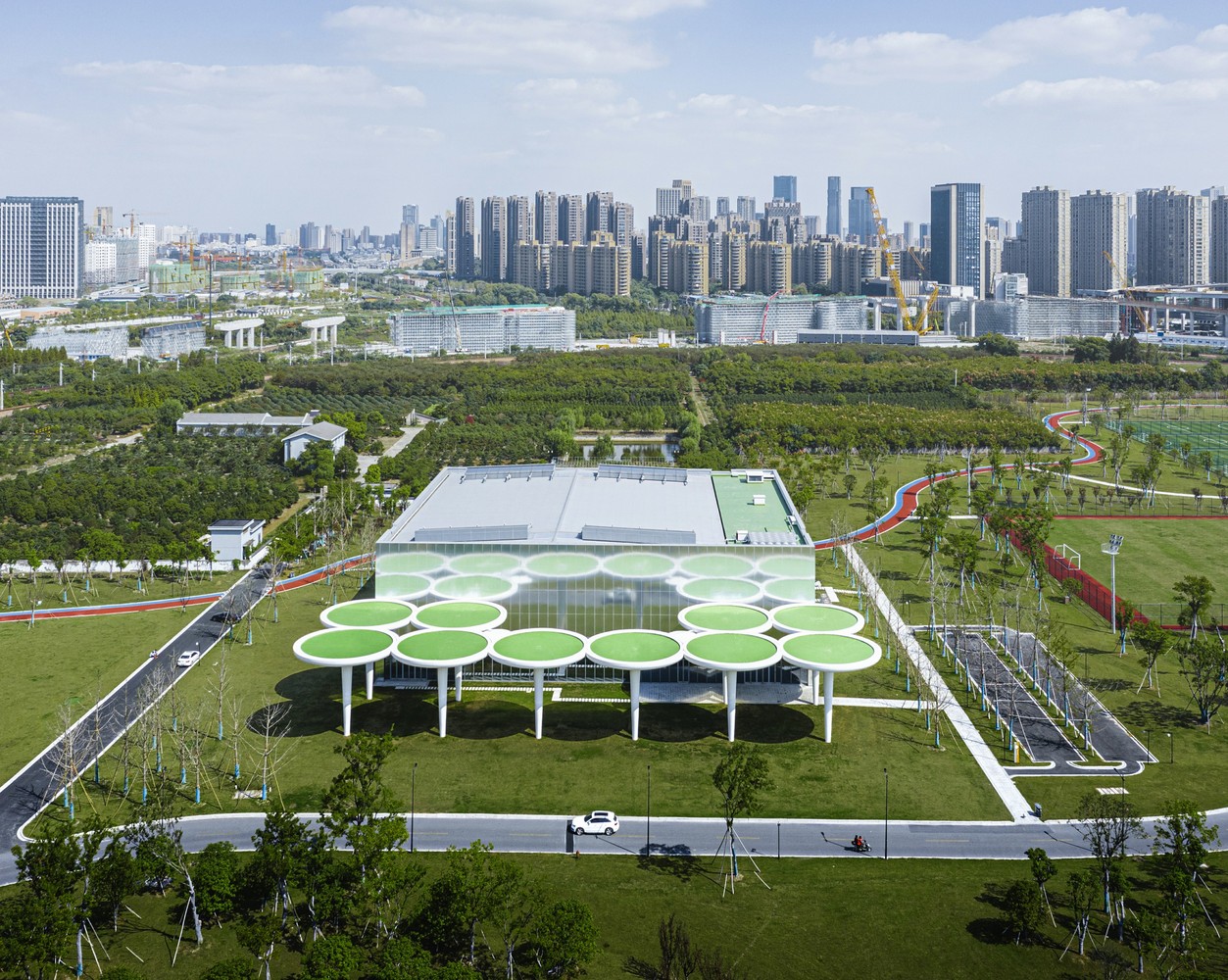

The volume of Tennis Hall hidden in nature. Image Courtesy of CCTN
Linping Sports Park Supporting Project
Grey space formed by umbrella structure at the junction of tennis hall and park. Image Courtesy of CCTN

The Sports Park is a rare urban oasis in such a densely inhabited city. Following ecofriendly operation standards, it has a simple and flowing landscape with open lawns and streamlined walkways. The original green vegetation of the space has been preserved to a huge extent.

DESIGN PHILOSOPHY

Many venues are often used as large-scale landmarks, however, the Project located in the park is closed completely and is not compatible with the park’s open nature.

Linping Sports Park Supporting Project
Open space facing the side of the park. Image Courtesy of CCTN
Linping Sports Park Supporting Project
Children playing under the umbrella space. Image Courtesy of CCTN

The Sports Park focuses on ecology and a great wide-open landscape, and this will be continued in the design as well in a graded manner, to ensure that there is a flexible connection between the building and the park.

To ensure the perfect space, it’s important to contract the architectural volume and blur the boundaries between nature and architecture. The architecture will become one with nature and will ideally become a part of the landscape itself.

The design philosophy focuses on ecology, landscaping and openness, and an umbrella structure is used as the basic unit of the building.

Linping Sports Park Supporting Project
Open space under umbrella structure. Image Courtesy of CCTN
Linping Sports Park Supporting Project
View the rooftop runway from the open space on the ground floor. Image Courtesy of CCTN
Linping Sports Park Supporting Project
Night view of open space of fitness center. Image Courtesy of CCTN

Each umbrella-shaped unit has a distinct shape and does not occupy much space. The lower half formed by the circular ceiling is open and free and beautifully integrated with the environment. Numerous such units come together to form a continuous and yet, distinct interior space.

Based on the functional requirements, the umbrella-shaped units can work as a landscaped structure or a functional building offering a large space, and they can adapt to the park’s environment appropriately.

The design uses umbrellas, which are similar in scale to the main tree species in the park. The radius is around 5 m and the height is around 9 m.

Linping Sports Park Supporting Project
Lamp in the center of glass top. Image Courtesy of CCTN
Linping Sports Park Supporting Project
View the hall of fitness center from the revolving stairs. Image Courtesy of CCTN
Linping Sports Park Supporting Project
Interior space composed of continuous umbrella structure. Image Courtesy of CCTN

These are selected as the basic unit and then based on the functional requirements, they are combined to create the sort of sports venue that is required.

FITNESS CENTER

The Fitness Center covers an area of approximately 3,800 square meters and has been constructed using 49 umbrella-shaped units wrapped in white GRC and off-white aluminum panels. The light and transparent venue is open and free, and the landscape with its many squares and walkways add to the allure. Architecture and nature have come together here, allowing people to access it from all directions.

Linping Sports Park Supporting Project
Fitness center hall. Image Courtesy of CCTN
Linping Sports Park Supporting Project
GRC forest integrated into nature. Image Courtesy of CCTN

The building uses three big umbrella-shaped units with a diameter of 20 m, with increased visibility. One of the umbrellas has been used as the base for a spiral staircase that connects the ground with the roof. People can move up to the ring-shaped runway on the roof through the spiral staircase. They can look down on the park and see the other people playing games and feel like they’re floating above them, which is certainly a unique experience.

Comprehensive Indoor Arena
The Comprehensive Indoor Arena covers an area of about 4,100 square meters and consists of 10 basic umbrella-shaped units and a rectangular arena. Based on the requirements of the indoor tennis stadium for a large space without columns, the main body of the arena uses a spatial lattice structure.

On the side of the building facing the central landscape of the park, which is the same side of the main entrance, 10 umbrella-shaped units have been designed as a buffer space cutting through the landscape and the venue.

Linping Sports Park Supporting Project
The track goes through the fitness center. Image Courtesy of CCTN
Linping Sports Park Supporting Project
The park and tennis hall are flexibly connected by grey space. Image Courtesy of CCTN

This allows for flexible transition between the venue and the building. The umbrella forest is also useful in providing shelter for outdoor activities in the arena.

To eliminate the adverse effects of large venues on the environment, we have used anodized aluminum plates with high reflectivity for the surface. As a result, the building is no longer the focus, but becomes an extension of nature, becoming one with the environment.

Linping Sports Park Supporting Project

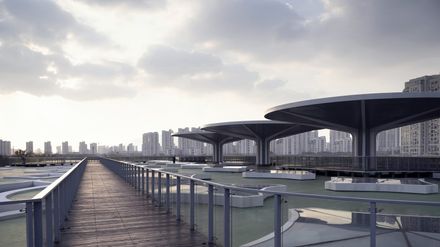

Fitness center rooftop runway. Image Courtesy of CCTN
Linping Sports Park Supporting Project
Fitness center by the river. Image Courtesy of CCTN

CONCLUSION

The Sports Venue comes together with the umbrella-shaped units, and becomes a part of the environment in a graded manner, while retaining the important elements of ecology, openness and landscape of the Sports Park, to the greatest extent. We hope to camouflage unforgettable experience to those who have come here to exercise.


Linping Sports Park Supporting Project
Anodized aluminum plate turns tennis hall into a natural continuation. Image Courtesy of CCTN
Linping Sports Park Supporting Project
Fitness center integrated in Sports Park. Image Courtesy of CCTN
Linping Sports Park Supporting Project
The roof of the fitness center with distinctive patterns. Image Courtesy of CCTN
Linping Sports Park Supporting Project
Open space by the river. Image Courtesy of CCTN
Linping Sports Park Supporting Project
GRC forest integrated into nature. Image Courtesy of CCTN
Linping Sports Park Supporting Project
Courtesy of CCTN
Linping Sports Park Supporting Project
GRC forest integrated into nature. Image Courtesy of CCTN
Linping Sports Park Supporting Project
East side of fitness center. Image Courtesy of CCTN


Linping Sports Park Supporting Project
1F plan
Linping Sports Park Supporting Project
2F plan
Linping Sports Park Supporting Project
Roof plan

Linping Sports Park Supporting Project
Detail


Linping Sports Park Supporting Project
Concept
Linping Sports Park Supporting Project
Perspective section
Linping Sports Park Supporting Project
Section
Linping Sports Park Supporting Project
Elevation
