Banyan Tree House

Banyan Tree House

Tales of Design studio

Banyan Tree House
© Turtle Arts Photography

LEAD ARCHITECTS
Shammi A Shareef

DRAWINGS AND DETAILS
Sreejith C P, Akshay M, Nikhel Suresh Ashkar, Abdul Azeez

MANUFACTURERS
Hettich, Asian Paints, Greenlam, Johnson, Kajaria, Kapital Plywood, Somany, Cera

AREA
2000 Ft²

YEAR
2022

LOCATION
Thrissur, India

CATEGORY
Houses

Banyan Tree House
© Turtle Arts Photography

Text description provided by architect.

Located on a river bank in Mampully, Banyan tree house is intended for a young couple and their two kids.

Plot constitutes an area of 630sqms and has an interesting L shaped site profile. Spatial planning of the house follows the site profile and is anchored around an existing banyan tree on the west of the site.

Banyan Tree House
© Turtle Arts Photography
Banyan Tree House
© Turtle Arts Photography

A buffer radius of 11ft is kept around the banyan for building safety, this shaded area houses the garden seating.

Floor plates of BTH branch out through the site in an angular grid to form a series of interaction spaces and green niches. Spaces are positioned to establish visual connection between themselves and landscape without compromising privacy.

Banyan Tree House
© Turtle Arts Photography
Banyan Tree House
© Turtle Arts Photography

Three bedroom house is a single storey-ed structure with a Mezzanine floor and has a built-up area of 2000sqft. Neighbourhood faces rising water levels during peak monsoons due to its close proximity to the river.

So as a precaution built spaces are positioned on the highest point on the elevated site. This helped in creating a large sloping front yard, a buffer zone with fruit and flower bearing native vegetation to protect the house sound and dust from on road traffic.

Banyan Tree House
© Turtle Arts Photography
Banyan Tree House
© Turtle Arts Photography

Geometrical shapes are carefully rendered into various elements of the design, thus creating a distinct design language. This visual continuity is established in aspects of flooring, Joinery, Interior furniture, skylights and overall built form.

Envelope of the house with its stilts,slopes,dynamic geometry and projecting structural slabs gives a sculptural appeal to the house. Projecting slabs of varying degrees on the facade provide shading during summers and rain protection during monsoons.

Banyan Tree House
© Turtle Arts Photography
Banyan Tree House
© Turtle Arts Photography

Custom design is the core ideology of BTH, it is translated on inbuilt furniture, front door handle,railings,wall decor, art works and hand made concrete bird ground cover.

Doors, windows, brick jali, porotherm air vents and skylights are strategically placed to enhance the indoor comfort level through cross-ventilation, stack effect and natural lighting. Natural air flow and lighting helps in reducing the household’s energy consumption.

Banyan Tree House
© Turtle Arts Photography
Banyan Tree House
© Turtle Arts Photography

The indoor courtyard becomes a part of dining and is an added attraction as the dining area is the circulation core of the house.

Space saving inbuilt niches are used for housing shelves, wardrobes and hand wash.

Southern side of the house has fewer openings and high sill windows to counter solar heat gain.

Banyan Tree House
© Turtle Arts Photography
Banyan Tree House
© Turtle Arts Photography
Banyan Tree House
© Turtle Arts Photography

Full height windows are mostly oriented towards north to gain more indirect natural light in interiors.


Banyan Tree House
West elevation
Banyan Tree House
East elevation
Banyan Tree House
North elevation
Banyan Tree House
South elevation


Banyan Tree House
Section AA
Banyan Tree House
Section BB


Banyan Tree House
Plan - Site
Banyan Tree House
Plan - Ground floor
Banyan Tree House
Plan - 1st floor


Banyan Tree House
Location map
Banyan Tree House

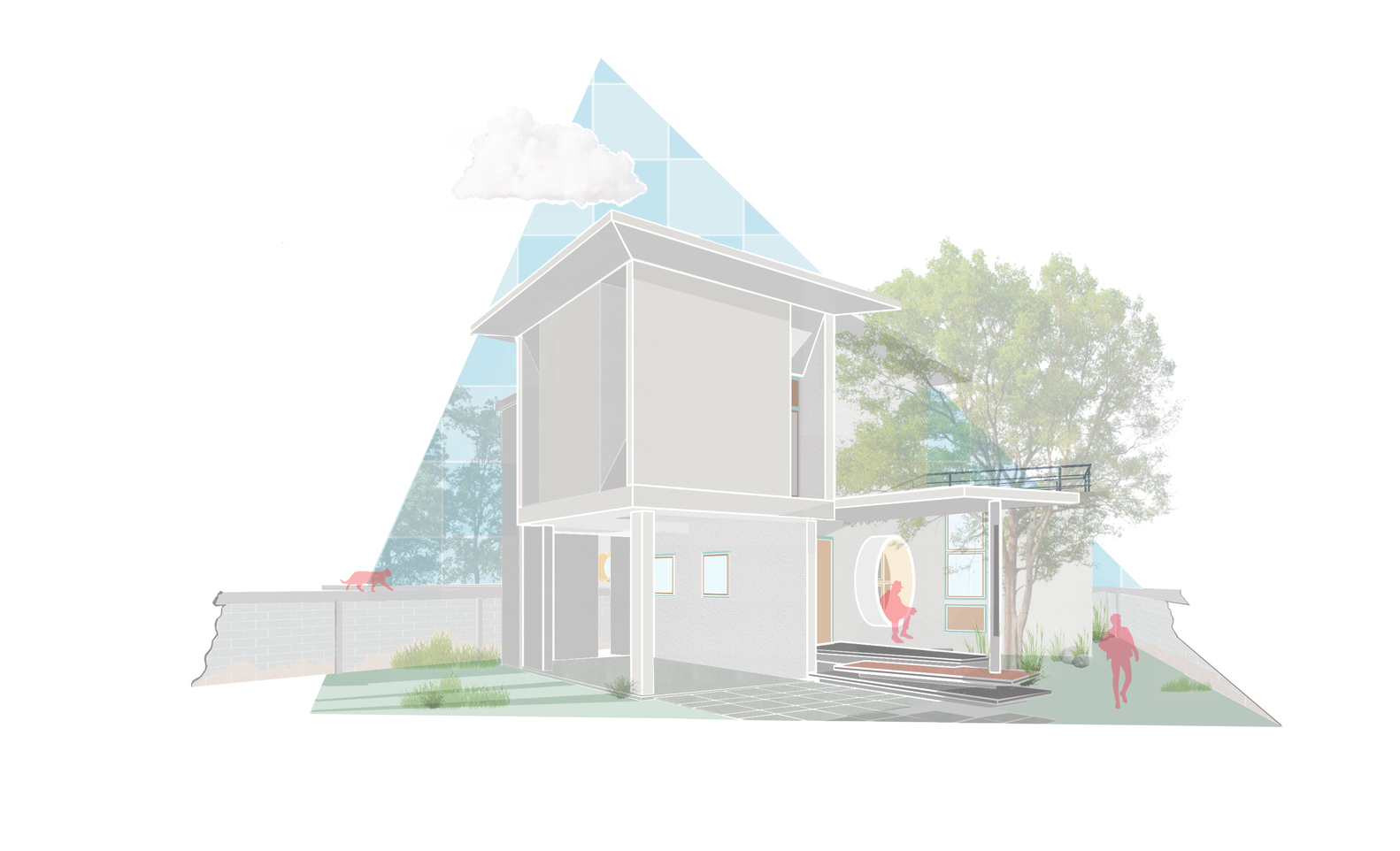

Illustration


Banyan Tree House
Plan - Site
Banyan Tree House
Plan - Ground floor
Banyan Tree House
Plan - 1st floor

Banyan Tree House
Brick jali 01

Banyan Tree House
Brick jali 02
