Tea Seed Oil Plant

Tea Seed Oil Plant
© Zeng Jianghe

Tea Seed Oil Plant

Imagine Architects

ARCHITECTS
Imagine Architects

OWNERS
Song Feng Cui Organic Agriculture Development Co.ltd

CONSTRUCTION TEAM
Hui. Impression Ancient Building Company

TEA SEED OIL PLANT
3018 Sqm

COVERED BRIDGE
195 Sqm

DESIGN TEAM
Luo Siwei, Lu Shan, Zhou Wei, Zhang Jun, Yang Yan

COTTAGE
866 Sqm

PHOTOGRAPHS
Zeng Jianghe

AREA
4079 M²

YEAR
2014

LOCATION
Shangrao, China

CATEGORY
Factory

Text description provided by architect.

BACKGROUND ANDANALYSIS

Tea Seed Oil Plant
© Zeng Jianghe
Tea Seed Oil Plant
© Zeng Jianghe

Song Feng Cui Organic Agriculture Development Co., Ltd. is located in Zhongping Village, Jiangwan Town, Wuyuan County. Wuyuan is one of the six ancient Huizhou Counties.

As an eco-poverty assistance projects, the plant is using an “order + farmer” mode; the materials of tea-seed oil factory comes from several villages around mountains which are not far away from the factory.

Tea Seed Oil Plant
© Zeng Jianghe
Tea Seed Oil Plant
© Zeng Jianghe

By doing this, we are not only helping these villages out of poverty but also creating a circular economy around these mountains. There is a double-restriction in this project. One is the limitation of factory interior spaces. It must meet the requirements of the production process.

The other one is the outside environment. The building should make a positive response to the natural environment andhistorical humanity environment where it is located.

Tea Seed Oil Plant
© Zeng Jianghe
Tea Seed Oil Plant
© Zeng Jianghe

PROBLEMS AND SOLUTIONS

Our site is a long and narrow land expands along the river. Because of the double-restriction from production process and the terrain, the factory building can only be a strip form.

In order to reduce the pressure to the environment from the building size, the 160m long, 13m wide building is folded into “Z” shape. And the roof top is using a diagonal double crest style; the height of the roof top comes from 10m to 5m.

Tea Seed Oil Plant
© Zeng Jianghe
Tea Seed Oil Plant
© Zeng Jianghe

STRUCTURES AND MATERIALS

Building materials are mainly old brick, old tile and old door sheet. Bricks are used in three major ways, self-supporting, space-retaining and insulation. Door sheets are mainly used as ceilings and mezzanine malls.

Tiles are used for insulation instead of water proofing, which is also the visual link between the old and new buildings.

COLOR AND VISUAL

The brick and wood sheet using for both outside and inside walls are without any paints. Except for some place that under the requirement of production requirement, we apply the white wall.

Tea Seed Oil Plant
© Zeng Jianghe
Tea Seed Oil Plant
© Zeng Jianghe

Most of the old bricks and wood sheets are keeping the surface traces which were formed by time that present a wealth of detail to the whole building. Building cornices are beveled.

The cornices ceiling is using the same method with the building walls. And the end of cornices which we called "pixel cornice." is using jaggedback channel processing. It presents an alternative visual effect to the public.

Tea Seed Oil Plant
© Zeng Jianghev
Tea Seed Oil Plant
© Zeng Jianghe

ECOLOGY AND ENVIRONMENTAL PROTECTION

The price of the old building material we used is cheap, but it costs a lot of money in collection and refurbishing. Therefore it is not cheaper than using new materials, but it is worth to do it after thinking about the ecological and the comprehensive social value.

Currently in China, we could only use it by the owners and designers’ consciousness. However, it is hard to promotion and sustainable only by the consciousness. We still need the supports from government or local regulations andpolicies.

Tea Seed Oil Plant
© Zeng Jianghe
Tea Seed Oil Plant
© Zeng Jianghe


Tea Seed Oil Plant
Floor Plan
Tea Seed Oil Plant
Floor Plan
Tea Seed Oil Plant
Floor Plan
Tea Seed Oil Plant
Site Plan

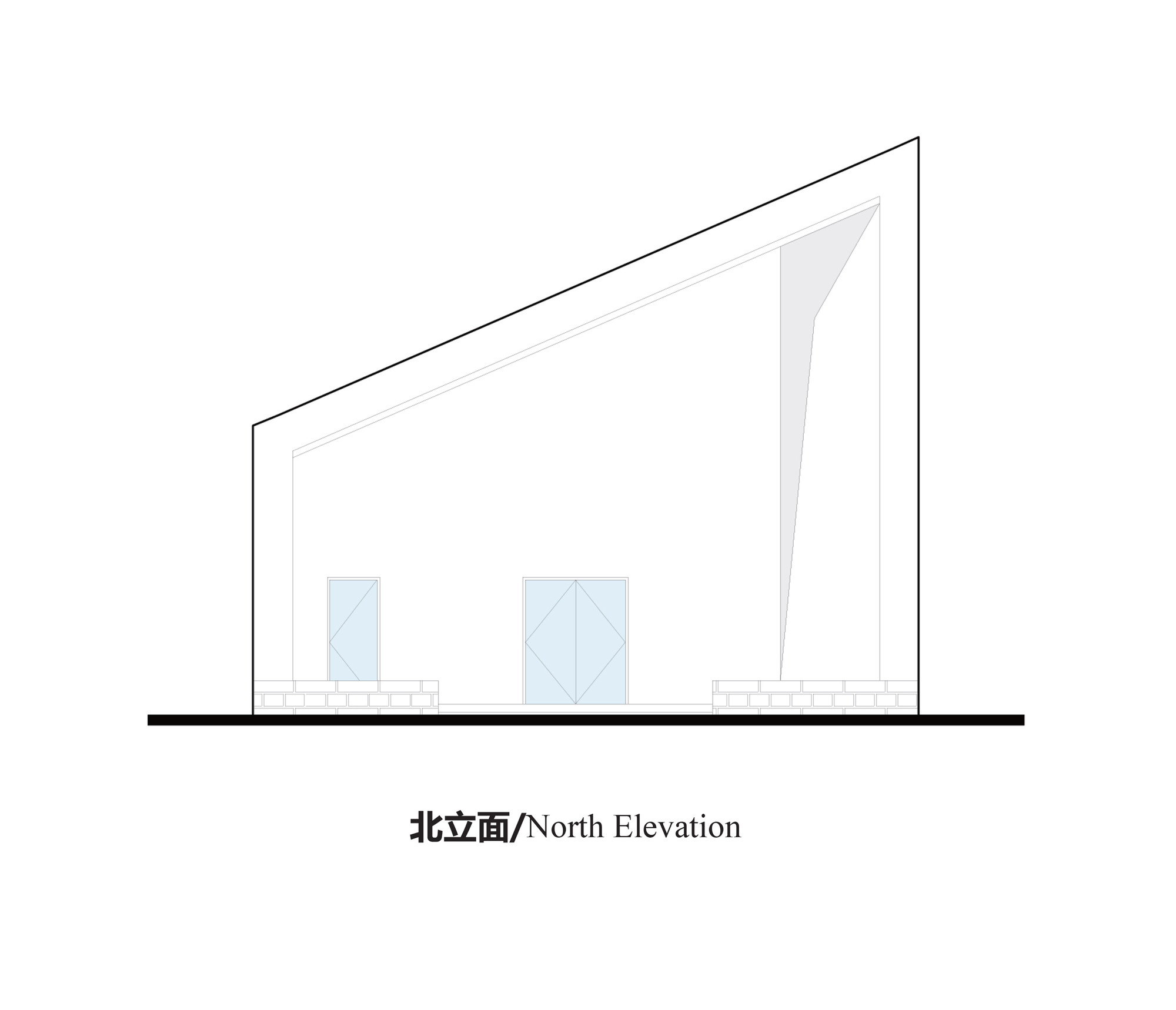

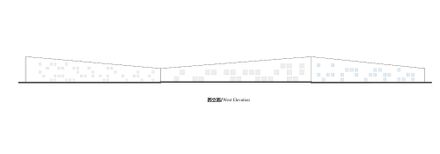

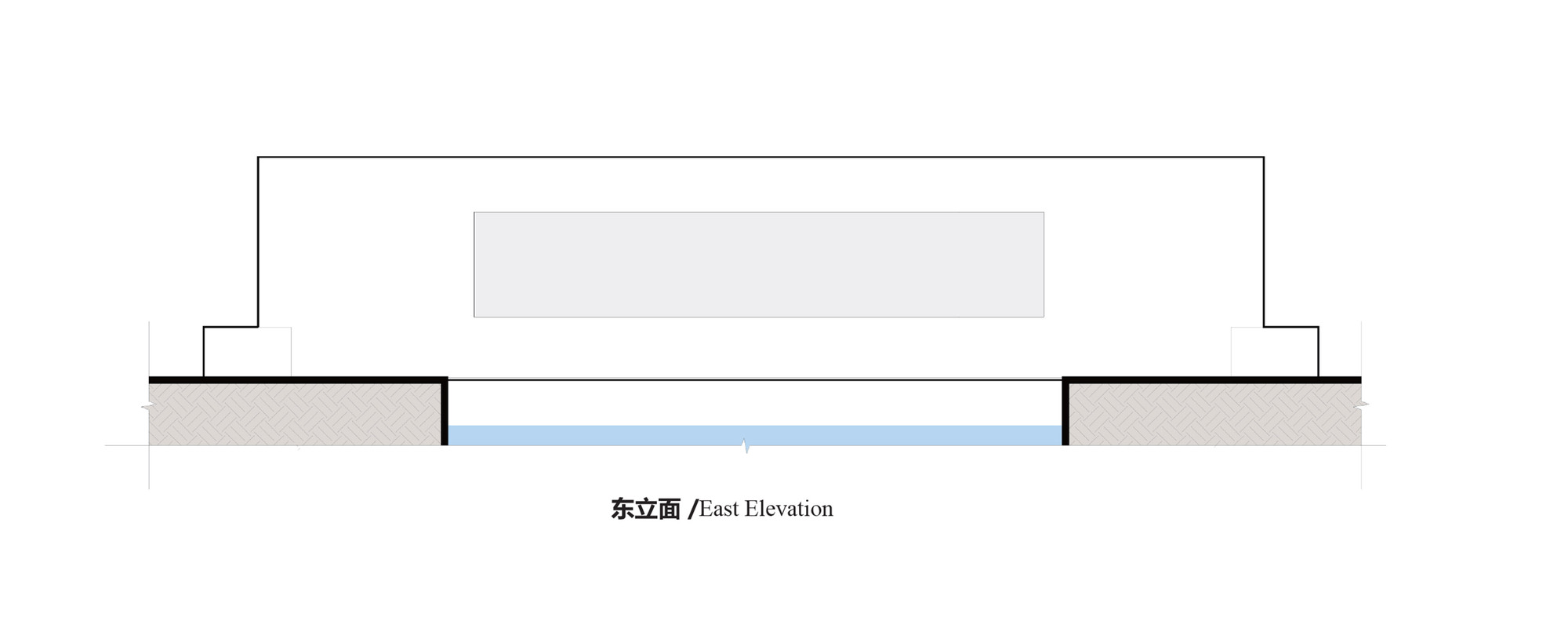

Tea Seed Oil Plant
Elevation
Tea Seed Oil Plant
Elevation


Tea Seed Oil Plant
Elevation
Tea Seed Oil Plant
Elevation
Tea Seed Oil Plant
Elevation
Tea Seed Oil Plant
Elevation


Tea Seed Oil Plant
Elevation
Tea Seed Oil Plant
Elevation
Tea Seed Oil Plant
Elevation


Tea Seed Oil Plant
Section
Tea Seed Oil Plant
Section
Tea Seed Oil Plant
Section


Tea Seed Oil Plant
Diagram

Tea Seed Oil Plant
Diagram
