MACDONALD PUBLIC FACILITY COMPLEX

Kengo Kuma & Associates

Macdonald Public Facility Complex
© Guillaume Satre

CLIENT
Paris City Council

ACOUSTICIAN
Peutz & Associes

MANUFACTURERS
EQUITONE, Knauf, Metsa Woods, Plaka, VMZINC

SECURITY / FIRE CONSULTANT
Vulcaneo

STRUCTURAL ENGINEER
AIA

MECHANICAL ENGINEER
AIA

QUANTITY SURVEYOR
AIA

DEVELOPMENT TEAM
Kengo Kuma, Yuki Ikeguchi, Sebastien Yeou, Matthieu Wotling, Charlotte Brussieux, Louise Lemoine

COMPETITION TEAM
Kengo Kuma, Nicolas Moreau, Jun Shibata, Charlotte Brussieux, Louise Lemoine, Shinku Noda

PHOTOGRAPHER
Guillaume Satre, 11H45, André Morin

TOTAL FLOOR AREA
10 720 SQM

BUDGET
41 762 000 € HT

SITE AREA
11 000 SQM

AREA
14799 M²

YEAR
2014

LOCATION
Paris ,France

CATEGORY
Community

Macdonald Public Facility Complex
© Guillaume Satre

Text description provided by architect.

The creation of a public equipments complex within the warehouse Macdonald allows to realize the link between existing architecture and architecture to come, revealing the needs and developments of a changing society.

It is also the pretext of the connexion between traditional processes and contemporary needs.Existing warehouse’s architect, Marcel Forest, described it as a base, convenient to the reception of future extensions.

Macdonald Public Facility Complex
© Guillaume Satre
Macdonald Public Facility Complex
© Guillaume Satre

This one will be realized by a light metallic structure, a support of a big linear roof sheltering an ensemble of public services.

This big roof put on the existing base, participates in the development of an architectural heritage by adapting it to contemporary functional needs.

Macdonald Public Facility Complex
© Guillaume Satre
Macdonald Public Facility Complex
© Guillaume Satre

By its dimensions, its situation and its size, the existing building and its extension is to be looked as and considered on a territorial scale, offering a horizon, proposing an infrastructure.

The territory becomes therefore support of the new project; the existing offers the base whereas the roof serves as an unifying element, sheltering a succession of spaces and functions.

Macdonald Public Facility Complex
© Guillaume Satre
Macdonald Public Facility Complex
© Guillaume Satre

URBAN AND LANDSCAPED INSERTION

The project is located in a strategic position, at the start of the 600m long existing warehouse, between the viaduct of railroad networks and the boulevards Maréchaux, in the center of a zone in full urban restructuration connected to the city and its surrounding by new tramway lines.

The insertion of the project answers three imperatives: - The urban reglementation - The will to create a strong and contemporary architectural image - The will to join the context in a just balance, responding to the obligation of preservation of the North facade

The architectural intervention is made of a game of horizontal which strengthens the expression of the existing building. The unity and the homogeneity of the place are looked for to avoid the expression of the programmatic accumulation.

Macdonald Public Facility Complex
© Guillaume Satre
Macdonald Public Facility Complex
© Guillaume Satre
Macdonald Public Facility Complex
© Guillaume Satre

The rhythm of the facade, sequenced, is given by a succession of metallic vertical elements. The continuity of the architectural vocabulary of the various equipments confers to give to the building a unity which joins on the scale of the whole masterplan designed by OMA.

THE ROOF

It shelters all the programs and puts in relation the inside and the outside. The overhang generates an interstitial space and defines a profile while marking the continuous statutory line of 65.26 NGP.

The ascending edge of the roof from east to west also gives to the silhouette the expression of the start of the general complex.

Macdonald Public Facility Complex
© Guillaume Satre
Macdonald Public Facility Complex
© Guillaume Satre

Thanks to a folded plans vocabulary, public places are connected to the private spaces, as well as the outside square and the inner courtyards.

On the outside, its materiality is reinforced by the use of a parisian traditional material (zinc) whereas on the inside, it become lighter and perforated through an alternation of glass elements and zinc panels, allowing the best enlightening for the courtyards.

Macdonald Public Facility Complex
© Guillaume Satre
Macdonald Public Facility Complex
© Guillaume Satre

FILTERS

The composition and materiality of the façade respond to the general design given by OMA masterplan. Each has to be composed through a superposition of horizontal stratas, materialized with crystal and mineral elements.

The structure grid is the starting point for the general composition of the façade. Density of the louvers allows to express the privacy of the functions beyond.

Macdonald Public Facility Complex
© Guillaume Satre
Macdonald Public Facility Complex
Elevation

FAÇADE

The relation between inside and outside is handled through the use of filter. It composes, defines and distinguishes facades and is therefore decline through 2 different types:

on the outside dark grey metallic louvers that dialogue with the context marked by its industrial past , on the inside a double glass skin, made of an alternation of glass panels and of a metallic membrane which spreads the light. The depth of the filter is investigated in its multiple dimensions. Space and light are therefore amplified.

Macdonald Public Facility Complex
Elevation
Macdonald Public Facility Complex

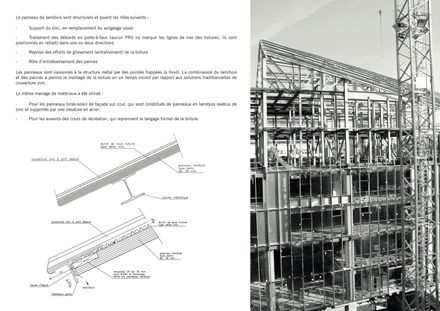

Details

EXTERIORS SPACES

The succession of the courtyards organized in terrace on different levels allows the needed separation between the junior schoolyard and the high school courtyard.

The sequence of the outside spaces is materialized by the implementation of vegetable strips: these are also similar in a way to a filter and bound the space without creating real borders.

Macdonald Public Facility Complex
Details


Macdonald Public Facility Complex

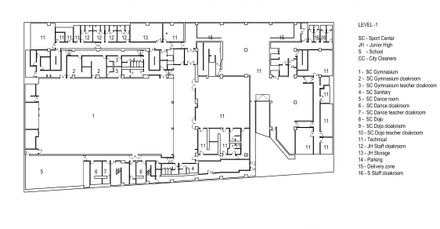

Plan
Macdonald Public Facility Complex
Plan
Macdonald Public Facility Complex
Plan
Macdonald Public Facility Complex
Plan
