Brick Screen House

HONEYCOMB architects

Brick Screen House
© Althaf. A. R

AREA
3476 Ft²

CATEGORY
Houses

YEAR
2022

PHOTOGRAPHS
Althaf. A. R

MANUFACTURERS
Century Plywood, Grohe, Hafele, Hettich, Jaquar, Saint-gobain, Asian Paints, Greenlam Laminates, Kairali Tmt, Ultratech

LANDSCAPE ARCHITECTS
Honeycomb Architects

CIVIL CONTRACTORS
N C Associates

PAINTING
Crayon Paints

INTERIOR CARPENTER
Relevant Interior

LOCATION
India

DESIGN TEAM
Divin. P, Ahammed Faiz

CLIENT
Mr. Faizal

FLOORING
S M Flooring

GLASS SUPPLIER AND INSTALLATION
K V Fabricators

STEEL FABRICATION
K V Fabricators

INTERIOR DESIGNERS
Honeycomb Architects

Brick Screen House
© Althaf. A. R

BRIEF

The brick screen house is a renovation project envisioned as a synthesis of contextual parameters and user functional requirements.

The project promises a better environment of living for the client from the old congested and messy house, which also architecturally enhances the climatic, and contextual potential of the location.

Brick Screen House
© Althaf. A. R
Brick Screen House
© Althaf. A. R

The main design intent was to blur the boundaries between the built and the natural elements. This is a south-facing corner plot in a tropical location experiencing long monsoons and hot summers.

The project plot has an entry road and large open plots in front, existing houses on the northern and eastern sides, and a side road on the west.

The concept is seamlessly blended with the context in a way that it’s a play of multi-directional air movement in the house.

Brick Screen House
© Althaf. A. R
Brick Screen House
© Althaf. A. R
Brick Screen House
© Althaf. A. R

CONCEPT

Since there is a presence of more local winds on the south side which formulates the concept of a perforated screen in the front façade which effortlessly directs the wind and protects the building from the harsh southern sun.

This brick screen maintains a comfortable internal temperature all the time. The screening is even more efficient by providing green patches in the sunshade in between the building and façade, extended sunshade space also acts as a buffer for protecting and heating up walls thus performing as double skin for the building.

The facade screen is designed in such a way that each brick is kept in a zig-zag manner both in horizontal and vertical directions. This arrangement creates small diagonal openings, when air passes through these small openings the air becomes even cooler and maintains a comfortable temperature in the building.

Brick Screen House
© Althaf. A. R
Brick Screen House
© Althaf. A. R
Brick Screen House
© Althaf. A. R

The thoughtful selection and strategically applied natural materials for the façade protect the main walls from heating up and allows air movement simultaneously.

LAYOUT

The layout promises the proper functional flow for the spaces, the sit out in the front with customized furniture adds to the total aesthetics of the space.

A living room with double height is sandwiched in-between the dining and sits out space; the double-height ensures the vertical visual connection and carries out the Stack effect perfectly.

Brick Screen House
© Althaf. A. R
Brick Screen House
© Althaf. A. R

Light-colored furnishing in the living area goes along with the home interior and makes the room visually spacious. A dining area with a lush green internal courtyard also plays a significant role in making the space even cooler and cozy.

The unconventional arrangement of the courtyard produces more dynamic spaces inside. The opening in the roof slab allows the sunlight and moonlight in the area to make the space a magnificent one.

Most of the furniture is designed and cast on-site. Colored laminates used for the tabletops create an acceptable vibrancy inside. Two bedrooms on the ground floor have proper cross ventilation, natural lighting, and interiors that complement the entire design character.

Brick Screen House
© Althaf. A. R
Brick Screen House
© Althaf. A. R
Brick Screen House
© Althaf. A. R

These bedrooms follow the same color palette for almost all furniture. The first floor with three bedrooms and family living has exposed concrete ceilings which follow the same rustic and sustainable character of the entire structure. The angled pattern for the handrails and kota green shade in the flooring match perfectly with the interiors.

A simple contemporary bookshelf with indoor hanging plants adds more aesthetics to the TV wall in the family living. Each bedroom interior is done with a customized cot, study tables, and side tables considering the user’s architectural interests. All the bedrooms have exposed concrete ceilings with minimal wooden reaper works on them.

Brick Screen House
© Althaf. A. R


Brick Screen House
Plan - Site
Brick Screen House
Plan - Terrace Floor
Brick Screen House
Plan - Ground Floor
Brick Screen House
Plan - 1st Floor


Brick Screen House
Sun Path Diagram
Brick Screen House

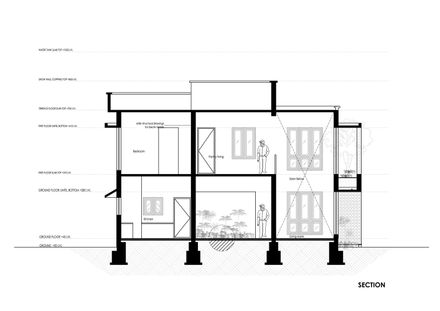

Section
