Mané Market

BLOCO Arquitetos

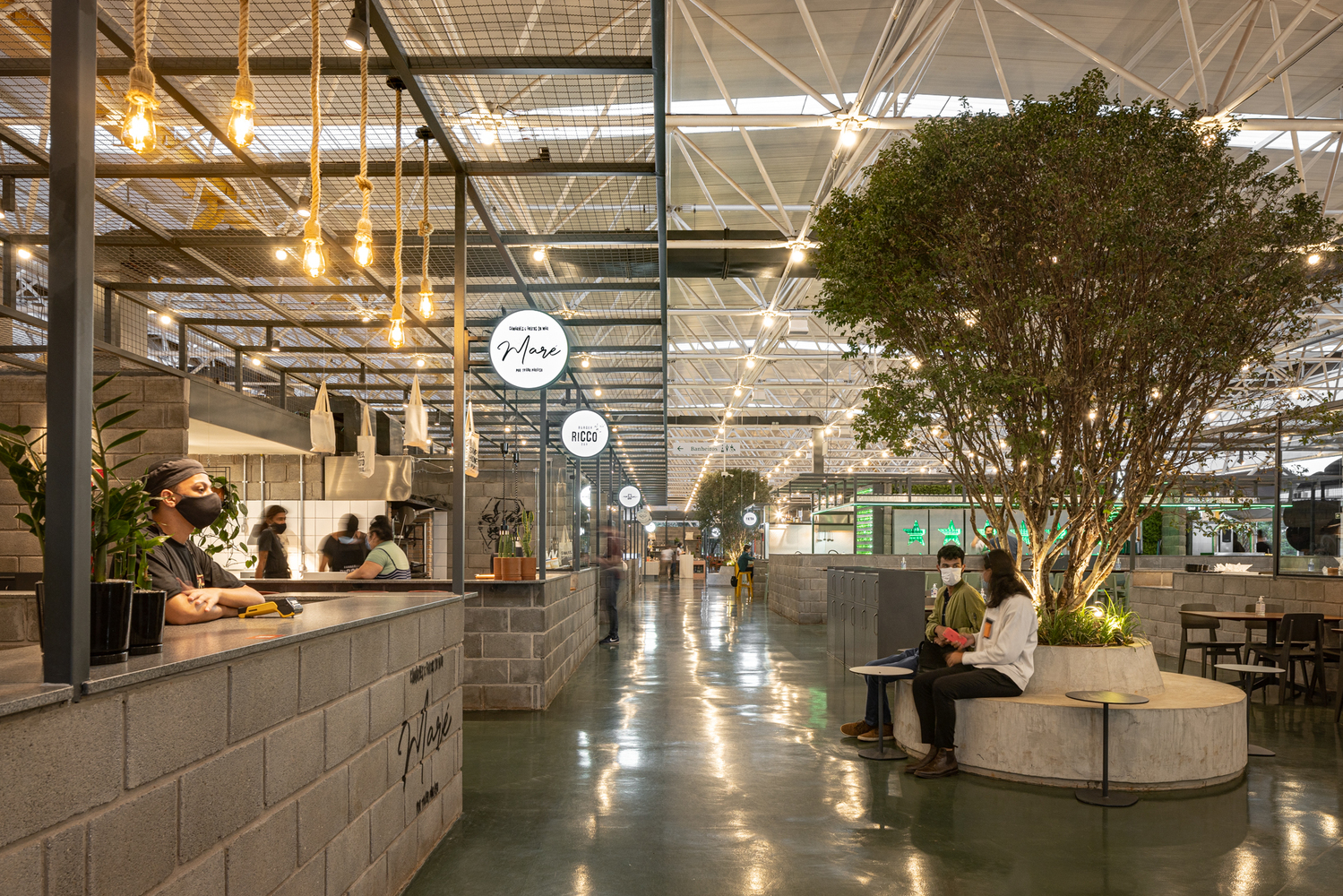

Mané Market
© Joana França

AREA
4000 M²

CATEGORY
Adaptive Reuse, Market

YEAR
2022

PHOTOGRAPHS
joana França

MANUFACTURERS
Light Design Brasília, Ricca Móveis

AUTHORS
Daniel Mangabeira, Henrique Coutinho E Matheus Seco

PROJECT COORDINATION
Bárbara Neumann E Caio César Nascimento

PROJECT TEAM
Luis Alcântara

CONSTRUCTION FIRM
Rotacon Construtora

LANDSCAPE DESIGN

Claudia Pellicano E Ana Paula Roseo

AUTOMATION
Grupo Orion

SOLAR PANELS
Cgr Energia

Mané Market
© Joana França
Mané Market
© Joana França

Located in Brasília, between the Mané Garrincha National Stadium and the Nilson Nelson Gymnasium, on the Monumental Axis, the Mané Market project reuses the roof structure of an existing building.

The market is a 6 year long temporary installation that will exist until the definitive installation of the future Sports Complex of Brasília at that location, whose construction is scheduled to begin in 2026.

Mané Market
© Joana França
Mané Market
© Joana França

Until then, the objective is to take advantage of the existing infrastructure on tUntil then, the objective is to take advantage of the existing infrastructure on the site and transform it into a market focused on gastronomy.

The existing building was used during the 2007 Pan American Games. However, after that event, its space had been empty and unused for several years.

Mané Market
© Joana França
Mané Market
© Joana França

The idea was to requalify the space with the adoption of simple interventions, due to the short period of construction work that had been required: 3 months.

We removed the walls that surrounded the old building to create a “large balcony” under which we distributed all the functions of the new program in semi-open areas that can make full use of natural light and ventilation.

Mané Market
© Joana França
Mané Market
© Joana França

We revitalized the roof and made small changes to it, such as painting the rainwater collection system and distributing the lamps in each of the “nodes” of the structure, marking its modulation.

We created an entirely new concrete floor slab slightly elevated from the ground to redefine and extend the boundaries of the market and mark its main accesses without the need for fences or other visual barriers.

Mané Market
© Joana França
Mané Market
© Joana França

Around the floor, we created perimeter garden areas that also enter the internal space and delimit areas, bringing the landscaping inside the large roof.

The new program was distributed in small buildings and pieces of fixed furniture that were built under the roof.

Mané Market
© Joana França
Mané Market
© Joana França

For this, we used only two different materials: concrete - in the form of exposed structural blocks for the stores and exposed concrete for the planters and fixed furniture - and the metallic structure painted in lead gray that was used to create a “second roof” which hangs below the main structure.

This structure, executed in a grid made up of 100x100cm modules, serves to support auxiliary lighting and complementary parts of the program of each store without impeding the free view to the spatial structure of the existing roof.

Mané Market
© Joana França
Mané Market
© Joana França

The program's “modules” were distributed in such a way as to define a meandering flow of users, interspersing circulation space and table space.

We standardized the construction and main appearance of the commercial spaces by using the concrete block, without the need for coatings or paintings, apart from the kitchen and food preparation areas, as required by the local health regulatory agency.

Mané Market
© Joana França
Mané Market
© Joana França

Full accessibility is achieved using access ramps, lowered counters and a structure of restrooms and reserved tables.

The complex also has a photovoltaic energy system that was thought of as an additional source to supply the high energy consumption of the restaurants. Therefore, Mané has a hybrid system, partially powered by the local power grid and partially by photovoltaic energy.

Next to the building, an urban garden was created, which receives compost from materials generated in the market.

Mané Market
© Joana França
Mané Market
© Joana França

Thus, it will be possible to generate a communal awareness throughout the “ecosystem” of how the market works, also counting on the cultivation of healthy foods that will be donated. This activity is also part of the Zero Waste initiative, which aims to reduce environmental impact by reducing waste by at least 90%.

Thus, it will be possible to generate a communal awareness throughout the “ecosystem” of how the market works, also counting on the cultivation of healthy foods that will be donated.

Mané Market
© Joana França
Mané Market
© Joana França

This activity is also part of the Zero Waste initiative, which aims to reduce environmental impact by reducing waste by at least 90%.


Mané Market
Layout
Mané Market
Section and facade
Mané Market
Perspective
