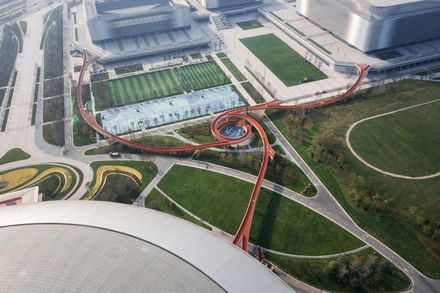

Dongan Lake Sports Park Landscape Corridor

Dongan Lake Sports Park Landscape Corridor
© Arch-Exist

DONGAN LAKE SPORTS PARK LANDSCAPE CORRIDOR

Atelier sq

ARCHITECTS
Atelier sq

PHOTOGRAPHS
Arch-exist

CATAGORY
Park

MANUFACTURERS
ANSTEEL Group

ENGINEERING DESIGN
Sichuan Provincial Architectural Design And Research Institute

DESIGN TEAM
Jiayin Liu, Hongling Du, Qingke Qin, Yan He, Jialin Jiang

CLIENTS
CR LAND West China Region

LOCATION
Chengdu, China

AREA
3300 m²

YEAR
2022

Dongan Lake Sports Park Landscape Corridor
© Arch-Exist
Dongan Lake Sports Park Landscape Corridor
© Arch-Exist

Dongan Lake Sports Park is located in Dongan New Town, Longquanyi, the core area of Chengdu's "Eastward", which is the venue for the opening ceremony of the 31st Chengdu FISU World University Games.

Dongan Lake Sports Park Landscape Corridor
© Arch-Exist
Dongan Lake Sports Park Landscape Corridor
© Arch-Exist
Dongan Lake Sports Park Landscape Corridor
© Arch-Exist
Dongan Lake Sports Park Landscape Corridor
© Arch-Exist

The park contains "One Stadium Three Gyms" -- main stadium with a capacity of 40,000 people, an Aquatics Centre, a Multi-Purpose Gymnasium, Multi-Ball Games Gymnasium.

Connect "One Stadium Three Gyms" with open spaces. The white sheet reflects the orange color of the main body and the green color of the surrounding, which makes the volume looks lighter.

Dongan Lake Sports Park Landscape Corridor
© Arch-Exist
Dongan Lake Sports Park Landscape Corridor
© Arch-Exist

During the FISU Games, the corridor focused on improving traffic efficiency, stadium and gyms will be connected via the terrace.

After the FISU Games, the corridor focuses on the interaction with the public space and the playground, increasing accessibility and enriching the landscape, and providing additional space for the operation after the games.

Dongan Lake Sports Park Landscape Corridor
© Arch-Exist
Dongan Lake Sports Park Landscape Corridor
© Arch-Exist
Dongan Lake Sports Park Landscape Corridor
© Arch-Exist

Space Form. The corridor extends out from the terrace of the stadium and gyms, forming a visual experience of different elevations during walking.

The corridor spirals down to the center of the site and surrounds the children's playground, forming an enclosed space with a sense of enclosure.

In the middle section, different height platforms are designed to create a good viewing point and the entrance and exit to open spaces.

Dongan Lake Sports Park Landscape Corridor
© Arch-Exist
Dongan Lake Sports Park Landscape Corridor
© Arch-Exist

The corridor forms various spatial and visual experiences while interacting with the public space.

Main Structure. The main structure of the corridor is a 1000mm thick steel box girder, with a hexagonal v-shaped column spans 20m to 30m.

Dongan Lake Sports Park Landscape Corridor
© Arch-Exist
Dongan Lake Sports Park Landscape Corridor
© Arch-Exist

The orange color of the main structure inside creates contrast with the environment while highlighting the trend of movement.

Corridor Skin. The corridor skin is composed of two 3mm thick steel plates tied together.

Dongan Lake Sports Park Landscape Corridor
© Arch-Exist
Dongan Lake Sports Park Landscape Corridor
© Arch-Exist

Lightings are placed between two sheets, giving the bridge a rich layer of illumination at night.


Dongan Lake Sports Park Landscape Corridor
Skin and lighting
Dongan Lake Sports Park Landscape Corridor
skin detail


Dongan Lake Sports Park Landscape Corridor
circulation and view analysis
Dongan Lake Sports Park Landscape Corridor
Main structure and skin


Dongan Lake Sports Park Landscape Corridor
master plan
