Estudio Aire

Casa M

Casa M
© Walter Salcedo

Casa M

Estudio Aire

ARCHITECTS
Estudio Aire

ARCHITECT IN CHARGE
Juan Germán Guardati, Román Renzi, Virginia Kahanoff

CONSTRUCTION MANAGEMENT
Guardati, Renzi, Kahanoff

CONSULTANTS
Marcelo Soboleosky, Mariano Pellita

COLLABORATORS
Gustavo Sattler, Damian Plouganou, Valeria Del Vecchio

PHOTOGRAPHS
Walter Salcedo

AREA
320 m²

YEAR
2013

LOCATION
Rosario, Argentina

CATEGORY
Houses

Text description provided by architect.

The spatial reaction of formal operations makes the strongest argument of this work.

Casa M
© Walter Salcedo
Casa M
© Walter Salcedo

A simple rectangular base volume suffers a cut and a horizontal displacement. Thereby, space is more complex and is still controlled morphology.

Two measures control the heights of the house, from 0 to 2.2m the walls and openings are defined and from there to the 4.40 the roof space is generated. Consequently it appears as a sinuous topography on the head of the occupants and contrasting to the plain land of the Pampas.

Casa M
© Walter Salcedo
Casa M
© Walter Salcedo

All this becomes more dramatic thanks to the manipulation of natural light that filters through the skylights.

From the street the house becomes tight but from the inner perception is a counterpoint.

Casa M
© Walter Salcedo
Casa M
© Walter Salcedo

The program develops private activities within the lower boxes, bedrooms and bathrooms are grouped in the greater volume and kitchen, laundry and storage in two smaller ones.

Public house activities are bounded by the offset that produces the ceiling and a large glass wall of different opacities (transparent toward the back of the lot and translucent sideways).

The use of exposed concrete combines supports structure spatial structure and expression of the house.

Casa M
© Walter Salcedo
Casa M
© Walter Salcedo

This material used primarily in the outside became the inner boundary of the common area..

The space experience is generated by a very synthetic material performance with strong contrasts


Casa M

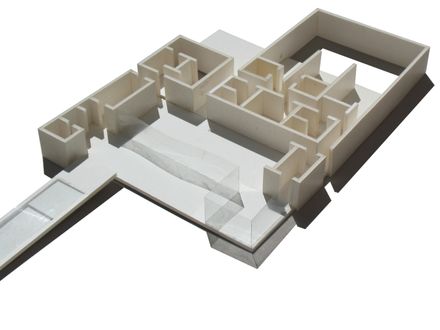

Model
Casa M
Model


Casa M
Floor Plan
Casa M
Floor Plan


Casa M
Elevation
Casa M
Elevation


Casa M

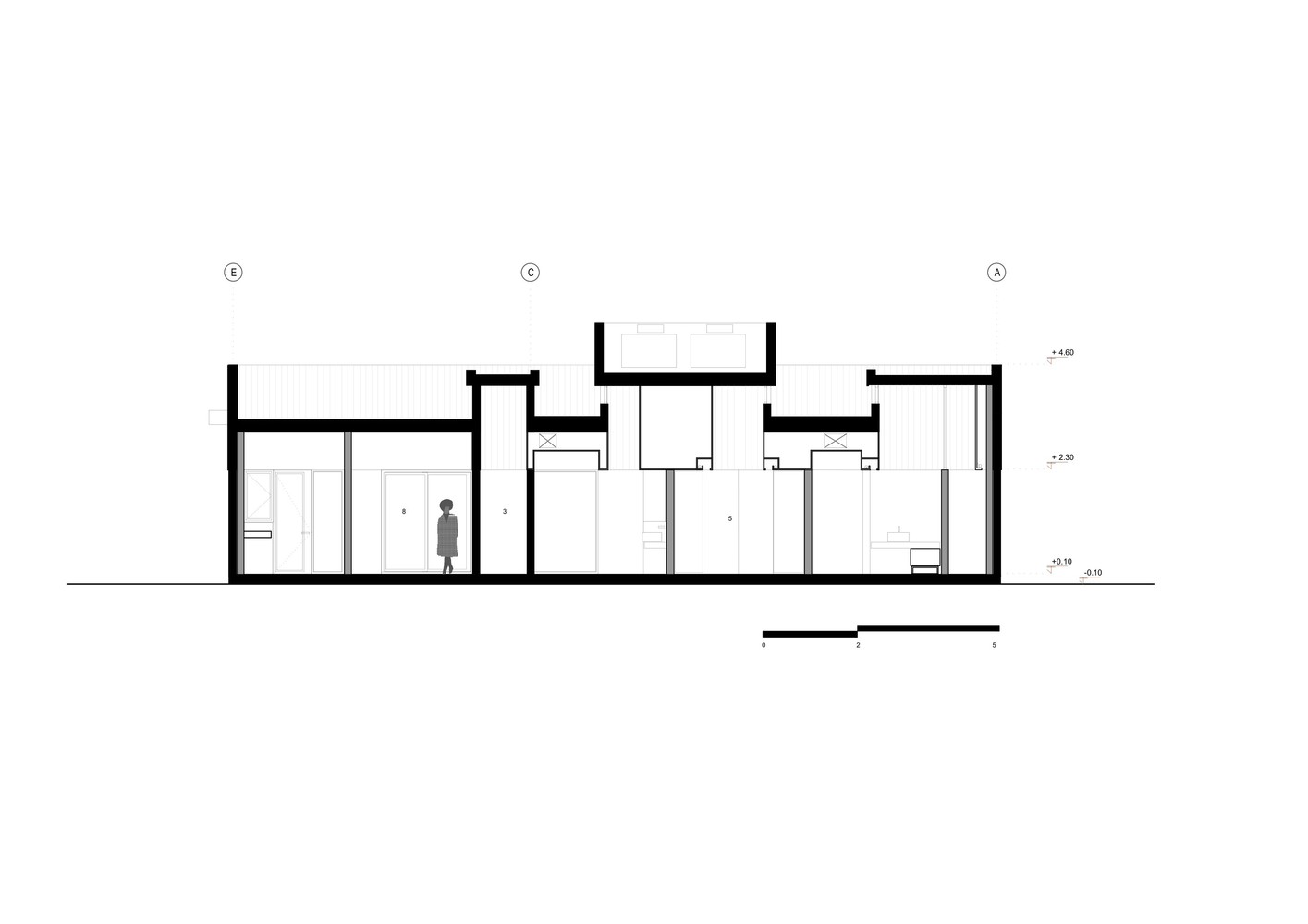

Section
Casa M
Section
Casa M
Section
Casa M
Section


Casa M
Diagram
