ATZ Living

ATZ Living
© Courtesy of CRAFT Arquitectos

ATZ Living

CRAFT Arquitectos

ARCHITECTS
CRAFT Arquitectos

AREA
200

YEAR
2009

LOCATION
Mexico

CATEGORY
Houses

Text description provided by architect.

The proposed concept is based on the intention of generating 15 m² modules where each of the areas of the architectural project take place, and through which open and continuous spaces are generated.

ATZ Living
© Courtesy of CRAFT Arquitectos
ATZ Living
© Courtesy of CRAFT Arquitectos
ATZ Living
© Courtesy of CRAFT Arquitectos

These modules provide to each family the possibility of adapting their house according to their needs, with the possibility of expanding in a clean, orderly manner with a low operating cost.

The house is perfectly adapted to the terrain. Due to a steep slope, we laid out half levels with a centralized vertical core.

Thus, the modules are subtly settled on the contour lines suggested by the natural topography.

ATZ Living
© Courtesy of CRAFT Arquitectos
ATZ Living
© Courtesy of CRAFT Arquitectos
ATZ Living
© Courtesy of CRAFT Arquitectos

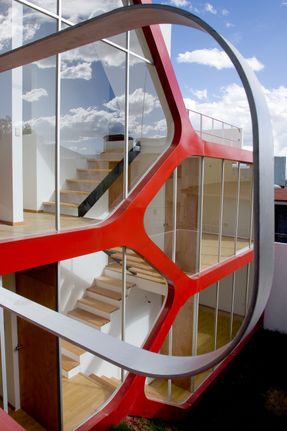

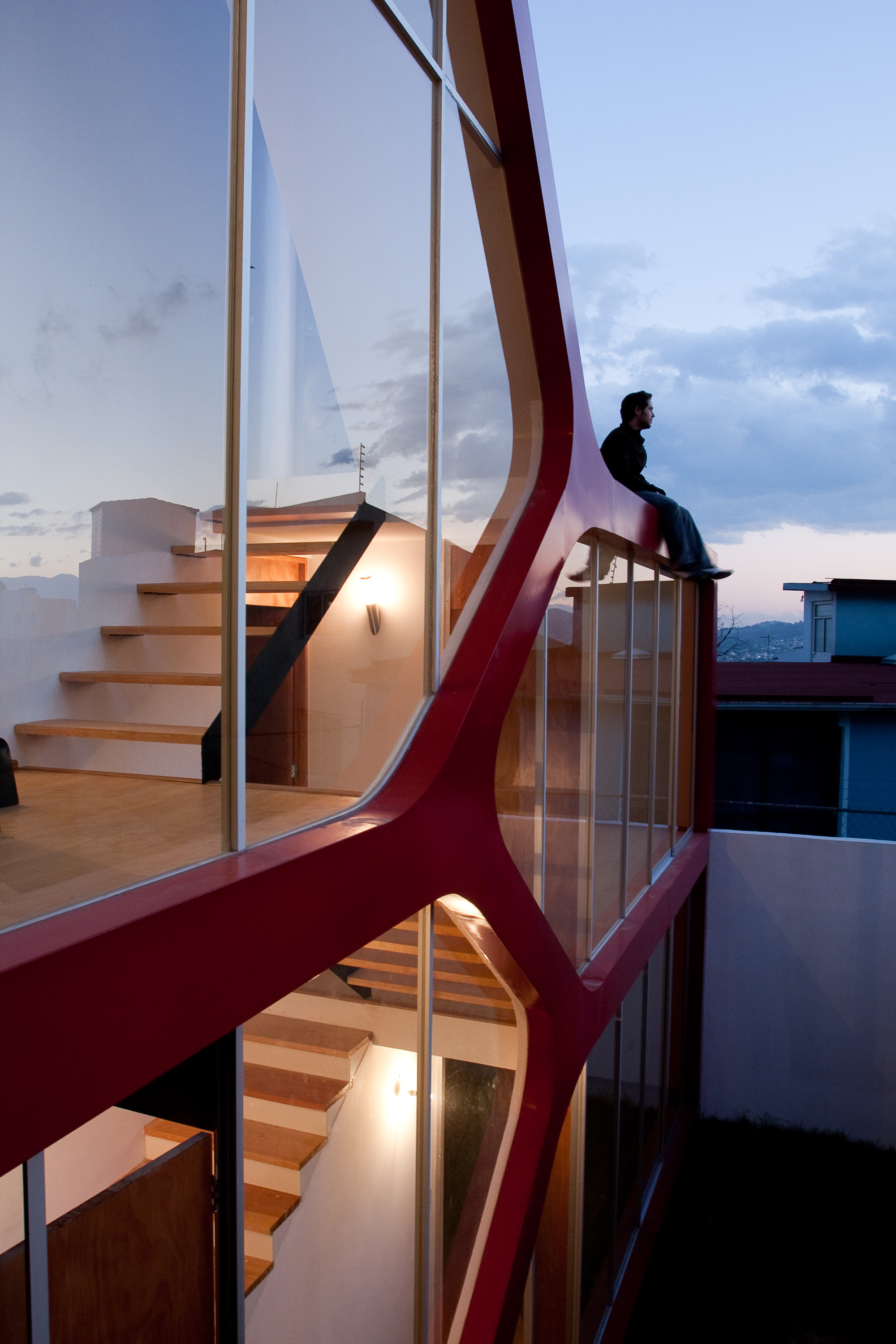

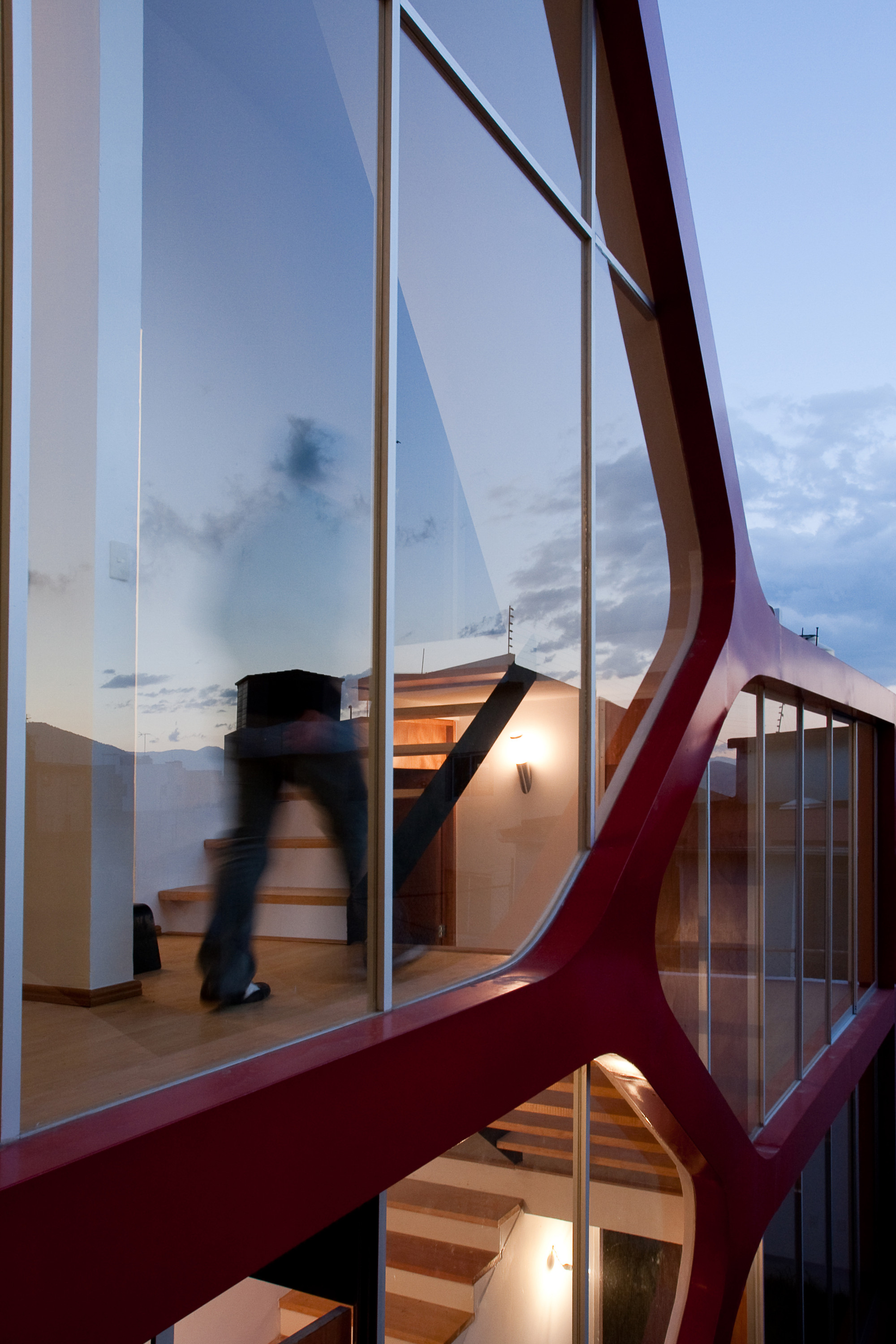

From a primary red metal structure, which structurally links each of the modules, large windows are generated which are lit and ventilated through a green area, which provides a quiet and secluded space.

Based on the half levels, double height spaces and large windows are generated, as well as a roof garden that allows an overview of the surroundings.

ATZ Living
© Courtesy of CRAFT Arquitectos
ATZ Living
© Courtesy of CRAFT Arquitectos

The idea of creating continuous and open spaces gave us the opportunity to use few walls, these work to contain the washrooms proposed at the center of the project and make the building services more efficient, as well as generating a central core which adds stiffness to the whole structure.


ATZ Living
© Courtesy of CRAFT Arquitectos
ATZ Living
© Courtesy of CRAFT Arquitectos
ATZ Living
© Courtesy of CRAFT Arquitectos
ATZ Living
© Courtesy of CRAFT Arquitectos
ATZ Living
© Courtesy of CRAFT Arquitectos


ATZ Living
Roof Plan
ATZ Living
Roof Garden Plan
ATZ Living
Level 3
ATZ Living
Level 4


ATZ Living
West Facade
ATZ Living
North Facade


ATZ Living

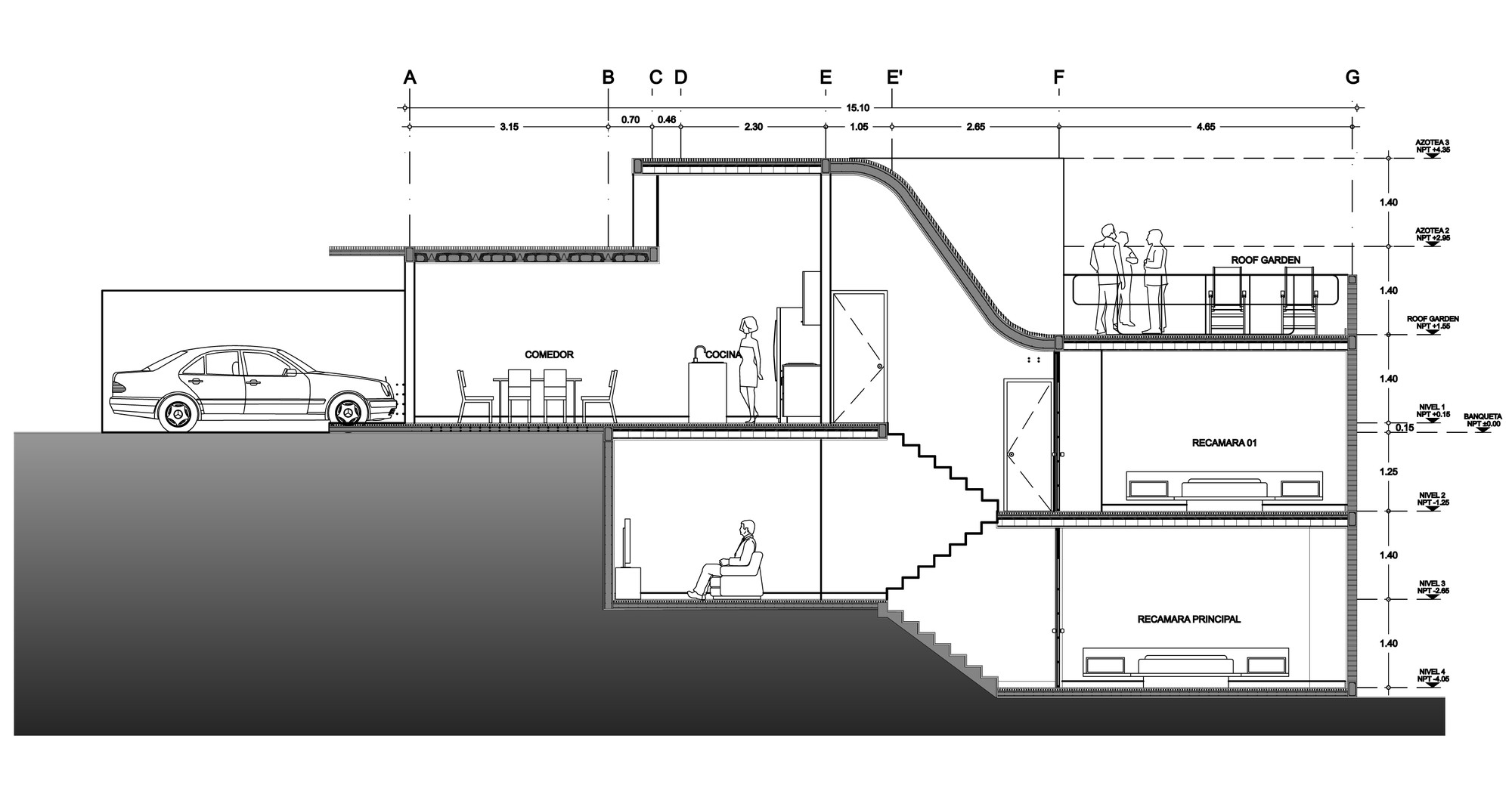

Longitudinal Section 1
ATZ Living
Longitudinal Section 2
ATZ Living
Longitudinal Section 3

ATZ Living
Cross Section 1
ATZ Living
Cross Section 3
ATZ Living
Cross Section 1
ATZ Living
South Facade
