El Manzano House Refurbishment

El Manzano House Refurbishment
© Pablo Blanco

El Manzano House Refurbishment

Fantuzzi + Rodillo Arquitectos

COLLABORATING ARCHITECTS
José Tomás
Caballero

ARCHITECT IN CHARGE
Roberto Fantuzzi, Jaime Rodillo

CONSTRUCTION COMPANY
Frac Ltda.

PHOTOGRAPHS
Pablo Blanco

AREA
470 M²

YEAR
2014

LOCATION
Valparaíso, Chile

CATEGORY
Houses, Extension, Heritage

Text description provided by architect.

The Project consisted in the expansion and remodeling of a XX century house, located at Cerro Cárcel, Valparaíso-Chile, which is part of the historical conservational area, actually protected by UNESCO.

El Manzano House Refurbishment
© Pablo Blanco
El Manzano House Refurbishment
© Pablo Blanco

The three story brickwork, adobe and wooden building is placed in a hill with a heavy slope.

Project consisted in restoring and adapting the existing structure to the new uses requested by the customer, this is; housing, restaurant and preserves manufacturing.

El Manzano House Refurbishment
© Pablo Blanco
El Manzano House Refurbishment
© Pablo Blanco

It was decided that each of the three original floors would have an independent access according to theaforementioned programs.

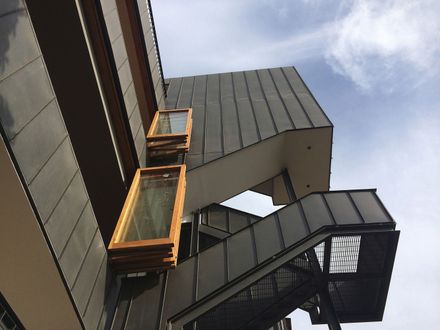

An attached metallic structure volume was proposed, in order to connect each program by the use of an external stair case, ending in a new level, as part of the housing program.

El Manzano House Refurbishment
© Pablo Blanco
El Manzano House Refurbishment
© Pablo Blanco

This new ordering element appears as an open volume in the public first and second floors, distributing towards terraces with vegetables cultivation, food treatment warehouses, preserves factory and restaurant.

In levels third and fourth the aforementioned element is closed for linking the two housing floors, in which the third level corresponds to the housecommon areas plus bedrooms, being in the fourth level the master´s suite plus terrace.

El Manzano House Refurbishment
© Pablo Blanco


El Manzano House Refurbishment
© Pablo Blanco
El Manzano House Refurbishment
© Pablo Blanco
El Manzano House Refurbishment
© Pablo Blanco
El Manzano House Refurbishment
© Pablo Blanco


El Manzano House Refurbishment
© Pablo Blanco
El Manzano House Refurbishment
© Pablo Blanco
El Manzano House Refurbishment
© Pablo Blanco


El Manzano House Refurbishment
Site Plan
El Manzano House Refurbishment
Roof Plan


El Manzano House Refurbishment
-1st Level
El Manzano House Refurbishment
1st Level
El Manzano House Refurbishment
2nd Level
El Manzano House Refurbishment
3rd Lever


El Manzano House Refurbishment
Elevation
El Manzano House Refurbishment
Section
El Manzano House Refurbishment
Elevation
El Manzano House Refurbishment
Elevation
El Manzano House Refurbishment
Section
El Manzano House Refurbishment
Section
