© Richard Leo Johnson

Hungry Neck Residence

The Raleigh Architecture Company

STRUCTURAL ENGINEER
Kaydos-daniels Engineers

GENERAL CONTRACTOR
The Raleigh Construction Co.

PHOTOGRAPHS
Richard Leo Johnson, Courtney Richeson

YEAR
2014

LOCATION
Raleigh, United States

CATEGORY
Houses

Text description provided by architect.

The Hungry Neck Residence accommodates the variety of activities in which the homeowners engage by providing spaces that are fundamentally different yet connected. Interests ranging from cooking and entertaining to music and writing lead to a design centered around a circulation volume filled with light.

Hungry Neck Residence
© Richard Leo Johnson
Hungry Neck Residence
© Richard Leo Johnson

The central space includes the kitchen and connects the open gathering space to the private realm of the upstairs office and bedrooms.

The master bedroom balcony overlooks a hundred year old oak tree and the garden below, while the office provides an escape from the activity of the main living space but maintains a visual connection to the street and the neighborhood.

Hungry Neck Residence
© Richard Leo Johnson
Hungry Neck Residence
© Richard Leo Johnson

Deep overhangs and natural ventilation offer low-tech vernacular strategies to condition the house, supplemented by geothermal wells and an underground water cistern used for laundry and other non-potable uses.

The material palette is subtle and simply detailed; minimal steel handrails relate to the kitchen hood without competing with it, leaving the central, pivotal space as uncluttered as possible in order to make room for people to gather.

Hungry Neck Residence
© Richard Leo Johnson
Hungry Neck Residence
© Courtney Richeson

The Hungry Neck Residence reflects its owners at all scales, while responsibly engaging the world in which it operates; it serves as a reminder that successful design is, first and foremost, an exercise in philanthropy.

Roof overhangs are achieved with little steel reinforcement by implementing an open web truss roof structure.

A sealed crawl space and open cell spray foam insulation provide an efficient thermal envelope that is heated and cooled by two vertical geothermal wells.

Hungry Neck Residence
© Richard Leo Johnson
Hungry Neck Residence
© Richard Leo Johnson
Hungry Neck Residence
© Courtney Richeson

City water consumption is reduced by a rainwater collection system that supplies cold water to toilets, washing machines, and landscape irrigation via a 1,200 gallon underground water cistern.

Metal pan-formed concrete foundations support 2x6 exterior wood stud walls and engineered lumber floors.

Painted cementitious panels provide a low maintenance exterior, while locally sourced cypress siding covers the soffit of the second floor overhangs.

Hungry Neck Residence
© Courtney Richeson
Hungry Neck Residence
© Courtney Richeson

Galvanized standing seam metal roofing was specified to handle the low slopes and provide a durable surface and reflect unwanted heat gain.


Hungry Neck Residence
© Richard Leo Johnson
Hungry Neck Residence
© Richard Leo Johnson


Hungry Neck Residence

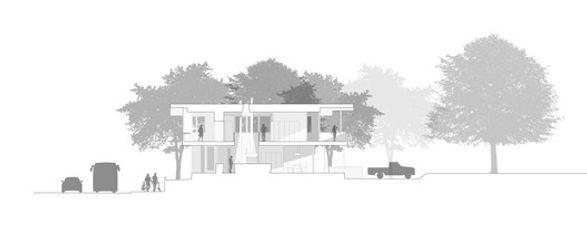

Section
Hungry Neck Residence
Section


Hungry Neck Residence
Axonometric
Hungry Neck Residence
Axonometric
