TecniA Biotechnology Institute

TecniA Biotechnology Institute
© Tamara Uribe

Tecnia Biotechnology Institute

Augusto Quijano Arquitectos

PHOTOGRAPHS
Roberto Cárdenas Cabello, Tamara Uribe

MANUFACTURERS
333 Luxes, Castel, Distribuidora De Vidrio De Cancún, Ga Iluminacion, Panel Rey, Predecon

STRUCTURES
Predecon

PREFABRICATED ELEMENTS
Predecon

CONSTRUCTION
Idimsa, De C.v.

ARCHITECT IN CHARGE
Augusto Quijano Axle

YEAR
2014

LOCATION
Mexico

CATEGORY
Research Center, Institutional Buildings

Text description provided by architect.

The Biotechnology building is within the Anahuac Mayab University campus, a building for research and development for companies seeking alternatives to renewable energy projects due to wind and solar radiation conditions that are particularly good in the Yucatan Peninsula, with very specific research needs within a dynamic international framework for innovation and development.

TecniA Biotechnology Institute
© Tamara Uribe
TecniA Biotechnology Institute
© Tamara Uribe

The first stage houses laboratories and spaces for companies that are supported by research developed in Mayab University.

THE PROJECT

Located in the west end of the campus, in a site with the possibility of future growth, the building seeks to impact the space as little as possible.

TecniA Biotechnology Institute
© Tamara Uribe
TecniA Biotechnology Institute
© Tamara Uribe

It is a straight, thin building, oriented north-south, to take in the best lighting and ventilation.

The order and geometry seek to recover the trace marked by the Master Plan, and to relate the open space and circulation with the new building, which will be a continuation of these.

TecniA Biotechnology Institute
© Tamara Uribe
TecniA Biotechnology Institute
© Tamara Uribe

The composition is achieved with only two elements, laboratories and work spaces as a central body, and the perimeter circulations which enable future connections with other buildings, resulting in a cool and airy environment.

The horizontal circulation not only articulates elements of the composition, but solves a number of continuities with the University buildings. It organizes the views and the space both to the outside and inside.

TecniA Biotechnology Institute
© Tamara Uribe
TecniA Biotechnology Institute
© Tamara Uribe

The new building is planned at the corner of the campus, creating a new facade which continues the existing route marked by the campus circulation. The articulation with the rest of the assembly is achieved with circulations.

From a distance, it reads like a small building. The building is permeable to views, and is inserted into the campus lightly.

TecniA Biotechnology Institute
© Tamara Uribe
TecniA Biotechnology Institute
© Tamara Uribe

ARCHITECTURAL DESIGN

The Biotechnology Institute continues the same principle of correctly oriented linear buildings which seeks to capture the northern uniform light and to protect itself from southern sunlight. The new building has three levels. The scheme arises from differentiating the architectural program.

Perimeter horizontal circulation links the different parts of the program and allows future adjustments and organizational changes without losing its order. The main staircase articulates all levels and is located in the central part of the building.

TecniA Biotechnology Institute
© Tamara Uribe
TecniA Biotechnology Institute
© Tamara Uribe

The ground floor houses laboratories, offices and support services such as cafeteria and meeting spaces such as a subdivisible auditorium. The first level houses spaces for small businesses and the last level houses spaces for the biggest companies.

The internal organization of the buildings arises from the analysis of activities. It ranges from the most public to the less public. From the outside inwards. From the open to the closed.

TecniA Biotechnology Institute
© Tamara Uribe
TecniA Biotechnology Institute
© Tamara Uribe

FORMAL TREATMENT

In relation to formal treatment, facades represent the organization without losing architectural unity, highlighting different functions. One language only: concrete brackets.

The variation in the rhythm of both facades generates different forms depending on the sunlight and the views. More closed to the south, more open to the north.

TecniA Biotechnology Institute
© Tamara Uribe
TecniA Biotechnology Institute
© Tamara Uribe

The formal language is through exposed perpendicular brackets achieving a reading of the total mass and allowing ventilation and lighting. The formal treatment makes the project seem very light, allowing one to access naturally, emphasizing its public character.

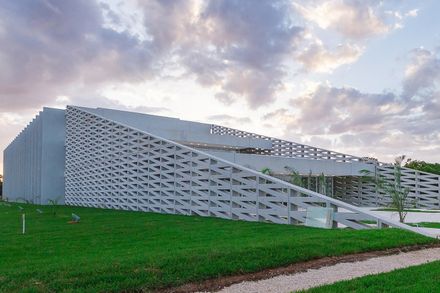

And its reading in perspective is perceived as a pyramid that is configured by a pair of inclined walls, referring to pre-Hispanic architecture.

TecniA Biotechnology Institute
© Tamara Uribe
TecniA Biotechnology Institute
© Tamara Uribe

With the sloping walls it responds to offices and support areas, and with the protruding brackets in the opposite direction and vertically to the research area.

This double reading clearly defines the architectural program and is a gesture of receiving and responding to the Campus.

At the west end, the auditorium is located on the ground floor, closed with a treatment based on a pair of inclined solid brackets, thus reflecting the formal treatment of the architectural program

TecniA Biotechnology Institute
© Tamara Uribe
TecniA Biotechnology Institute
© Tamara Uribe

The slope of the east facade produces a garden space, which serves to protect from the sun and creates a fresh and airy feel inside. It takes the eastern dominating winds and directs them to the circulation.

The levels generate garden terraces that open to the Campus and are contained by concrete prefabricated trusses that emphasize the geometry.

TecniA Biotechnology Institute
Cortesía de Augusto Quijano Arquitectos
TecniA Biotechnology Institute
© Tamara Uribe

The north facade is developed likewise but vertically. The structure is the formal language, achieving an architectural and constructive whole.

The basic intention in the construction aspect of the project was to design a modulation, allowing a rationalization of the construction process, reflected in an economy of resources used for the construction of the building.

TecniA Biotechnology Institute
© Tamara Uribe
TecniA Biotechnology Institute
Cortesía de Augusto Quijano Arquitectos

We proposed the use of exposed concrete due to its low maintenance, developed through prefabricated elements that provide speed of execution, and to prevent affecting the daily life of the University.

The structural solution, is linked directly to the general composition of the building, this integration is established through rigorous modulation of the project every 90 cm.

TecniA Biotechnology Institute
© Roberto Cárdenas Cabello
TecniA Biotechnology Institute
Cortesía de Augusto Quijano Arquitectos

This achieves structural modules modules of 7.20 x 10.80 m.

MATERIALITY

For the selection of materials and finishes, we took into account the characteristics of the existing environment, so as to enable the integration of the building with the rest of the Campus.

The criteria for the use of materials is to use them in a contemporary way, from the exposed concrete as the main expressive element and shaping the formal treatment of the building, they are related through the compositional module that is expressed in the facades.

TecniA Biotechnology Institute
Cortesía de Augusto Quijano Arquitectos
TecniA Biotechnology Institute
Cortesía de Augusto Quijano Arquitectos
TecniA Biotechnology Institute
© Roberto Cárdenas Cabello

The module governs all elements both in elevation and in plan.

The image arises from the very idea of representing the architecture of the campus, with a contemporary attitude and language, 30 years after the construction of the first classroom building at Mayab University.

TecniA Biotechnology Institute
© Roberto Cárdenas Cabello


TecniA Biotechnology Institute
Cortesía de Augusto Quijano Arquitectos
TecniA Biotechnology Institute
© Tamara Uribe
TecniA Biotechnology Institute
© Roberto Cárdenas Cabello
TecniA Biotechnology Institute
© Roberto Cárdenas Cabello


TecniA Biotechnology Institute
Ground Floor Plan
TecniA Biotechnology Institute
Planta 1er Nivel
TecniA Biotechnology Institute
Planta 2do Nivel


TecniA Biotechnology Institute
Planta Conjunto
TecniA Biotechnology Institute
Fachadas


TecniA Biotechnology Institute
Escantillones
TecniA Biotechnology Institute
Emplazamiento
TecniA Biotechnology Institute
Cortes
