Felipe Assadi Arquitectos

Four Programs Pavilion

Four Programs Pavilion

Felipe Assadi + Francisca Pulido

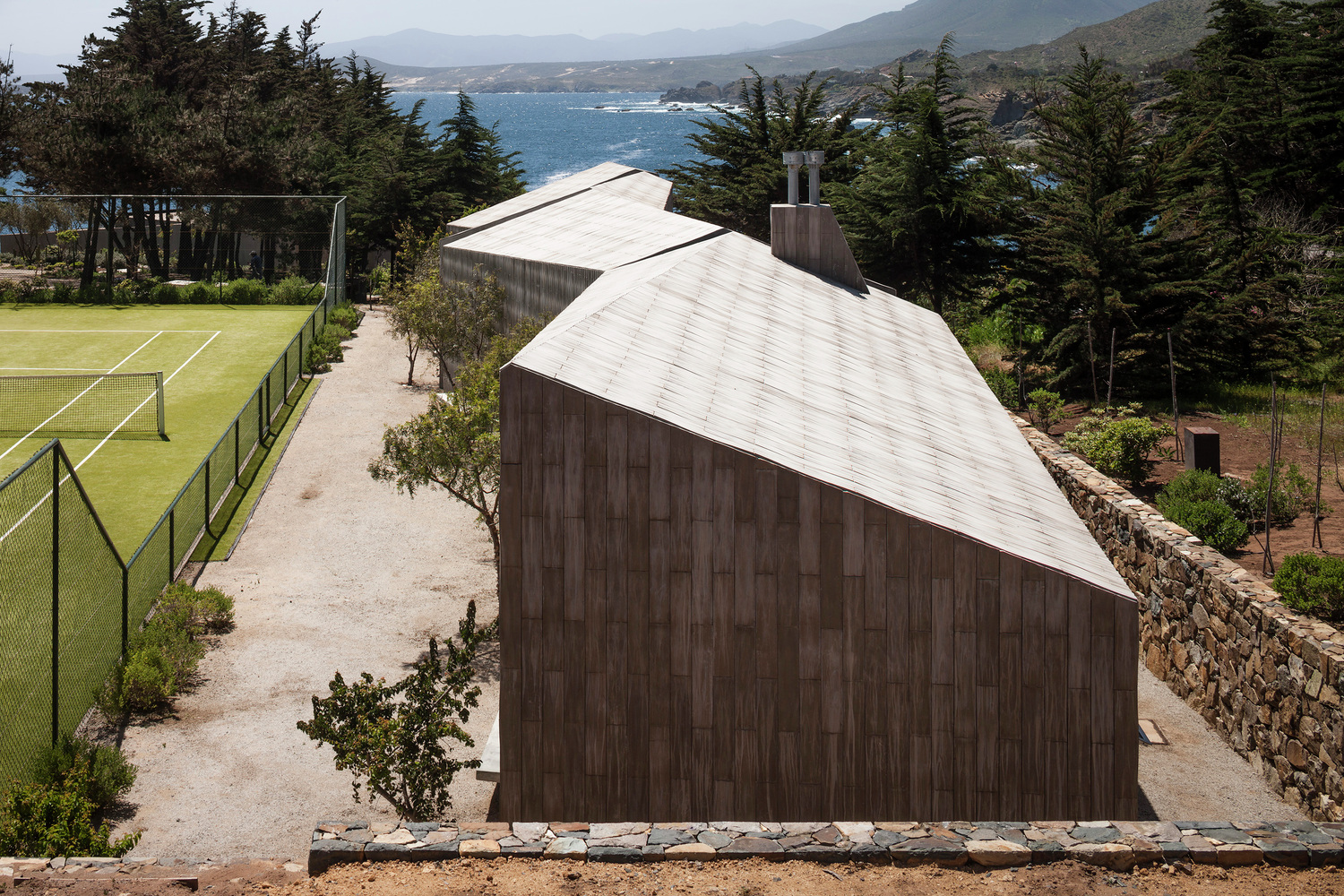

Four Programs Pavilion
© Fernando Alda

ARCHITECTS
Felipe Assadi Arquitectos, Francisca Pulido

COLLABORATOR
Alejandra Araya

PHOTOGRAPHS
Fernando Alda

YEAR
2014

LOCATION
Los Vilos, Chile

CATAGORY
Sports Architecture, Houses

Four Programs Pavilion
© Fernando Alda

Text description provided by architect.

The commission was for a pavilion bordering a tennis court that could handle four programs in the following order:

sauna, gymnasium, baths, and lodgings for a caretaker. The two central programs were to be related to the tennis court, but not the lateral ones.

Four Programs Pavilion
© Fernando Alda
Four Programs Pavilion
© Fernando Alda

At the same time, the three sports-related programs were to be interconnected, whereas the lodgings were to be isolated from the rest.

We worked along a single strip, with the same material, and a pitched roof, recognizable from every angle.

Four Programs Pavilion
© Fernando Alda
Four Programs Pavilion
© Fernando Alda

We synthesized the problem of the interrelationship of the programs by making three sections in the building and then slightly shifting the sectioned parts, thereby generating entrances into each part and relating their interiors with the landscape into which they were inserted. The result, in spite of the sectioning, is still a single piece, able to “remember” its original state, before the cuts were made.


Four Programs Pavilion
© Fernando Alda
Four Programs Pavilion
© Fernando Alda
Four Programs Pavilion
© Fernando Alda


Four Programs Pavilion
East Elevation / West Elevation
Four Programs Pavilion

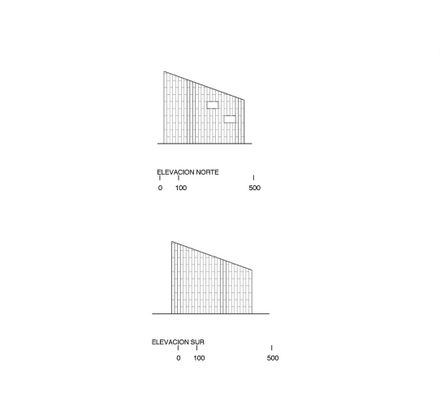

North Elevation / South Elevation


Four Programs Pavilion
Section A / Section B
Four Programs Pavilion
Section C / Section D


Four Programs Pavilion
First Floor Plan / Roof Plan
Four Programs Pavilion
Drawing
