Vajnorská 21 Conversion
© Tomáš Manina

VAJNORSKÁ 21 CONVERSION

cakov+partners

ARCHITECTS
Cakov+partners

PHOTOGRAPHER
Tomáš Manina

LOCATION
Bratislava, Slovakia

DESIGN TEAM
Tomáš Fojtik, Michal Kyselica, Mário Chovan, Diana Michnová

PHOTOGRAPHS
Tomáš Manina

YEAR
2021

LEAD ARCHITECTS
Kalin Cakov, Metodiy Monev, Ján Obušek

CATAGORY
Mixed Use Architecture, Houses

AREA
2284 m²

Vajnorská 21 Conversion
© Tomáš Manina
Vajnorská 21 Conversion
© Tomáš Manina

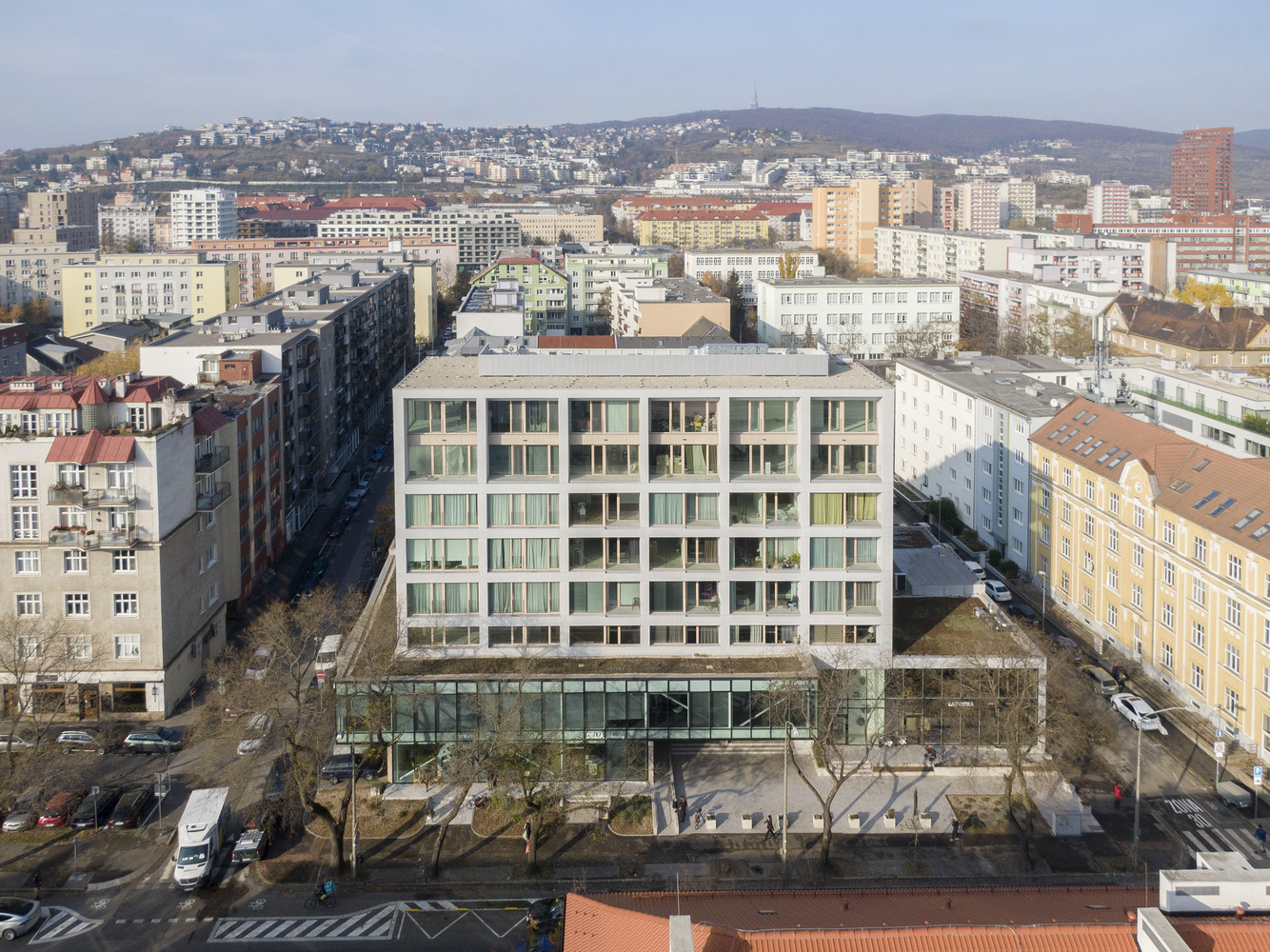

The mixed-use building at 21 Vajnorská Street in Bratislava 21 is a detached object, set and enclosed by Česká, Robotnická, and Osadná streets and represents a conversion of an older office building from the 1980s.

Vajnorská 21 Conversion
© Tomáš Manina
Vajnorská 21 Conversion
© Tomáš Manina

There are many similar buildings built in this period in our country.The new shape of the building respects the original urbanism of the area in which it is set.

Vajnorská 21 Conversion
© Tomáš Manina
Vajnorská 21 Conversion
© Tomáš Manina

According to a new assignment from the developer, the building, which had not been used for years, was to be transformed into a building with retail shops (on the ground floor) and office premises (on the first floor).

Vajnorská 21 Conversion
© Tomáš Manina
Vajnorská 21 Conversion
© Tomáš Manina

The remaining above-ground floors were intended for housing. We built in, built up, and remodeled the existing structure.

Although slightly enlarged, Vajnorska 21 fits into the environment sensitively, communicates with it, and does not disturb its original character.

In addition to the building itself, we have revitalized the adjacent public spaces as well as the entrance to the cultural center, which has a newly renovated form.

Vajnorská 21 Conversion
© Tomáš Manina
Vajnorská 21 Conversion
© Tomáš Manina

We created a new square in front of it from which the retail, cultural center, office and residential parts of the house can be entered. Instead of the original sidewalk, a space has been created in which people like to stay - there is life in it.

Demands for new functions for the building required a more radical approach to the assignment. Only the static load-bearing system - a prefabricated reinforced concrete skeleton remained from the original structure.

We replaced the original strip windows with floor-to-ceiling ones in combination with loggias.

Large glazing illuminates the apartments with an above-standard clear height of 2.9 m and at the same time gives the house a light look.

Vajnorská 21 Conversion
© Tomáš Manina
Vajnorská 21 Conversion
© Tomáš Manina

We connected the last two floors horizontally, thus creating an elevated space intended for duplex apartments. The used material and shapes of the retail and office spaces separate them from the housing part.

All-glass facades are in direct contact with the square in front of the building. The bakery and café located on the ground floor give passers-by a reason to slow down, stay at the premises and have fresh, fragrant pastries with coffee.

Vajnorská 21 Conversion
© Tomáš Manina
Vajnorská 21 Conversion
© Tomáš Manina

The built-in and built-up parts of the building respect the original module network.

Old and new parts of the building are united in a monotonous grid with a clear but undisturbed expression.


Vajnorská 21 Conversion
Site Plan
Vajnorská 21 Conversion
Typical Floor Plan
Vajnorská 21 Conversion
Ground Floor Plan
Vajnorská 21 Conversion
First Floor Plan
Vajnorská 21 Conversion
Sixth Floor Plan
Vajnorská 21 Conversion
Seventh Floor Plan


Vajnorská 21 Conversion

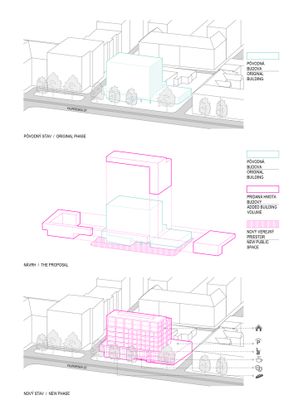

Concept Diagram
Vajnorská 21 Conversion
Longitudinal Section
