SAN LUCAS PAVILION

Frpo Rodriguez & Oriol

ARCHITECT IN CHARGE
Pablo Oriol, Fernando Rodríguez

COLLABORATORS
Inés Olavarrieta, María Domínguez, Carmen

STRUCTURE
Pablo Urbano

AREA
110 M²

YEAR
2013

LOCATION
Madrid, Spain

CATAGORY
Pavilion

Text description provided by architects.

The San Lucas Pavilion is, fundamentally, a reinforced concrete structure , barely 15 cm wide, which is arranged based on screens and one-meter edge beams, constraining an 11x11 meter square ground plan, in the limit between a lush pine forest and a very clean and carefully kept prairie.

San Lucas Pavilion
© Miguel de Guzmán
San Lucas Pavilion
© Miguel de Guzmán

This structural canopy is organized in strips which are parallel to the direction that takes you from the forest to the prairie. This is reflected in the slab that provides support for the floor, which is punctured at some places to allow the vegetation to grow.

Small brick boxes, independent from the structure, enclose the more specific functions, and also several parts are covered by a 45º folded metal sheet, offering protection from the rain.

San Lucas Pavilion
© Miguel de Guzmán
San Lucas Pavilion
© Miguel de Guzmán

The pavilion is transparent, but prominent, immediate in its materiality and flexible in use.

San Lucas Pavilion
© Miguel de Guzmán


San Lucas Pavilion

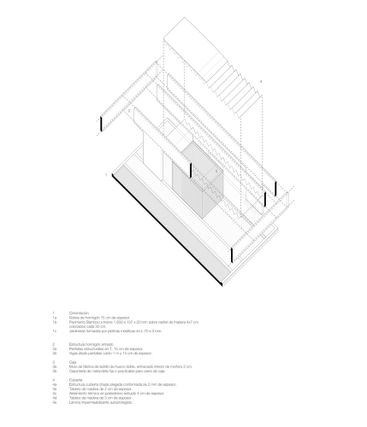

Detail
San Lucas Pavilion
Detail


San Lucas Pavilion
Floor Plan
San Lucas Pavilion
Floor Plan
San Lucas Pavilion

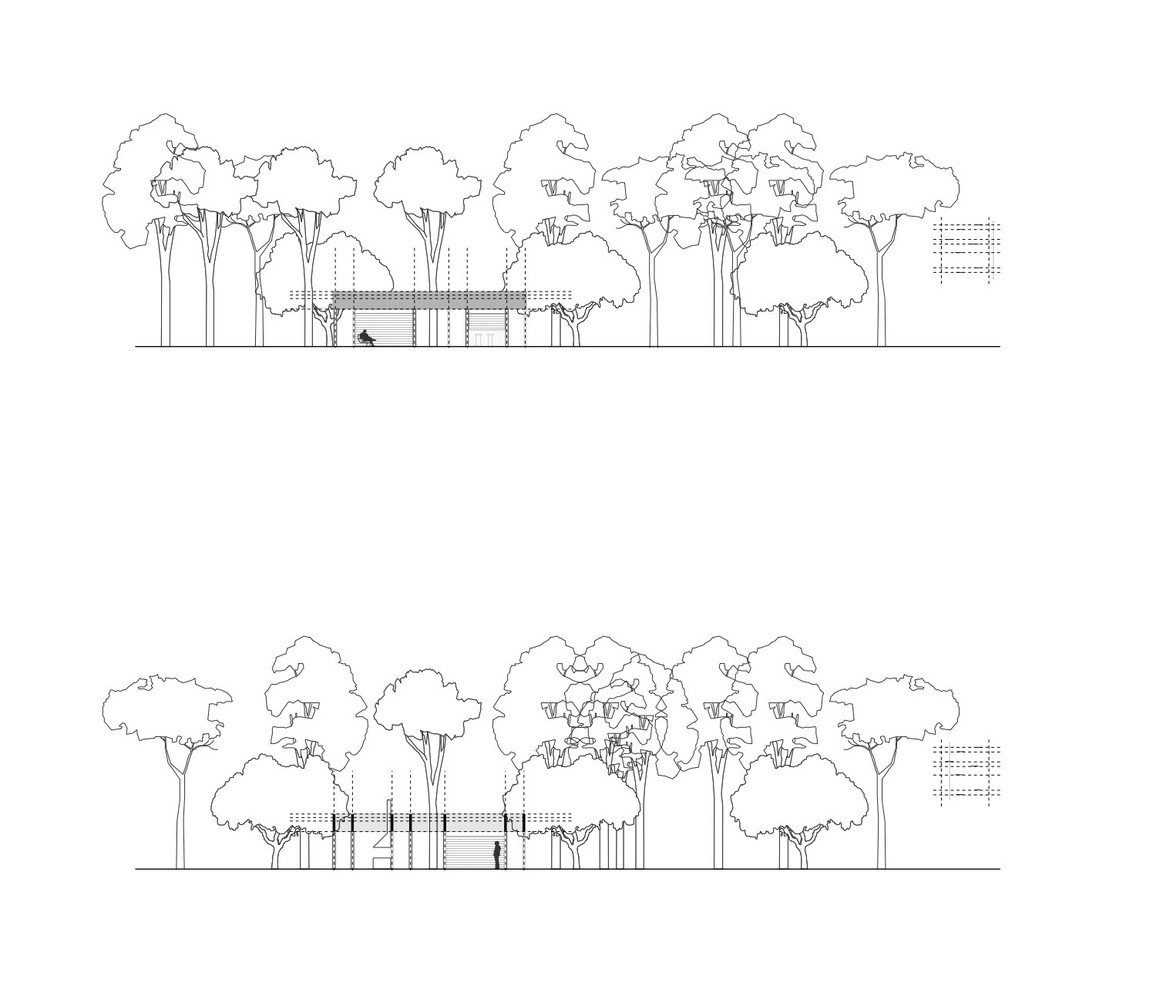

Elevation


San Lucas Pavilion
Section
San Lucas Pavilion
Section
San Lucas Pavilion
Section
