LIYANG YANGWAN VISITOR CENTER

Origin Architect

LEAD ARCHITECT
Ji Li

PHOTOGRAPHS
Zhi Xia

COLLABORATOR
Arch-harmony Architecture Design

DESIGN TEAM
Ji Li, Kejia Mei, Jing Wang, Hui Lian, Xinyu Wang

CLIENT
Liyang Traffic Construction And Development Co.ltd, Liyang Construction And Development Group, Liyang Traffic Construction And Development Co.ltd, Ltd

AREA
331 m²

YEAR
2019

LOCATION
Liyang, China

CATEGORY
Public Architecture

Text description provided by architect.

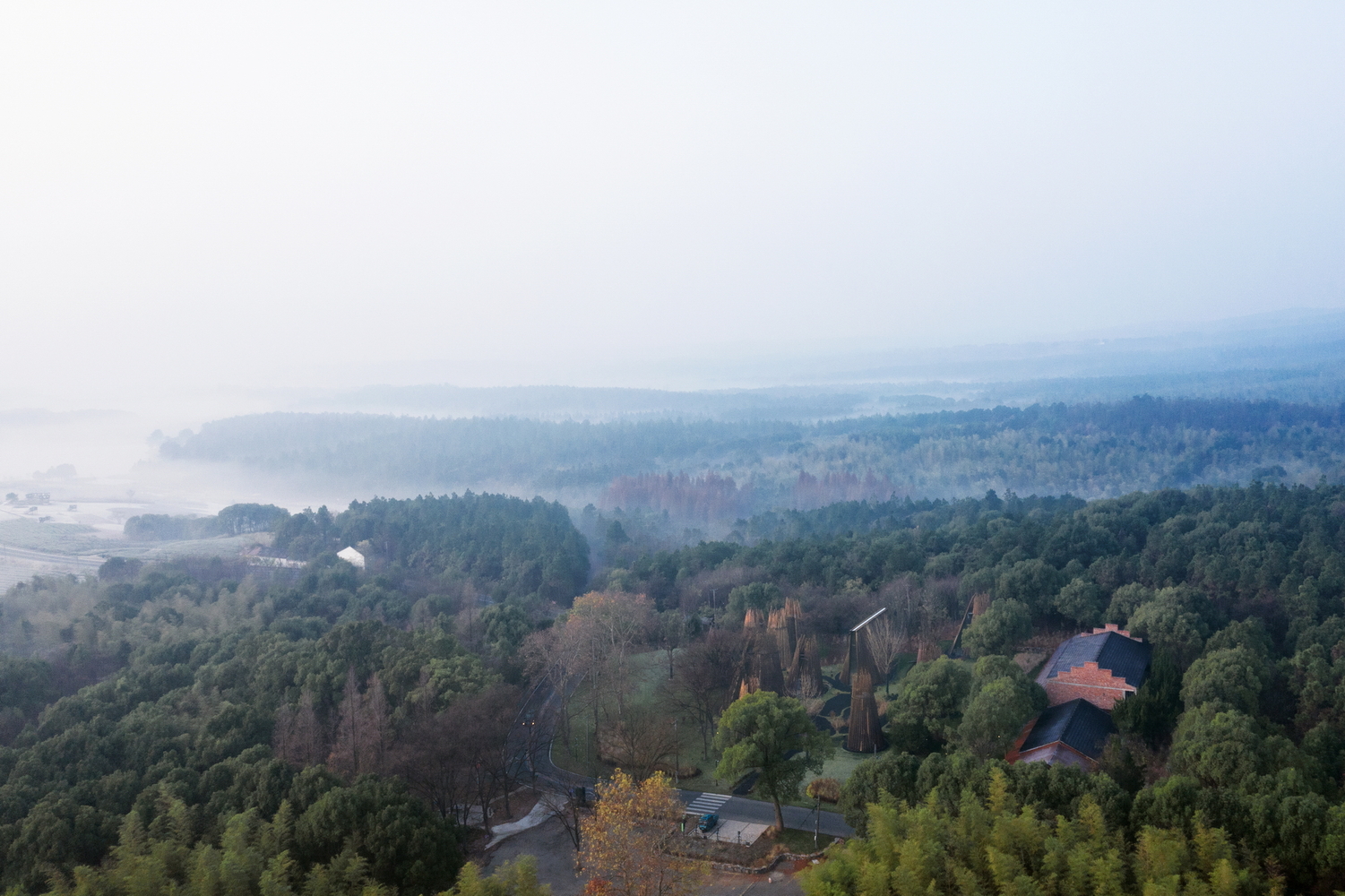

Liyang Tourism Route 1 passes through Liyang's beautiful fields and villages, entering the vast Wawushan Forest in Yangwan.

Liyang Yangwan Visitor Center
© Zhi Xia
Liyang Yangwan Visitor Center
© Zhi Xia

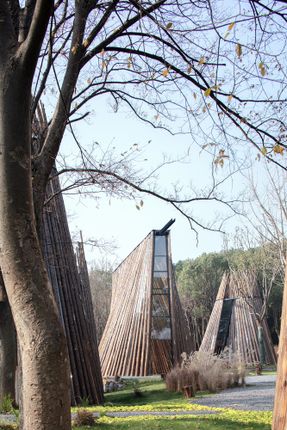

Up ahead, a group of wooden structures is barely visible in the morning mist. The tops of these structures extend over the tip of the trees, gently brushing the smooth skyline of the forest.

This visitor center is built on the land of abandoned forestry worker dorms and has become an inevitable stop for tourists along the Liyang Tourism Route 1.

Liyang Yangwan Visitor Center
© Zhi Xia
Liyang Yangwan Visitor Center
© Zhi Xia

ORIGINAL LIFE/ SPRUCE

A few years ago, when architects arrived at the site for the first time, there were only piles of spruce trees chopped from the nearby forest.

Exposed to the elements year after year, the mottled spruce bark laid bare their loneliness. The architects were deeply touched by the forgotten spruce trees and wished to bring them new lives.

Liyang Yangwan Visitor Center
© Zhi Xia
Liyang Yangwan Visitor Center
© Zhi Xia

ORIGINAL SITE/ REGENERATION.

Our architects wanted to combine these spruce trees with contemporary technologies, constructing a new space rooted in its original environment.

After preservative treatments, spruce logs were erected in the forest to form a spiral array pointing to the sky.

Liyang Yangwan Visitor Center
© Zhi Xia
Liyang Yangwan Visitor Center
© Zhi Xia

With their roots deep in the ground, these logs were framed by customized circular steel beams.

Glass and polycarbonate panels were embedded into the gaps between the logs, allowing sunlight to radiate into the building.

The construction process was intriguing and challenging. Our artisans and architects closely worked together and creatively combined modern steel structure technologies with traditional woodworking skills.

Liyang Yangwan Visitor Center
© Zhi Xia
Liyang Yangwan Visitor Center
© Zhi Xia
Liyang Yangwan Visitor Center
© Zhi Xia

SYMBIOTIC HARMONY/ FOREST WITHIN A FOREST.

The building complex consists of multiple groups of spiral wooden structures and one small auditorium that provides services such as resting, catering, parties, ceremonies, and other supporting services on different scales.

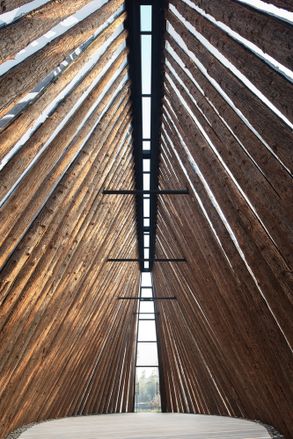

The external space can be re-arranged freely, therefore naturally blending into the vast forest. The upmost part of its internal space is defined by slender spruce logs taller than ten meters.

Liyang Yangwan Visitor Center
© Zhi Xia
Liyang Yangwan Visitor Center
© Zhi Xia
Liyang Yangwan Visitor Center
© Zhi Xia

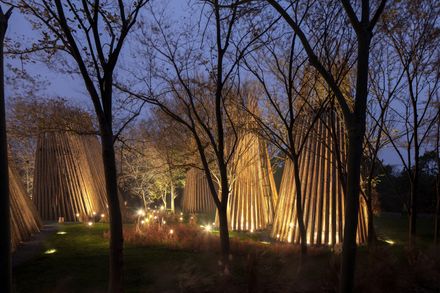

Walking inside feels like being in a tranquil sanctuary or a towering forest. The distinctions between the inside and the outside slowly fade away due to natural flowing light and shadow.

A group of buildings grows in the forest. Each individual building together makes a reborn forest.

Liyang Yangwan Visitor Center
© Zhi Xia
Liyang Yangwan Visitor Center
© Zhi Xia
Liyang Yangwan Visitor Center
© Zhi Xia


Liyang Yangwan Visitor Center
© Zhi Xia
Liyang Yangwan Visitor Center
© Zhi Xia
Liyang Yangwan Visitor Center
Liyang Yangwan Visitor Center
Liyang Yangwan Visitor Center
© Zhi Xia


Liyang Yangwan Visitor Center
During construction. Image Courtesy of Origin Architect


Liyang Yangwan Visitor Center
Site plan
Liyang Yangwan Visitor Center
Site plan

Liyang Yangwan Visitor Center
Chapel drawings
Liyang Yangwan Visitor Center
Dinning room drawings


Liyang Yangwan Visitor Center
Elevation
Liyang Yangwan Visitor Center
Sketch. Image Courtesy of Origin Architect
Liyang Yangwan Visitor Center
Sketch. Image Courtesy of Origin Architect
