Gantry Point
© L-INES Photo

GANTRY POINT

Studios Architecture

PHOTOGRAPHS
L-INES Photo

CATEGORY
Commercial Architecture

YEAR
2021

LOCATION
Queens, United States

CONSTRUCTION MANAGERS
Suffolk Construction

CIVIL ENGINEERING
Bohler Engineering

GEOTECHNICAL ENGINEERS
Mueser Rutledge Consulting Engineers

STRUCTURAL ENGINEER TEAM
McNamara Salvia Structural Engineers

AREA
240000 ft²

MEP ENGINEERING
AMA Consulting Engineers

MANUFACTURERS
Kingspan Insulated Panels, DFB

PROJECT MANAGER
David Must

CODE CONSULTING
Rizzo Group

PRINCIPAL
David Burns

PROJECT DESIGNER
Merve Poyraz

ENCLOSURE
Walter P Moore

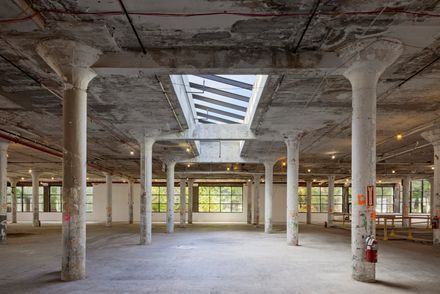

STUDIOS was commissioned to reimagine 25-11 49th Avenue—an aging manufacturing building in Long Island City, Queens.

Gantry Point
© L-INES Photo
Gantry Point, 25-11 49th Avenue

Our master plan retains the industrial character and large floor plates of the one and two-story base while utilizing available FAR to create a mid-rise, side-core office tower featuring high ceilings, large spans, and unimpeded views of the neighborhood and Manhattan beyond.

The sprawling, triangular building is trimmed back and carved out to make way for the base of the new tower. The primary brick street facades are retained and the new nine-story structure emerges from the existing mass.

Gantry Point
© L-INES Photo
Gantry Point
© L-INES Photo

The tower is organized with a series of west-facing terraces offering an abundance of desirable outdoor amenity space and unmatched views.

Gantry Point, as the building is now called, takes inspiration from the neighborhood context of early twentieth century ‘daylight factory’ buildings, which have strongly expressed frames infilled with large windows.

Gantry Point
© L-INES Photo
Gantry Point
© L-INES Photo
Gantry Point
© L-INES Photo
Gantry Point
© L-INES Photo

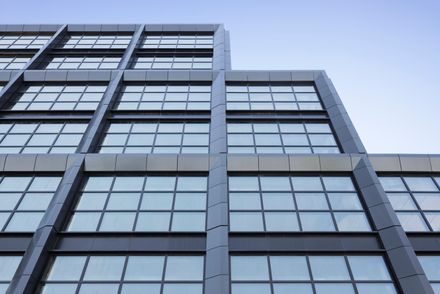

The tower’s two-story module is created with deep metal spandrels and columns with glass infill mounted on a curtain wall frame.

Gantry Point offers an ideal workspace—minimal internal columns created by the steel frame and pre-cast plank system in tandem with a compact side core - maximizing the plannable area and allowing sunlight to penetrate across the floorplate.

Visitors and tenants enter off of 49th Avenue where a new storefront system inserted at the corner of the historic masonry facade marks the entry.

Gantry Point
© L-INES Photo
Gantry Point
© L-INES Photo
Gantry Point
© L-INES Photo
Gantry Point
© L-INES Photo

The spacious, light-filled lobby provides drop-in workspaces, lounge areas, and cafe spaces that promote a buzz throughout the day.

Visitors and tenants enter off of 49th Avenue where a new storefront system inserted at the corner of the historic masonry facade marks the entry.

The spacious, light-filled lobby provides drop-in workspaces, lounge areas, and cafe spaces that promote a buzz throughout the day.

Gantry Point
© L-INES Photo


Gantry Point
© L-INES Photo
Gantry Point
© L-INES Photo
Gantry Point
© L-INES Photo
Gantry Point
© L-INES Photo
Gantry Point
© L-INES Photo
Gantry Point
© L-INES Photo
Gantry Point
© L-INES Photo


Gantry Point
Concept Diagram
Gantry Point
Floor Plan
Gantry Point

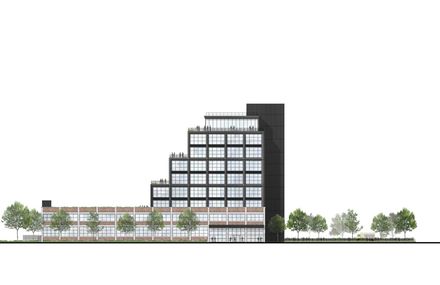

South Elevation
Gantry Point
Site Plan
