120-Division School

120-DIVISION SCHOOL

Wau Design

120-Division School
© MA Minghua - ZHAN Changheng

ARCHITECTS
Wau Design

CLIENT
Bureau Of Education & Sports In Xingxiang

STRUCTURAL ENGINEERS
Tsinghua-yuan Ltd.

PHOTOGRAPHS
Ma Minghua - Zhan Changheng

YEAR
2014

LOCATION
Xingxiang, China

CATEGORY
Elementary & Middle School

120-Division School
© MA Minghua - ZHAN Changheng

Text description provided by architect.

The 120-division School, designed by WAU Design, is completed recently.

The school including 72 classrooms, teacher's office, library, lecture hall and sports center is located in the new developing area of Xingxian, ShanXi province.

120-Division School
© MA Minghua - ZHAN Changheng
120-Division School
© MA Minghua - ZHAN Changheng

Our vision for the design is to create an image of range upon range of mountains just like the natural environment the site has.

The building raises up from the ground floor to the roof top, this makes the slope roof to be a extension and development of the ground floor landscape.

120-Division School
© MA Minghua - ZHAN Changheng
120-Division School
© MA Minghua - ZHAN Changheng

The roof with a high accessibility creates a playful outdoor space for children having different kinds of activities.

An interesting mix of landscape and building makes different space experiences for the students.

120-Division School
© MA Minghua - ZHAN Changheng
120-Division School
© MA Minghua - ZHAN Changheng

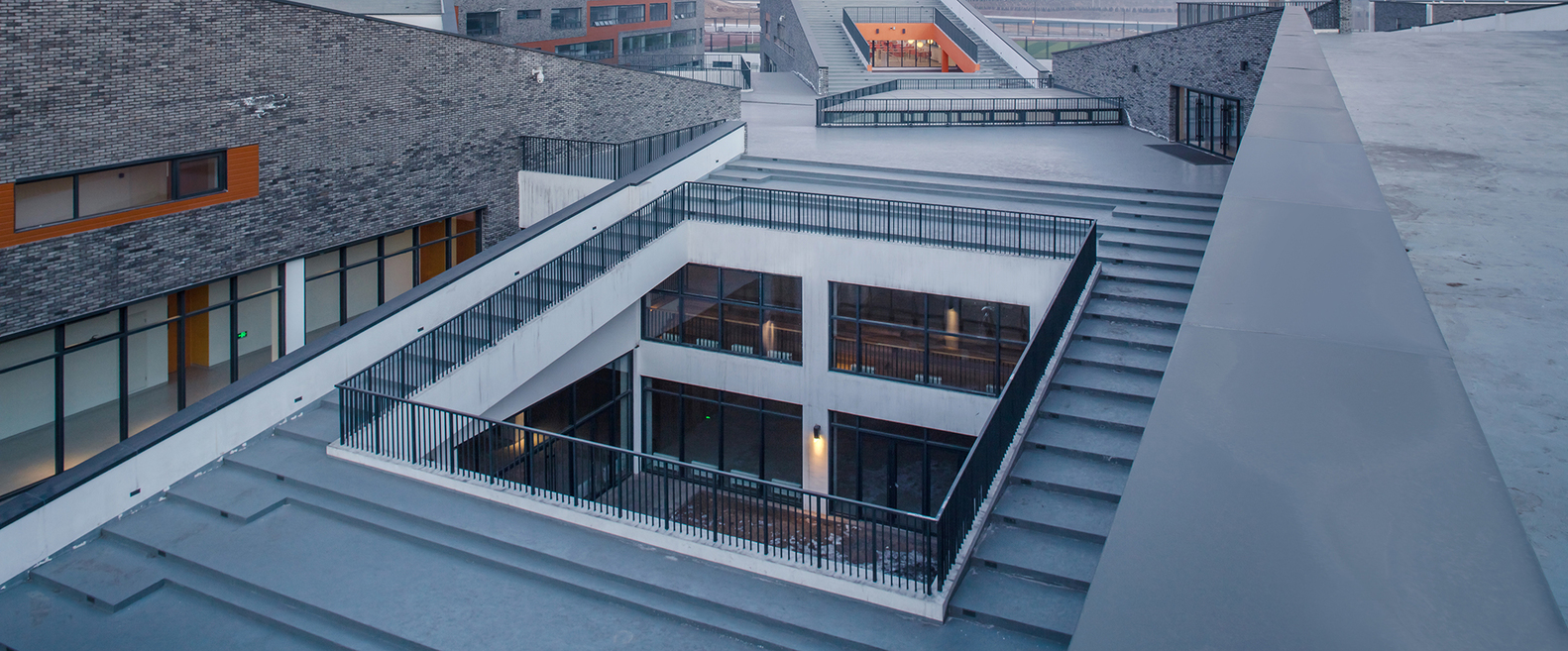

The intersection parts of different roofs form the public lobby with patios around, this not only blurs the distinction between interior and exterior but also organically connect different programs such as classrooms, office, library, etc.

The building has roofs with various inclination, we make the lower part to be public terrace for the upper level. In addition, such kind of roofing reflects the cave dwellings in Shanxi, extending the historical context of the site.

120-Division School
© MA Minghua - ZHAN Changheng
120-Division School
© MA Minghua - ZHAN Changheng

In the energy conservation, the design responds to local climate. The shape of the building takes full consideration of wind to have good ventilation.

In addition, patios not only create the Greenhouse Effect, but also act as rainwater collectors to improve the microenvironment.

120-Division School
© MA Minghua - ZHAN Changheng
120-Division School
© MA Minghua - ZHAN Changheng

The most important, concrete masonry backup , brick veneer, together with air space in between, formed the “Respirable Wall”, which helps to improve thermal and insulating performance and reduce energy consumption for heating and cooling.

After all this design conveys the regeneration of traditional architecture, creates a brand new atmosphere of teaching building, and enhances the students' perception experience of space.

120-Division School
© MA Minghua - ZHAN Changheng
120-Division School
© MA Minghua - ZHAN Changheng
120-Division School
© MA Minghua - ZHAN Changheng


120-Division School
© MA Minghua - ZHAN Changheng
120-Division School
© MA Minghua - ZHAN Changheng
120-Division School
© MA Minghua - ZHAN Changheng
120-Division School
© MA Minghua - ZHAN Changheng
120-Division School
© MA Minghua - ZHAN Changheng
120-Division School
© MA Minghua - ZHAN Changheng
120-Division School
© MA Minghua - ZHAN Changheng
120-Division School
© MA Minghua - ZHAN Changheng


120-Division School
© MA Minghua - ZHAN Changheng
120-Division School
© MA Minghua - ZHAN Changheng


120-Division School
Diagram
120-Division School
Concept


120-Division School

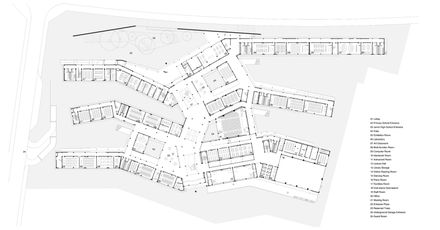

Ground Floor Plan
120-Division School
1st Floor Plan
120-Division School
2nd Floor Plan
120-Division School
3rd Floor Plan


120-Division School
Site Plan
