Ryuichi Ashizawa Architects & Associates

Setre Naramachi Hotel

SETRE NARAMACHI HOTEL

Ryuichi Ashizawa Architects & associates

Setre Naramachi Hotel
© Ryuichi Ashizawa Architects & associates
Setre Naramachi Hotel
© Ryuichi Ashizawa Architects & associates

CLIENT
Yoshidaya Ryokan Inc., Kazutaka Yoshida

LANDSCAPE
WIN Landscape Planning & Design

STRUCTURAL ENGINEER
tmsd

MANUFACTURERS
Vectorworks, Adobe, Archicad, Hukunishi Washi Honpo, Inoue Sakankogyo Cll., Union Corporation Japan

CONSTRUCTION
Shibutani

AREA
577 m²

YEAR
2018

LOCATION
Nara, Japan

CATEGORY
Houses

Setre Naramachi Hotel
© Ryuichi Ashizawa Architects & associates

Text description provided by architect.

It is a project of rebuilding the Inn, near Nara Sarusawa pond. On the south side, a 4-storey building is arranged to surround the courtyard.

Public spaces such as lobby, restaurant and other dining areas are planned on the first floor, while second to the fourth floor are planned only for guest rooms.

Setre Naramachi Hotel
© Ryuichi Ashizawa Architects & associates
Setre Naramachi Hotel
© Ryuichi Ashizawa Architects & associates

The relationship between the garden and the rooms are expressed in a multi-layered space.

On the first floor, it was planned to have an amalgamated relationship between the inside and the outside which includes the ground, street garden, room, backyard, etc. in an open arrangement.

Setre Naramachi Hotel
© Ryuichi Ashizawa Architects & associates
Setre Naramachi Hotel
© Ryuichi Ashizawa Architects & associates

On the guest floors, from the second floor to the fourth floor, it was planned to design in a way, which showcases the relationship between the alley (hallway), rooms and the garden in continuous small scale space.

The thought of expressing the local natural materials and construction methods of that area in a modern way gave a new path to the design.

Setre Naramachi Hotel
© Ryuichi Ashizawa Architects & associates
Setre Naramachi Hotel
© Ryuichi Ashizawa Architects & associates

While using different materials such as stone, soil, and wood, we thought about the years that each material had existed so far, and thus researched various ways to use the material such that their authenticity does not get altered a lot. The pavement of the floor is covered with old stone.

Various plastering finishes are applied to the inner and outer walls that will be the base of the first floor, using Nara soil.

Setre Naramachi Hotel
© Ryuichi Ashizawa Architects & associates
Setre Naramachi Hotel
© Ryuichi Ashizawa Architects & associates

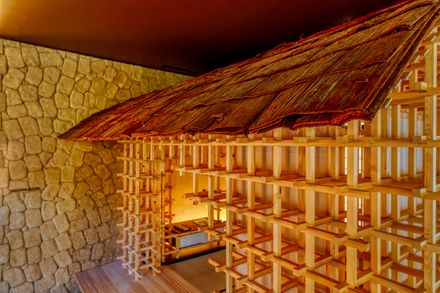

Yoshino cedar wall was planned on the inner and outer wall from the second floor to the upper floors. Furthermore, on the roof, tiles were laid that has been baked on the soil.

The inner and outer walls by Yoshinosugi determine the arrangement interval by the difference sequence, with a desire that people who visit can imagine the Yoshino forest from these abstract spaces.

Setre Naramachi Hotel
© Ryuichi Ashizawa Architects & associates
Setre Naramachi Hotel
© Ryuichi Ashizawa Architects & associates

The structure is a simple steel frame ramen structure, but by giving anti-seismic elements to the three core parts on the first floor, the lobby, and restaurant, etc. they get openly connected with the garden integrally.

The idea was to develop the architecture that inherited the tradition of the area that has been continuing for a long time with the hope that the "Naramachi" hotel will be the cornerstone of the area over time.

Setre Naramachi Hotel
© Ryuichi Ashizawa Architects & associates
Setre Naramachi Hotel
© Ryuichi Ashizawa Architects & associates

SPACE CONFIGURATION THAT INHERITS "Naramachiya". In 1F, various rooms are arranged around the courtyard.

One will be guided through the street garden to the Meister Room, Bar Lounge, Restaurant, a private counter and dining room located further back.

Setre Naramachi Hotel
© Ryuichi Ashizawa Architects & associates
Setre Naramachi Hotel
© Ryuichi Ashizawa Architects & associates

Each room has a relation with the garden planned around the site including the courtyard. In the space above 2F, each room was planned to be related to the courtyard and the tsubo garden.

In addition, it is planned as a three-dimensional street garden space where light is inserted from the top light and is dyed in a veritable color, with a blowout staircase leading from the first floor to the roof floor.

Setre Naramachi Hotel
© Ryuichi Ashizawa Architects & associates


Setre Naramachi Hotel

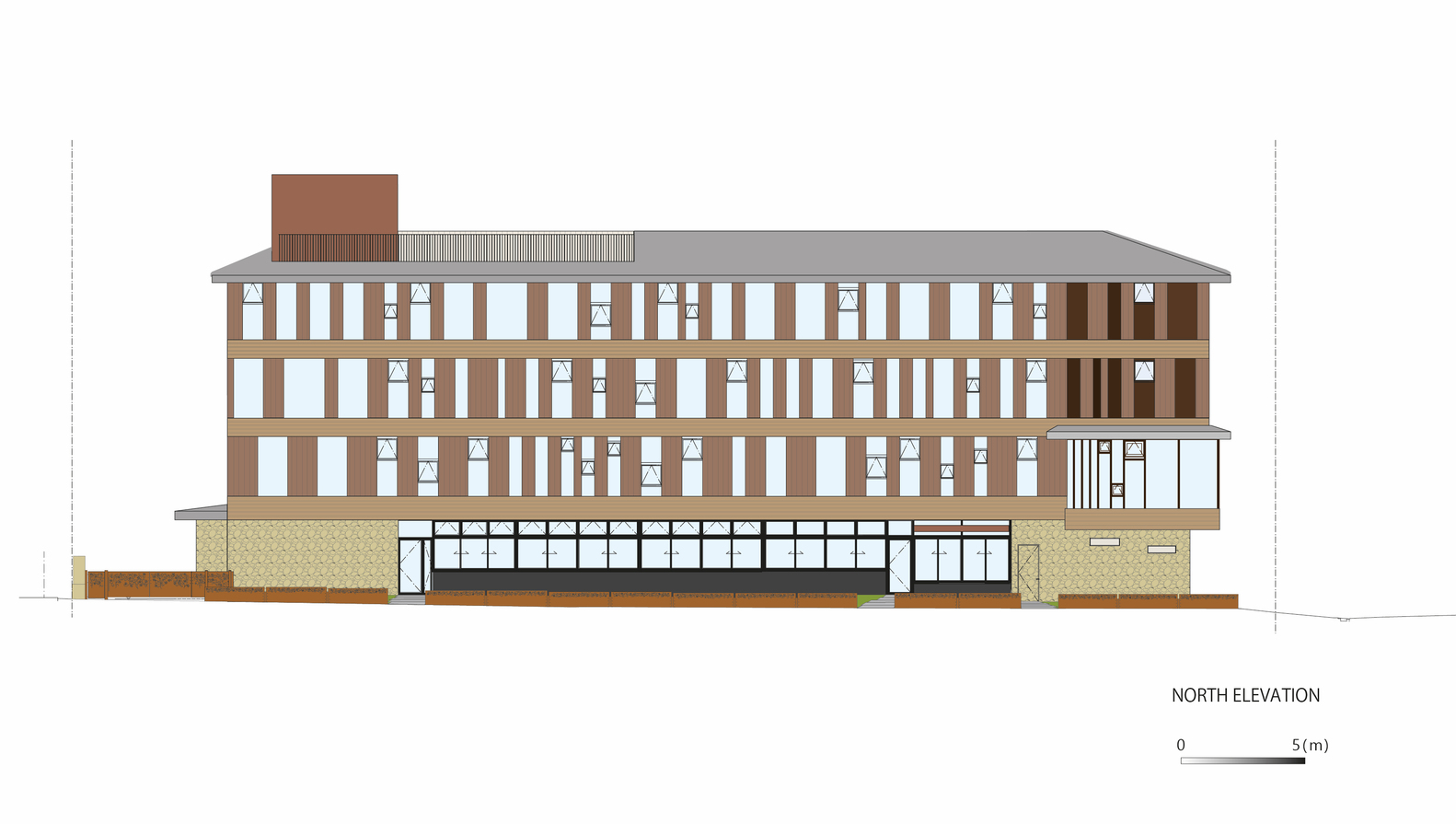

Elevation
Setre Naramachi Hotel
Elevation
Setre Naramachi Hotel
Elevation
Setre Naramachi Hotel
Elevation


Setre Naramachi Hotel
Section
Setre Naramachi Hotel
Section
Setre Naramachi Hotel
Sectional perspective
Setre Naramachi Hotel
Concept diagram


Setre Naramachi Hotel
Ground floor plan
Setre Naramachi Hotel
2nd and 3rd floor plans
Setre Naramachi Hotel
Roof plan and Level 4 plan
Setre Naramachi Hotel
Axonometric
