ORIEL WINDOW HOUSE

Shinsuke Fujii Architects

ARCHITECT IN CHARGE
Shinsuke Fujii

MANUFACTURERS
Lixil Corporation, Sanwa, Tform

PHOTOGRAPHS
Tsukui Teruaki

AREA
75 M²

YEAR
2015

LOCATION
Yokohama, Japan

CATEGORY
Houses

Text description provided by architect.

On a site area of only 42m2, We planned a housing with a horizontally long bay window (not included in the floor area) towards a park where you can see cherry blossoms.

Oriel Window House
© Tsukui Teruaki
Oriel Window House
© Tsukui Teruaki
Oriel Window House
© Tsukui Teruaki

Three layers of bay windows were set up to take in the scenery and light inside the building and it became a building that feels open.

Besides being able to effectively utilize the space by using the bay windows as a work desk and dining bench, it also functions as an eaves, making shadows in summer and delivering sunlight to the back in winter and warming the concrete floor.

At the lower part of the bay window, small windows can be provided to obtain constant ventilation even on a rainy day. It is also used to water the flowers between bay windows.

Oriel Window House
© Tsukui Teruaki
Oriel Window House
© Tsukui Teruaki

In addition, the hanging walls and waist walls at the upper and lower sides of the bay window function structurally as cantilevered beams, ensuring a frameless opening for capturing outdoor environments such as cherry blossoms and autumn leaves on all floors.


Oriel Window House
© Tsukui Teruaki
Oriel Window House
© Tsukui Teruaki


Oriel Window House
Section
Oriel Window House
Site Plan


Oriel Window House

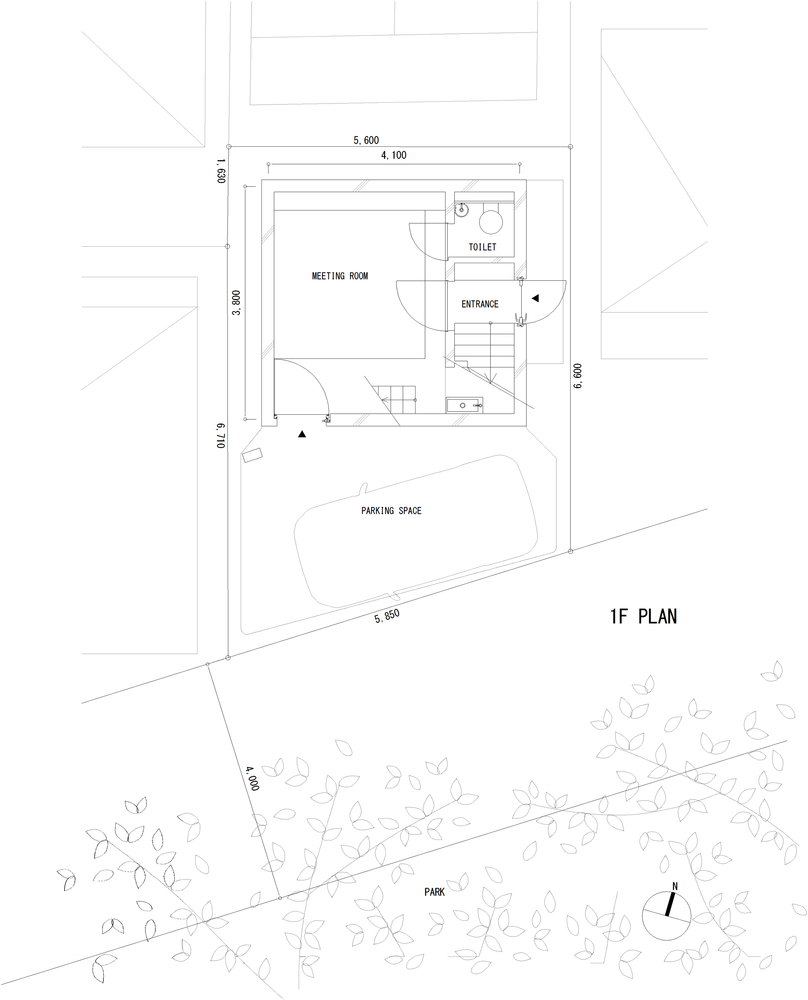

1st Floor Plan
Oriel Window House
2nd Floor Plan
Oriel Window House
Mezzanine 2nd Floor Plan
Oriel Window House
3rd Floor Plan
Oriel Window House
RF Plan
