School In The Sky, Guangzhou Tianhe Vanke Plaza

School In The Sky, Guangzhou Tianhe Vanke Plaza
© Changheng Zhan

SCHOOL IN THE SKY, GUANGZHOU TIANHE VANKE PLAZA

FCHA

ARCHITECTS
FCHA

LANDSCAPE UNIT
Lab D+H

PROJECT MANAGER
Xusheng Guo

DESIGN TEAM
Junhui Yu, Chuhui Cai, Rushuai Ma, Haifeng Wei, Xuefa Liu, Senmao Xu, Tingyu Lin

CONSTRUCTION DRAWING
Guangzhou Hanhua Architects+Engineers Co.Ltd

INTERIOR BUSINESS UNIT
IDL Commercial Design, Hong Kong

LIGHTING UNIT
NSA Design And Engineering(GuangZhou)

PARTNER IN CHARGE
Zetao Chen, Jinlefu Su

CURTAIN WALL CONSULTANT
Shenzhen Pengge Curtain wall design Consulting

INTERNATIONAL SCHOOL INTERIOR UNIT
Guangzhou Dongyu interior decoration design

PHOTOGRAPHS
Guanhong Chen, Changheng Zhan

CLIENTS
Vanke

AREA
62000 m²

YEAR
2018

LOCATION
Guangzhou Shi, China

CATEGORY
Mixed Use Architecture, Schools, Shopping Centers

Text description provided by architect.

How to integrate education and commerce, which seem to be incompatible functions in one land efficiently? Presently, in the development of high-density coastal cities in China, excessive development of lands for commerce and office, etc, often occurs.

School In The Sky, Guangzhou Tianhe Vanke Plaza
© Changheng Zhan
School In The Sky, Guangzhou Tianhe Vanke Plaza
© Changheng Zhan

At the same time, a shortage of land for schools and other educational facilities occurs. We try to digest the sizes of complex projects by putting schools and training in them, encourage sharing and improve efficiency by restructuring functions, aiming to make educational spaces more open and diversified.

LOCATION

Guangzhou Yun Shang Shu is located in IBD, Tianhe Dist., Guangzhou. Based on the judgment of the commercial market, the client thinks that a mall with simple functions is not the best answer for the development of the district, and hopes to integrate corporate diversified development strategy and to probe the way to utilize the space more diversely and more efficiently by combining education with related functions and commerce.

School In The Sky, Guangzhou Tianhe Vanke Plaza
© Changheng Zhan
School In The Sky, Guangzhou Tianhe Vanke Plaza
© Changheng Zhan

RESEARCH

Through a series of survey, we can comb out such a phenomenon: students walk to and from schools, training, and commercial functions.

The utilization rates of major spaces of schools, training, and commercial facilities built with students as the center will not be very high.

Then, by shortening the distances among the 3 functions through design or even sharing them thoroughly in one space, we will have the opportunity to create a function complex of extremely high space utilization rate.

Highly integrated functions bring extremely promoted information exchange, and this may be the start of a new educational model.

School In The Sky, Guangzhou Tianhe Vanke Plaza
© Changheng Zhan
School In The Sky, Guangzhou Tianhe Vanke Plaza
© Changheng Zhan

GENERATION

By combing the space needs of schools, training, and commercial functions, we pile up the functional modules from bottom to top in respect of the spacial property from noisy to quiet.

Then, spaces of different properties are divided into managerial zones by spacial nodes which facilitate management to assure the safety of the school in daily operation.

School In The Sky, Guangzhou Tianhe Vanke Plaza
© Guanhong Chen
School In The Sky, Guangzhou Tianhe Vanke Plaza
© Guanhong Chen

Meanwhile, the project needs to correspond to level planning, consider the influence of metro lines, and respond to the land limitations better by slitting, conceding, lifting and other motions.

CIRCULATION

Vertical function superposition differentiates managerial zones more easily, but the 3 functions still reserve the interfaces for inter-superposition to improve usage efficiency and promote the exchange among user groups of different functions.

School In The Sky, Guangzhou Tianhe Vanke Plaza
© Guanhong Chen
School In The Sky, Guangzhou Tianhe Vanke Plaza
© Guanhong Chen

MANAGEMENT

The school’s range of daily activities coils with commercial and training functions via an elaborately designed stereo corridor, they overlay but do not intersect, and the school’s boundary manages dynamic changes through a perfect interface.

OPEN FLOOR

The open floor is a transitional platform that divides 2 functional spaces, and is the place for students’ outdoor activities and leisure.

School In The Sky, Guangzhou Tianhe Vanke Plaza
© Guanhong Chen
School In The Sky, Guangzhou Tianhe Vanke Plaza

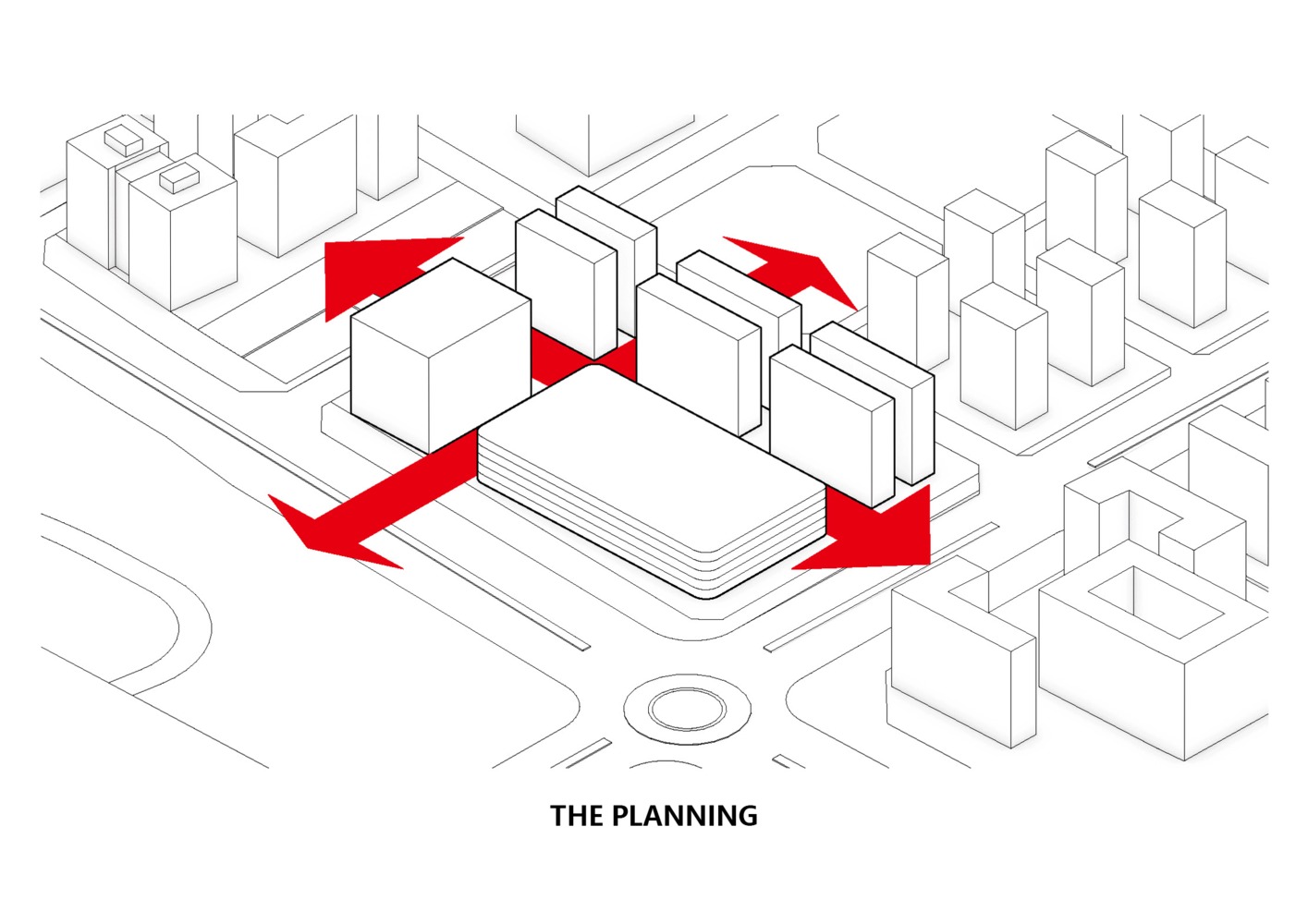

Concept Diagram Gif

The school’s enclosed U-shape outdoor atrium space provides the possibilities of outdoor basketball and outdoor theatre. In addition, the open floor includes a 200-meter runway, students’ library, students’ dining hall, and other functions.

TEACHING ZONE

The teaching zone above the open floor has the U-shape layout. Classrooms spread in the sections of good daylighting along both sides, the integrated core barrel and the service corridor of the daylighting atrium are in the center.

School In The Sky, Guangzhou Tianhe Vanke Plaza
Explosion View Diagram
School In The Sky, Guangzhou Tianhe Vanke Plaza
Elevation

And the turning position of the U-shape plane can further partition the school plane through access control, aiming to fit the school’s space layout of high densities in future.

VISION

We believe this is an exploration of land value in high-density cities, and a useful practice in response to cities’ shortage of educational lands. We hope that the integration and superposition of the 2 functions can generate a new chemical reaction.

School In The Sky, Guangzhou Tianhe Vanke Plaza
Section


School In The Sky, Guangzhou Tianhe Vanke Plaza
Master Plan Map
School In The Sky, Guangzhou Tianhe Vanke Plaza
Location Map


School In The Sky, Guangzhou Tianhe Vanke Plaza
Space Function Diagram
School In The Sky, Guangzhou Tianhe Vanke Plaza
Space Utilization Diagram
School In The Sky, Guangzhou Tianhe Vanke Plaza
Section Diagram
School In The Sky, Guangzhou Tianhe Vanke Plaza
Eight Floor Plan
