Text description provided by architect.

Sheppard Robson’s Siemens Middle East Headquarters at Masdar City, Abu Dhabi, officially opened this week, establishing a new benchmark for sustainable office buildings in the Middle East.

Siemens HQ in Masdar City
© Huffton+Crow

The 22,800 m2 structure, which floats above a new public plaza, is the result of a stringent brief. This was proposed by Siemens and MASDAR then developed by Sheppard Robson to create a building that is truly optimised for its purpose, delivering the most sustainable building possible for the same cost per square metre as a typical headquarters in the UAE.

The Siemens Middle East Headquarters is one of the first buildings in the region to achieve LEED Platinum. The sustainable credentials were achieved through combining traditional design and parametric analysis to deliver an efficient and compact form that uses less material and minimises embodied carbon.

The office floors – over 60% of which are occupied by Siemens - float above and shade the public plaza, which connects the level change between the existing adjacent podium and the more formal square.

The plaza has been designed as a terraced extension of the existing public realm and encourages pedestrian movement within the heart of the site. This shared public space is further enhanced by a series of external ‘rooms’, retail units and two fully glazed office receptions.

Siemens HQ in Masdar City
© Huffton+Crow
Siemens HQ in Masdar City
© Nicole Luettecke

The building’s envelope was conceived as a box within a box. The inner section is a highly-insulated, airtight façade designed to reduce thermal conductivity; surrounding this is a lightweight aluminium external shading system that minimises solar gain whilst maximising daylight and views from the building.

The variation in the form of the shading systems, characterised by light-weight aluminium fins, creates a strong architectural language for the building, with each facade tailored to suit its solar orientation.

The building’s super-sized floorplates, each measuring 4,500m2, have been optimised for efficiency, daylight and flexibility using parametric modelling and achieves over 90% efficiency. The floor plates, punctuated by nine atria and served by six perimeter cores are completely column-free.

Siemens HQ in Masdar City
Siemens HQ in Masdar City
© Huffton+Crow

An innovative structural system reduces the material used in construction by approximately 60% and provides maximum flexibility for the office space planning. The arrangement enables each of the four office floors to be subdivided into a combination of various space sizes and therefore creates flexibility for the building to be remodelled over time to accommodate up to 32 tenants.

Siemens HQ in Masdar City
© Paul McMullin

David Ardill, Partner at Sheppard Robson, said: “The reception of the building, both locally and internationally, has been fantastic with many recognising the potential for applying the findings from the project to other schemes in the Middle East and beyond.“

We didn’t approach the project with a predetermined aesthetic; instead, we worked from the inside-out to investigate the best way of creating a truly sustainable solution for the building. This process-driven approach has resulted in an incredibly environmentally efficient structure that is also commercially rigorous.”

Siemens HQ in Masdar City
© Huffton+Crow


Siemens HQ in Masdar City
© Nicole Luettecke© Huffton+Crow
Siemens HQ in Masdar City
© Huffton+Crow
Siemens HQ in Masdar City
© Huffton+Crow
Siemens HQ in Masdar City
© Huffton+Crow


Siemens HQ in Masdar City

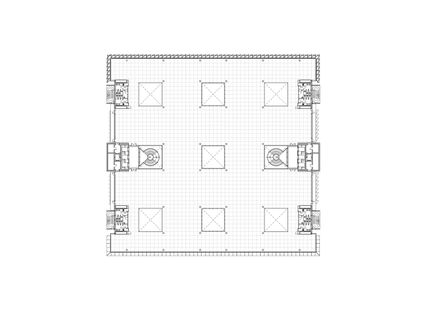

Floor Plan
Siemens HQ in Masdar City
Site Plan


Siemens HQ in Masdar City

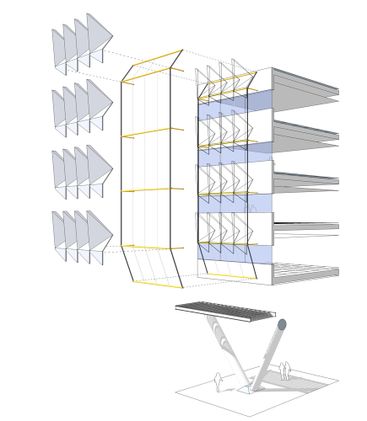

Detail
Siemens HQ in Masdar City

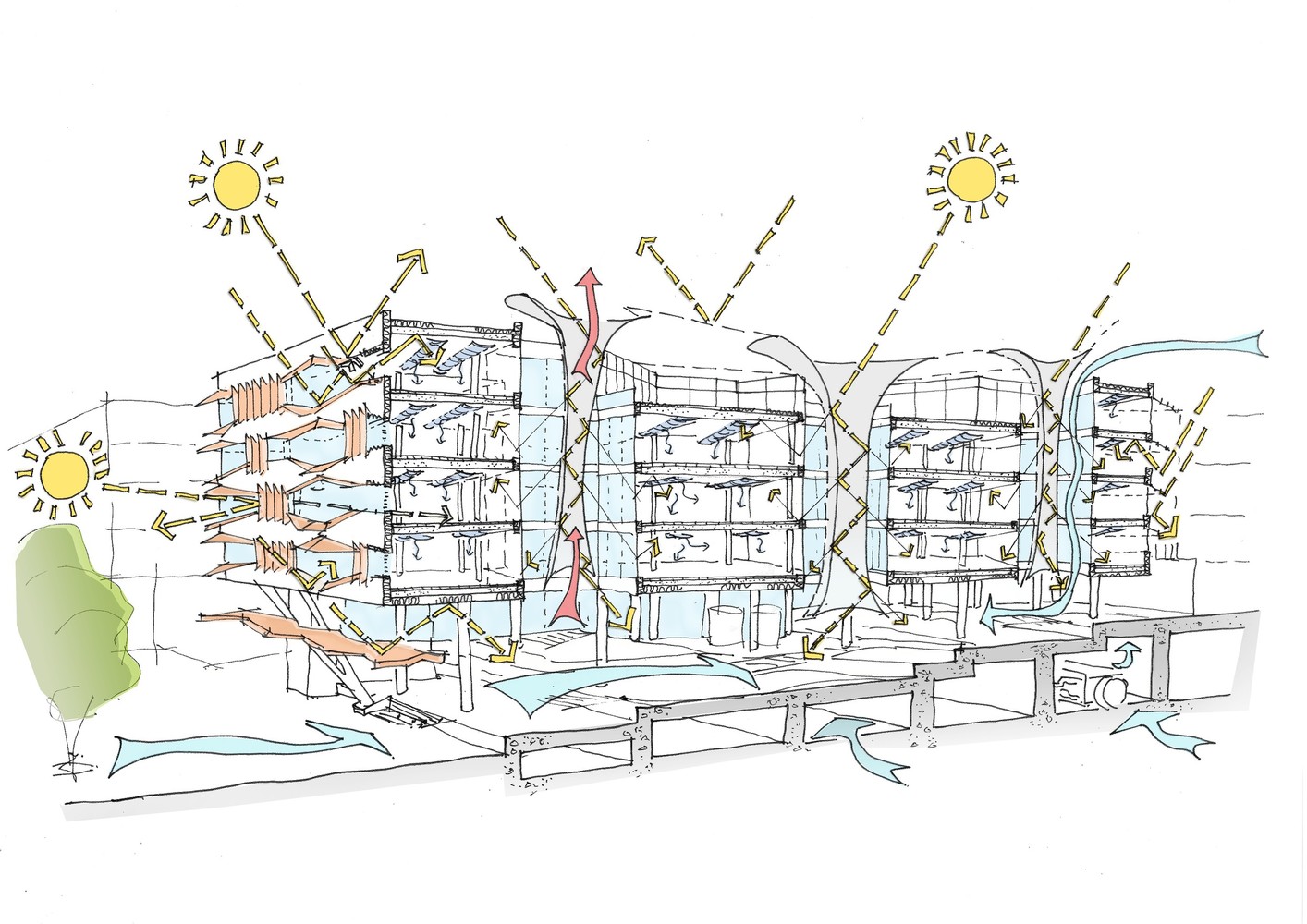

Sketch
