STRANDED HOUSE

WHALE!

ARCHITECTS
Whale!

PROJECT MANAGER
Alex Gaete

ELECTRICAL INSTALLATION
Roberto Valencia

CALCULATION PROJECT
Cristian Meza

DESIGN TEAM
Branko Pavlovic, Pablo Lobos-pedrals

COLLABORATORS
Hugo Bertolotto, Pablo Oyarzún Kuschel

TOPOGRAPHICAL PLAN
Eugenio Pavlovic U.

HEALTH PROJECT
Miguel González F.

ELECTRICAL PROJECT
Leonardo Araya

INSTALLING PHOTOVOLTAIC SYSTEM
Casablanca Renovables, José Luis Fuenzalida

CONSTRUCTION
PYLP

PHOTOGRAPHS
Hugo Bertolotto

AREA
180 M²

YEAR
2014

LOCATION
Tunquen, Chile

CATAGORY
Houses

Stranded House
© Hugo Bertolotto
Stranded House
© Hugo Bertolotto

- A stranded whale. - Dry his back under the sun of a breezeless summer. - Opaque as an ancient ash. - Pale gray as a collected stone.

Stranded House
© Hugo Bertolotto
Stranded House
© Hugo Bertolotto

- The sand under its belly still kepps the necessary moisture. - To dig up shells and weeds. - And the tiny coals

- With which we could draw the darkest shade. - That will be the most brilliant and wet black. - Just as the sad floors of STALKER.

Stranded House
© Hugo Bertolotto
Stranded House
© Hugo Bertolotto

- We’d never touched the skin of a dolphin. - But we can feel the touch. - Soft like hair underwater.

- Shiny and thick as the finest sheepskin. - But: Can we guess how it feels to touch a whale drying under a January sun?

Stranded House
© Hugo Bertolotto
Stranded House
© Hugo Bertolotto
Stranded House
© Hugo Bertolotto

- A whale aground between chaguales and litre. - After a massive flood. - Rest half dead looking the Casablanca estuary.

- Barely glimps the sad glow of the tin roofs. - That grow as garbage Fields in the middle of meadow. - Forgetting at his back the Quintay’s slaughterhouse. - Where many souls were silenced.

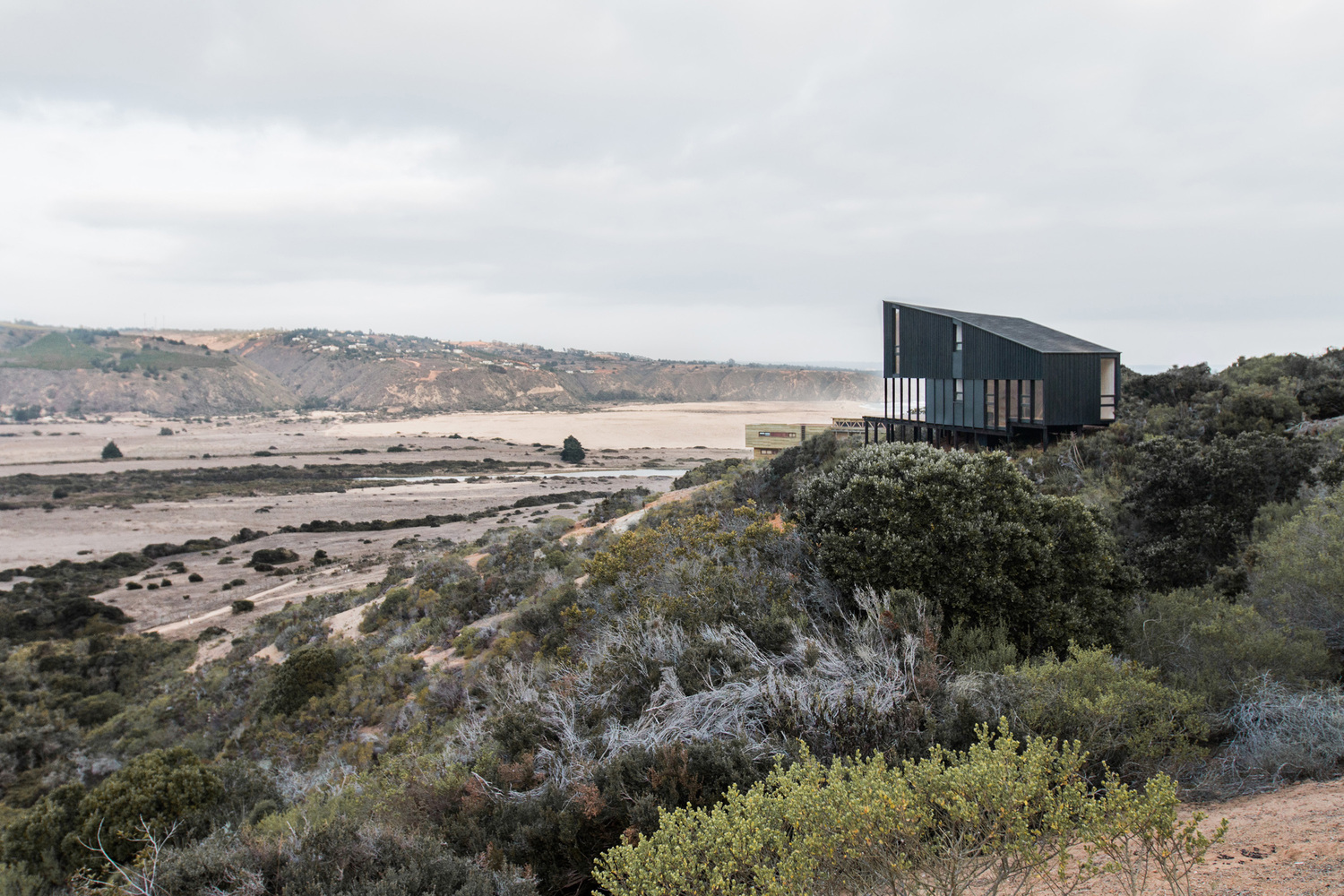

The house is located in Tunquén, 122 km away from Santiago, in an área with gullies and ravinesthat steer the water into the valley.

Stranded House
© Hugo Bertolotto
Stranded House
© Hugo Bertolotto
Stranded House
© Hugo Bertolotto

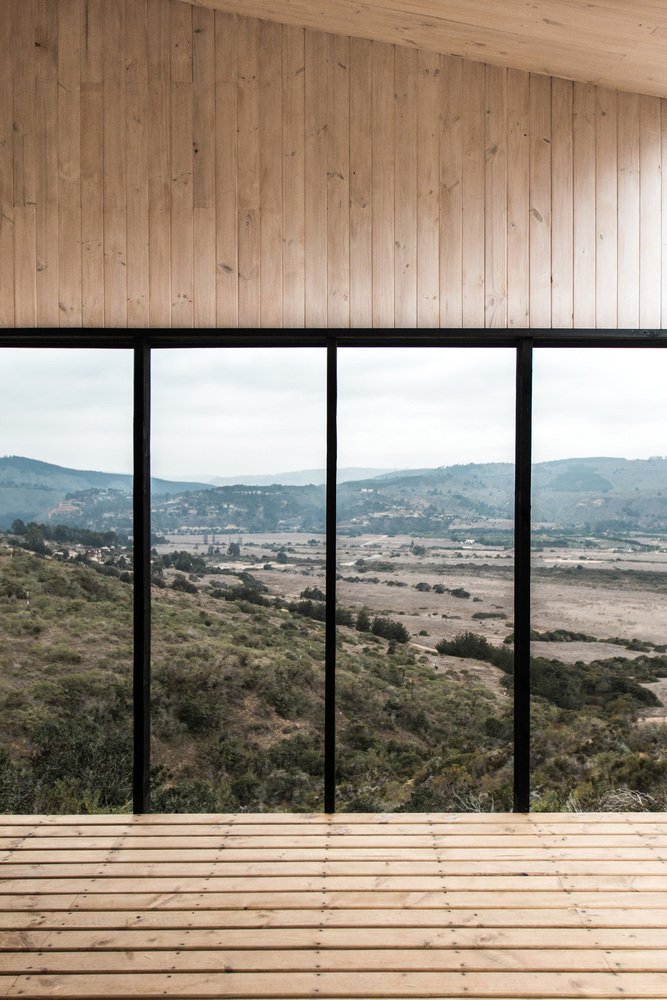

The site overlooks a landscape where the boxed estuary opens to the Tunquén wetland, before merging with the main beach and the Pacific Ocean.

The main plan is a simple beach house, with 3 bedrooms, 2 bathrooms and an open space for living room, dining room and kitchen; plus 2 terraces, one indoor and one exposed.

The scheme is built in two volumes that are intersected and overlapped. The floor layout reflects the turning point of the concave topography in relation to the landscape.

Stranded House
© Hugo Bertolotto
Stranded House
© Hugo Bertolotto

The construction system is made of rigid frames, built on pine wood (2 x 6"), and distanced 95 cm, where each frame is different from another.

However, the roof is continuous and homogeneous, trapping in a single gesture the different moments of the house.

Stranded House
© Hugo Bertolotto


Stranded House
East Elevation
Stranded House
West Elevation
Stranded House
South Elevation
Stranded House
North Elevation


Stranded House
Cross Section 1
Stranded House
Cross Section 2


Stranded House
Axonometric 1
Stranded House
Axonometric 2
Stranded House
Axonometric 3
Stranded House
Longitudinal Section


Stranded House
First Floor Plan
Stranded House
Second Floor Plan


Stranded House
Site Plan
Stranded House

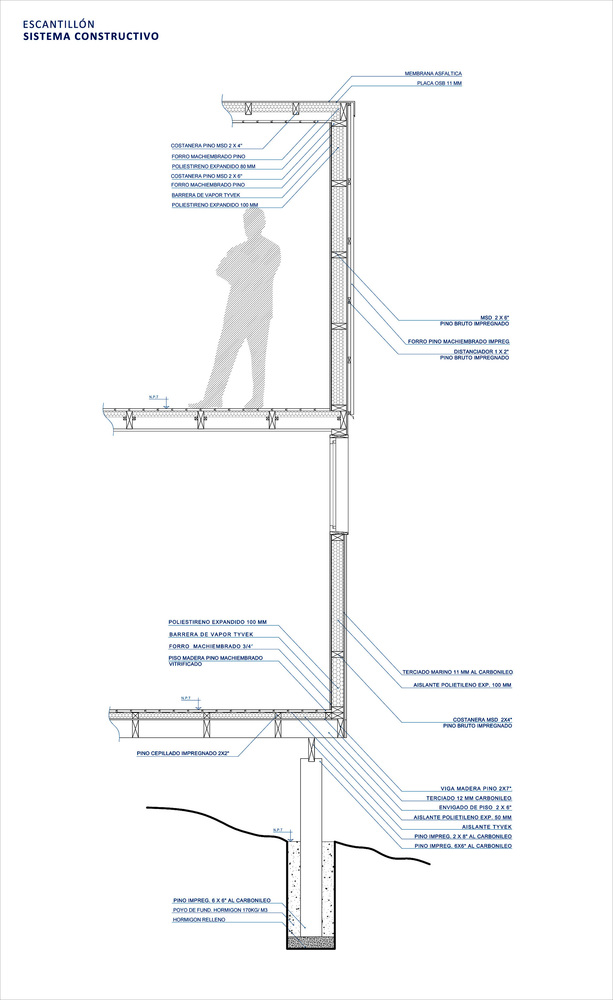

Scantling
