Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated

Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
The main entrance of campus winding to the city. Image © Yong Zhang

HANGZHOU SHENGLI ELEMENTARY SCHOOL NEW CITY CAMPUS AND KINDERGARTENS AFFILIATED

UAD

ARCHITECTS
UAD

LEAD ARCHITECTS
Xuzhuang Fan, Yuansheng Zhang

LANDSCAPE
Haojun Yao, Jiangfu Li, Wenqiang Zhoum Wenjiang Li

EQUIPMENT DESIGN TEAM
Huoming Fang, Ji Chen, Lujia Lin, Xiaodong Ren, Yinan Guo, Guoxing Zheng, Dengfeng Sun, Li Ding, Qinpeng Huang, Xiangqun Li, Hui Zheng, Minjie Ye, Yanxin Zhou

DESIGN TEAM
Xuzhuang Fan, Yuansheng Zhang, Shu Wang, Danhua Xu

COLLABORATORS
Hangzhou Tongda group Co.Ltd

ENGINEERING
Zhenfen Jin, Ke Cheng, Li Li, Shaohua Li, Shengxian Chen

CLIENTS
Hangzhou Qianjiang New City Construction Headquarters

INTERIOR DESIGN TEAM
Hangzhou Tongda group Co.Ltd, Jingyuan Li, Xu Hu, Ning Tian, Lifeng Zhu, Guancui Wang, Xiaoyan Zhu, Zhiyong Ren

MANUFACTURERS
Armstrong Ceilings, SKSHU, Southwest Aluminum

PHOTOGRAPHS
Yong Zhang

AREA
25853 m²

YEAR
2018

LOCATION
Hangzhou, China

CATEGORY
Elementary & Middle School

Text description provided by architect.

This new school was formerly known as Zhejiang Experimental School, which is well-known for its long history, complete facilities, new concept, practical teaching, and high quality.

Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated

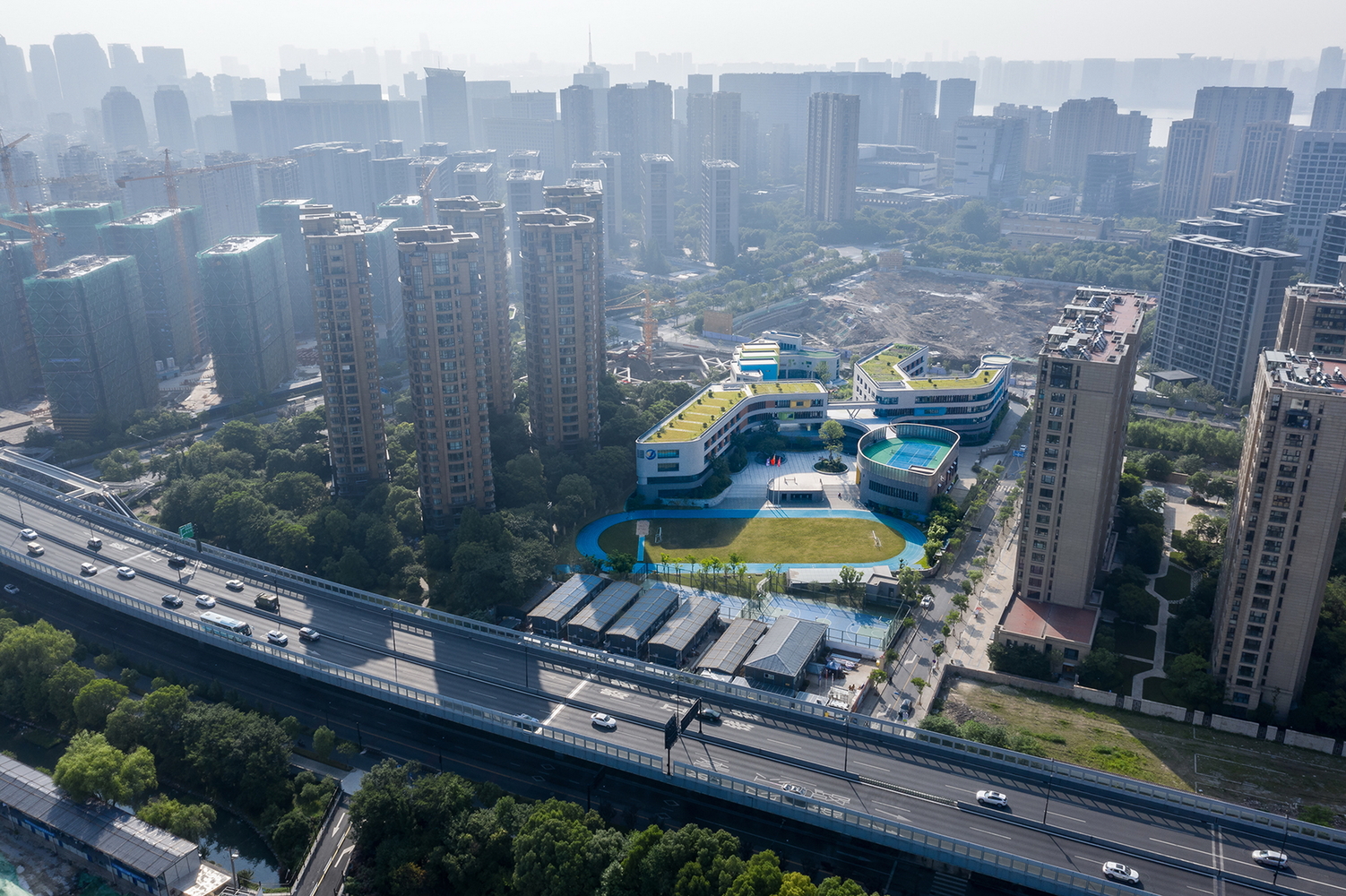

Southwest campus aerial photo. Image © Yong Zhang
Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
Square space limited by building enclosure. Image © Yong Zhang

Its origins can be traced back to the 27th year of the Ming Dynasty. A spiritual paradise that focuses on students’ life care and takes the campus as a common growth for teachers and students----this is their school philosophy.

The school is elevated to the west, and the other three sides are high-rise residences. The site is narrow and irregular, and it belongs to the city's "leftovers." The school functional use requirements has dramatically exceeded the plot ratio of the site.

Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
The sports ground and Chongwen square form a continuous open space. Image © Yong Zhang
Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
Panorama of campus building in the Northwest. Image © Yong Zhang

Our initial intention was to set up a low-density and comfortable space of education in the high-density urban environment. How to resolve this contradiction has become the core issue of planning.

CONCENTRATION AND DISPERSION

Focusing on this issue, the steps are followed, first sorting out the functions and masses of the school, second dividing the functions into two categories, the ground and the underground, and finally putting the appropriate functions underground.

Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
From the third floor to the overhead platform. Image © Yong Zhang
Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
Create rich micro terrain of campus through rational utilization of underground space. Image © Yong Zhang

Placing the sports area on the west side of the site, it keeps the teaching area away from the urban viaduct.

Depending on the level of privacy, the corresponding functions are arranged from north to south: the south side is adjacent to the city branch road where we set up multi-function halls, basketball halls, administrative offices, and other public functions, and the north side is placed with ordinary classrooms of all grades.

Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
The main entrance square is surrounded by high and low buildings. Image © Yong Zhang
Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
Boxes of different colors increase recognition. Image © Yong Zhang

Then use public teaching rooms to connect the north and south functions, which also divides school space into the east and west squares. The functions are set up along the border of the base, then concentrated out of the two campus squares in the centre.

CAMPUS AND GARDEN

Overlooking from high-rise residential areas, the campus has become a low-lying depression and a vibrant park. It makes the roof as a display surface, which faces the city in a clean, clear, and green form, and it becomes a small green lung.

Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
Chongwen Plaza. Image © Yong Zhang
Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
Activity space between primary school and kindergarten. Image © Yong Zhang

OPEN AND COMMUNICATION

The plan sets up a complete entrance plaza at the main entrance, which is open to the city. Parents can gather here, pick up and drop off children, and communicate with each other, which reflects the humane care for parents and improves local urban transportation and the city image.

Basketball courts, multi-function halls, and roof tennis courts are located on the west side of the entrance square, which is convenient for the public at night or on weekends.

Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated

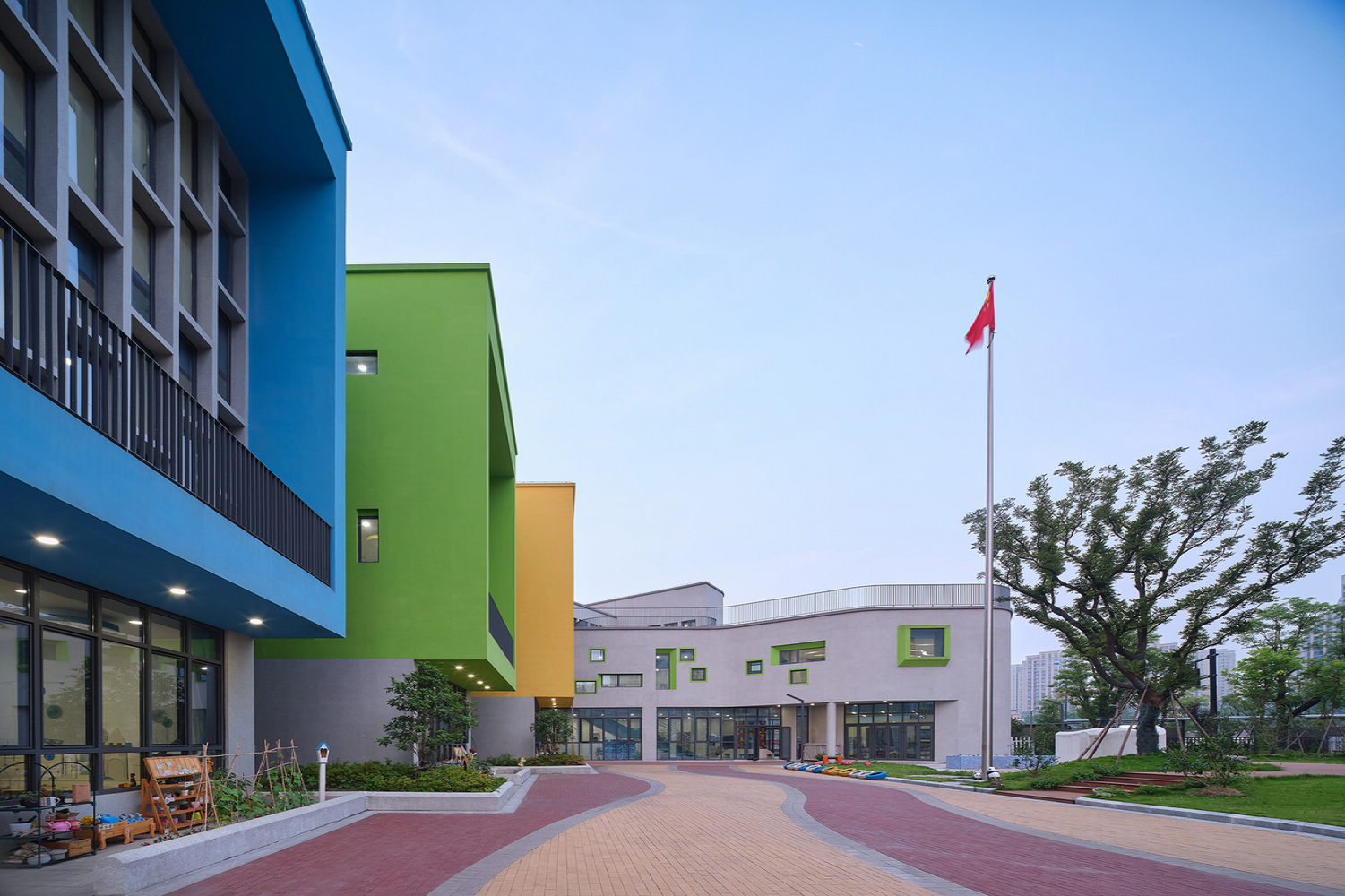

Embellished colors make the campus full of vitality. Image © Yong Zhang
Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
Big tree and children live in harmony. Image © Yong Zhang

FLOWING SPACE

Primary school and its affiliated kindergarten have their own land red lines, which cannot be crossed and connected. The strategy adopted here is using flowing space as flows:

Setting up overhead floors and activity platforms at different levels, creating a visual corridor for both, guiding the space of the primary school to the kindergarten, and reducing the continuous body's sense of pressure on the kindergarten, which is an affinity and open attitude.

Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
Steps not only limit different outdoor spaces, but also increase the interest of activities. Image © Yong Zhang
Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
The development corridor of informal teaching space. Image © Yong Zhang

COLOR AND REASON

The traditional colors of Shengli Elementary School are yellow, blue, and gray. Based on the design concept, we use dark gray and light gray as the primary color of the building.

We rationally restrained the traditional colors of Shengli Elementary School. Leading spaces in series in the tone.

Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
Open library reading area. Image © Yong Zhang
Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
Main entrance foyer. Image © Yong Zhang

The kindergarten boldly adopts yellow-blue and green, as the primary color of the three activity units, to strengthen the recognition and the activity of the inner courtyard space.

EXPLORING UNDERGROUND TEACHING SPACE

The design adopts the method of setting up a semi-basement to solve the problem of exceeding plot ratio, and functionally forms three areas of dining, sports, and art cultivation, and sets a sunken courtyard with a suitable scale.

Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
Underground Basketball Hall. Image © Yong Zhang
Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
Open library study area. Image © Yong Zhang

It achieves the effects of providing natural ventilation, lighting, and landscape like the above-ground space, and brings vertical height fluctuations to the entire campus, which enriches the spatial changes near the ground floor, and increased effective use area.

EXPANDING THE SPACE FOR INTERACTION ON THE GROUND

In addition to the sunken courtyard on the ground floor, a large amount of gray space, movable platforms, roof greening platforms, and tennis courts are integrated into the overall campus space design.

Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
Multifunctional Lecture Hall. Image © Yong Zhang
Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
The development corridor of informal teaching space. Image © Yong Zhang

These spaces play a role in the integration and are also entertaining spaces for children to play. Focusing on the active nature of children, the design creates a spatial dialogue between different elevations, inspiring children's activities and feelings in the campus space.

LEARNING AND GROW BEYOND THE CLASS

The original intention of the design was to hope that children will be more exposed to nature, bathing in the sunshine, and even experience some wind and rain. They will not only receive education indoors but also outdoors.

Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated

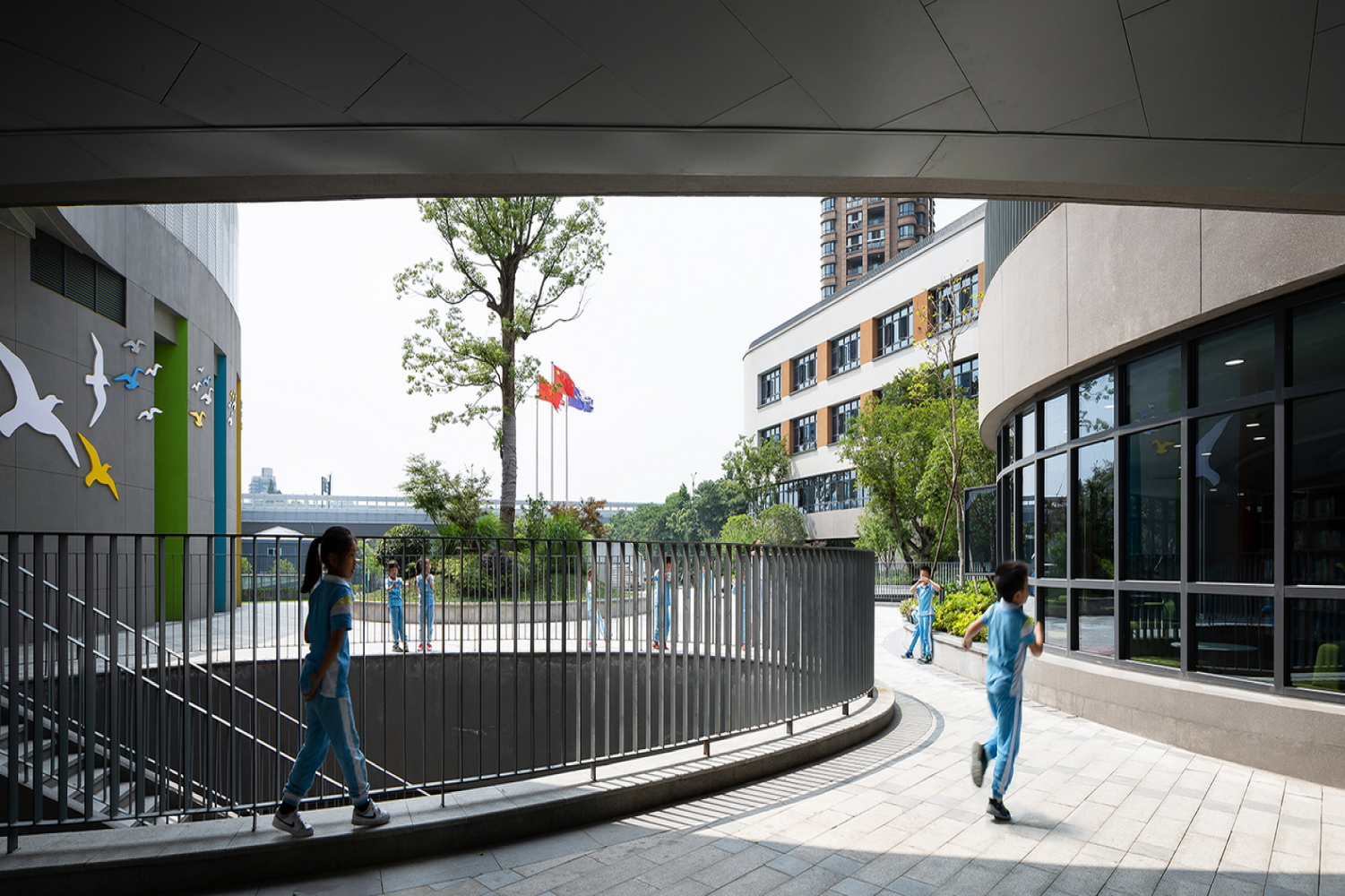

Grey space of combination of aerial platform and sunken courtyard. Image © Yong Zhang
Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
Mobile activity platform. Image © Yong Zhang

Therefore, two squares with different characteristics are designed: Chongwen Plaza is the hub of the campus, it’s the connection as follows: the space between inside and outside of the school, the space between teaching and sporting areas and the space between underground and above ground.

Children of different age run and play here, looking up at the sky, strengthening their bodies and minds. Shangde Garden is relatively quiet and is connected to the art training area through the sunken courtyard. Children can sink their minds and think independently.

Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
The open space on the second floor of primary school and the interactive space formed in kindergarten. Image © Yong Zhang
Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated

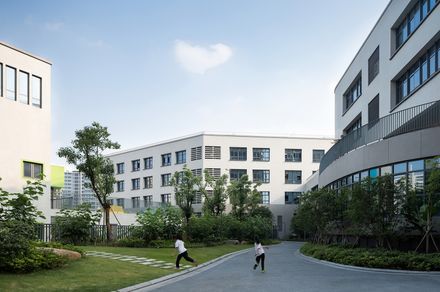

Rich activity courtyard. Image © Yong Zhang

The non-positive overlap of ordinary classrooms and corridors creates irregular corner space, making the corridors as a complex space with a sense of sequence.

Informal teaching, communication, exhibitions, and even small children's plays are happening in this compound space. A little change in design has inspired the various behaviors of children, which also inspired us.

Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
Mobile activity platform. Image © Yong Zhang
Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
East Campus and kindergarten aerial photography. Image © Yong Zhang

An open and boundless library is designed in this case. The library directly links the teaching area corridor and the entrance hall, the library is completely open without any boundary, so the design concept of circulation and space flow is completely conducted through campus.

The behaviors of borrowing, returning and reading books are maintained by children's consciousness which can cultivates children's sense of responsibility.

Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
Campus layout in high density city. Image © Yong Zhang
Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
Ground floor plan

The functional attributes of the foyer have also been fully expanded, combining with the corridor, stairs, and second-floor atrium to form a shared hall.

Combining the flexible layout of indoor furniture and reasonable vertical changes on the ground floor, the shared lobby is connected to the open library, providing teachers and students with a variety of communication and learning platforms.

Meanwhile, it also serves as small parties, exhibitions, and even performances as well as other temporary places for public events.

Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
1F plan
Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
2F plan
Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
3F plan

CONCLUSION

Instead of focusing on the facade form of the building, it started from the fundamental issues of urban relations, children's behavior and teaching activities at the beginning of the design.

It focuses on the three design aspects which are the tension of land use and various functions, the ratio of indoor space to outdoor activity venues, daily formal and informal teaching activities.

It returns to the original topic of architecture, "space-inspired behavior". Finally, a new campus complex that satisfies all parties responds to the city and effectively stimulates children's cognitive behavior in and out of class is completed based on low cost.

Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
4F plan


Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
General Layout
Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
Profile


Hangzhou Shengli Elementary School New City Campus and Kindergartens Affiliated
Elevation
