QUINTA MONTES MOLINA PAVILION

MATERIA

Quinta Montes Molina Pavilion
© Onnis Luque

ARCHITECTS
MATERIA: Gustavo Carmona + Lisa Beltrán

MANUFACTURERS
Predecon

HOTOGRAPHS
Onnis Luque

AREA
996 M²

YEAR
2014

LOCATION
Merida, Mexico

CATAGORY
Pavilion

Quinta Montes Molina Pavilion
© Onnis Luque

Text description provided by architect.

A frame for the sky over a forest of columns shapes a pavilion to contemplate a well-orchestrated dialogue with the existing historical context.

The project sits within the garden premises of a historic 20th century eclectic house in Merida, Yucatan, considered national heritage and currently a museum.

The garden regularly hosts social events for which temporary tents were assembled for weather protection.

Quinta Montes Molina Pavilion
© Onnis Luque
Quinta Montes Molina Pavilion
© Onnis Luque
Quinta Montes Molina Pavilion
© Onnis Luque

The client sought for a permanent structure to hold all kinds of scales of events and to enhance a more intimate relationship with the existing building.

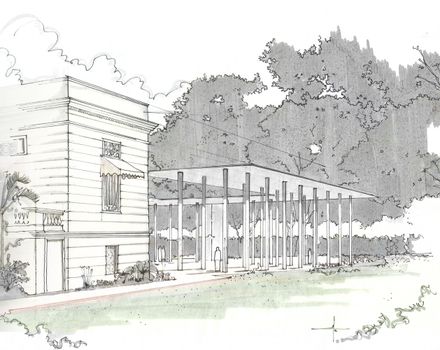

The solution was a pavilion made of 36 slim columns that form a C shape promenade supporting a 6” thin, knife-edged canopy. The columns relate to the trees that surround the property and the balconies of the house.

Quinta Montes Molina Pavilion
© Onnis Luque
Quinta Montes Molina Pavilion
© Onnis Luque

The roof reinforces the presence of the “emptied” space below contrasting with the solid nature of the house and connecting with the garden to its sides.

The roof frames the sky converting it into a continuous phenomenological factor during the gatherings at any time of the day.

Quinta Montes Molina Pavilion
© Onnis Luque
Quinta Montes Molina Pavilion
© Onnis Luque

Materiality is defined through prefabricated white concrete using local stone and aggregates. The light color resonates with the character of the city and the house and allows light and shadow to mark the passage of the sun on its surfaces.

Seams at the prefab columns and canopy were carefully placed and detailed to emphasize the connections of the elements that were installed in less than 3 months, having the least impact to the business operation.

Quinta Montes Molina Pavilion
© Onnis Luque
Quinta Montes Molina Pavilion
© Onnis Luque

Above the roof a secondary steel structure allows for canopy calibration and ties all column heads to provide a hurricane safe structure. The steel grid also serves a track for a retractable roof that may be closed during rainy days.

The simple and evident tectonics create a language that dialogues between two epochs while providing limits and a sense of place for a space that would previously obviate the existence of the house.

Quinta Montes Molina Pavilion
© Onnis Luque


Quinta Montes Molina Pavilion
Detail
Quinta Montes Molina Pavilion
Column Detail


Quinta Montes Molina Pavilion
Elevation


Quinta Montes Molina Pavilion
Section
Quinta Montes Molina Pavilion
Section


Quinta Montes Molina Pavilion
Plan
Quinta Montes Molina Pavilion
Plan


Quinta Montes Molina Pavilion
Diagram
Quinta Montes Molina Pavilion
Diagram
Quinta Montes Molina Pavilion
Diagram
Quinta Montes Molina Pavilion
Diagram
Quinta Montes Molina Pavilion
Diagram
Quinta Montes Molina Pavilion
Diagram
