Vali Homes Prototype

Vali Homes Prototype
© Mark Bosclaire

Vali Homes Prototype

Colab studio + 180 degrees design

MANUFACTURERS
Fantech

STRUCTURABL
Bda Engineers

MECHANICAL
Otterbein Engineering

ELECTRICAL
Woodward Engineering

CIVIL
Drw

PHOTOGRAPHS
Mark Bosclaire

AREA
1500 Ft²

YEAR
2013

LOCATION
Phoenix, United States

CATEGORY
Houses

Text description provided by architect.

A triumvirate team of Developer/Sustainability-Consultant, Architect, and General Contractor engaged in creating a standard plan prototype house for infill lots in downtown Phoenix. Three main goals were:

Vali Homes Prototype
© Mark Bosclaire
Vali Homes Prototype
© Mark Bosclaire

 - Create a prototype house inspired by the “case-study” homes of the 1960’s, designed for our time and place, and with the greatest amount of sustainability possible.

- Create a low-to-mid cost home with high design, quality, and sustainability.

Vali Homes Prototype
© Mark Bosclaire
Vali Homes Prototype
© Mark Bosclaire

- Create a design that may be replicated for any typical lot within Phoenix.

The team processed six versions. We tested, energy-modelled, and priced each to find an optimal balance between design, performance, and cost.

Vali Homes Prototype
© Mark Bosclaire
Vali Homes Prototype
© Mark Bosclaire

The two-bedroom home is designed to fit on any typical lot downtown. The goal is to improve existing neighborhoods by building homes where derelict sites currently exist.

The home surpassed LEED Platinum certification, and provided a blower test rating of .68 ach50.

Vali Homes Prototype
© Mark Bosclaire
Vali Homes Prototype
© Mark Bosclaire

The 1500 GSF house uses about 6000 kWh (about $700 worth) of electricity per year offset by a 3.6 kw PV system for a net-positive energy house.


Vali Homes Prototype
Detail
Vali Homes Prototype
Floor Plan
Vali Homes Prototype
Isometric


Vali Homes Prototype

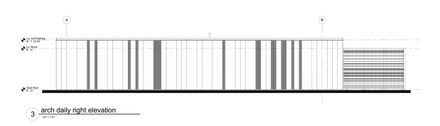

Elevation
Vali Homes Prototype
Elevation
Vali Homes Prototype
Section
Vali Homes Prototype
Section
Vali Homes Prototype
Detail
