20 VPO

20 VPO
© Fernando Alda

20 VPO

Kauh Arquitectos

CLIENT
Rosam. Ayuntamiento De Conil

CONTRACTOR
Estructuras Y Vías Del Sur, Conileña De Construcción Y Obras

RCHITECT IN CHARGE
Vincent Morales Garoffolo, Juan Antonio Sánchez Muñoz

COLLABORATORS
Is Ingenieros-systems' Design, Duarte Asociados-structure Design

CONSTRUCTION MANAGEMENT
Francisco Alba Ortega, Francisco Gallardo Trujillo

PHOTOGRAPHS
Fernando Alda

COST
1.390.469,74 €

AREA
2752 M²

YEAR
2013

LOCATION
Conil De La Frontera, Spain

CATEGORY
Apartments, Social Housing

Text description provided by architect.

The setting of this project is the typical generic landscape of most Andalusian towns' periphery, the result of the kind of urban planning that occurred during the Spanish construction boom.

20 VPO
© Fernando Alda
20 VPO
© Fernando Alda

The building takes shape to adequately insert itself into an area of diverse residential typologies, urban uses, and topographical and volumetric transitions. The design adjusts to tight budgetary and regulatory conditions. The housing units and their assembly is simple and repetitive.

The typology itself follows a single-bay, cross-ventilated layout. Two geometrically defined blocks are generated, which optimize both the built surface area and its use.

20 VPO
© Fernando Alda
20 VPO
© Fernando Alda

The clarity expressed in the floor plans, crossed with the planning code, allowed flexibility when it came to composing the final volumes, hence the materialization of a generic block was avoided.

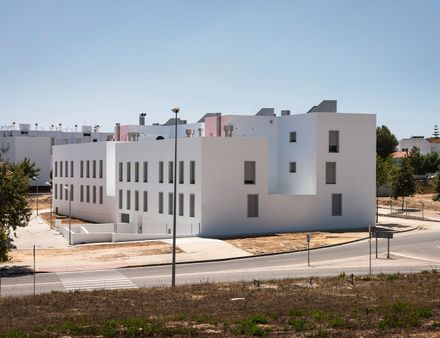

We split the building up and tiered it following the slope of the ring road, approximating its size to that of the preexisting dwellings. We fragmented it further on its uppermost floor to create a smaller housing typology and to provide rhythm to the longitudinal elevation facing what the future bus station.

This adaptive approach was also applied to the composition of the openings on the different façades. Their sizes, proportion and amount are maximized, allowing us to have two differently oriented window openings in each living room. Repetition and variation define the building's compositional traits.

20 VPO
© Fernando Alda
20 VPO
© Fernando Alda

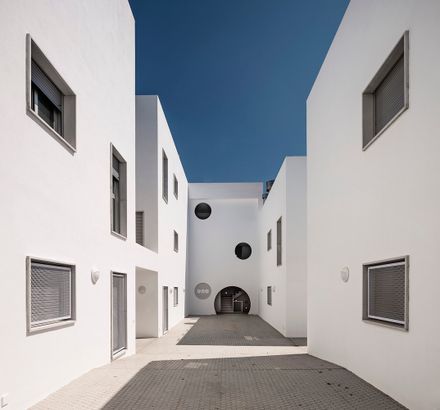

The general layout produces a series of intermediate spaces —potential meeting places: a small public space, a set-back entryway and a patio which is gazed upon by the two galleries. These passageways, which accommodate the stairwells and elevators, have also been conceived as intermediate spaces.

They are semi-open and have their own atmosphere and identity, produced by the small perforations which dot the space with light and by the large circular openings that, in a surprising twist, characterize the interior façades of the building.

20 VPO
© Fernando Alda

Also as an interpretation of this cityscape, we carefully worked on the appearance of the rooftop elements. In an act of reconciliation we underlined their presence, using a clearly differentiated language from that of the white volumes of the building itself.

20 VPO
© Fernando Alda
20 VPO
Location

Volumes, serial assembly, rooftop elements, circular perforations and openings as well as details in the window openings, the combination of whites and grays, or the lettering used make up the building's identity.

We were commissioned this project after winning a competition. It was carried out and built within the tight budget it had been tendered at and within the established construction timetable. The result is an essential residential building. It is already inhabited; these houses have begun to become homes.

20 VPO
Site Plan


20 VPO
Floor Plan
20 VPO
Floor Plan
20 VPO
Floor Plan
20 VPO
Floor Plan


20 VPO

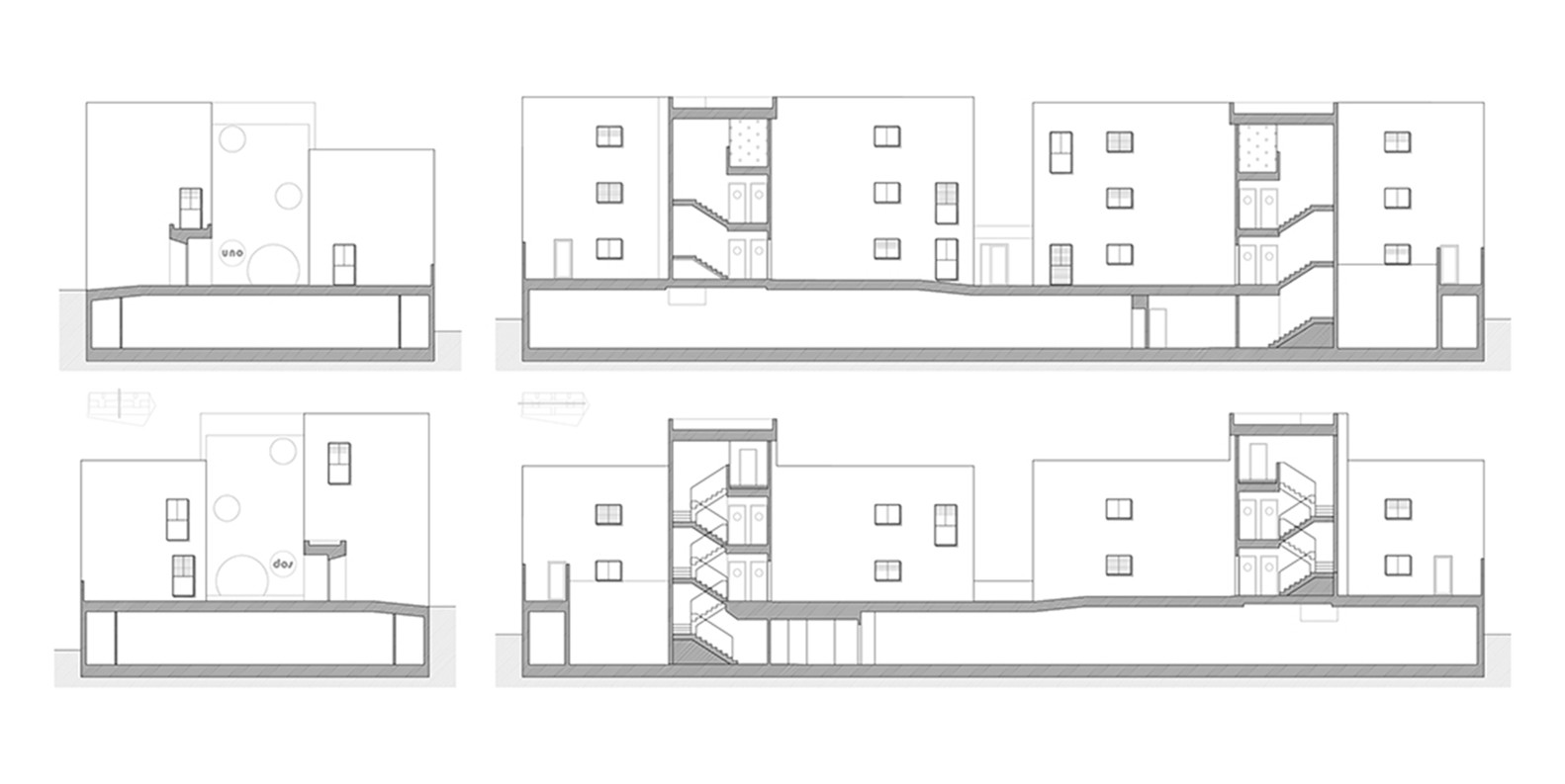

Elevation
20 VPO
Elevation
