Text description provided by architect.

The building is located on Zacatecas 3, on the corner of Cuauhtémoc Ave., in the Roma neighborhood. The area is considered a part of the city heritage because of a number of artistically valuable constructions in it.

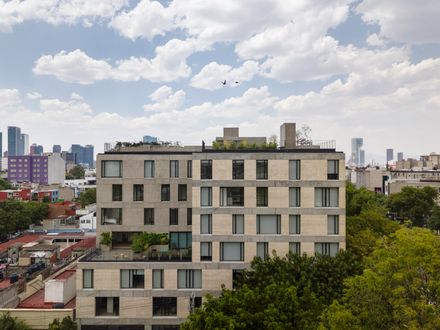

Architectural emphasis is achieved through an 8-story volume on the Cuauhtémoc façade, giving the building hierarchy within this main avenue. On the contrary, the building drops its profile on the Zacatecas façade, to better suit this street’s character.

Zacatecas Building
© Rafael Gamo
Zacatecas Building
© Rafael Gamo

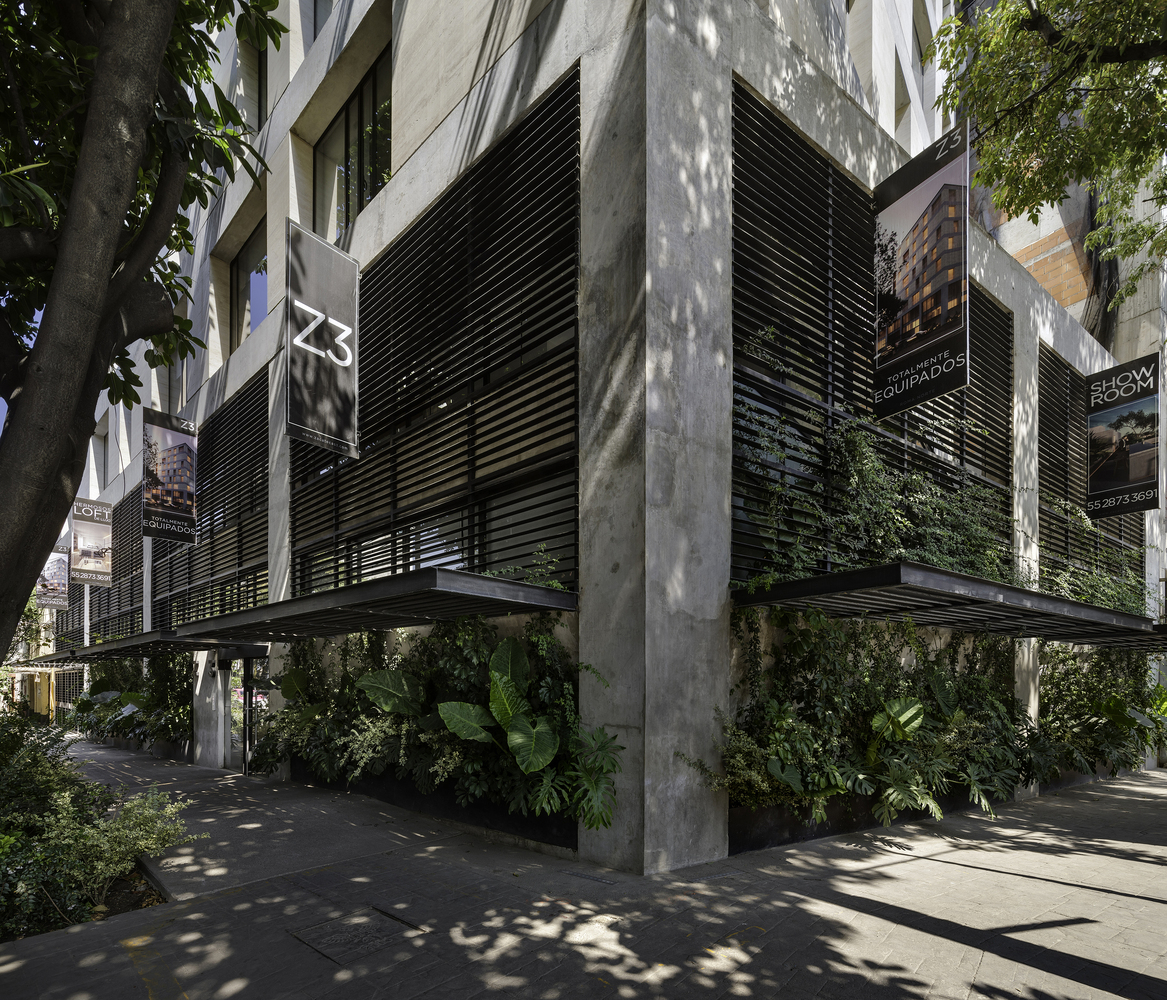

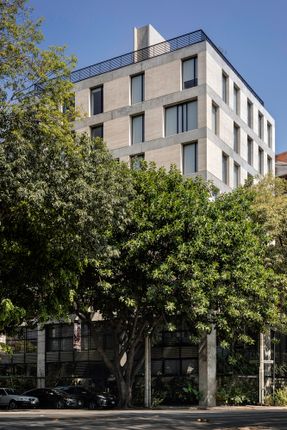

The building houses 46 studios with a two-bedroom option. From a distance, the building seems to be elevated on pillars; from the street, part of the foundation is visible, along with vegetation and lighting. Above the ground floor the building’s façade features travertine and syncopated windows.

The first story is 1.80 meters over ground level and holds the first apartments, some of them with north- and west-facing terraces. The entrance foyer is significant, with a central courtyard that features natural lighting provided through a 20-meter high skylight.

The space also features vegetation like arrayanes or Chilean myrtles, plants with a low-density foliage that allows for the passage of light into the space.

Zacatecas Building
© Rafael Gamo
Zacatecas Building
© Rafael Gamo
Zacatecas Building
© Rafael Gamo

Outside is the access for vehicles into the two basement levels, as well as the pedestrian access where a ramp for wheelchair users is considered.

Exterior planters were designed and placed with the objective of framing circulation to the access, with sun-resistant vegetation.

The same floor plan is replicated across levels 2, 3, and 4. In them, apartments are communicated through hallways that lead to stairwells and elevators. The skylight provides natural lighting throughout hallways that lead to stairwells and elevators.

Zacatecas Building
© Rafael Gamo
Zacatecas Building
© Onnis Luque
Zacatecas Building
© Onnis Luque

The skylight provides natural lighting throughout. The fifth story has a 90 m2 clearing that gives way to two private patios. Through this clearing, the number of apartments in the story is reduced. The same is replicated on the following two levels.

The roof level is common to all apartments, divided into small patios through modular concrete designs, with a bench to outline the limits of each.

These also serve as planters to further limit each patio and provide shade. Finally, the two basement levels are parking space, building services and extra storage space.

Zacatecas Building
© Rafael Gamo
Zacatecas Building
© Rafael Gamo

Every parking space has a car elevator. Materials used across the project are not similar to those of the surrounding buildings.

The intention, however, was to showcase these materials in their raw state, not to contrast with their surroundings.

This is why travertine was employed, along with raw concrete beams, black aluminium parasols and clear glass with black fixtures.

Zacatecas Building
© Rafael Gamo
Zacatecas Building
© Rafael Gamo


Zacatecas Building
Ground floor plan
Zacatecas Building
Second floor plan
Zacatecas Building
Plan
Zacatecas Building
Fifth floor plan


Zacatecas Building
Transversal section
Zacatecas Building
Longitudinal section
