INTERVENTIONS IN COMMON AREAS OF PUBLIC MULTI-FAMILY HOUSING BUILDINGS

Studio Af6

ARCHITECTS
Studio Af6

COLLABORATORS
Reyes López Martín, Angélica Cortés Sanguino

CLIENT
Iniciativa Municipal Para la Vivienda S.A., Empresa Pública de Suelo de Andalucía S.A.

ARCHITECT IN CHARGE
Miguel Hernández Valencia, Esther López Martín, Juliane Potter, Francico José Domínguez Saborido

CONSTRUCTOR
Lesea Construcciones, S.L.L.

PHOTOGRAPHS
Javier Orive

YEAR
2010

LOCATION
Seville, Spain

CATEGORY
Apartments

Interventions In Common Areas Of Public Multi-Family Housing Buildings
© Javier Orive

Text description provided by architect.

The project tackles the problem of accessibility in two three story multifamily residential buildings built in the 90s comprised of 100 public rental units.

The only access to the homes was by stairway. The buildings are roughly 100 metres long and are separated by an interior street with a steep incline. Eight lifts, one for each entrance, were to be included in the initial project.

The potential architectural intervention in the entire complex made us reconsider the initial approach.

Interventions In Common Areas Of Public Multi-Family Housing Buildings
© Javier Orive
Interventions In Common Areas Of Public Multi-Family Housing Buildings
© Javier Orive
Interventions In Common Areas Of Public Multi-Family Housing Buildings
© Javier Orive

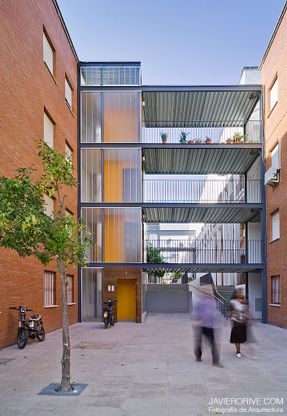

Our proposal was to install three bridge structures each containing a lift to resolve the accessibility issues in all the homes using the existing corridors that ran through the buildings lengthwise.

The plan was guided by criteria of minimal intervention, incorporating resources provided by the pre-existing architecture.

Consequently, new social spaces for the residents were built and installation and future maintenance costs were reduced. The intervention also resolved other problems with the hung plumbing network and the building’s finishes.

Interventions In Common Areas Of Public Multi-Family Housing Buildings
© Javier Orive
Interventions In Common Areas Of Public Multi-Family Housing Buildings
© Javier Orive

INTERIOR CIRCULATION. TRAFFIC PATTERNS

The approach to mediating between the two separate buildings by reconfiguring the interior street separating them, using materials and building solutions chosen for their simplicity, accessibility conditions were improved and the space, which residents had previously avoided crossing, could now be used for transit and as public space.

The new vertical circulation cores provide service to the longitudinal corridors that connect the homes using as few lifts as possible. Each core is a different colour to make it more easily identifiable by users and to define the resulting public spaces.

STRUCTURE

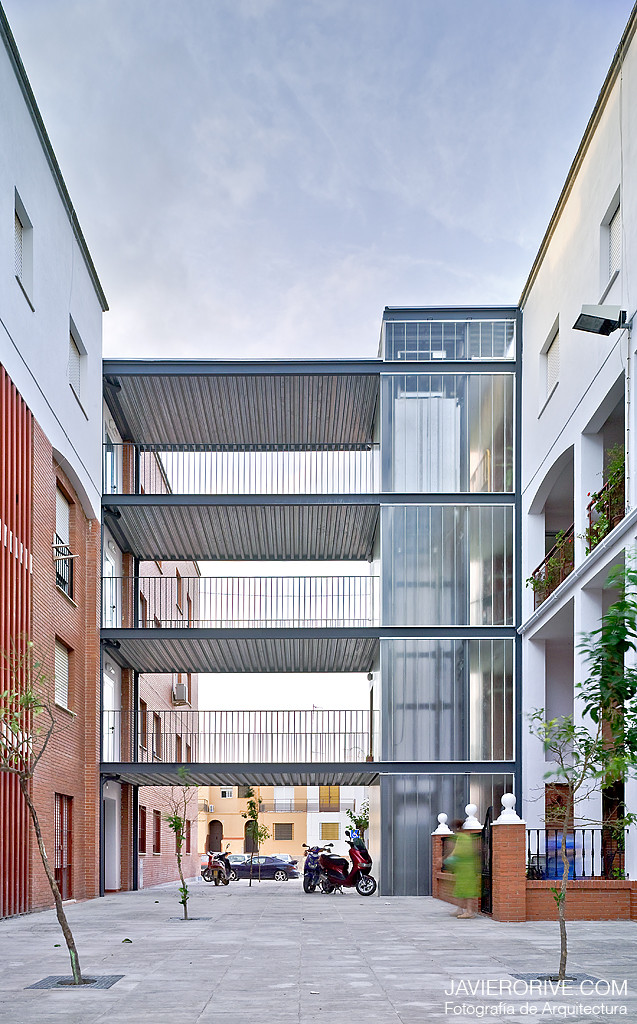

The tree bridge structures that contain the lifts are formed by steel porticoes that span the distance between the two buildings.

Interventions In Common Areas Of Public Multi-Family Housing Buildings
© Javier Orive
Interventions In Common Areas Of Public Multi-Family Housing Buildings
© Javier Orive
Interventions In Common Areas Of Public Multi-Family Housing Buildings
© Javier Orive

Composite galvanized steel floor decking with reinforced concrete was used for the floor slabs. And the construction process allowed for all the homes to be used during building.


Interventions In Common Areas Of Public Multi-Family Housing Buildings

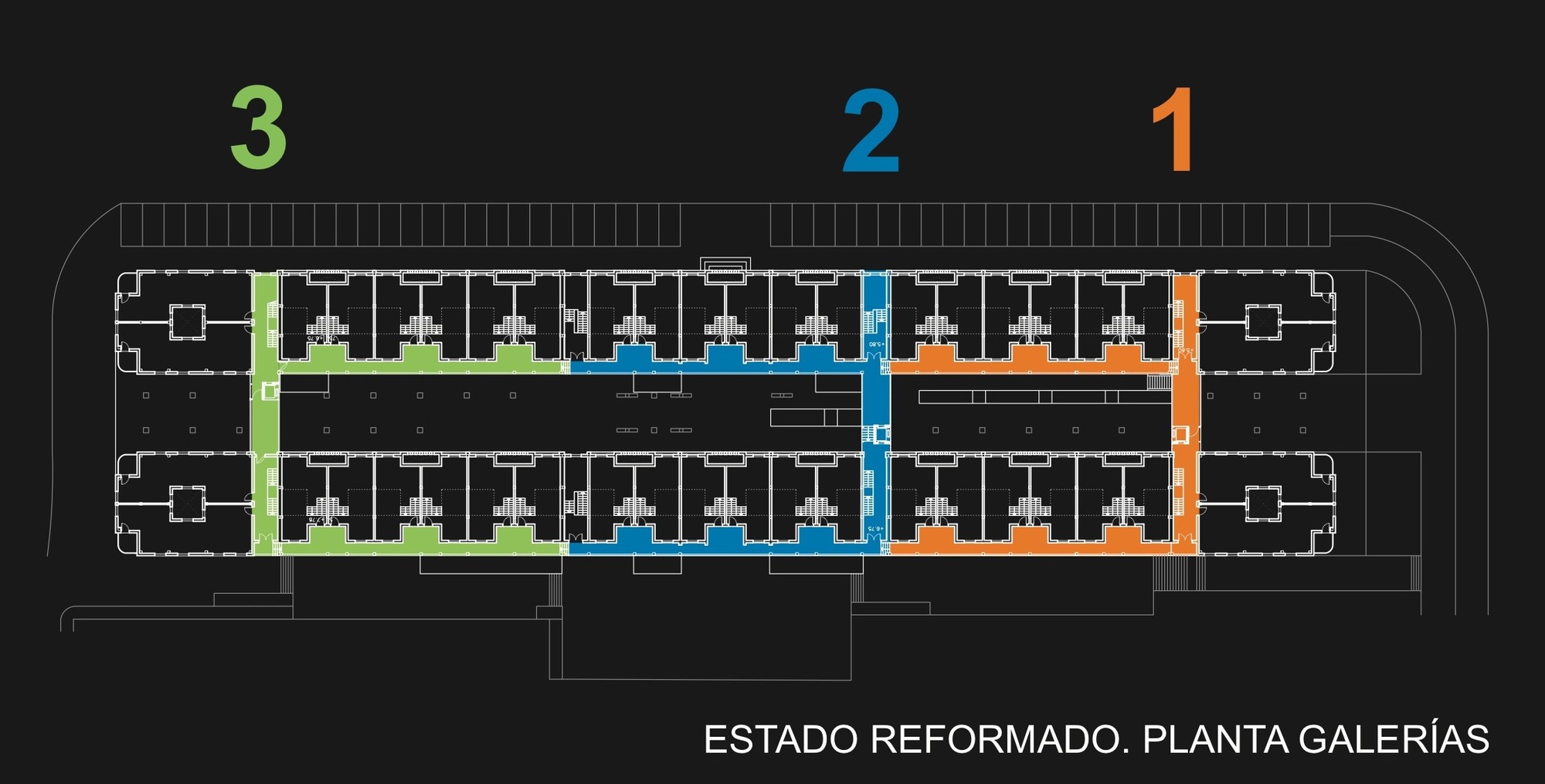

Plan
Interventions In Common Areas Of Public Multi-Family Housing Buildings

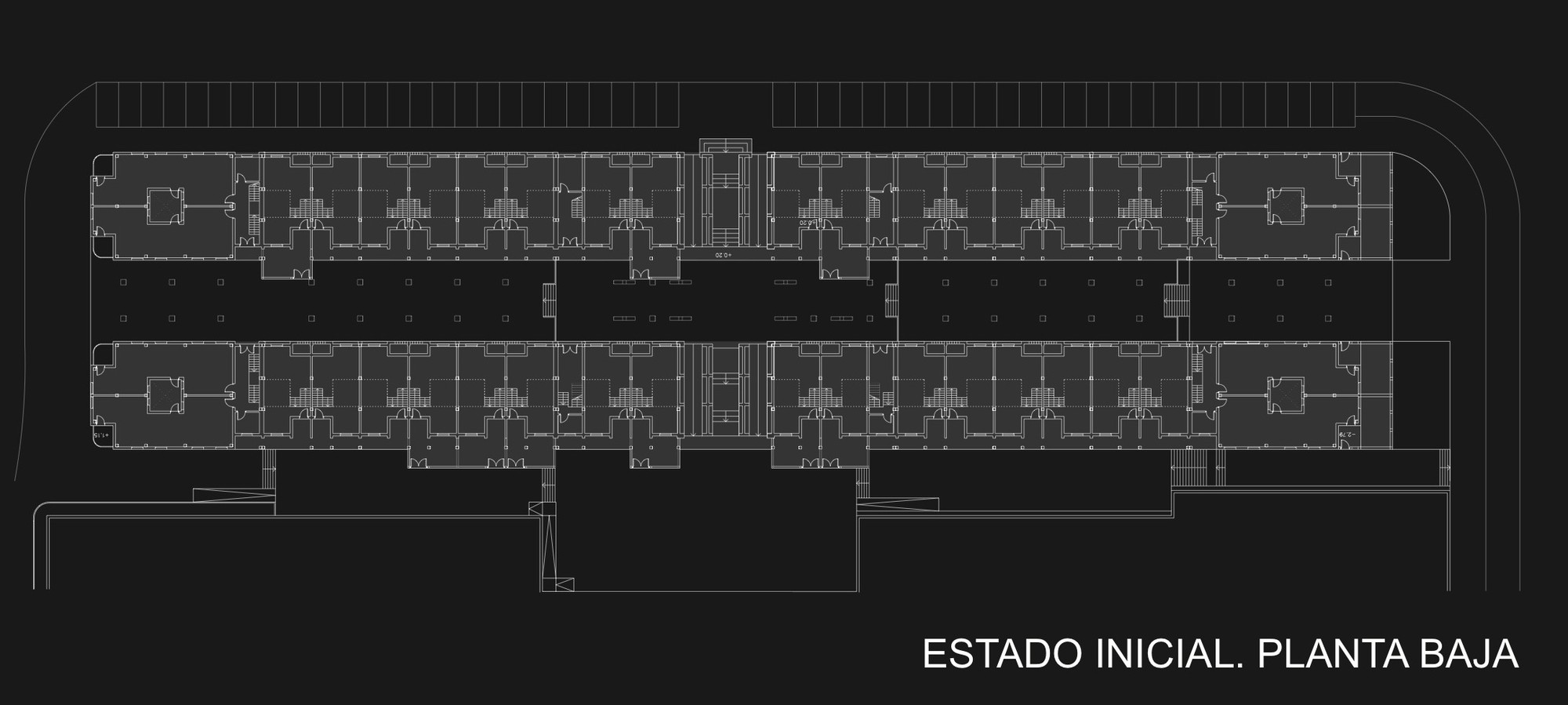

Plan


Interventions In Common Areas Of Public Multi-Family Housing Buildings

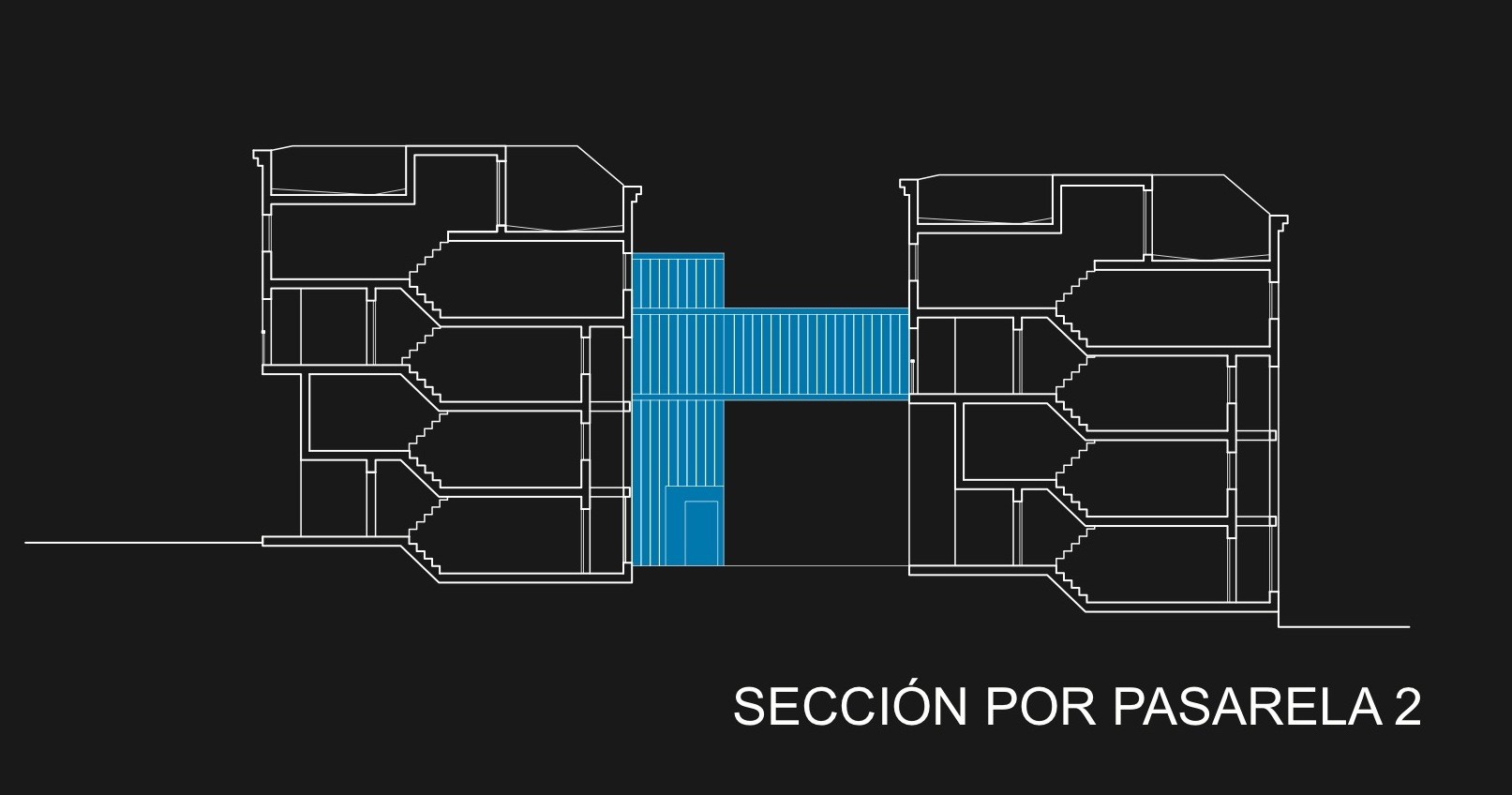

Section
Interventions In Common Areas Of Public Multi-Family Housing Buildings

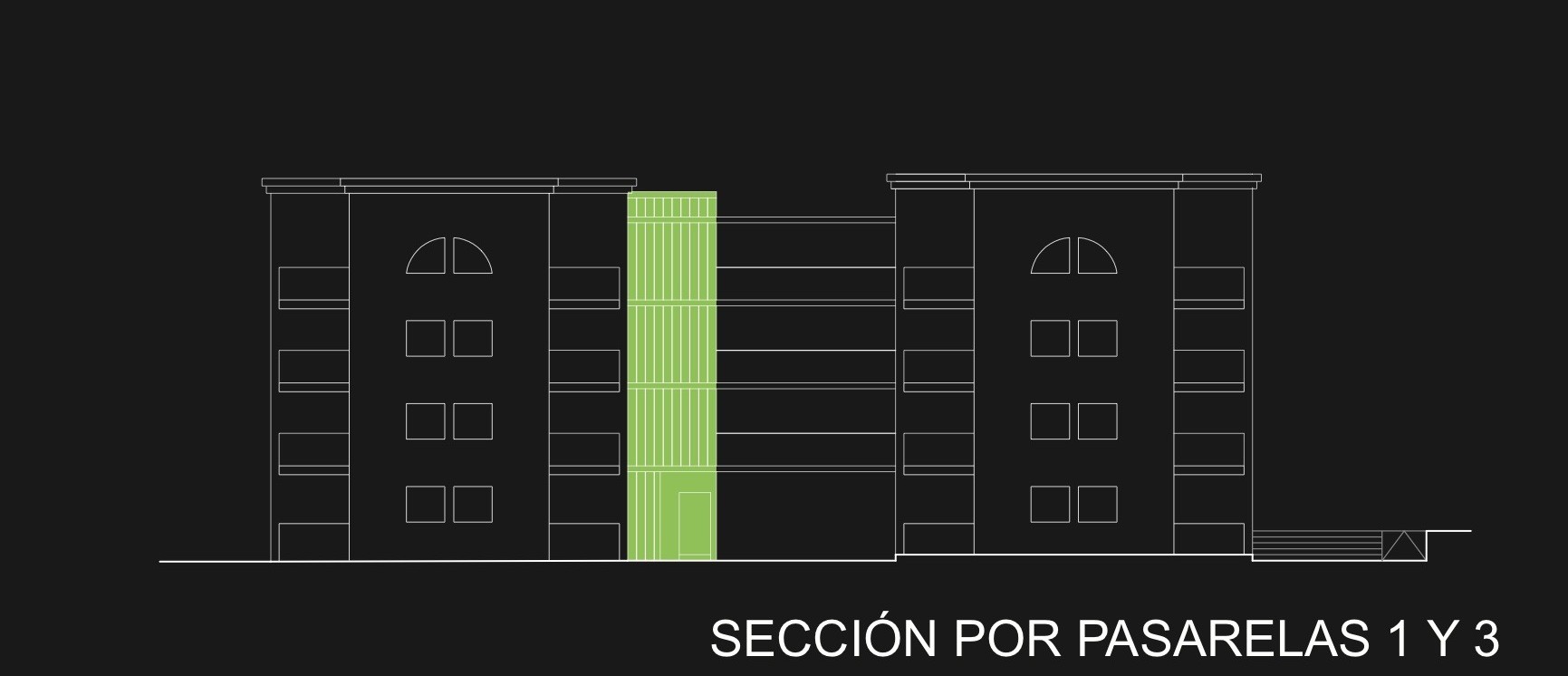

Section
Interventions In Common Areas Of Public Multi-Family Housing Buildings

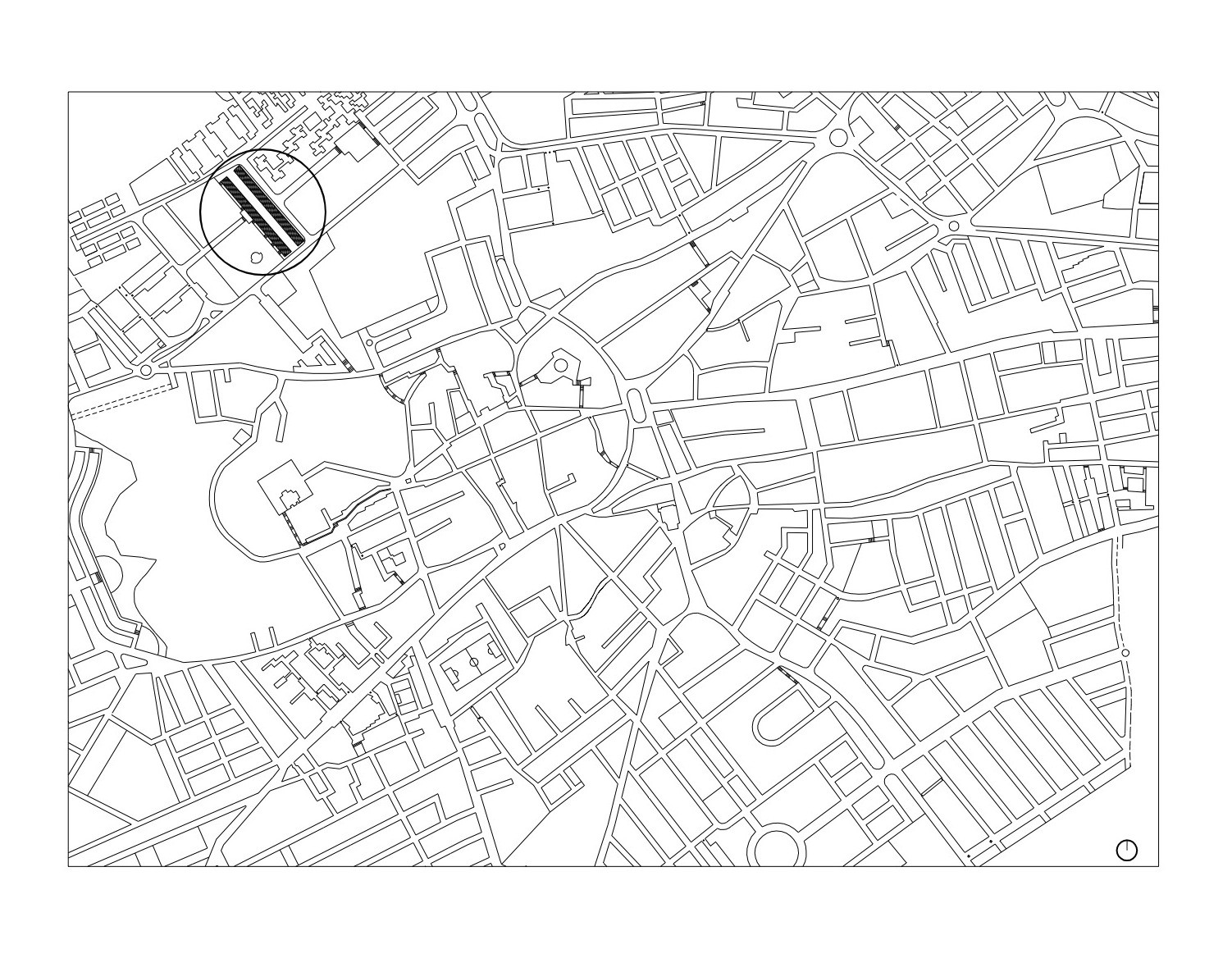

Site Plan
