ONE PLACE AT RIVERFRONT CROSSINGS

Neumann Monson Architects

LANDSCAPE ARCHITECT
Confluence

CONTRACTOR
Mccomas Lacina Construction

CIVIL ENGINEER
Mms Consultants Inc

MANUFACTURERS
Metal Design Systems, Modus, Viracon, Wausau Window And Wall Systems

ARCHITECTURAL ACOUSTICS
C&C Consultants

STRUCTURAL ENGINEER
M2B

MEP ENGINEER
Modus

AREA
56000 Ft²

YEAR
2015

LOCATION
Iowa City, United States

CATEGORY
Office Buildings, Sustainability

Text description provided by architect.

Artfully tuned for efficiency and comfort, this six-story 56,000 sqf office building houses operational functions for a growing bank.

The ground level accommodates a mortgage center and drive-through personal banking. The two floors above coordinate regional operations.

One Place at Riverfront Crossings
© Integrated Studio
One Place at Riverfront Crossings
© Integrated Studio
One Place at Riverfront Crossings
© Integrated Studio

Levels four and five are reserved for future tenants, and a penthouse accommodates indoor and outdoor events. The building harnesses passive and active energy concepts currently more prevalent in Europe than in the US.

The building’s orientation maximizes northern and southern daylight while minimizing eastern and western exposure.

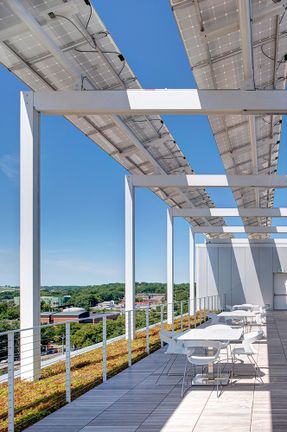

A narrow width, tall ceilings, and full-height glazing invite natural light to penetrate deep into the building, minimizing artificial lighting. Geothermal and photovoltaic systems further mitigate energy consumption.

One Place at Riverfront Crossings
© Integrated Studio
One Place at Riverfront Crossings
© Integrated Studio

An advanced thermally-activated concrete core derives heat and cool from encased hydronic piping, providing added comfort. The result is a healthier environment that downsizes the building’s mechanical systems.

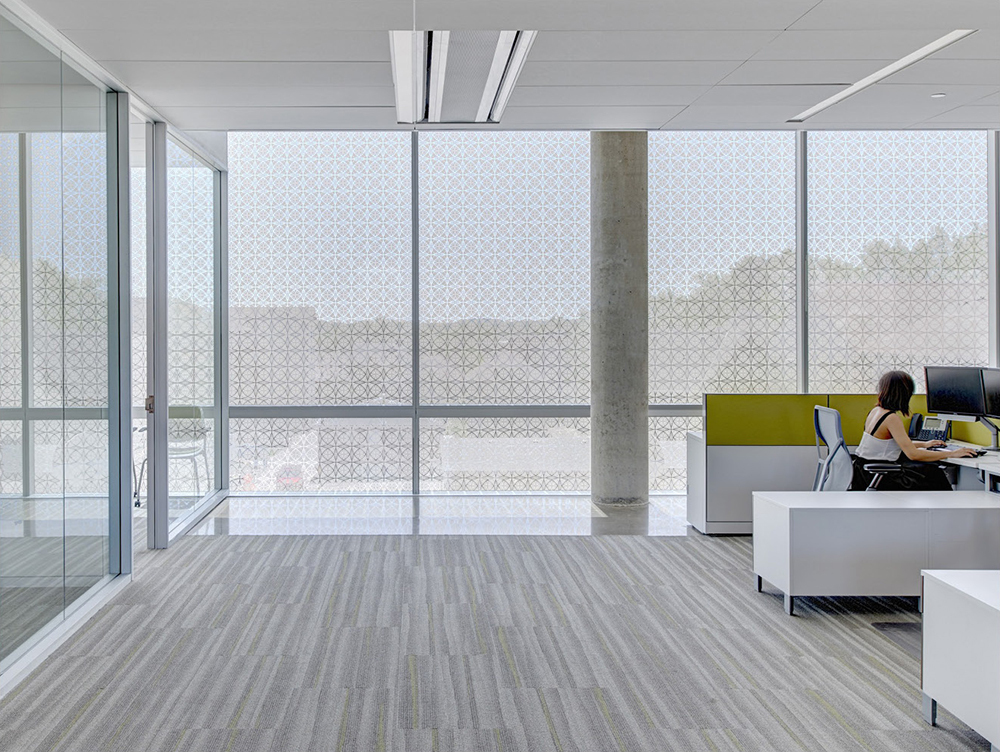

Form ever follows function in the building envelope’s expression. The exterior skin consists of a patterned clear glass of calculated densities that address various solar orientations—denser to the east, west, and south, and open to the north.

One Place at Riverfront Crossings
© Integrated Studio
One Place at Riverfront Crossings
© Integrated Studio

The custom frit pattern, derived from the dollar bill’s elegant ‘guilloche’ engraving pattern, subtly and performatively communicates the building’s banking program.


One Place at Riverfront Crossings
Floor Plans
One Place at Riverfront Crossings
Site Plan
One Place at Riverfront Crossings
Site Location Plan
