F BUILDING LABORATORIES OSAKA CITY UNIVERSITY FACULTY OF ENGINEERING

Katsuhiro Miyamoto & Associates + YAP

PHOTOGRAPHS
Kenta Hasegawa

LOCATION
Osaka, Japan

LEAD ARCHITECS
Katsuhiro Miyamoto

COLLABORATOR ARCHITECT
Yamaguchi Akito

COLLABORATORS
Kosaka Architects

CATAGORY
Laboratory, University, Other Facilities

AREA
420 m²

YEAR
2020

F Building Laboratories Osaka City University Faculty of Engineering
© Kenta Hasegawa
F Building Laboratories Osaka City University Faculty of Engineering
© Kenta Hasegawa

Given a limited site, we had to add two laboratories and preparation rooms each, so we gathered a three-dimensional “space” crossing the pilotis of the existing school building and discovered a site that seemed impossible in the first place.

F Building Laboratories Osaka City University Faculty of Engineering
© Kenta Hasegawa
F Building Laboratories Osaka City University Faculty of Engineering
© Kenta Hasegawa
F Building Laboratories Osaka City University Faculty of Engineering
© Kenta Hasegawa
F Building Laboratories Osaka City University Faculty of Engineering
© Kenta Hasegawa

Within the limited site, we placed the additions on the south side to ensure that the sense of openness of the precious courtyard was not lost and also to secure the line of sight.

It was divided into four volumes to secure the necessary outdoor circulation flow.

F Building Laboratories Osaka City University Faculty of Engineering
© Kenta Hasegawa
F Building Laboratories Osaka City University Faculty of Engineering
© Kenta Hasegawa

The preparation rooms were arranged within the pilotis with a low ceiling height, while the laboratories that require sufficient ceiling height for ducting were placed outside.

F Building Laboratories Osaka City University Faculty of Engineering
© Kenta Hasegawa
F Building Laboratories Osaka City University Faculty of Engineering
© Kenta Hasegawa

For the exterior material, we chose COR-TEN steel plate, a contrasting texture which fits in with the myriad of old buildings’ materials.

F Building Laboratories Osaka City University Faculty of Engineering
© Kenta Hasegawa
F Building Laboratories Osaka City University Faculty of Engineering
© Kenta Hasegawa

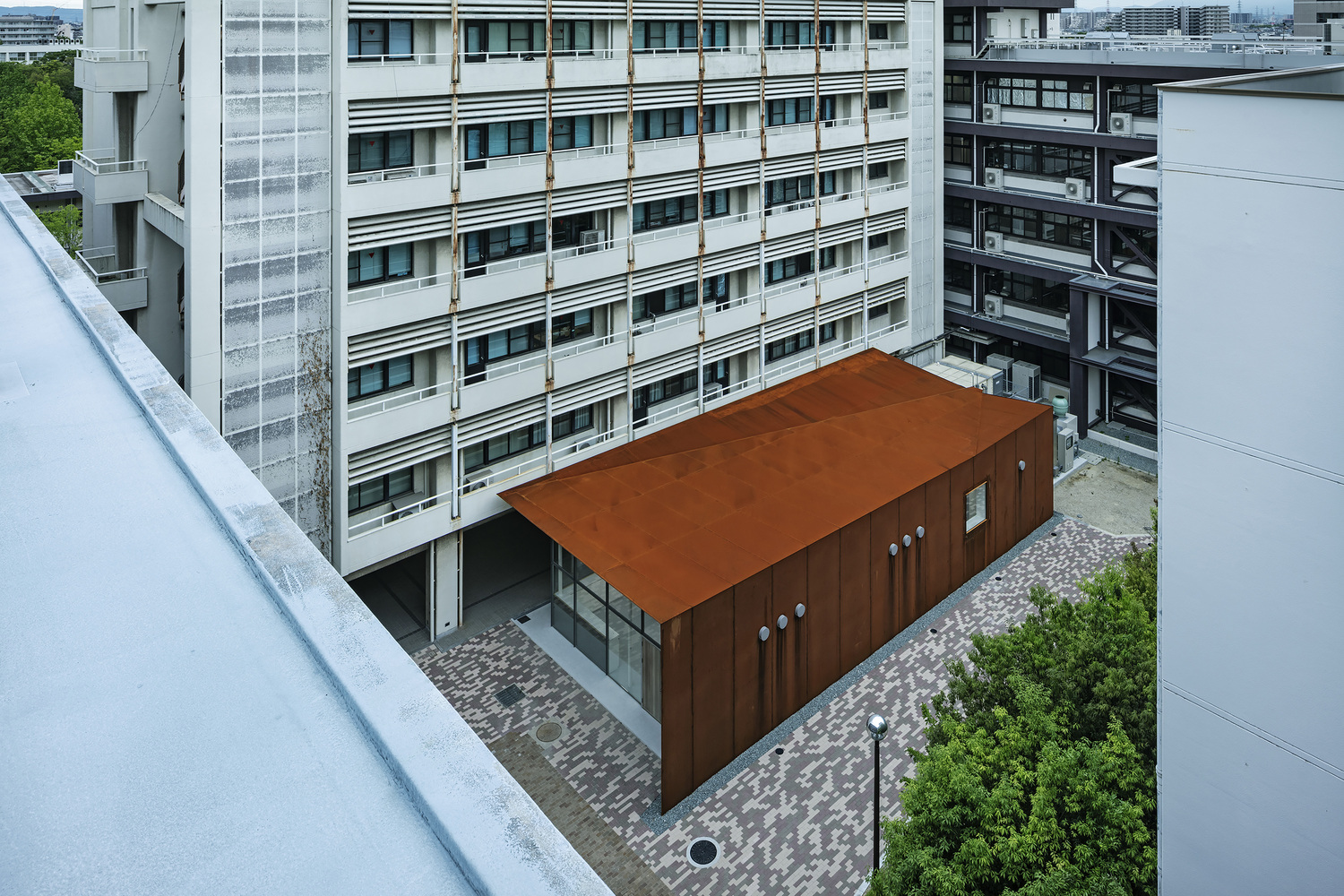

Considering that people can overlook down on the additions from the existing school buildings surrounding the two courtyards, the roof surface was positioned as the fifth facade along with the four outer walls, and finished in COR-TEN steel plate to create an integrated surface with the walls.

Regarding the final finish of COR-TEN steel plate, an application of rust accelerator was possible, but on close examination, it was left untouched.

F Building Laboratories Osaka City University Faculty of Engineering
© Kenta Hasegawa
F Building Laboratories Osaka City University Faculty of Engineering
© Kenta Hasegawa

There were no concerns over the traces of puddles and streaks caused by irregular rainfall as it is reminiscent of ‘shigaraki’ ware in which the incidental expression can be a delight.


F Building Laboratories Osaka City University Faculty of Engineering
Plan
F Building Laboratories Osaka City University Faculty of Engineering
Sectional Perspective


F Building Laboratories Osaka City University Faculty of Engineering
Detail Section
