L’EQUATORIA APARTMENTS

Christophe Rousselle Architecte

ARCHITECT IN CHARGE
Cristina Brezae

CONTRACTOR
Bati Armor / Aiguillon Construction

ECONOMY
Lemonnier

ASSISTANT
Joana Kingwell

TECHNICAL STUDIES
Enercia

STRUCTURE
Ouest Structure

PHOTOGRAPHS
Takuji Shimmura

AREA
5300 m²

YEAR
2019

LOCATION
Rennes, France

CATEGORY
Apartment

L’Equatoria Apartments
© Takuji Shimmura
L’Equatoria Apartments
© Takuji Shimmura

Text description provided by architect.

This project was the winner of the competition looking for a response to the programmatic requests with certain rules: Area, typologies, and safeguard of the existing oak located in the center of the plot.

L’Equatoria Apartments
© Takuji Shimmura
L’Equatoria Apartments
© Takuji Shimmura

During the competition, all the proposals were aligned only with the defined guidelines. The proposal presented by our office was really a contrast of two buildings shaped like "staggered pyramids".

There were two clients on this project with different requests in terms of interior finishes and type of housing.

One was social housing, so the idea was to propose the same architecture in order not to make a distinction and to focus the design of housing around the central tree while proposing a public crossing in the center of the plot.

L’Equatoria Apartments
© Takuji Shimmura
L’Equatoria Apartments
© Takuji Shimmura
L’Equatoria Apartments
© Takuji Shimmura

The concept was to rise as high as possible by offering different volumes on each facade. The rotation of these volumes allows the creation of non-parallel elements and opens up varied outdoor spaces depending on the floors.

For every uneven floor, we proposed a metallic gold cladding that allows highlighting this volume, while creating big outdoor spaces (3.2m) through a floating volume which reinforces the atypical volumetry of the building.

L’Equatoria Apartments
© Takuji Shimmura
L’Equatoria Apartments
© Takuji Shimmura

On the ground floor, the project builds a continued facade to the street, while higher up the floors some setbacks allow offering the apartments open terraces while strengthening the lightness of the structure with random openings.

The rationality of floorplans, which offer a large majority of multi-orientation housing while limiting the number of elevator shafts, really helps saving construction costs and maintenance.

The project, very vertical in its design, seems visually horizontal thanks to the work done every two floors including the golden metal cladding, adding the presence of exterior continuity for volumes.

L’Equatoria Apartments
© Takuji Shimmura
L’Equatoria Apartments
© Takuji Shimmura
L’Equatoria Apartments
© Takuji Shimmura

On the ground floor, a commercial space allows offering a local trade in this new residential area.

It was decided to create a single level of parking lots, in order to limit additional costs and be able to keep a better quality of the materials.

This project allows you to find sunlight even on the north facades thanks to the strong withdrawals of the volumes every second floor.

L’Equatoria Apartments
© Takuji Shimmura


L’Equatoria Apartments
© Takuji Shimmura
L’Equatoria Apartments
© Takuji Shimmura
L’Equatoria Apartments
© Takuji Shimmura
L’Equatoria Apartments
© Takuji Shimmura


L’Equatoria Apartments
© Takuji Shimmura
L’Equatoria Apartments
© Takuji Shimmura


L’Equatoria Apartments
Ground floor plan
L’Equatoria Apartments
Floor plan level 2
L’Equatoria Apartments

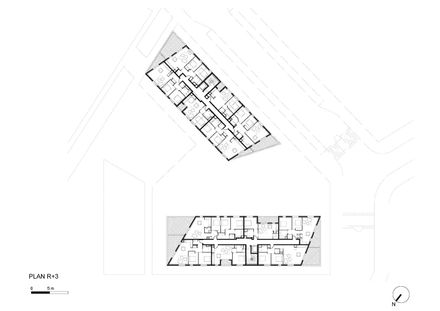

SectionFloor plan level 3
L’Equatoria Apartments

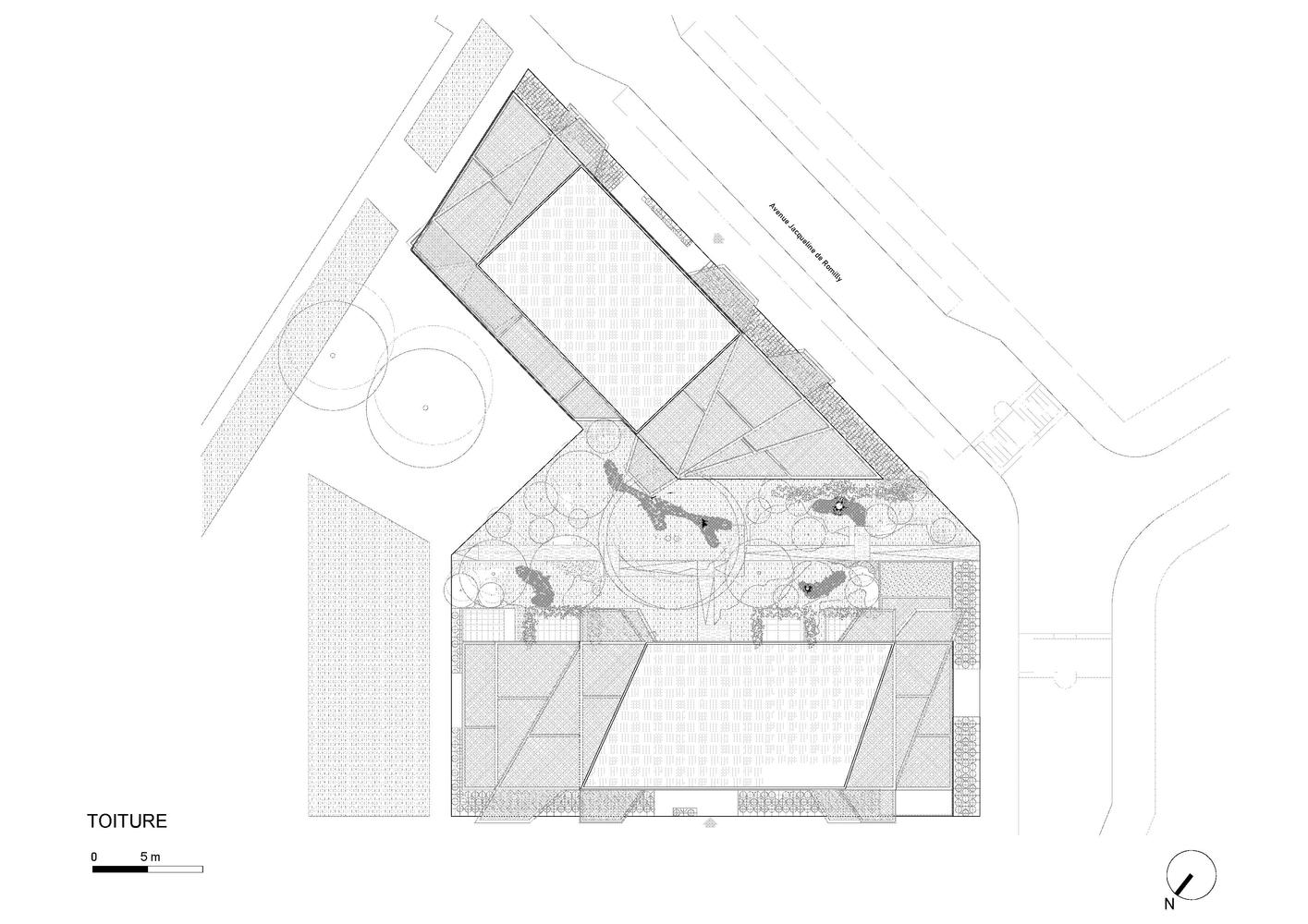

Roof plan


L’Equatoria Apartments
Section
L’Equatoria Apartments
Section


L’Equatoria Apartments
Facade
L’Equatoria Apartments
Facade
L’Equatoria Apartments
Axo
