Pakhaniyil Residence

Pakhaniyil Residence
© Justin Sebastin

Pakhaniyil Residence

Nufail Shabana Architects

CLIENTS
Mr.Shameem And Mrs.Shakeela Shameem

MANUFACTURERS
Autodesk, Laticrete, Roca, Asian Paints, Simpolo, Cota Stone

LANDSCAPE
Ar.Anish Nair

ARCHITECT IN CHARGE
Nufail Shabana Architects

STRUCTURAL CONSULTANTS
Faizal Associates

ENGINEERING
Indraneelam Constructions, Calicut

DESIGN TEAM
Nufail Shabana Architects

PHOTOGRAPHS
Justin Sebastin

AREA
5300 ft²

YEAR
2018

LOCATION
Chemmad, India

CATEGORY
Houses

Text description provided by architect.

Earthy Ethnic Abode. A modern ethnic abode designed in chembad, kerala 4kms within the main town with lush greenery around is a clear attempt to recreate an ethnic feel to a modern day house.

Pakhaniyil Residence
© Justin Sebastin
Pakhaniyil Residence
© Justin Sebastin

The design intent revolves around the crisp and clear lines used throughout the house in the elevation and interior spaces .

The ethnic theme used throughout the house is evident in the cota stone used for flooring to the mud texture, the colors used in the partition, light fixtures and metal used in handrails and partitions ,the wood used in ceiling and handrails.

Pakhaniyil Residence
© Justin Sebastin
Pakhaniyil Residence
© Justin Sebastin

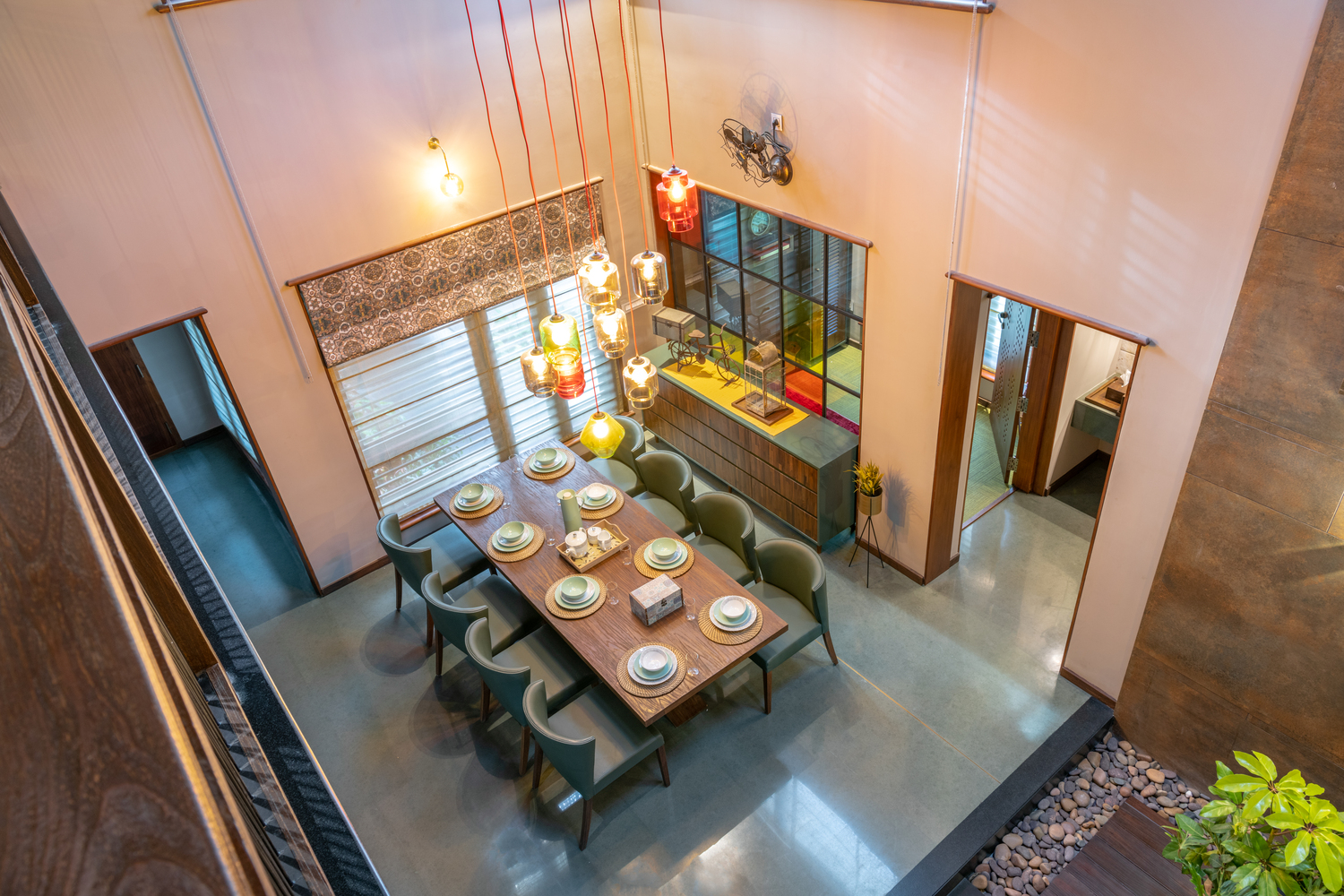

The house has been designed with 5 beds ,a spacious living ,dining area abutting a dry courtyard and a family living space with an extended spacious deck area.

The kitchen block has been placed on the north east side of the plot and accessible from the adjacent paternal home .

Pakhaniyil Residence
© Justin Sebastin
Pakhaniyil Residence
© Justin Sebastin

The modern ethnic feel throughout the house is created using rustic materials like bamboo, wood, jute. The colored glass plays an important role to create loud spaces with natural light filtering through the skylight and bamboo screening.

Salient features of the project - 1.The lengthy 22m long sit out slab increasing the horizontality of the elevation for a seemingly linear house and serves as a meeting place for the client and family as an evening retreat space.

Pakhaniyil Residence
© Justin Sebastin
Pakhaniyil Residence
© Justin Sebastin

2.The exposed concrete finish of the house adding to the ethnic theme of the residence. 3.Features like bamboo screening on the west side of the residence ,buffer zones added to the dining and deck area ,the buffer zone created at the roof level to drain out the heat accumulated throughout the daytime .

Spatial Experience. From the long sit out to the pantry space within ,every space has been treated with subtle colors, tinted glass and ample sunlight to create a cozy feel within the interior.

Pakhaniyil Residence
© Justin Sebastin
Pakhaniyil Residence
© Justin Sebastin

The wooden accent in the ceiling adds to the feel of space. Clean and clear lines are visible throughout the house and adds to the clarity of space. The buffers used throughout the house to reduce the heat inside the house.

Buffer 1. 3 m canopy for the sit-out on the west side .The projected slab in front of sit-out ,living room and dining acts as buffer and protects the west facing walls .Planting in the courtyard around the sit-out area acts as a screen Buffer

Pakhaniyil Residence
© Justin Sebastin
Pakhaniyil Residence
© Justin Sebastin

2. The deck space on the south side acts as a buffer to the family living area Buffer 3. Bamboo screening on the west side acts as a buffer to bring in filtered light through the windows on west.

Buffer 4. Planning the prayer and toilets on the north side as a buffer done around the house to reduce direct exposure of walls to sunlight.

Pakhaniyil Residence
© Justin Sebastin
Pakhaniyil Residence
© Justin Sebastin

Buffer 5. Thick planting on the east side acts as a buffer. The existing thick and tall plants on the east side protects the walls facing the rear yard.

The vegetation in the neighboring plot at the rear is an added advantage to the house

Buffer 6. Industrial roof over the concrete slab makes a cavity and ventilator wind fans suck out hot air. The concrete roof is treated with cera coolant admixtures to reduce heat .

Pakhaniyil Residence
© Justin Sebastin
Pakhaniyil Residence
© Justin Sebastin
Pakhaniyil Residence
© Justin Sebastin

The wind ventilator fans ease the hot air to be flushed out naturally. The louvers placed over the parapet on the south side and north side of the house keeps the buffer zone below the industrial roof airy.

The residence has a varied palette of materials ranging from cota stone to exposed concrete texture, jute fabric, rattan inlay, colored glass and wooden frames and scrap wood available and mud finish on walls.


Pakhaniyil Residence

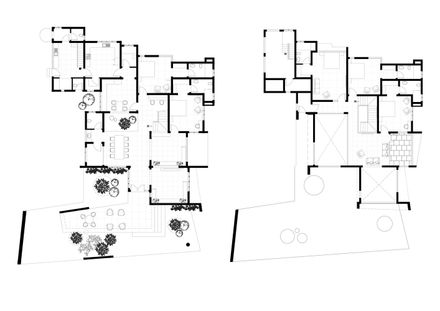

Plans
Pakhaniyil Residence
Plans


Pakhaniyil Residence
Concept
Pakhaniyil Residence

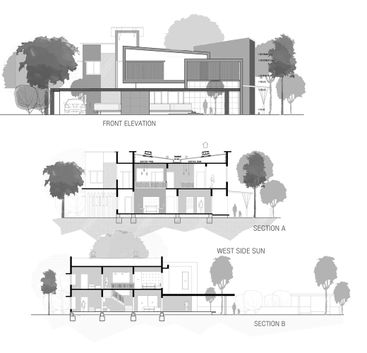

Sections
