Inje Residence

INJE RESIDENCE

Ykh Associates

Inje Residence
© Jung Dongwook
Inje Residence
© YKH Associates

ARCHITECTS
Ykh Associates

CLIENT
Pyungan L&c

LEAD ARCHITECT
Tae Sun Hong, Aia

CONSTRUCTION
Yiinsigak

DESIGN TEAM
Daejung Sang, Wonjin Kim

MANUFACTURERS
Autodesk, Filobe, Robert Mcneel & Associates

AREA
400 m²

SITE AREA
1121.0 M2

YEAR
2014

LOCATION
Inje-gun, South Korea

CATEGORY
Houses, Sustainability & Green Design

Inje Residence
© YKH Associates

Text description provided by architect.

Located in the foothill of Seolak Mountain, one of the main challenges of designing this villa was to respond with the context of its site.

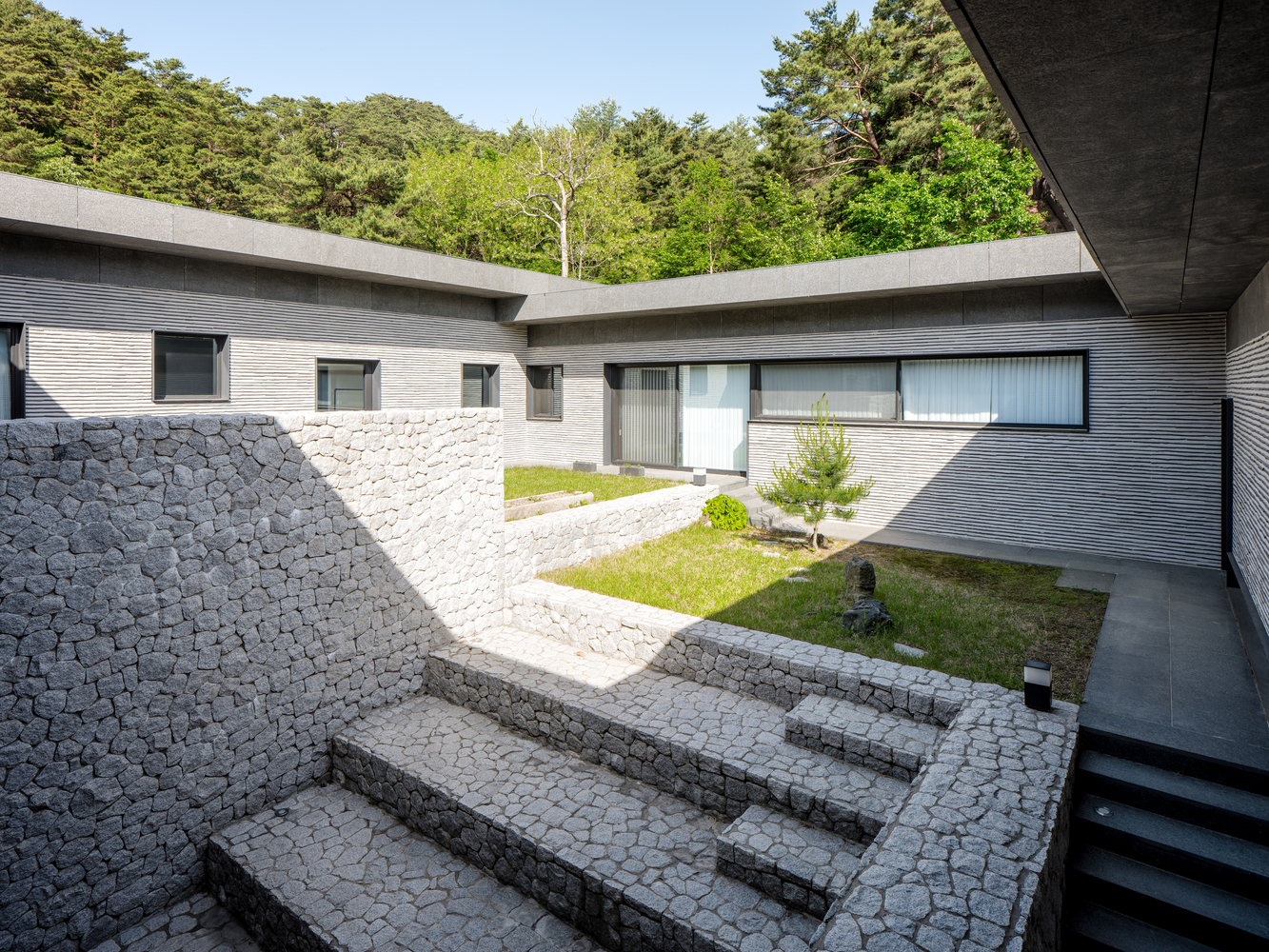

In this hillside location, the solution was to adapt an ancient Korean traditional courtyard design. Along with the natural topography, four volumes are stepped and formed a courtyard.

Inje Residence
© Jung Dongwook
Inje Residence
© YKH Associates

400 M2 house with five-beds and four-baths, has four wings: Master Suite Wing, Living & Dining Wing, Kitchen & Amenity Wing, and Guest & Gallery Wing.

Inward view of this courtyard, not only accommodates various family activities but also provides a mountain view through the center opening of the courtyard which enhances a quiet and contemplative aura and avoids the unpleasing view of the tomb and the adjacent hut.

As with the Korean courtyard style, the use of the local and natural materials was cost-effective.

Inje Residence
© YKH Associates
Inje Residence
© YKH Associates
Inje Residence
© YKH Associates

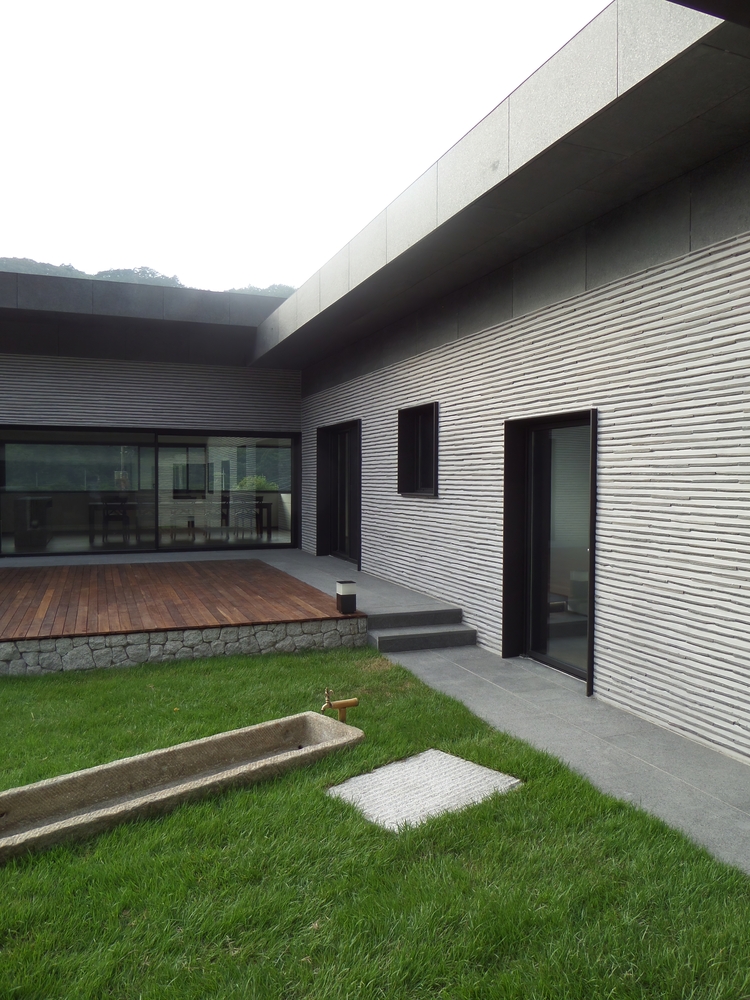

The Korean ‘giwa’, a form of ceramic tile used in the old traditional roof construction, was applied in the wall construction kneaded with a special colored mortar to emphasize the horizontality of the facade along with the overhanging local granite stone roofs.

Traditional, but yet this modernized design in many aspects also introduced sustainable and passive design.

Inje Residence
© YKH Associates
Inje Residence
© YKH Associates

Instead of using oil or LPG generated heating system which consumes large amounts of energy, more efficient geothermal system was adapted by digging down 154 m of the ground.

Grass rooftop was designed to act as insulation and to avoid heat buildup which substantially reduced the energy and cost of maintenance.

Inje Residence
© Jung Dongwook
Inje Residence
© Jung Dongwook

Four volumes are positioned at a different level in responding to the sloped site. Each volume of space is arranged in the form of Korean traditional houses.

The living quarter was divided into sectors with individual volumes and separated with outdoor space. The corridor is a mediator between outdoor and indoor space. As these four integrated volumes in different level positioned, various levels of openings are deployed.

Inje Residence
© Jung Dongwook
Inje Residence
© Jung Dongwook

For this construction, continuous wall girders with horizontal beams are used to lift to create void space: openings for the entryway, garages, lights and views. Each opening frames out new boundary and brings new relationship of outdoor space.


Inje Residence
© Jung Dongwook
Inje Residence
© Jung Dongwook
Inje Residence
© Jung Dongwook
Inje Residence
© Jung Dongwook
Inje Residence
© Jung Dongwook
Inje Residence
© Jung Dongwook
Inje Residence
© YKH Associates
Inje Residence
© Jung Dongwook
Inje Residence
© Jung Dongwook
Inje Residence
© Jung Dongwook
Inje Residence
© Jung Dongwook
Inje Residence
© Jung Dongwook


Inje Residence
Cross Section
Inje Residence
Longitudinal Section


Inje Residence
© YKH Associates
Inje Residence
© YKH Associates
Inje Residence
© YKH Associates
Inje Residence
Diagram


Inje Residence
First Plan
Inje Residence
B1 Plan
Inje Residence

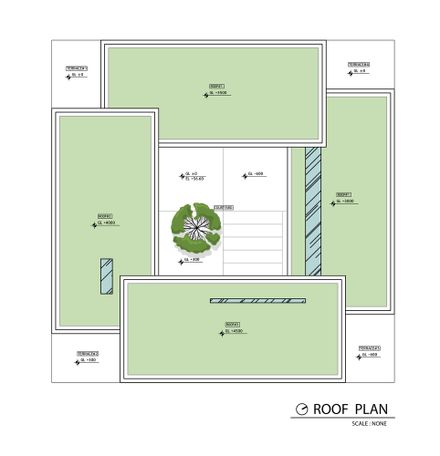

Roof Plan
Inje Residence
Volume Formation


Inje Residence
Wall Detail
