CHARRED CABIN

DRAA

Charred Cabin
© Felipe Camus

ARCHITECTS
DRAA

CONSTRUCTOR
Hector, Felipe And Matias Molina, Tito Lizana, Sergio Ramirez Sr&jr.

COLLABORATORS
Gonzalo Pulgar, Magdalena Besomi, Freddy Alvarez

DESIGN TEAM
Nicolas Del Rio, Felipe Camus

PHOTOGRAPHS
Felipe Camus

AREA
15 m²

YEAR
2014

LOCATION
Olmué, Chile

CATAGORY
Houses

Charred Cabin
© Felipe Camus

Text description provided by architect.

Commissioned as a mountain hideout, the Charred Cabin settles on a rather unusual location for Santiago inhabitants.

Before the automobile era, a winding road linked the capital and the port across the Coastal Range.

Charred Cabin
© Felipe Camus
Charred Cabin
© Felipe Camus

The area is full of historic places that recall the early years. Derelict Monuments, battle sites, gold mines remain nowadays abandoned.

Among the dominant slow-path countryside, an academic couple sharing the site with –peers- aim to profit from the melancholic atmosphere.

Charred Cabin
© Felipe Camus
Charred Cabin
© Felipe Camus

MINIMUM DWELLING

To fit in a budget the activities required to fulfil within the cabin were explicitly simple: a place to eat, sleep and read for two, everything else is to be offset outside.

In contrast with the open surrounding, the cabin is designed as a shelter with a measured connection with the exterior, which can be understood in two moments.

Charred Cabin
© Felipe Camus
Charred Cabin
© Felipe Camus
Charred Cabin
© Felipe Camus

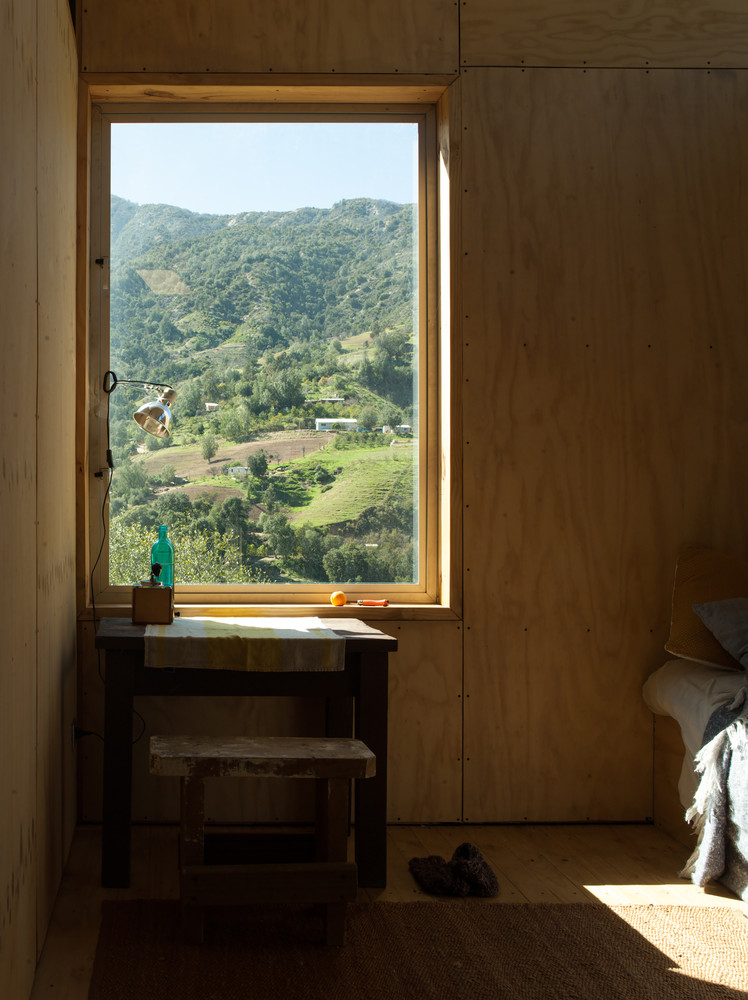

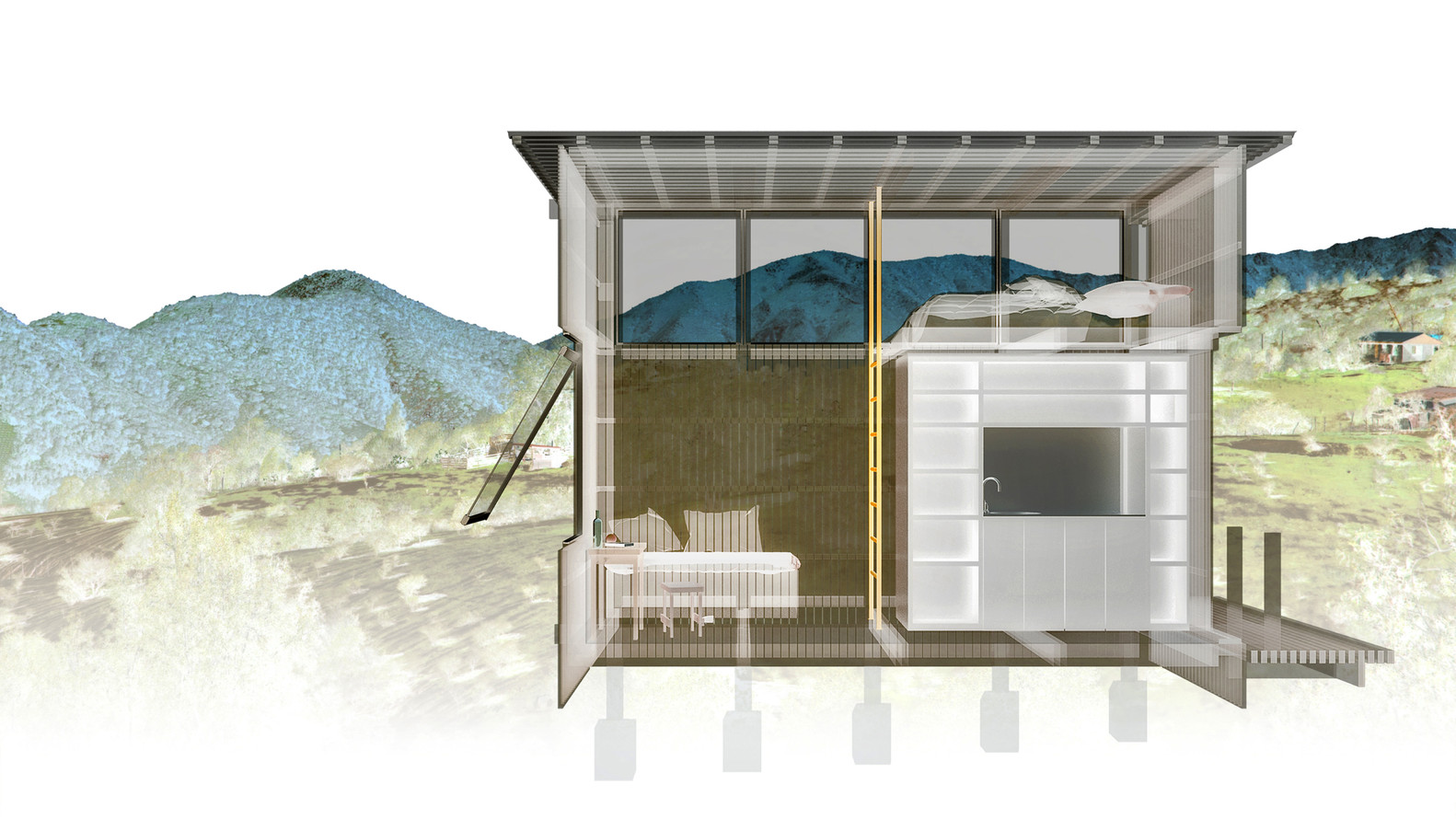

The entrance level (1) is depicted by a single window with a particular height, which shapes the activities of the lofty room, whereas cooking and bathing are pressed by the mezzanine.

In the middle of the floorplan a steel ladder allows for an attic (2) which differences with extensive horizontal windows framing iconic mountains.


CONSTRUCTION

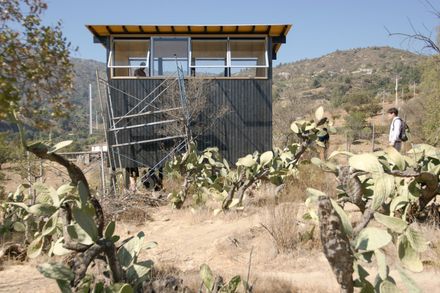

Originally meant as a self-built permanent tent, the cabin takes shape from SIP panels. The prefab modules are arranged and proportioned in order to stand out from the steep terrain on stilts. Swiftly assembled by a party of three, the easiness of construction was mandatory.

Charred Cabin
© Felipe Camus
Charred Cabin
© Felipe Camus

In order to avoid chemical products, the cladding pine planks were charred onsite following traditional instructions.

A thin layer of sooth must prevent the cabin from decay and weather effortlessly. On the inside plywood panels cover electricity and water piping whilst providing a warm finishing.

Charred Cabin
© Felipe Camus


Charred Cabin
Ground Floor Plan
Charred Cabin
First Floor Plan


Charred Cabin
East Elevation
Charred Cabin

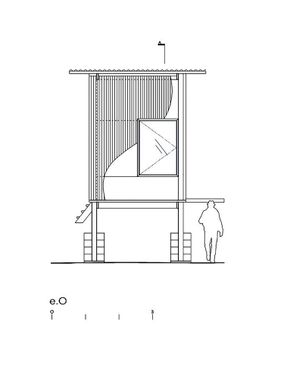

West Elevation
Charred Cabin
South Elevation
Charred Cabin
North Elevation
Charred Cabin

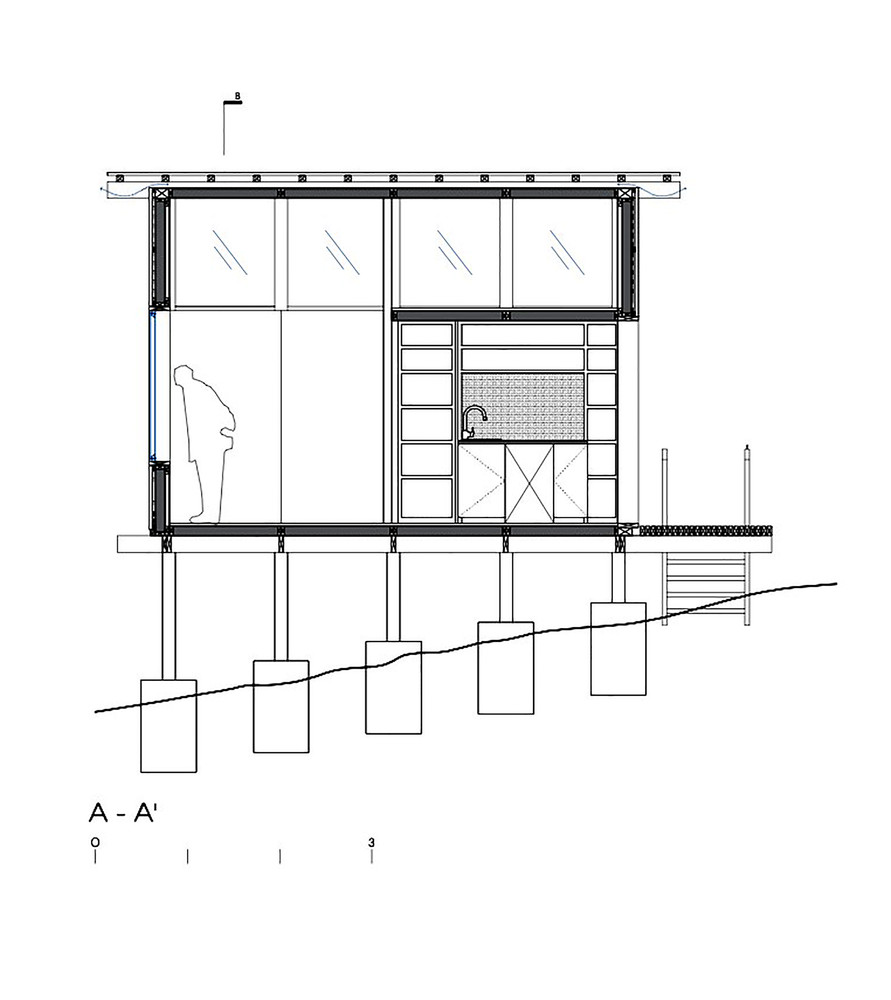

Section AA
Charred Cabin
Section BB


Charred Cabin
Drawing
